Toyota Corolla/Trueno
1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe
Discontinued model
Data version 1981-12

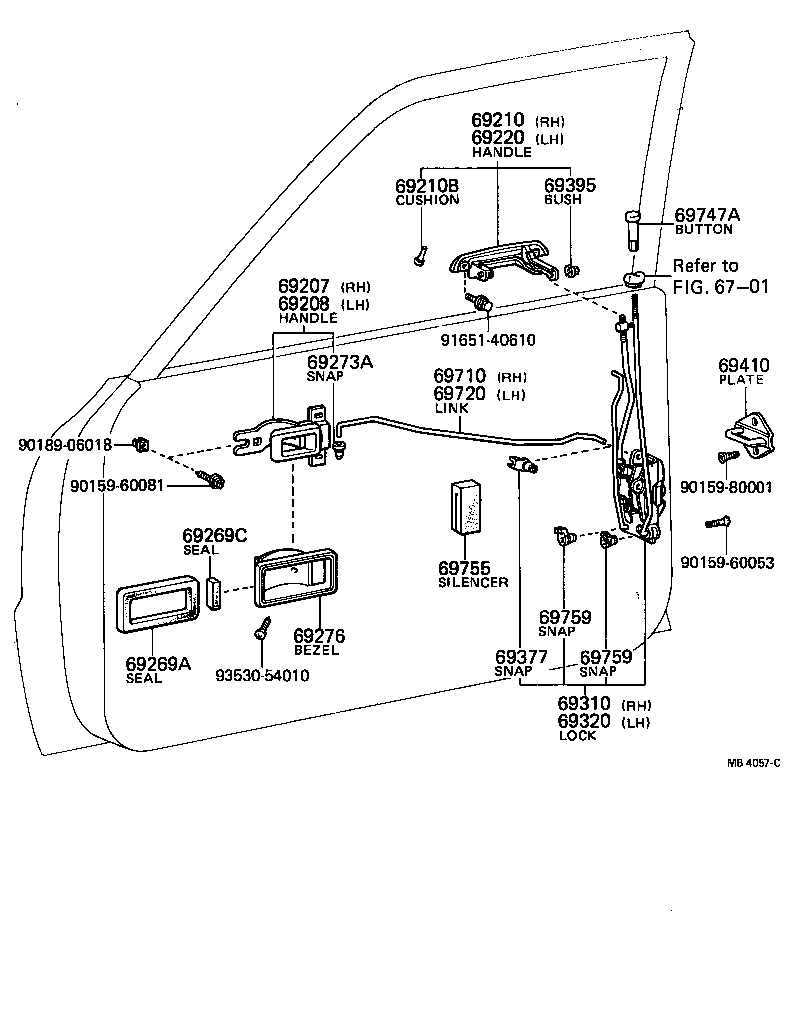

Front Door Lock & Handle
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 68270 | Cushion, Front Door Glass, Inner |
| 69207 | Handle Sub-assy, Front Door Inside, RH |
| 69208 | Handle Sub-assy, Front Door Inside, LH |
| 69210 | Handle Assy, Front Door, Outside RH |
| 69210B | Cushion(FOR FRONT DOOR OUTSIDE HANDLE) |
| 69220 | Handle Assy, Front Door Outside, LH |
| 69269A | Seal, Door Inside Handle NO.1(FOR FRONT DOOR) |
| 69269C | Seal, Door Inside Handle NO.2(FOR FRONT DOOR) |
| 69273A | Snap, Door Inside Handle Rod(FOR FRONT DOOR) |
| 69276 | Bezel, Front Door Inside Handle |
| 69310 | Lock Assy, Front Door, RH |
| 69320 | Lock Assy, Front Door, LH |
| 69377 | Snap, Front Door Lock Control Rod |
| 69395 | Bush(FOR DOOR OUTSIDE HANDLE) |
| 69410 | Plate Assy, Front Door Lock Striker |
| 69710 | Link Assy, Front Door Open Control, RH |
| 69720 | Link Assy, Front Door Open Control, LH |
| 69743 | Link, Front Door Locking Control, NO.1 RH |
| 69744 | Link, Front Door Locking Control, NO.1 LH |
| 69747A | Button, Door Locking(FOR FRONT DOOR) |
| 69749A | Clamp, Front Door Lock Link, NO.1 |
| 69755 | Silencer, Front Door Lock Link |
| 69759 | Snap, Door Lock Control Link, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
