Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

27 part groups · 5 illustrations

Illustrations

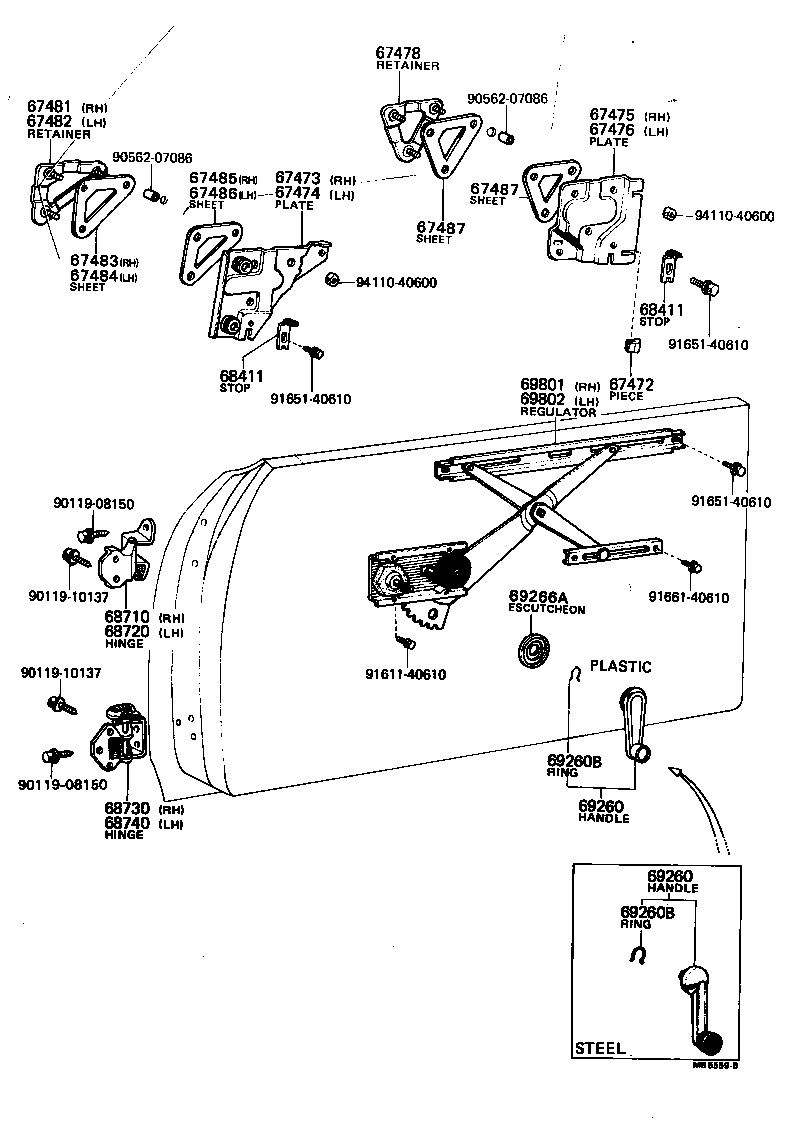

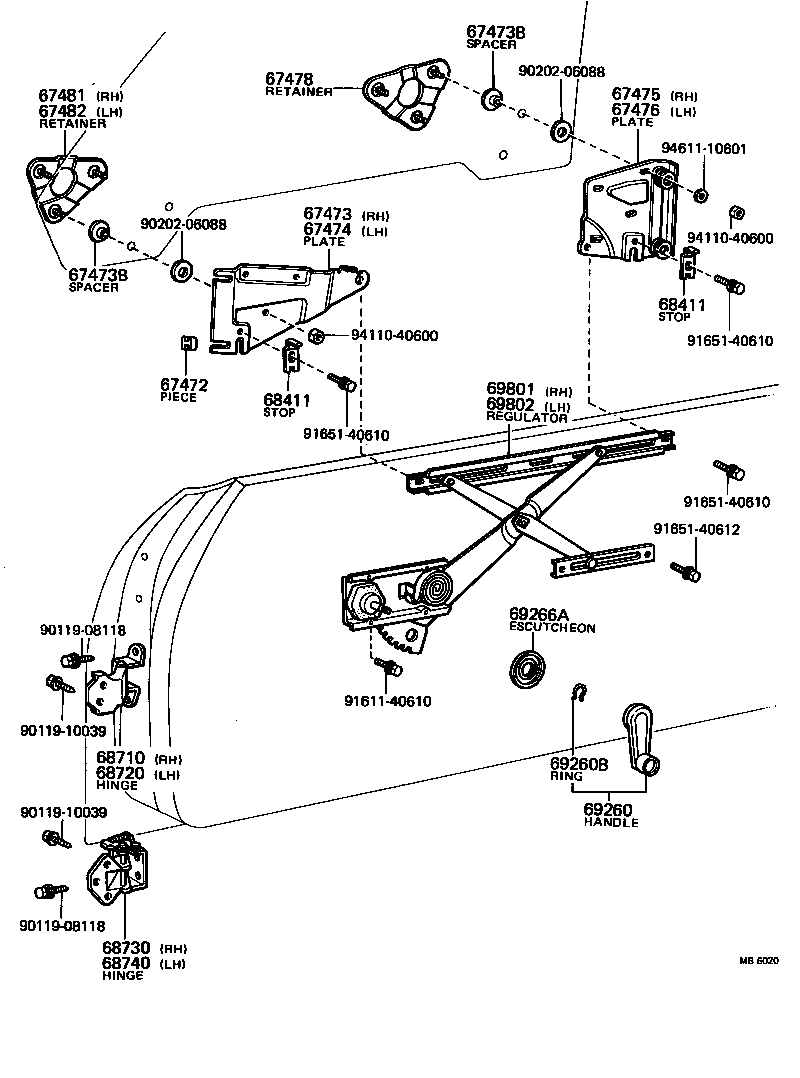

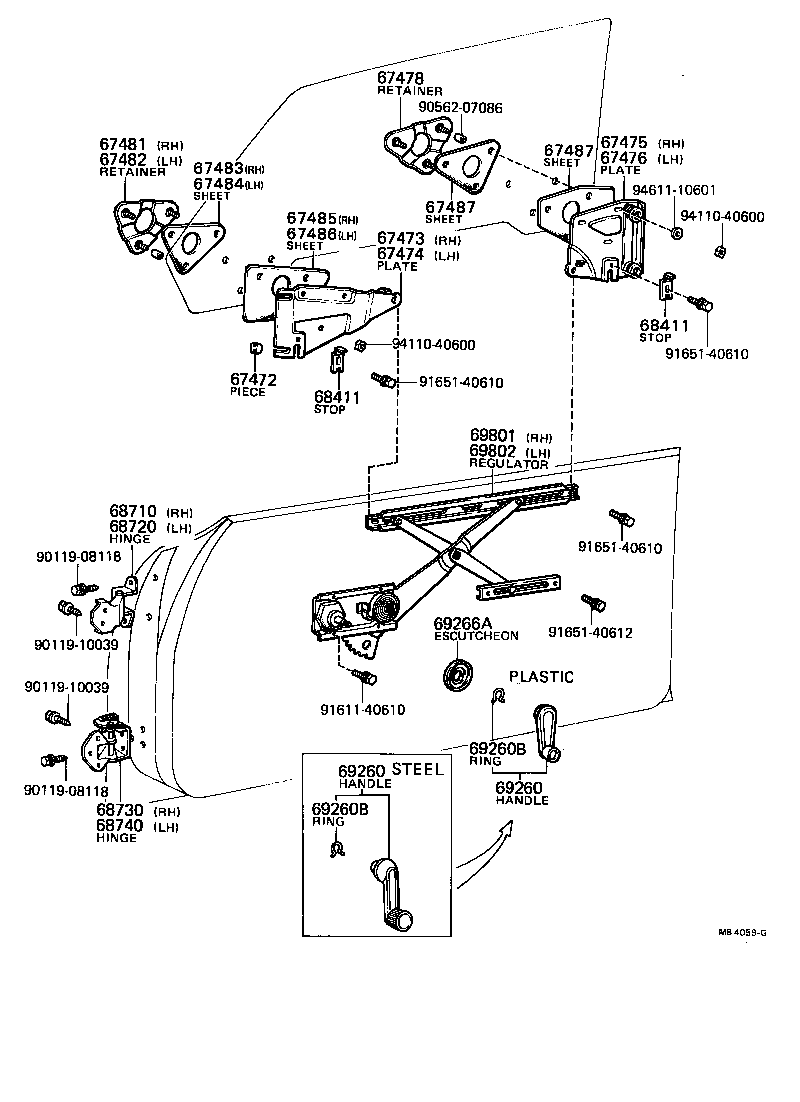

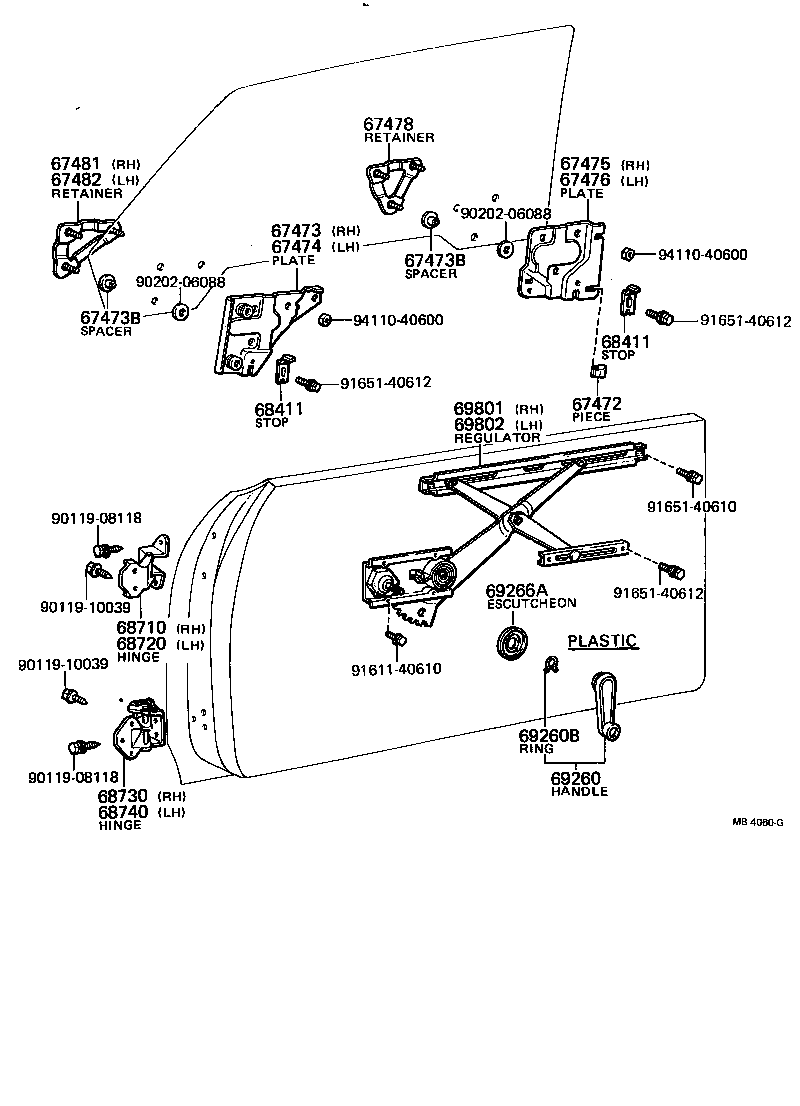

Figure MB4058D MB4058D 1974-08 → — Figure MB4059G MB4059G 1974-08 → 1976-04 Figure MB6020 MB6020 1976-04 → — Figure MB5559B MB5559B 1974-08 → 1976-01 Figure MB4060G MB4060G 1976-01 → 1979-08

Part groups

PNCDescription
67472 Piece, Front Door Glass Guide
67473 Plate, Front Door Glass Holder, Front RH
67473B Spacer, Front Door Glass Holder Plate
67474 Plate, Front Door Glass Holder, Front LH
67475 Plate, Front Door Glass Holder, Rear RH
67476 Plate, Front Door Glass Holder, Rear LH
67478 Retainer, Front Door Glass, Rear
67481 Retainer, Front Door Glass, Front RH
67482 Retainer, Front Door Glass, Front LH
67483 Sheet, Front Door Glass Front Outside, RH
67484 Sheet, Front Door Glass Front Outside, LH
67485 Sheet, Front Door Glass Front Inside, RH
67486 Sheet,Front Door Glass Front Inside, LH
67487 Sheet, Front Door Glass, Rear
68171 Weatherstrip, Front Door Glass Channel
68411 Stopper, Door Window Glass, Upper Front
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69260 Handle Assy, Front Door Window Regulator
69260B Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69266A Escutcheon, Door Regulator Handle(FOR FRONT DOOR)
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
69901 Channel Sub-assy, Front Door Glass, RH
69902 Channel Sub-assy, Front Door Glass, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
