Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

8 part groups · 2 illustrations

Illustrations

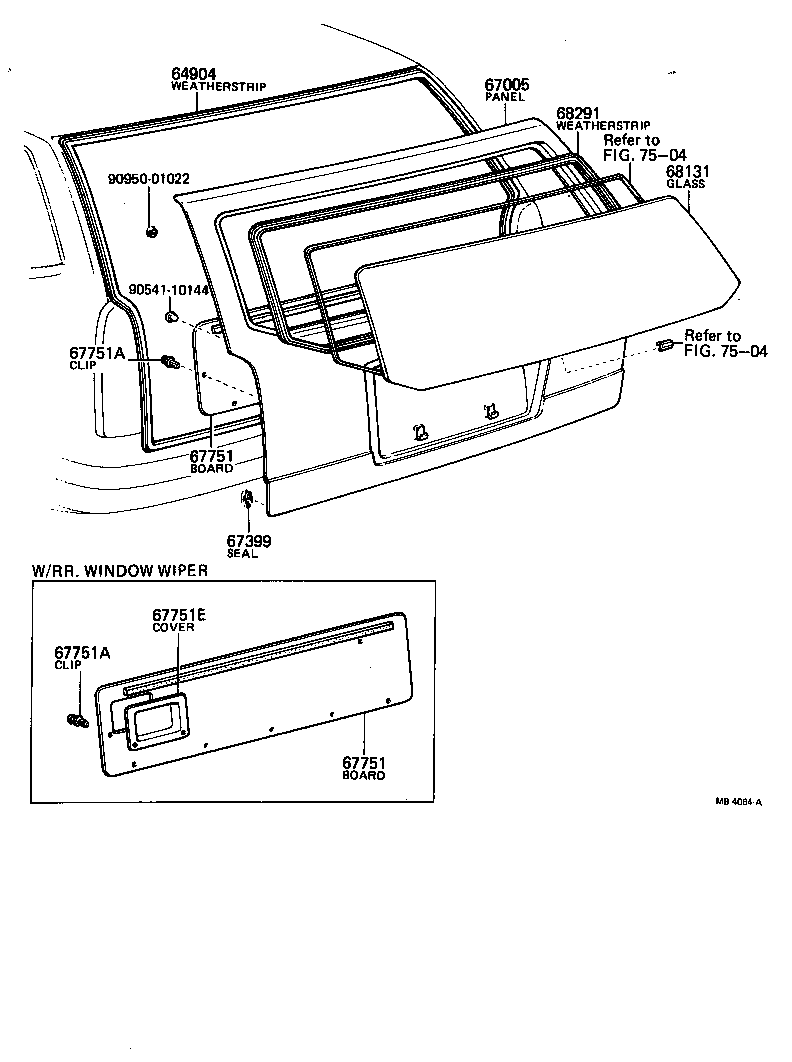

Figure MB5419B MB5419B 1976-03 → 1979-08 Figure MB4064A MB4064A 1974-08 → —

Part groups

PNCDescription
64904 Weatherstrip Sub-assy, Back Door
67005 Panel Sub-assy, Back Door
67399 Seal, Back Door Drain Hole Dust
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67751E Cover, Rear Window Wiper, Motor
68131 Glass, Back Door
68291 Weatherstrip, Back Door Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
