Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

23 part groups · 2 illustrations

Illustrations

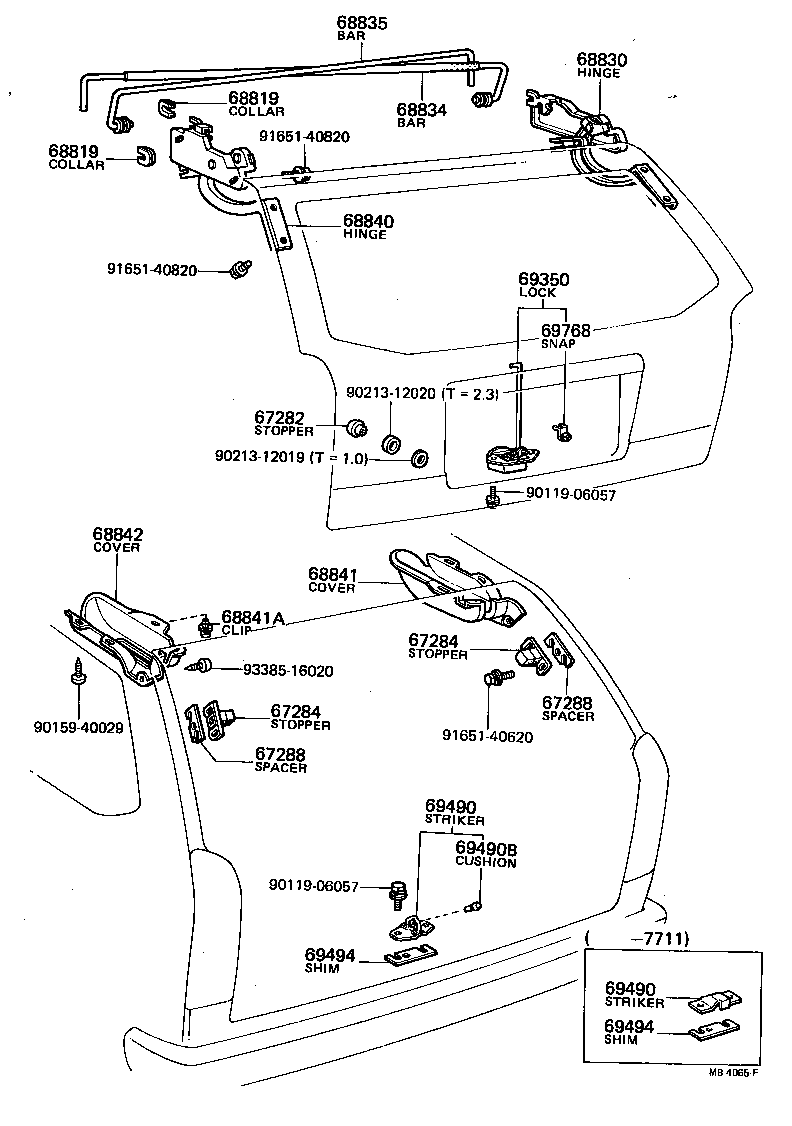

Figure MB7644A MB7644A 1976-03 → 1979-08 Figure MB4065F MB4065F 1974-08 → —

Part groups

PNCDescription
67282 Stopper, Back Door, NO.1
67284 Stopper, Back Door, NO.2
67288 Spacer, Back Door Side Stopper, Upper
68819 Collar, Torsion Bar Support, NO.1
68830 Hinge Assy, Back Door, RH
68834 Bar, Back Door Torsion, RH
68835 Bar, Back Door Torsion, LH
68838 Pad, Back Door Hinge, NO.1
68839 Pad, Back Door Hinge, NO.2
68840 Hinge Assy, Back Door, LH
68841 Cover, Torsion Bar, RH
68841A Clip(FOR TORSION BAR COVER)
68842 Cover, Torsion Bar, LH
68970 Stay Assy, Back Door, RH
68977 Bracket, Back Door Stay
68980 Stay Assy, Back Door
69350 Lock Assy, Back Door
69350A Spring(FOR BACK DOOR LOCK)
69490 Striker Assy, Back Door Lock
69490A Spring(FOR BACK DOOR LOCK STRIKER)
69490B Cushion(FOR BACK DOOR LOCK STRIKER)
69494 Shim, Back Door Lock Striker
69768 Snap, Back Door Lock Control Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
