Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

21 part groups · 7 illustrations

Illustrations

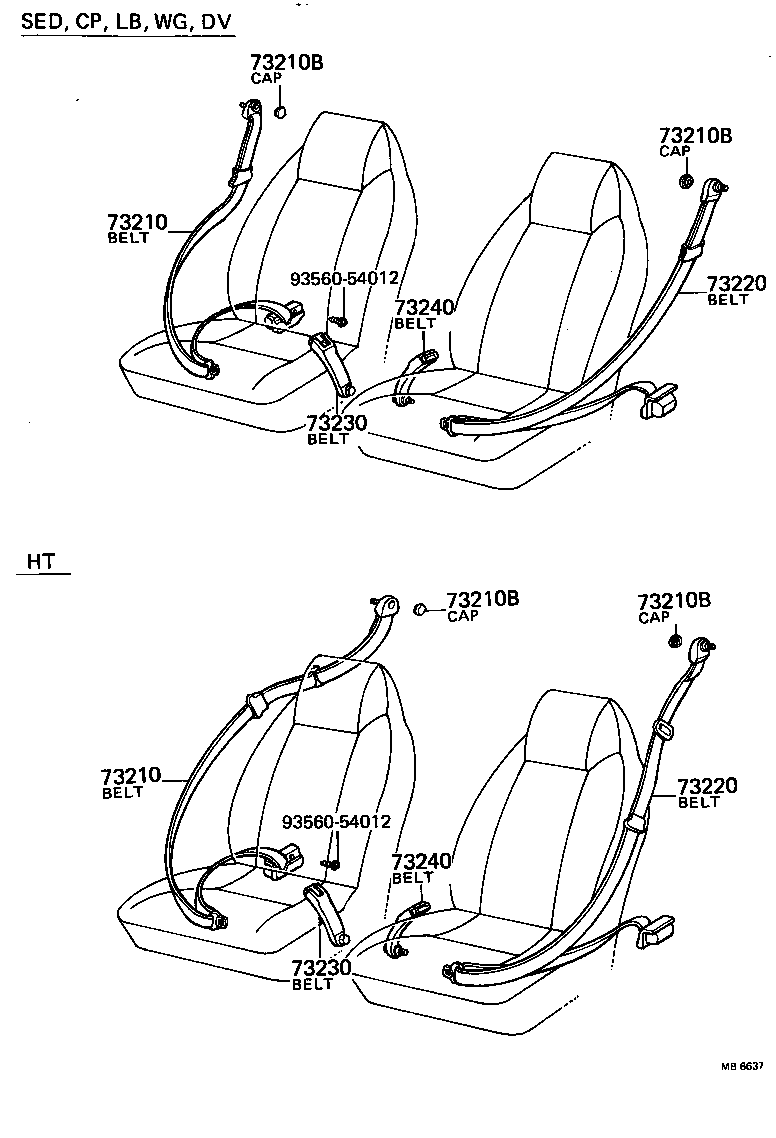

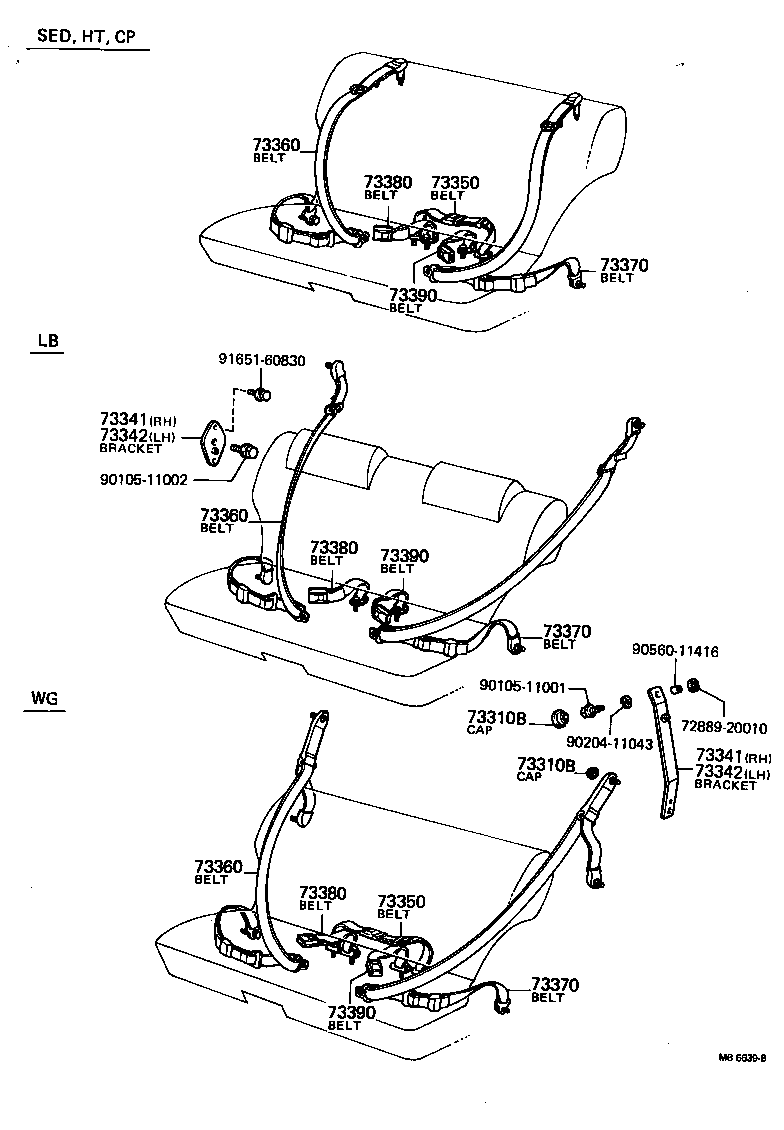

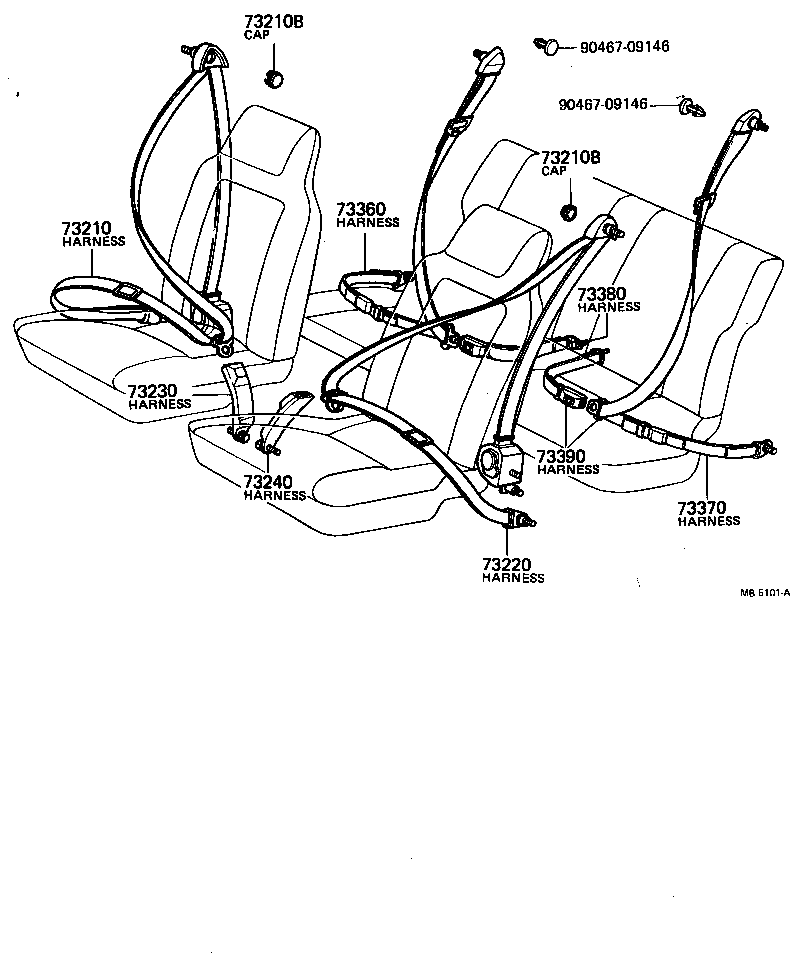

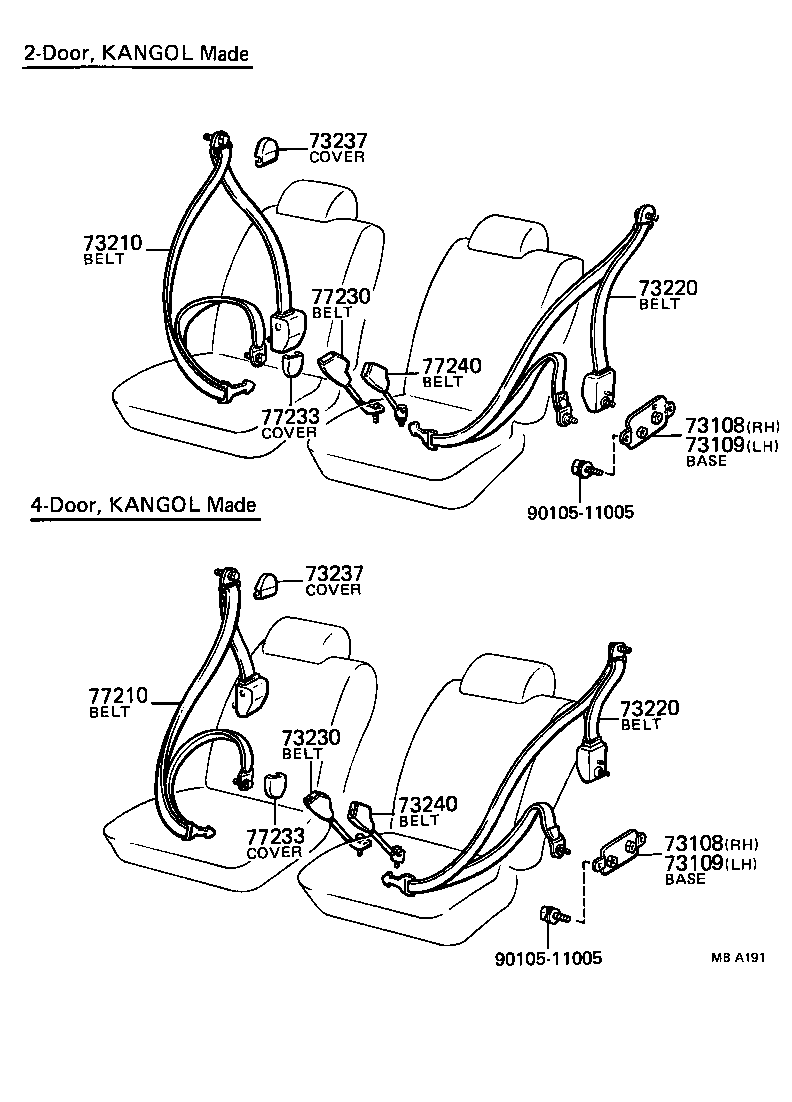

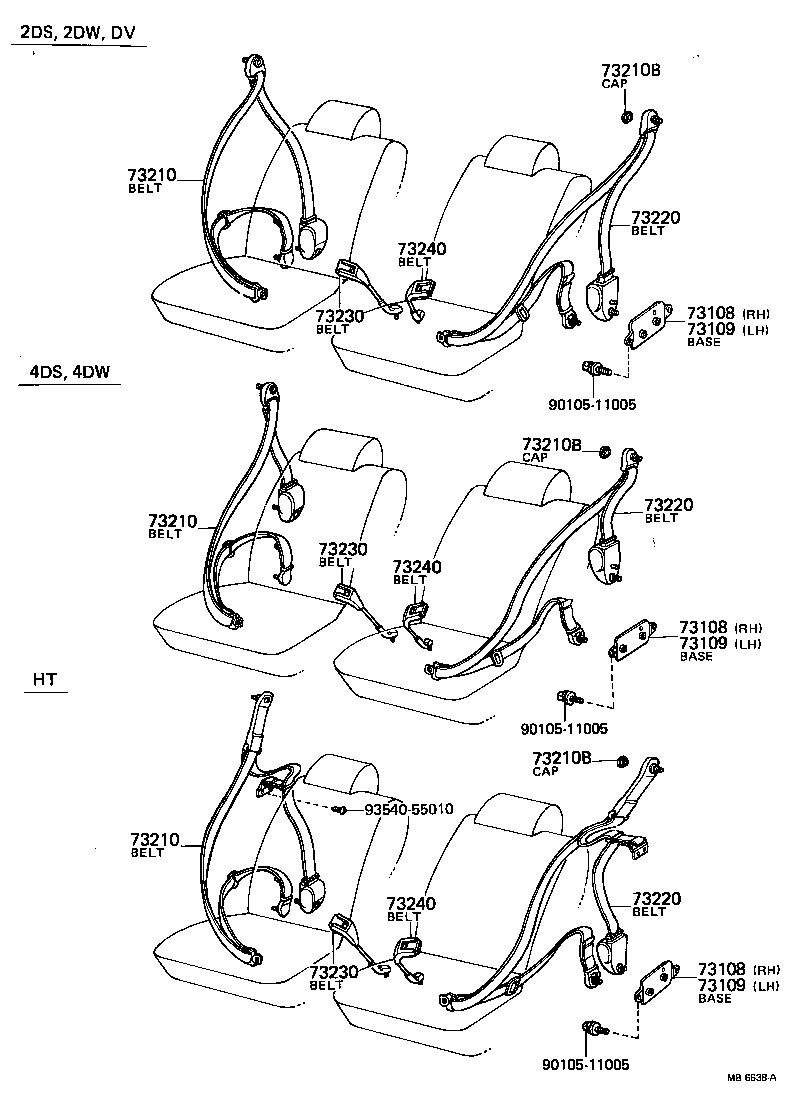

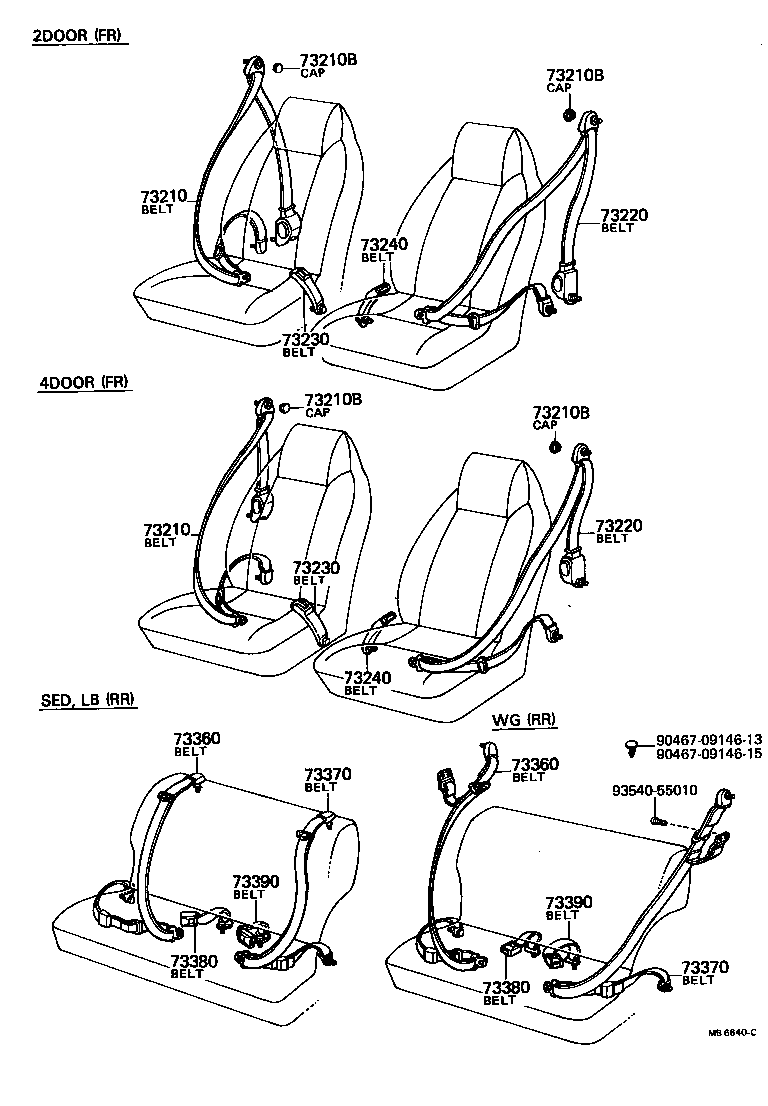

Figure MB5424C MB5424C 1974-08 → 1977-01 Figure MB5101A MB5101A 1975-01 → 1977-01 Figure MB6637 MB6637 1977-01 → — Figure MB6638A MB6638A 1977-01 → 1979-08 Figure MBA191 MBA191 1979-03 → 1979-08 Figure MB6639B MB6639B 1977-01 → 1979-08 Figure MB6640C MB6640C 1977-01 → —

Part groups

PNCDescription
73108 Base Sub-assy, Front Seat Belt Anchor, RH
73109 Base Sub-assy, Front Seat Belt Anchor, LH
73110 Belt Assy, Front Seat 3 Point Type, RH
73120 Belt Assy, Front Seat 3 Point Type, LH
73210 Belt Assy, Front Seat Outer, RH
73210B Cap (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73237 Cover, Shoulder Belt Anchor
73240 Belt Assy, Front Seat Inner, LH
73310B Cap (FOR REAR SEAT OUTER BELT)
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73341 Bracket, Rear Belt Shoulder Retractor, RH
73342 Bracket, Rear Belt Shoulder Retractor, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
