Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

27 part groups · 6 illustrations

Illustrations

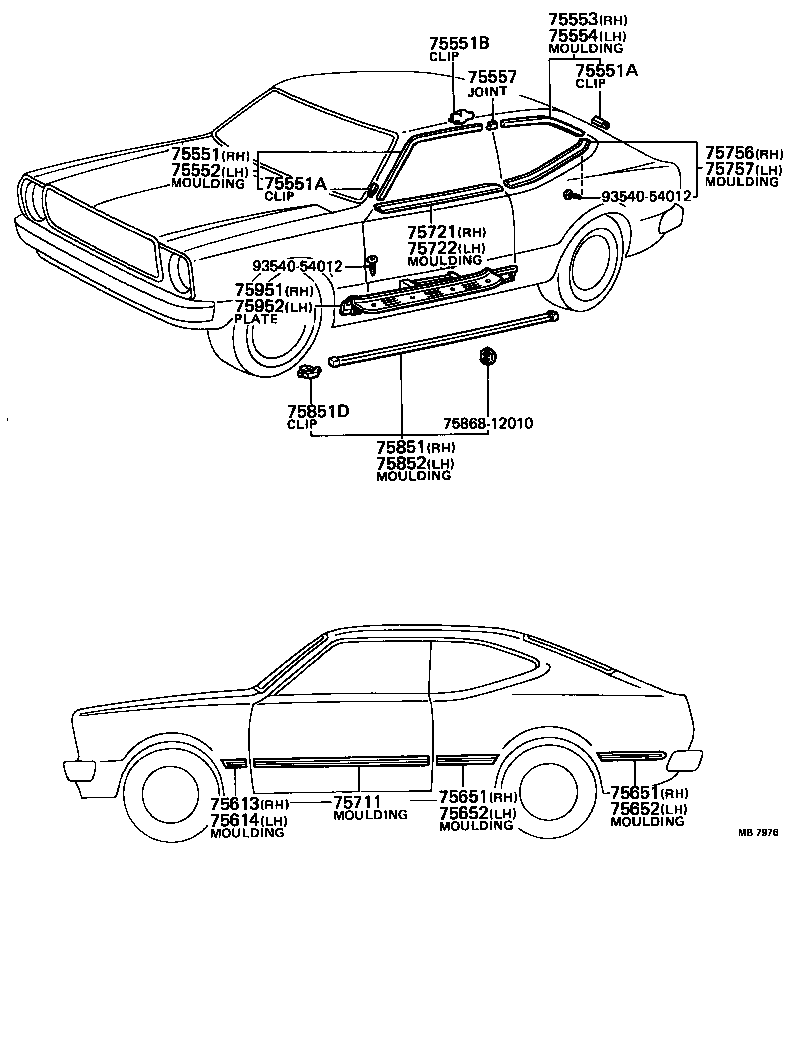

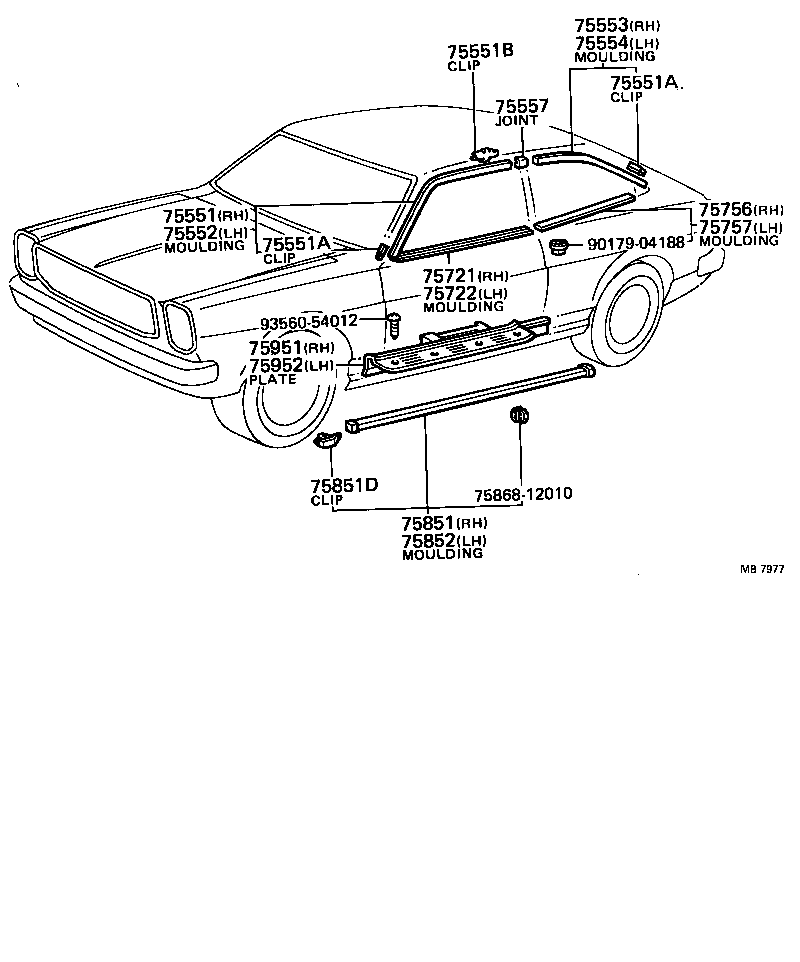

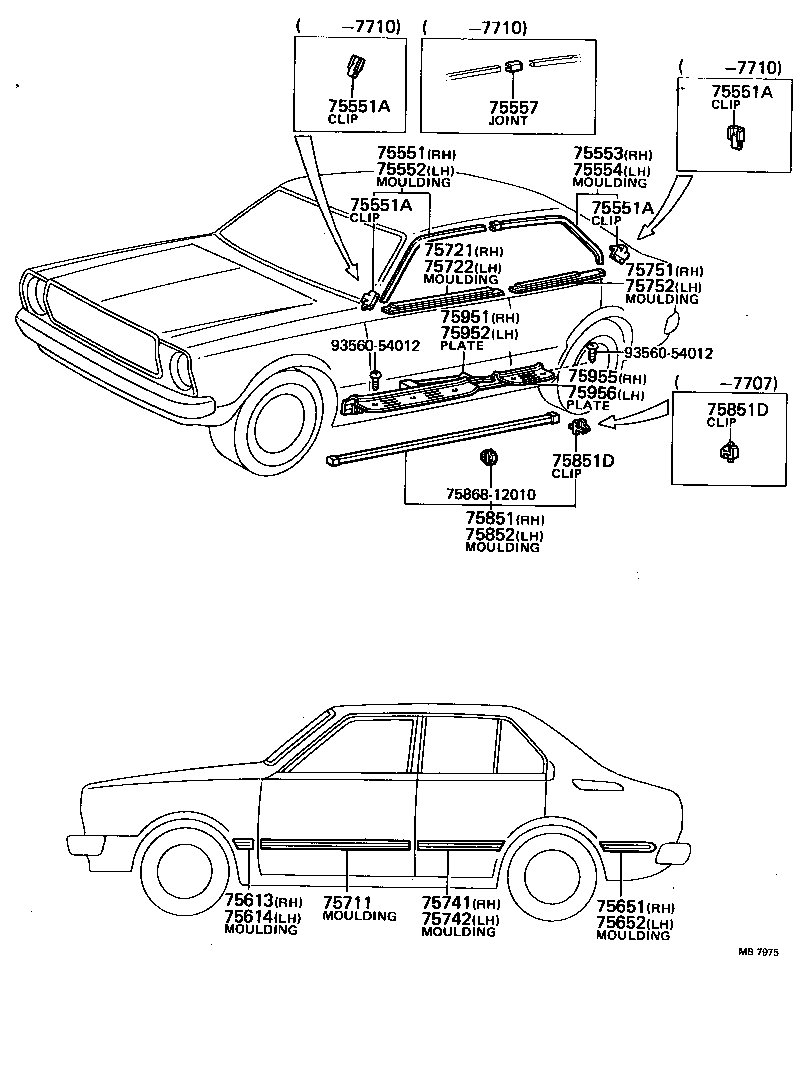

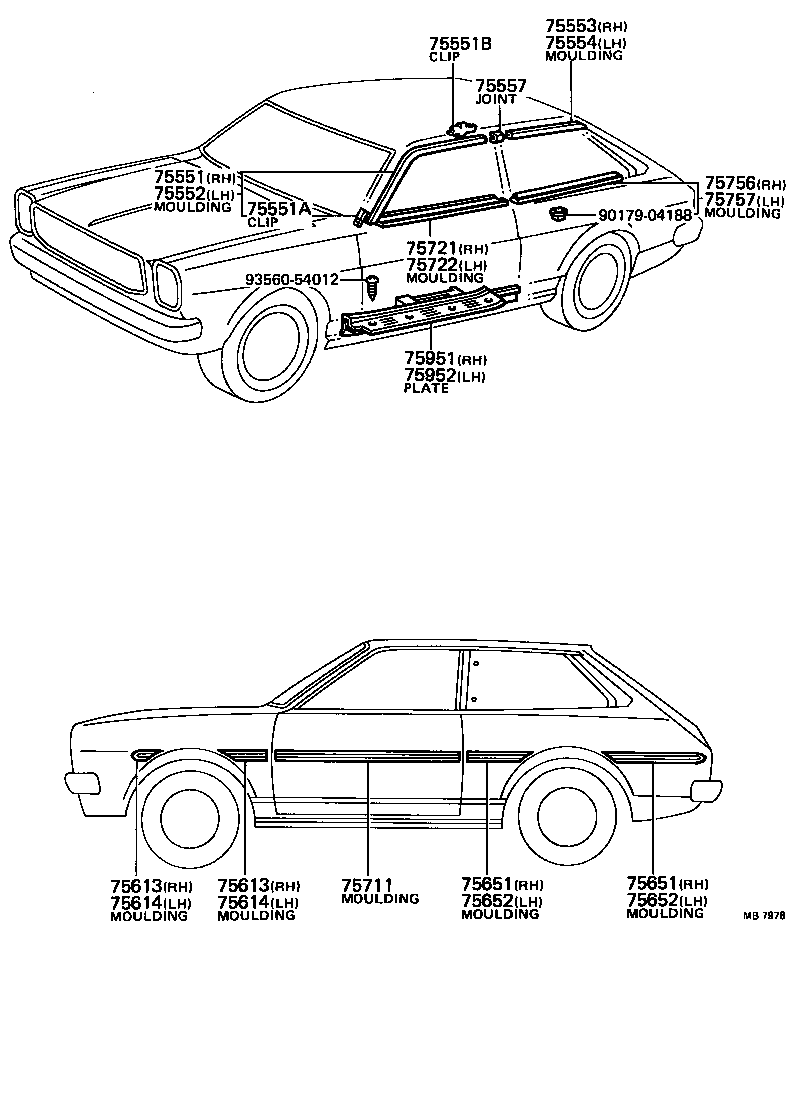

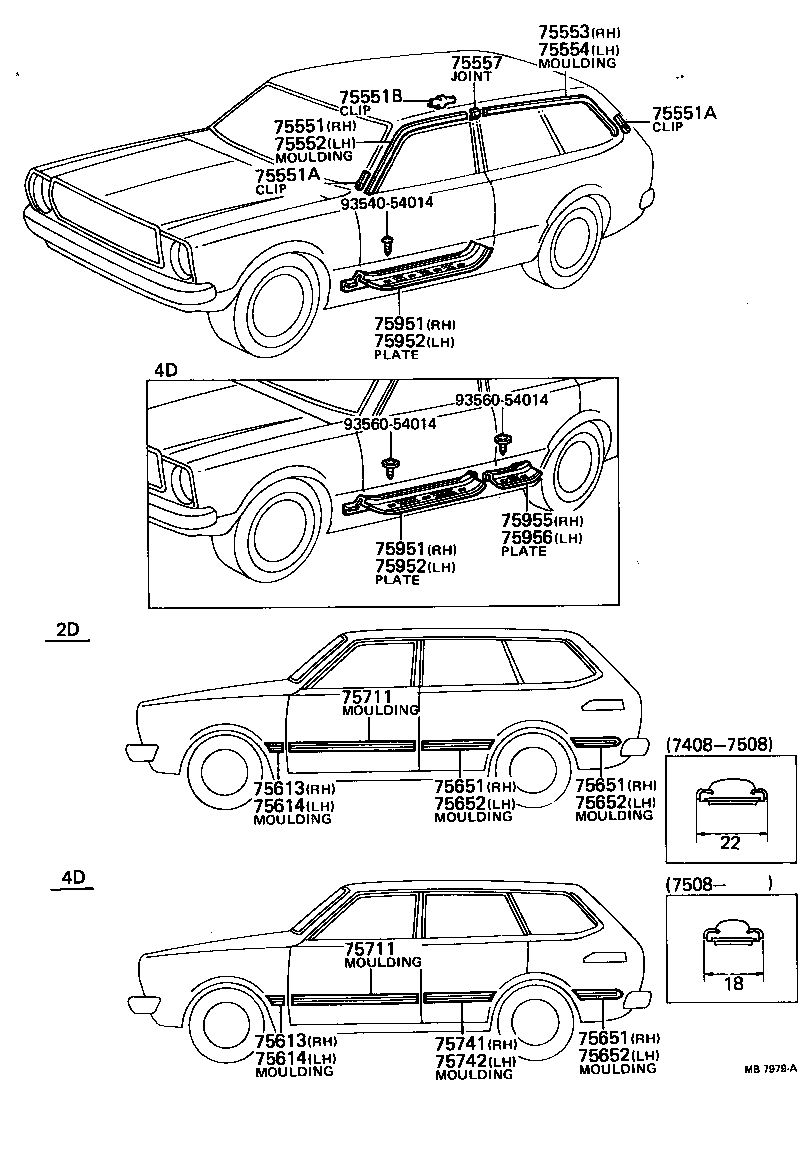

Figure MB7974 MB7974 1974-08 → 1980-02 Figure MB7975 MB7975 1974-08 → — Figure MB7976 MB7976 1974-08 → — Figure MB7977 MB7977 1974-08 → 1979-08 Figure MB7978 MB7978 1976-03 → 1979-08 Figure MB7979A MB7979A 1974-08 → —

Part groups

PNCDescription
75551 Moulding, Roof Drip Side Finish, RH
75551A Clip, Roof Drip Moulding, NO.1
75551B Clip, Roof Drip Moulding, NO.2
75552 Moulding, Roof Drip Side Finish, LH
75553 Moulding, Roof Drip Side Finish, RH
75554 Moulding, Roof Drip Side Finish, LH
75557 Joint, Roof Drip Side Finish Moulding
75613 Moulding, Front Fender, Outside RH
75614 Moulding, Front Fender, Outside LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75711 Moulding, Front Door Outside, NO.1
75721 Moulding, Front Door Belt, RH
75722 Moulding, Front Door Belt, LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75751 Moulding, Rear Door Belt, RH
75752 Moulding, Rear Door Belt, LH
75756 Moulding, Quarter Belt, RH
75757 Moulding, Quarter Belt, LH
75851 Moulding, Rocker Panel, RH
75851D Clip(FOR ROCKER PANEL MOULDING SET)
75852 Moulding, Rocker Panel, LH
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
75955 Plate, Rear Door Scuff, Outside RH
75956 Plate, Rear Door Scuff, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
