Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

13 part groups · 5 illustrations

Illustrations

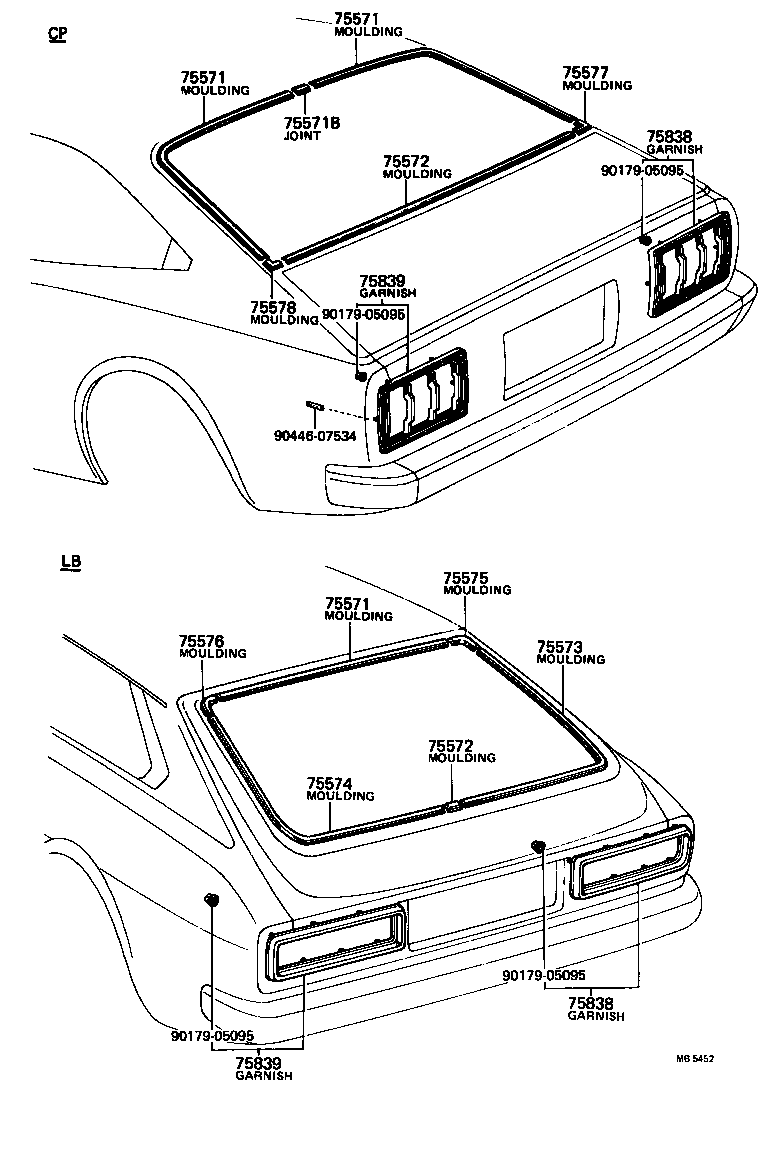

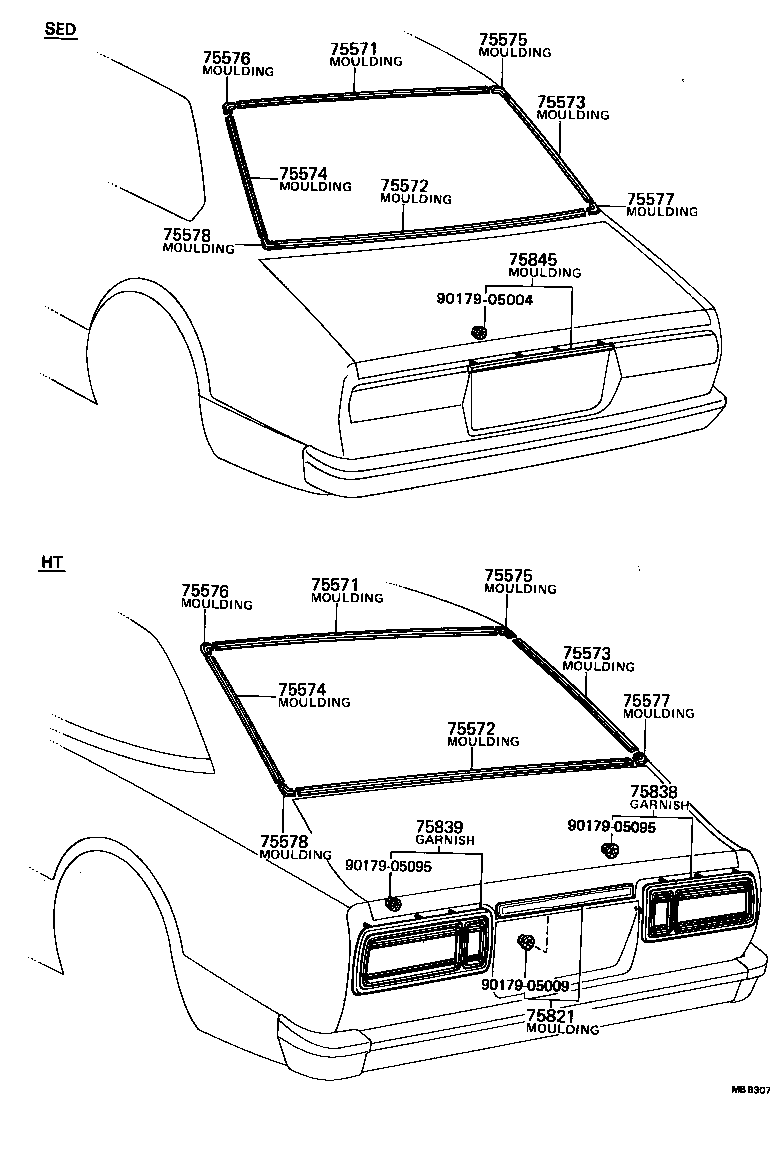

Figure MB5564A MB5564A 1974-08 → 1980-04 Figure MB5564A MB5564A 1980-04 → — Figure MBB307 MBB307 1980-04 → — Figure MB5452 MB5452 1974-08 → 1979-08 Figure MB9464A MB9464A 1974-08 → —

Part groups

PNCDescription
75571 Moulding, Back Window, Outside Upper
75571B Joint, Back Window Moulding, Upper
75572 Moulding, Back Window, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75577 Moulding, Back Window Corner, Lower RH
75578 Moulding, Back Window Corner, Lower LH
75821 Moulding, Luggage Compartment Door Back
75838 Garnish, Rear Combination Lamp, RH
75839 Garnish, Rear Combination Lamp, LH
75845 Moulding, Body Lower Back Panel, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
