Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

14 part groups · 4 illustrations

Illustrations

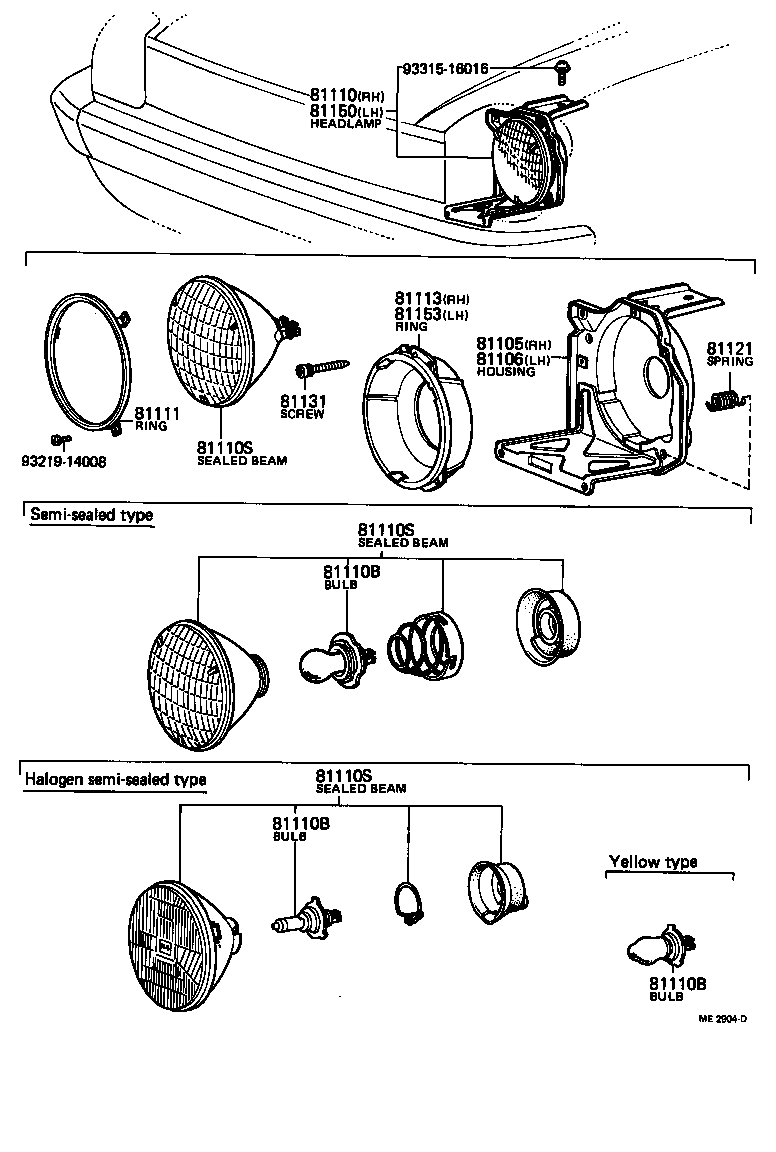

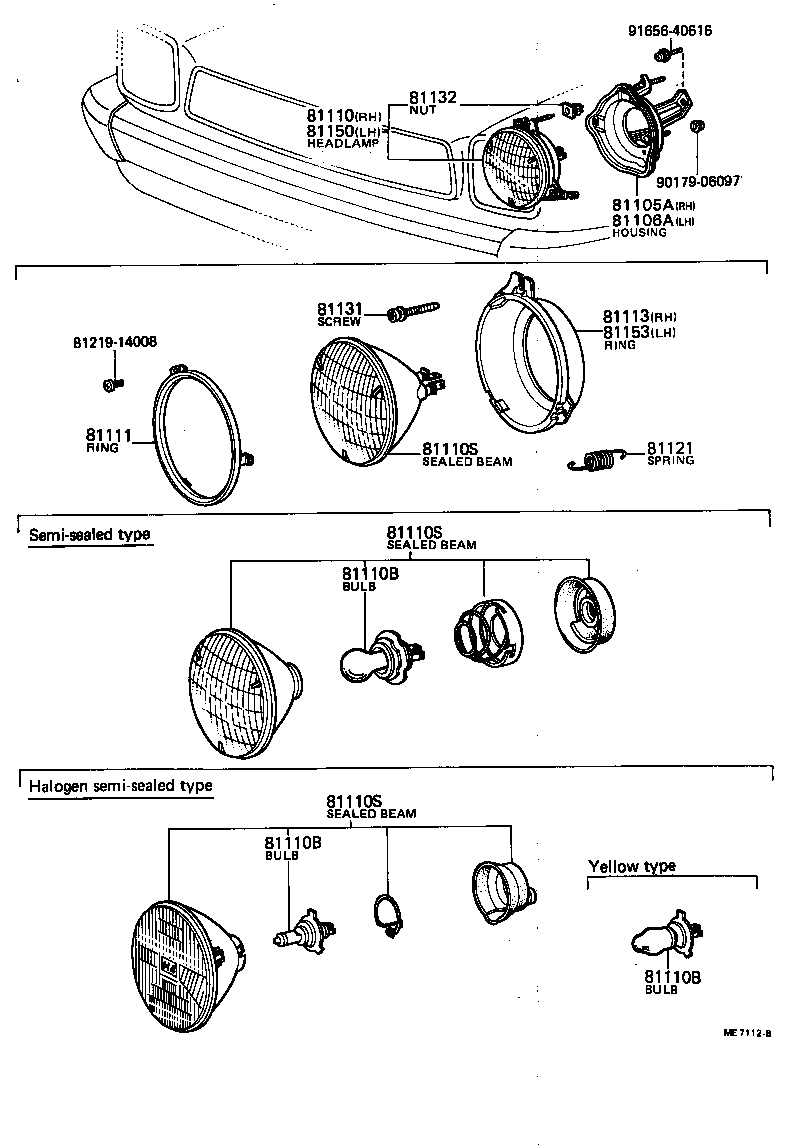

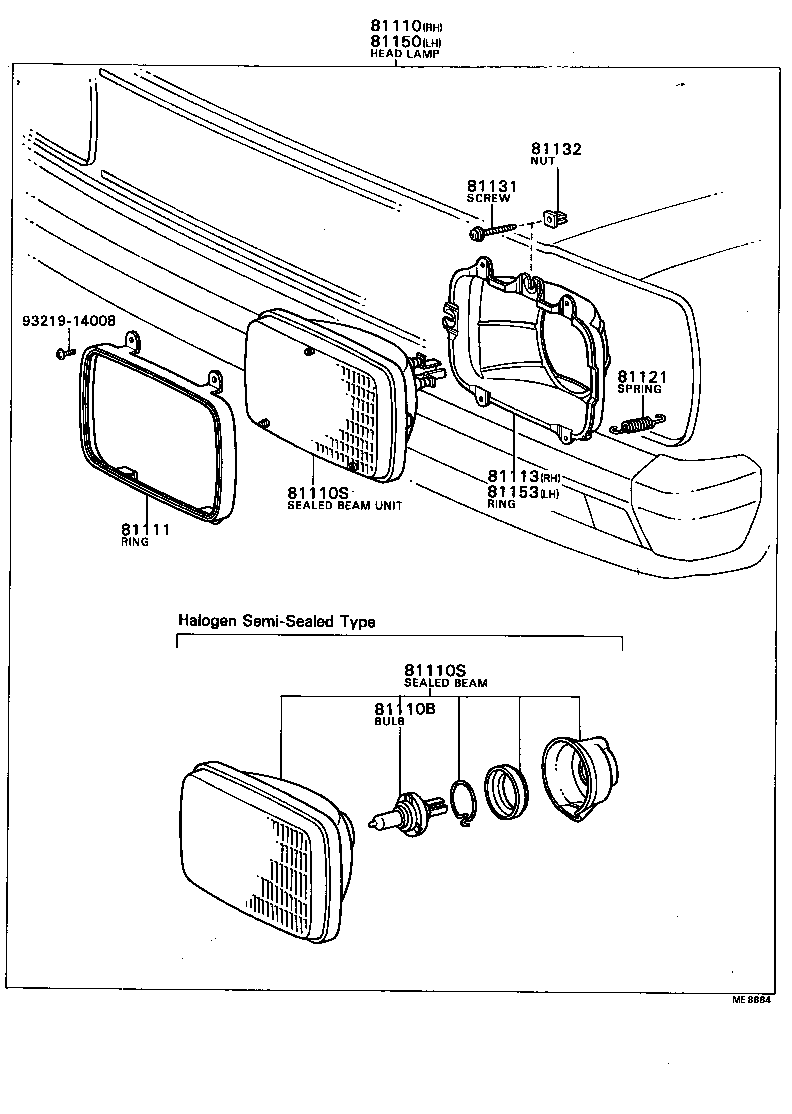

Figure ME4749E ME4749E 1974-08 → — Figure ME7112B ME7112B 1976-03 → 1979-08 Figure ME2904D ME2904D 1974-08 → 1979-02 Figure ME8884 ME8884 1980-04 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81105A Bracket Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81106A Bracket Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111 Ring, Sealed Beam Retaining
81113 Ring, Sealed Beam Mounting, NO.1 RH
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81132 Nut, Headlamp Self Locking
81150 Headlamp Assy, LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
