Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

9 part groups · 5 illustrations

Illustrations

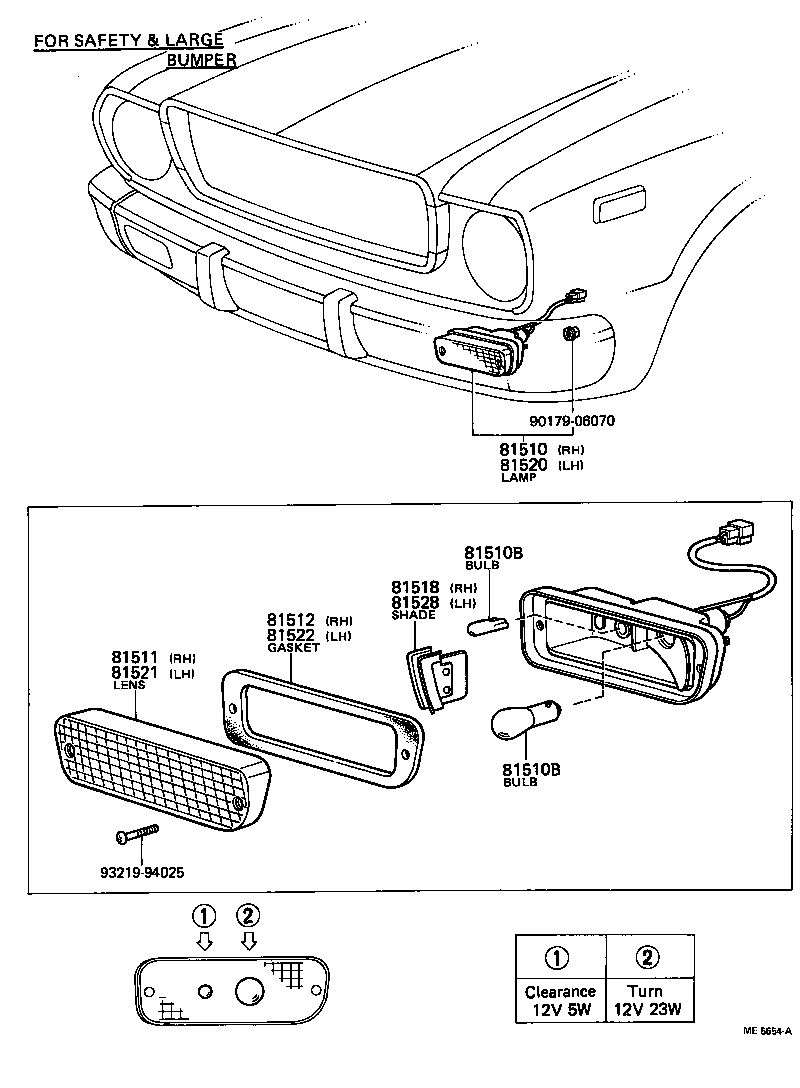

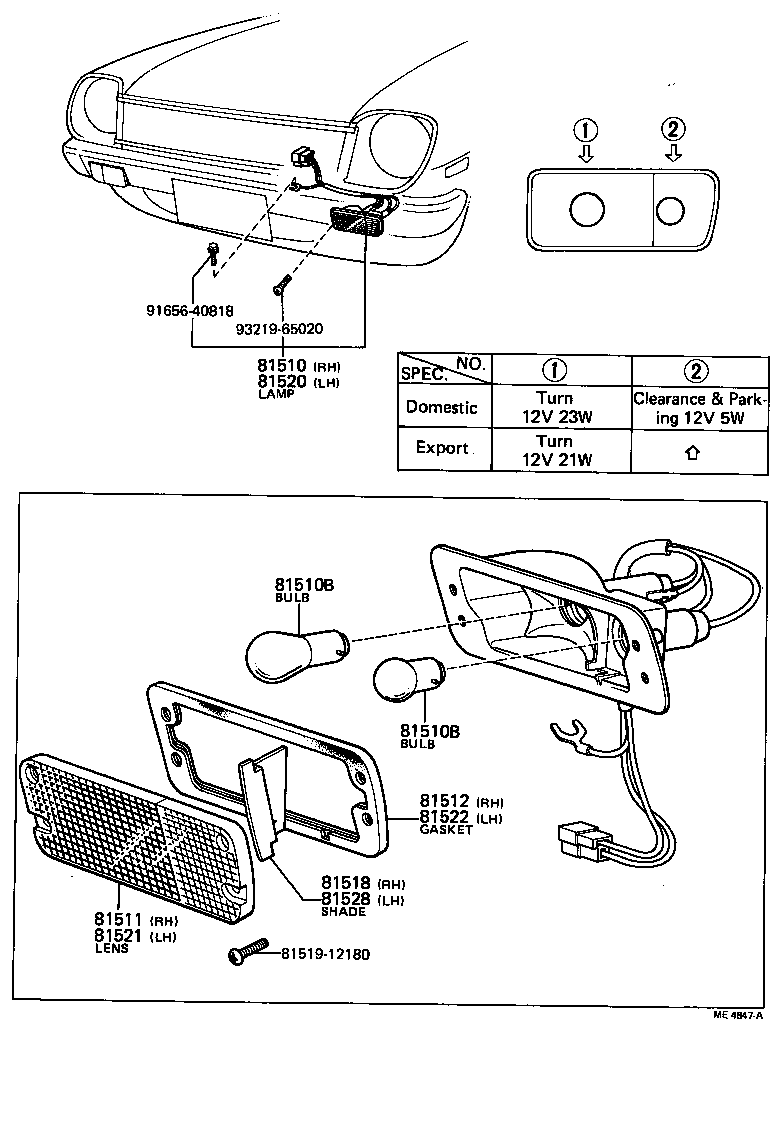

Figure ME4846A ME4846A 1974-08 → — Figure ME4847A ME4847A 1974-08 → 1979-02 Figure ME5654A ME5654A 1978-05 → 1979-04 Figure ME5654A ME5654A 1978-11 → 1979-08 Figure ME5654A ME5654A 1979-04 → —

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81512 Gasket, Front Turn Signal Lamp Lens, RH
81518 Shade, Front Turn Signal Lamp, RH
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
81522 Gasket, Front Turn Signal Lamp Lens, LH
81528 Shade, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
