Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

21 part groups · 10 illustrations

Illustrations

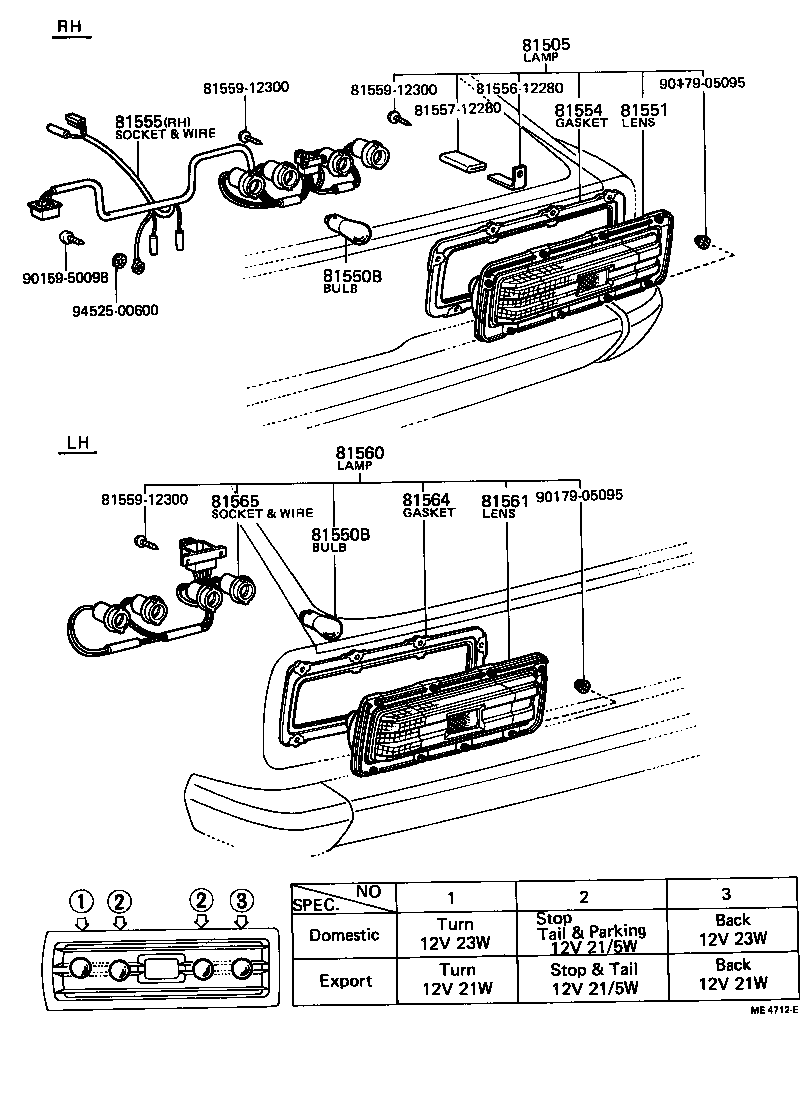

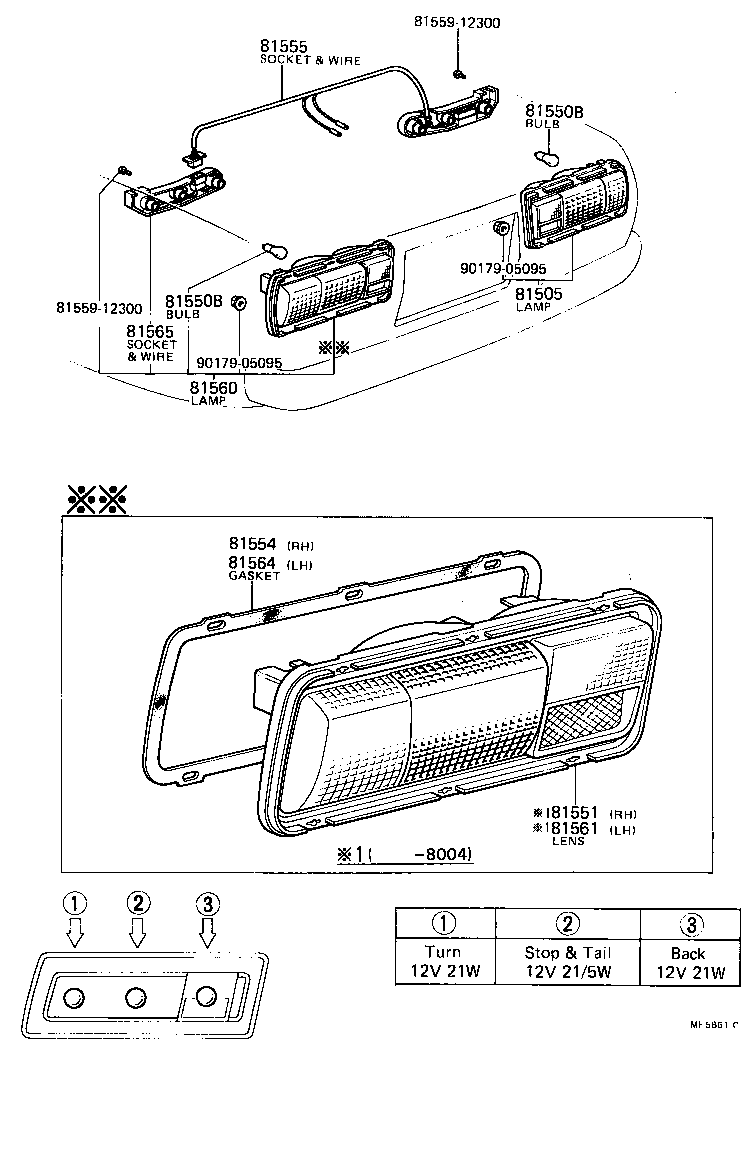

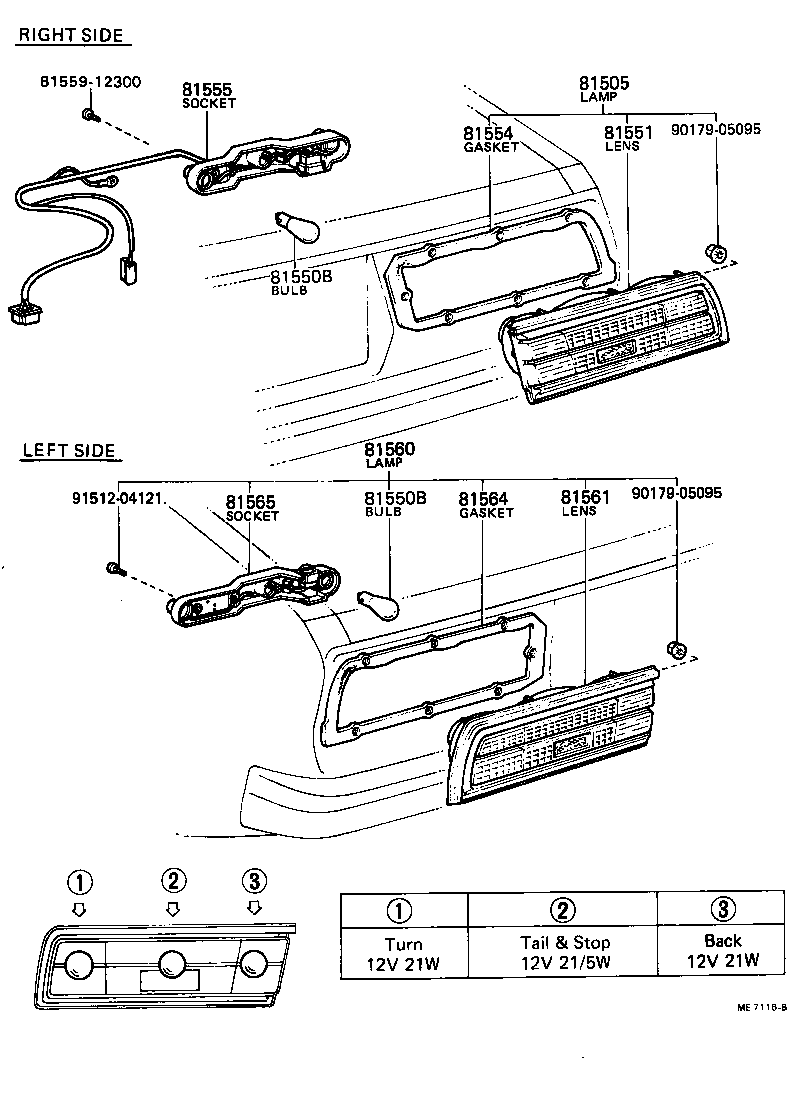

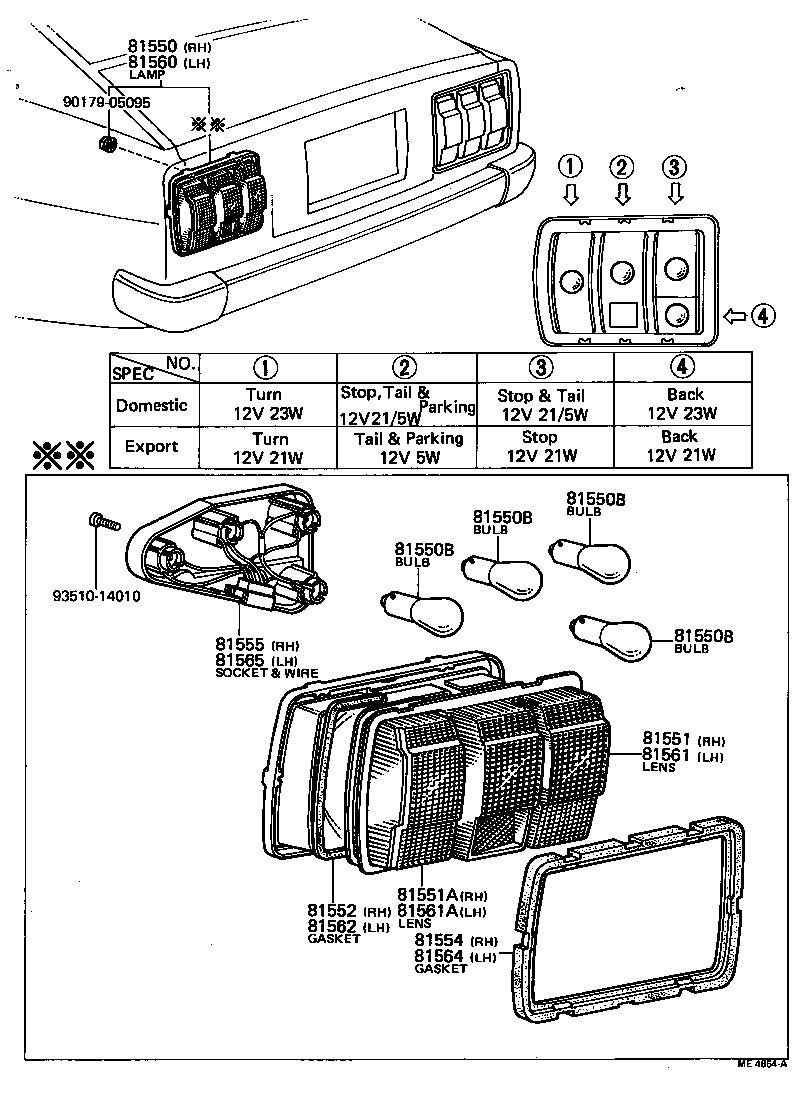

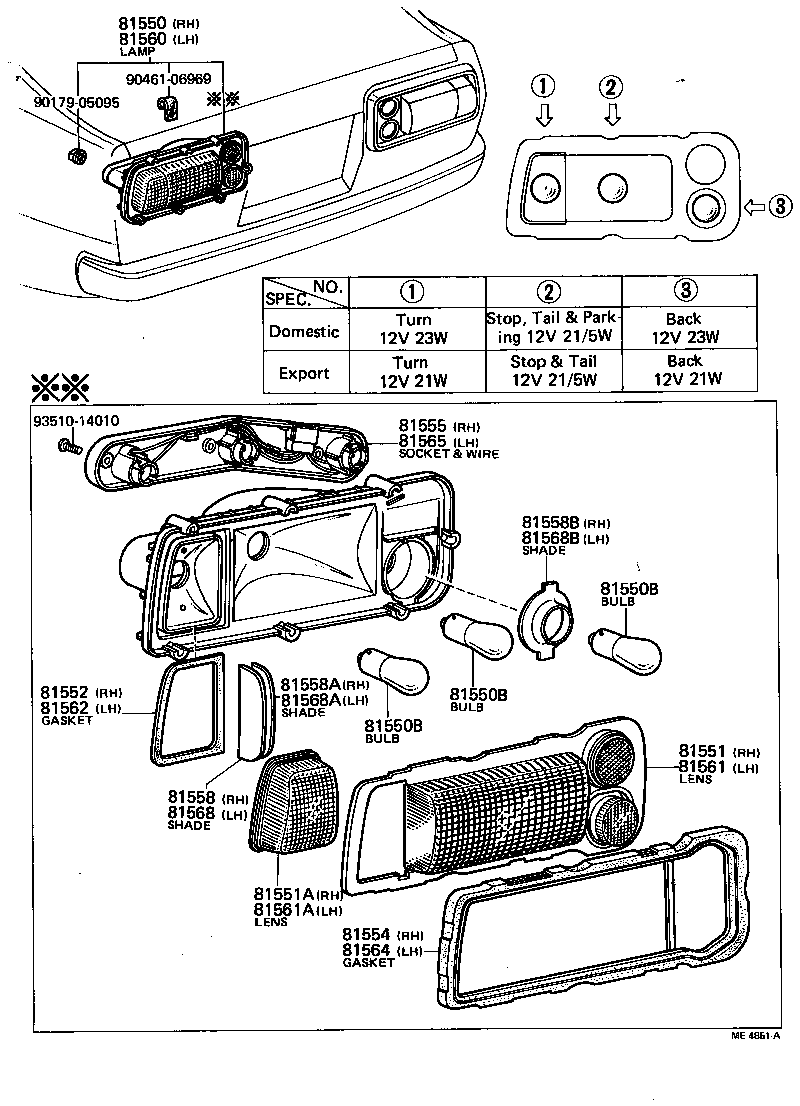

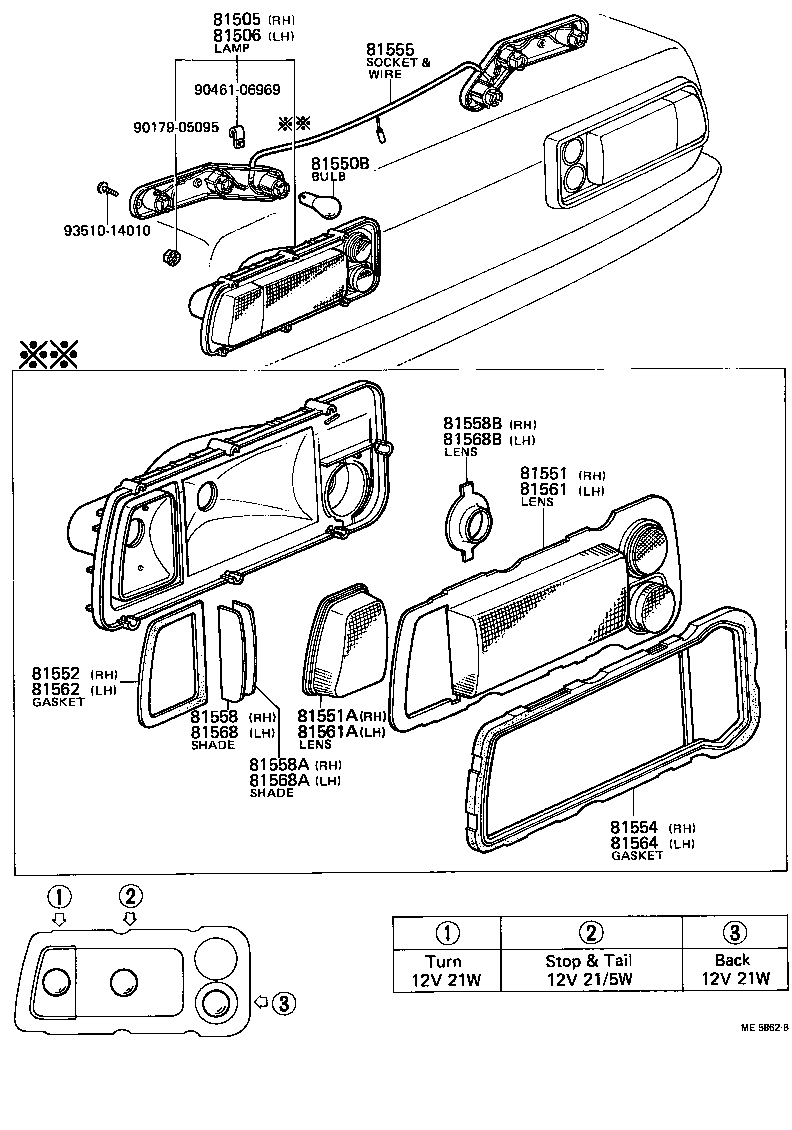

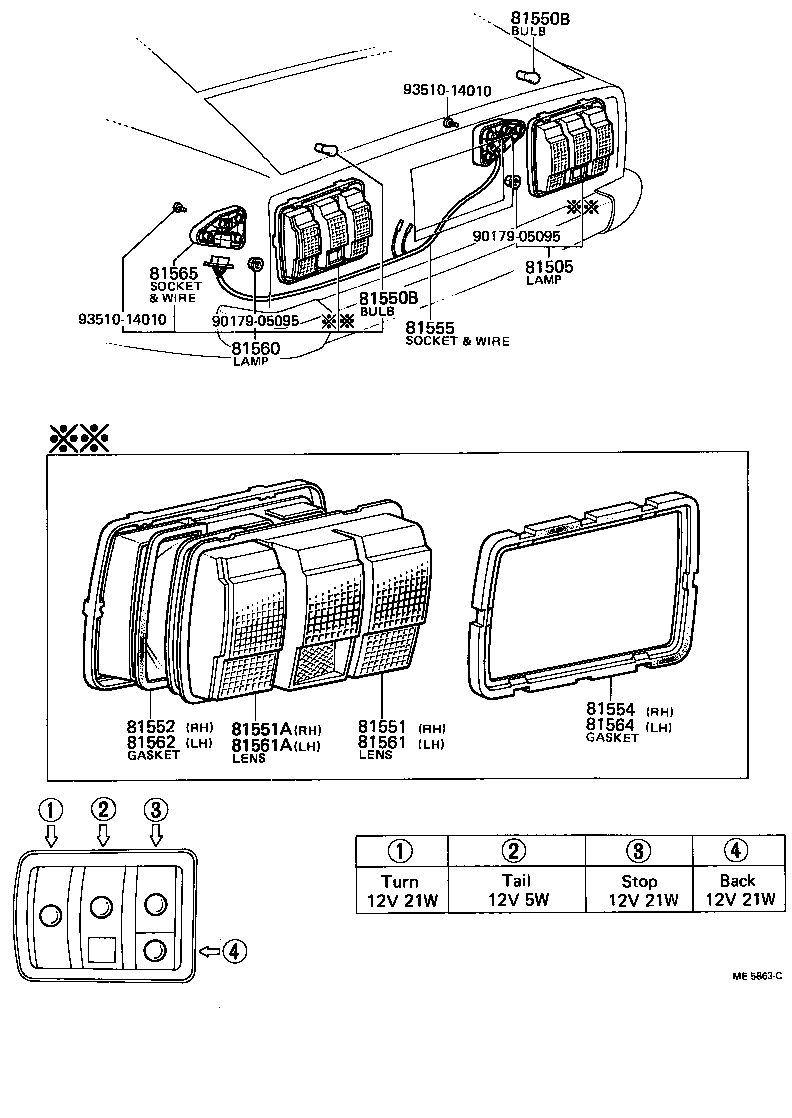

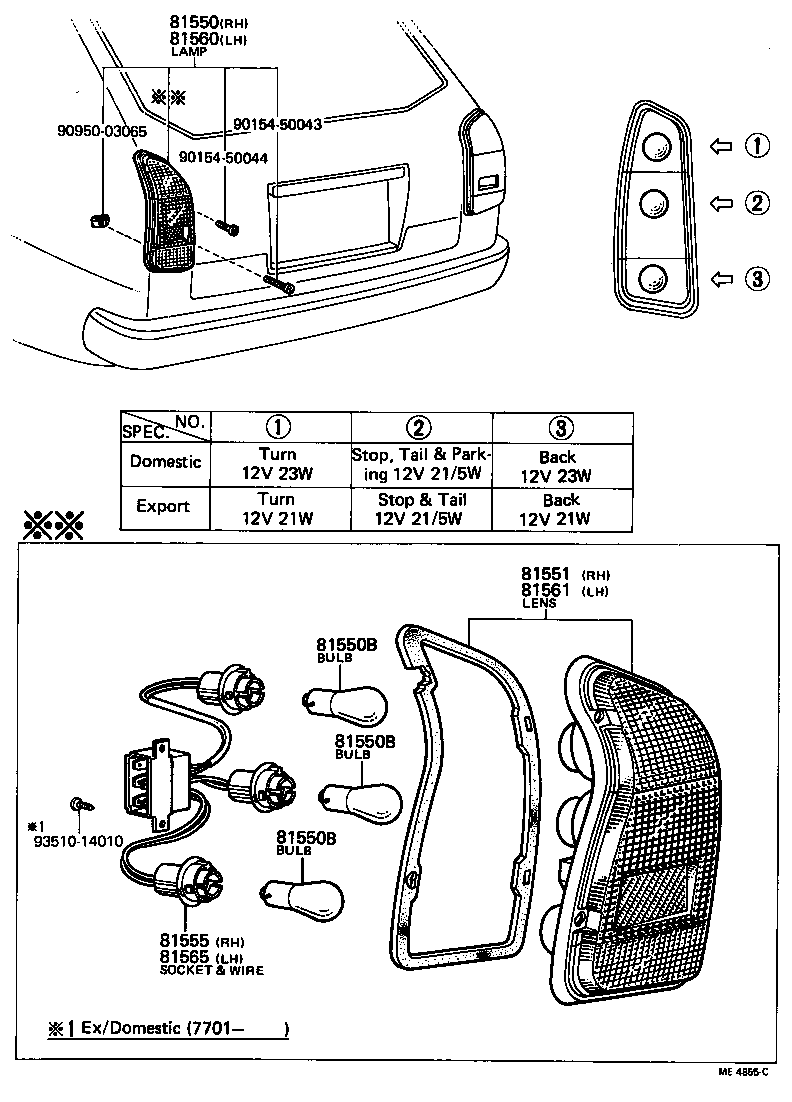

Figure ME4849B ME4849B 1974-08 → 1977-01 Figure ME5861C ME5861C 1977-01 → 1978-05 Figure ME5861C ME5861C 1978-05 → — Figure ME7116B ME7116B 1978-05 → — Figure ME4851A ME4851A 1974-08 → 1977-01 Figure ME5862B ME5862B 1977-01 → — Figure ME4854A ME4854A 1974-08 → 1977-01 Figure ME5863C ME5863C 1977-01 → 1979-02 Figure ME4712E ME4712E 1976-03 → 1979-08 Figure ME4855C ME4855C 1974-08 → —

Part groups

PNCDescription
81505 Lamp Sub-assy, Rear Combination, RH
81506 Lamp Sub-assy, Rear Combination, LH
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81551A Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81558 Shade, Rear Combination Lamp, NO.1 RH
81558A Shade, Rear Combination Lamp, NO.2 RH
81558B Shade, Rear Combination Lamp, NO.3 RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81561A Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
81568A Shade, Rear Combination Lamp, NO.2 LH
81568B Shade, Rear Combination Lamp, NO.3 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
