Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

13 part groups · 3 illustrations

Illustrations

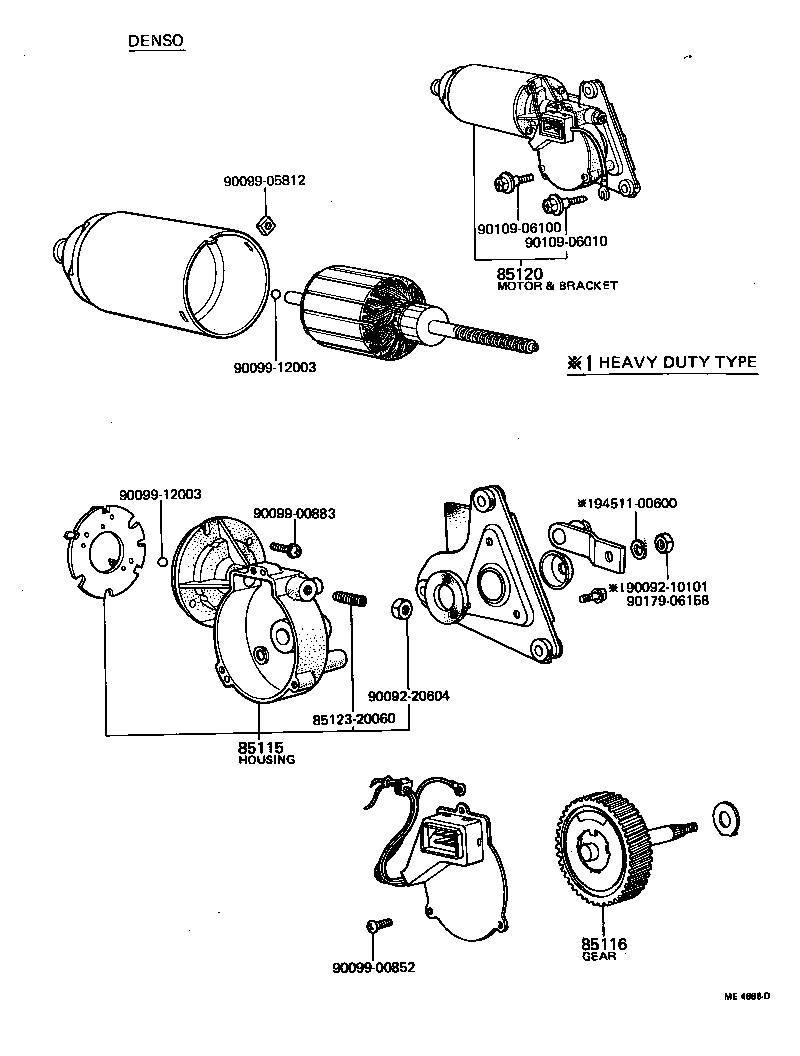

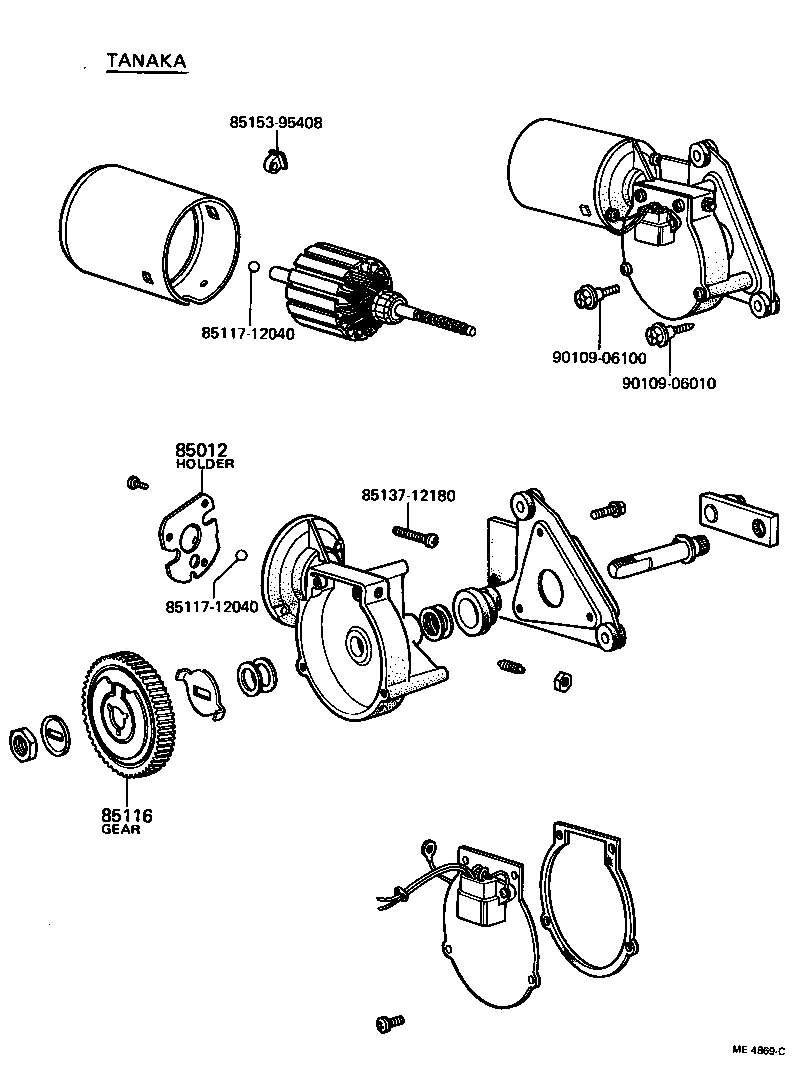

Figure ME4867C ME4867C 1974-08 → — Figure ME4868D ME4868D 1974-08 → — Figure ME4869C ME4869C 1974-08 → —

Part groups

PNCDescription
85012 Holder Sub-assy, Windshield Wiper Motor Brush
85060 Arm And Blade Assy, Windshield Wiper
85115 Housing, Windshield Wiper Motor Gear
85116 Gear, Windshield Wiper Motor
85120 Motor And Bracket Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85168 Nut, Windshield Wiper Link Pivot
85178 Nut (FOR FRONT WIPER ARM SETTING)
85188 Cap, Windshield Wiper Pivot, NO.1
85190 Arm Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
