Toyota Corolla/Trueno
1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe
Discontinued model
Data version 1981-12
Rear Wiper
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

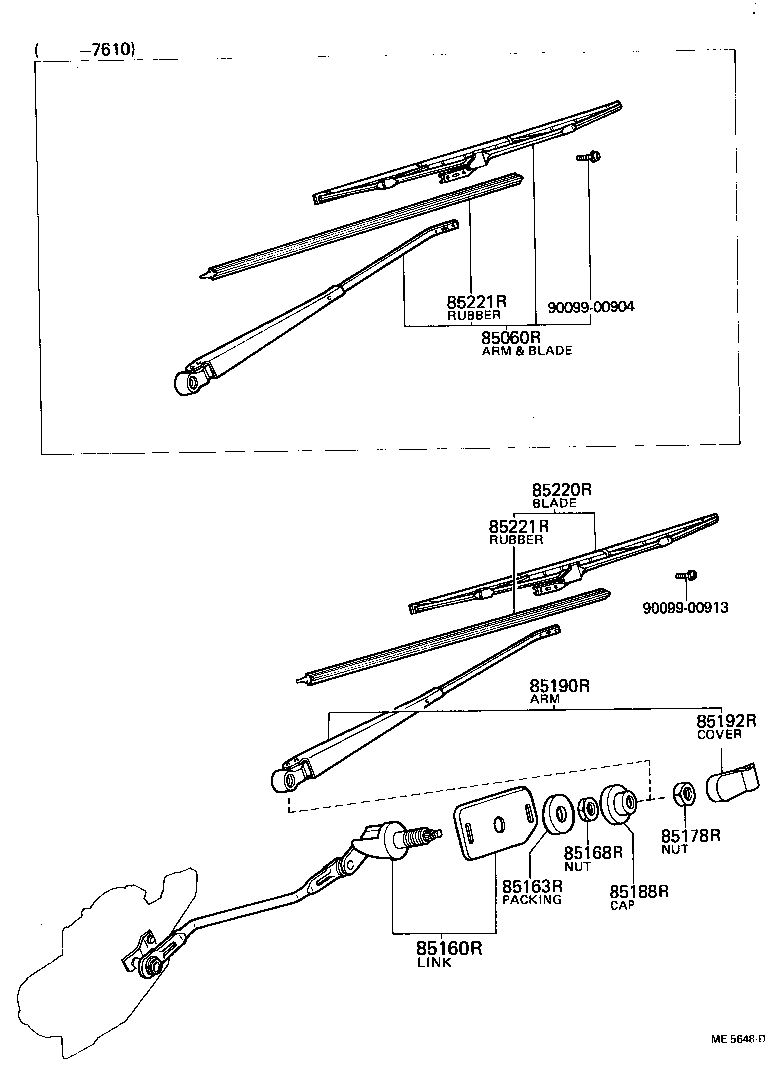

| 85060R | Arm And Blade Assy, Rear Wiper |

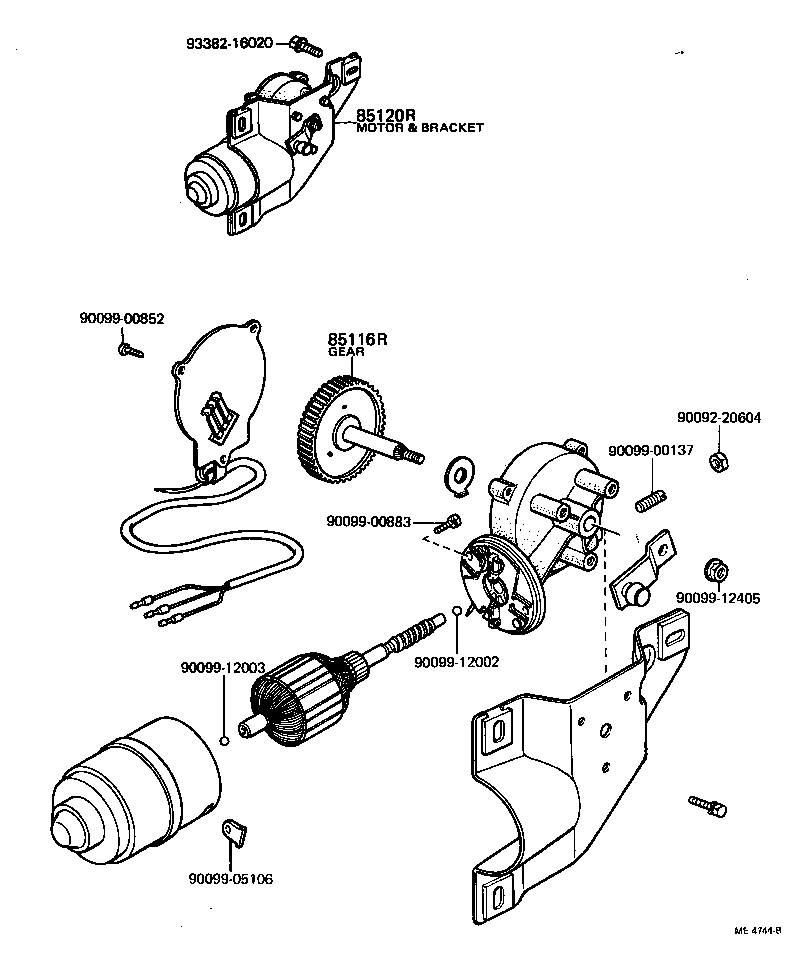

| 85116R | Gear, Rear Wiper Motor |

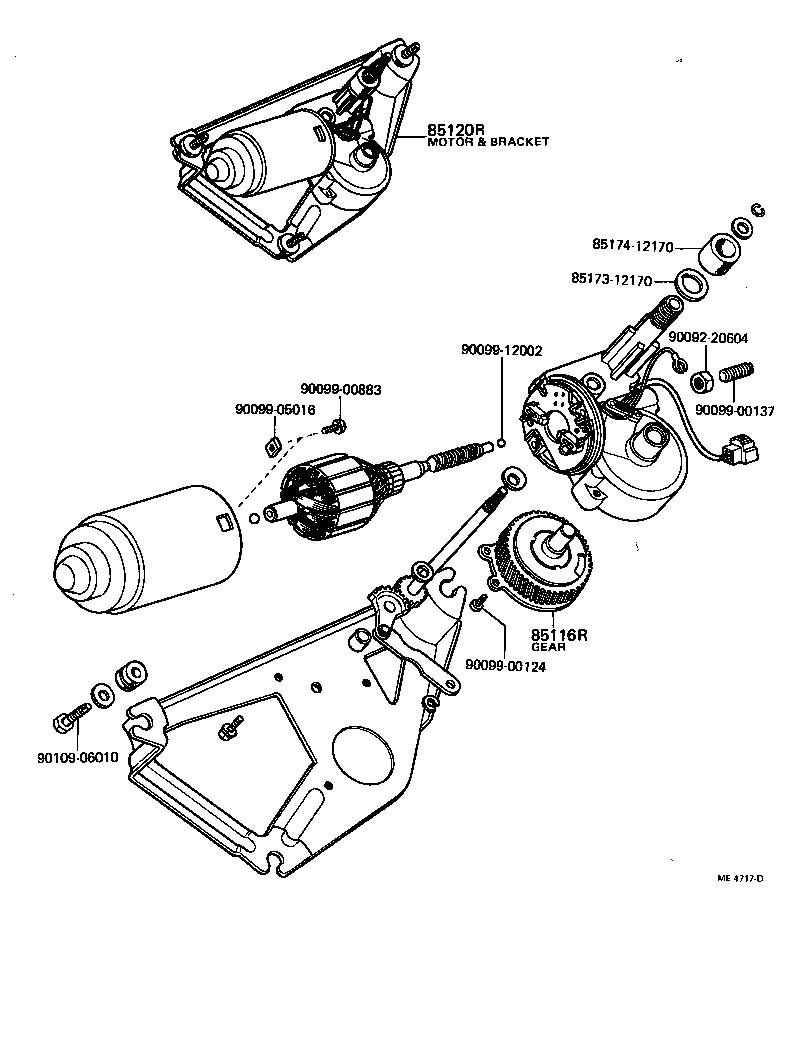

| 85120R | Motor And Bracket Assy, Rear Wiper |
| 85160R | Link Assy, Rear Wiper |
| 85163R | Packing, Rear Wiper Pivot, NO.1 |
| 85168R | Nut, Rear Wiper Link Pivot, NO.1 |
| 85169R | Washer, Rear Wiper Link Pivot, NO.1 |
| 85178R | Nut (FOR REAR WIPER ARM SETTING) |
| 85188R | Cap, Rear Wiper Pivot, NO.1 |
| 85190R | Arm Assy, Rear Wiper |
| 85192R | Cover, Rear Wiper Arm |
| 85220R | Blade Assy, Rear Wiper |
| 85221R | Blade, Rear Wiper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
