Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

18 part groups · 3 illustrations

Illustrations

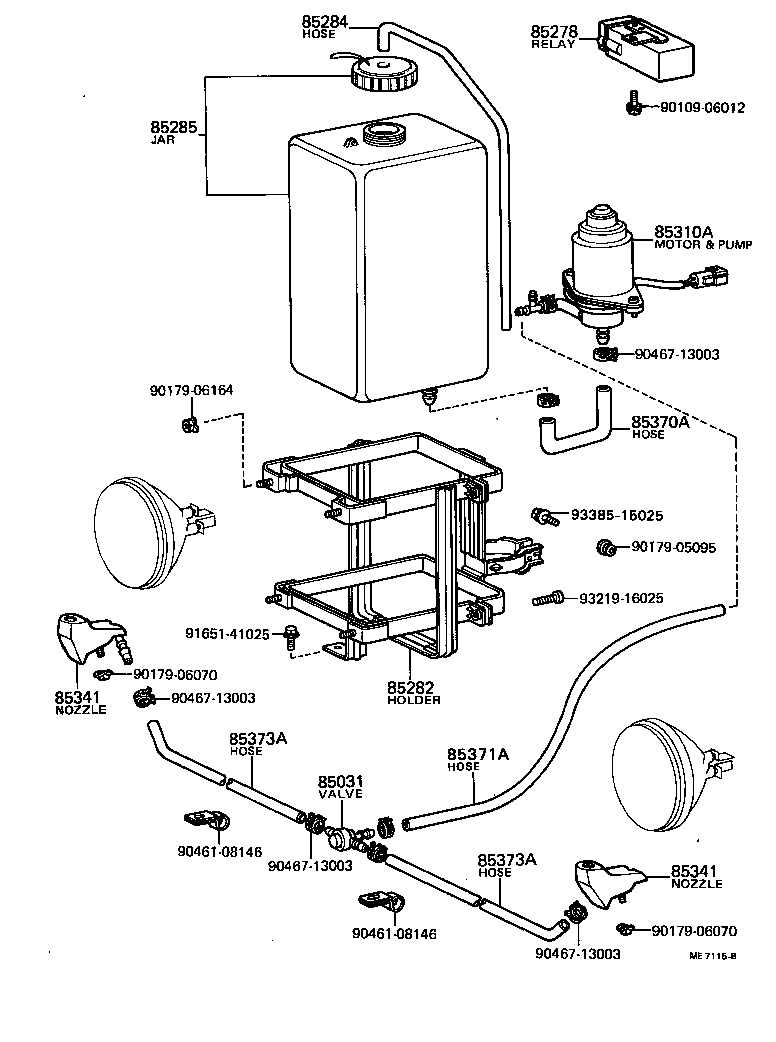

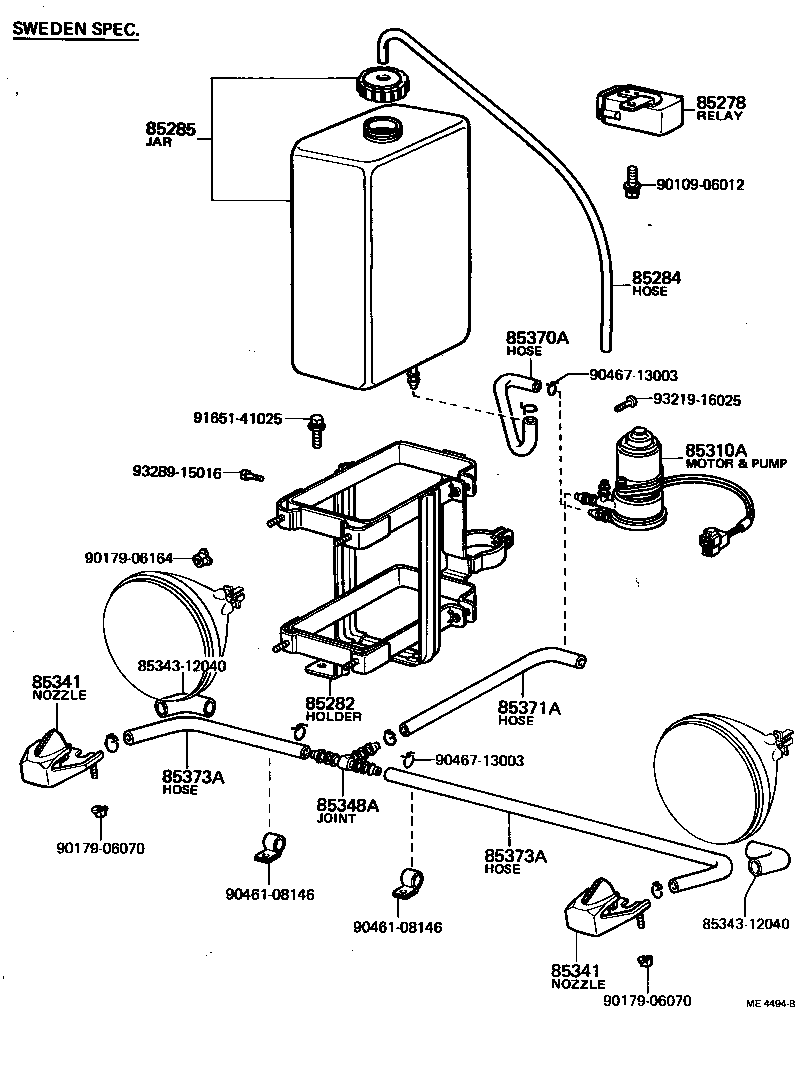

Figure ME4870A ME4870A 1974-08 → 1975-08 Figure ME4494B ME4494B 1975-08 → 1978-05 Figure ME7115B ME7115B 1978-05 → 1979-08

Part groups

PNCDescription
85031 Valve, Headlamp Cleaner Washer Hose
85110A Motor Assy, Headlamp Cleaner
85221A Blade Assy, Headlamp Cleaner
85272 Cable Sub-assy, Headlamp Cleaner, RH
85273 Cable Sub-assy, Headlamp Cleaner, LH
85278 Relay Assy, Headlamp Cleaner Control
85280 Gear And Blade Sub-assy, Headlamp Cleaner
85282 Holder Assy, Headlamp Cleaner Washer Jar
85283 Bracket, Headlamp Cleaner Washer
85284 Hose Assy, Headlamp Cleaner Washer
85285 Jar, Headlamp Cleaner Washer
85310A Motor And Pump Assy, Headlamp Cleaner Washer
85332A Cap, Headlamp Cleaner Washer Jar
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85370A Hose Assy, Headlamp Cleaner Washer, NO.1
85371A Hose, Headlamp Cleaner(FROM MOTOR TO JOINT)
85373A Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
