Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

11 part groups · 4 illustrations

Illustrations

Figure ME4871E

ME4871E 1974-08 → 1977-01

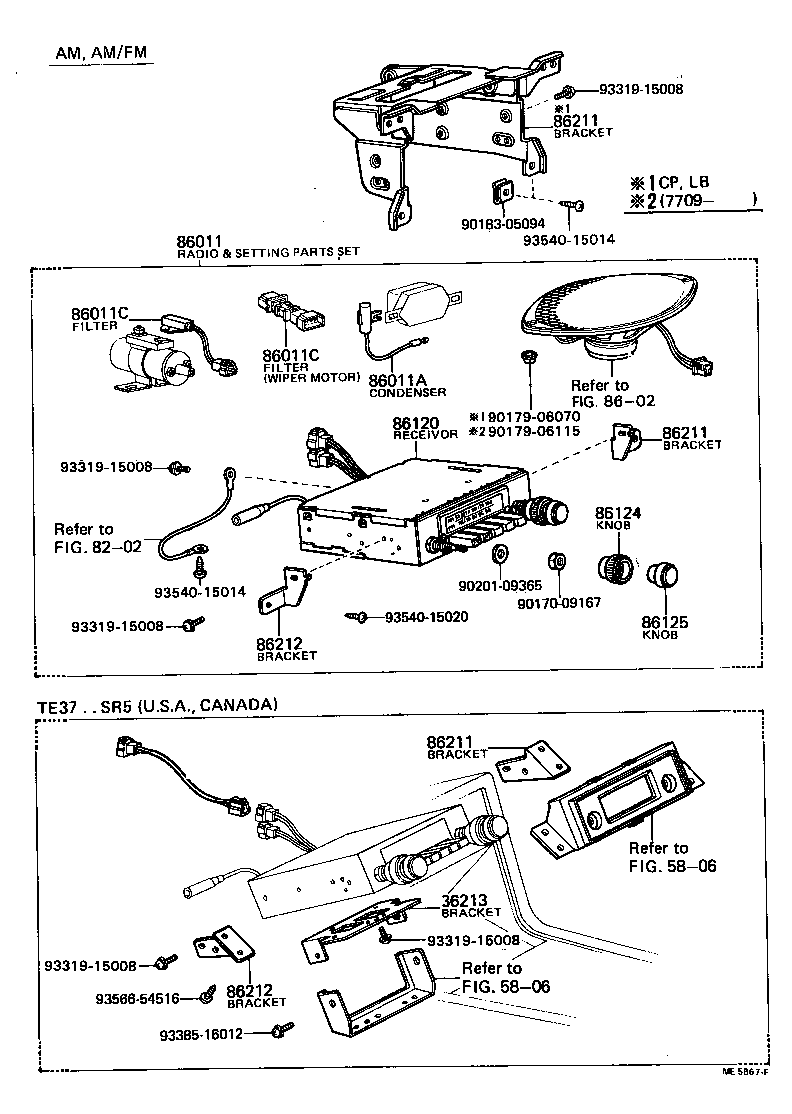

Figure ME5867F

ME5867F 1977-01 → —

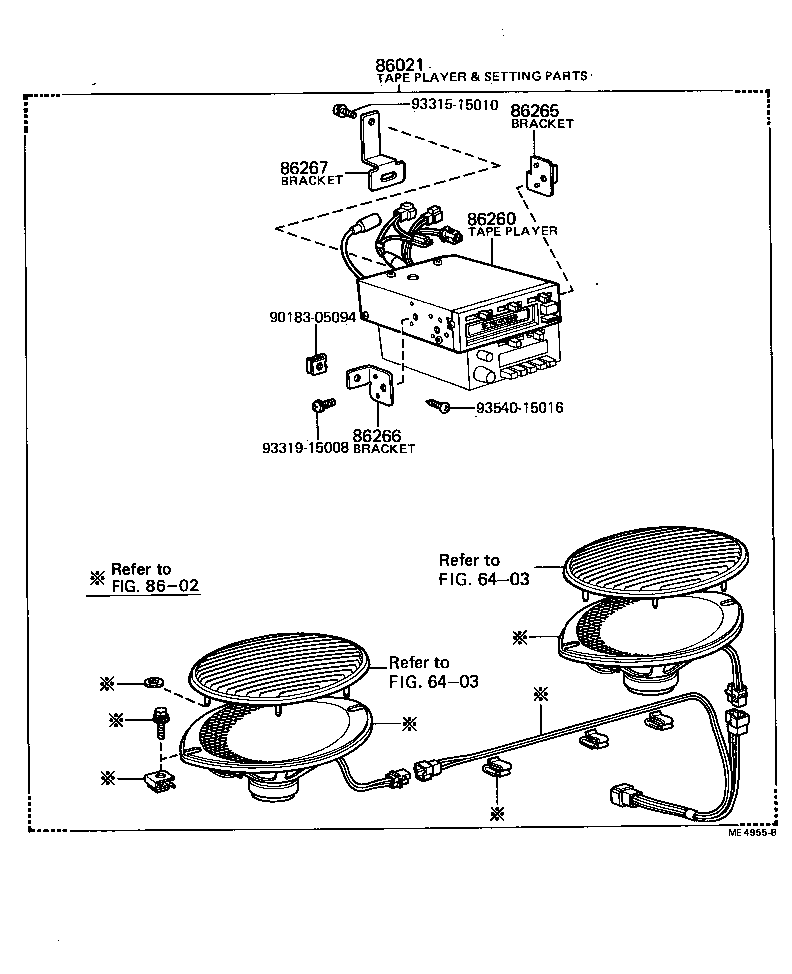

Figure ME4955B

ME4955B 1974-08 → 1977-01

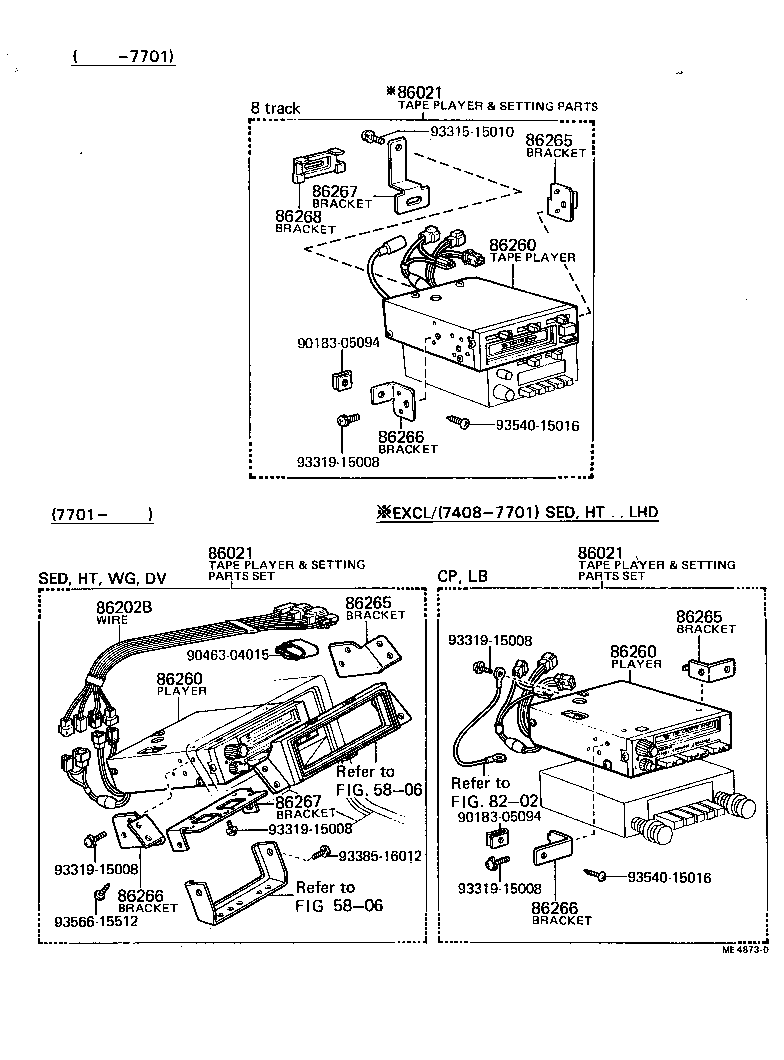

Figure ME4873D

ME4873D 1974-08 → —

Part groups

PNC	Description
86011	Radio & Setting Parts Set
86011A	Condenser, Radio Setting
86011C	Filter, Noise
86120	Receiver Assy, Radio
86124	Knob, Radio Receiver Control
86125	Knob, Radio Receiver Switch
86160	Speaker Assy, Front NO.1
86202	Wire, Speaker, NO.1
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2
86213	Bracket, Radio, NO.3

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
