Toyota Corolla/Trueno
1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe
Discontinued model
Data version 1981-12

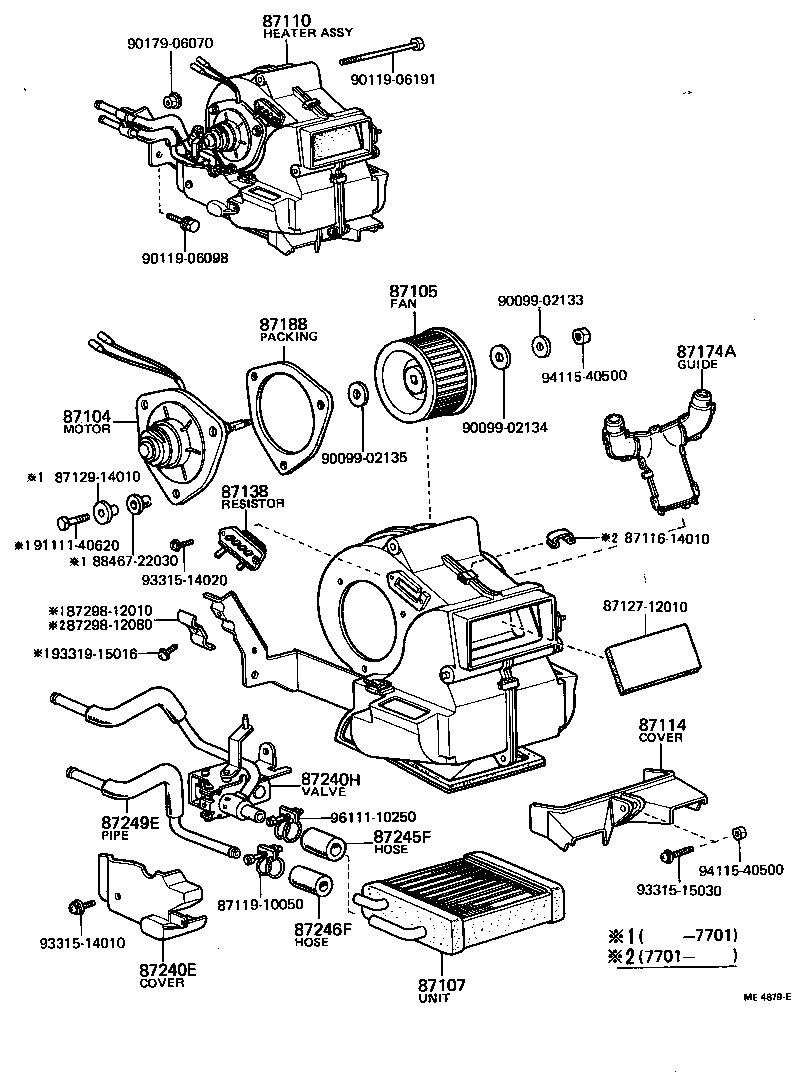

Heating & Air Conditioning - Heater Unit & Blower
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87110 | Heater Assy |
| 87114 | Cover, Heater |
| 87138 | Resistor, Heater Blower |
| 87174A | Guide, Air Heater |
| 87188 | Packing, Heater Blower Motor |
| 87240E | Cover, Heater Water Valve |
| 87240H | Valve Assy, Water Unit |
| 87245F | Hose, Heater Water, Inlet F |
| 87246F | Hose, Heater Water, Outlet F |
| 87249E | Pipe, Heater Water Outlet, E (FOR HEATER UNIT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
