Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

23 part groups · 5 illustrations

Illustrations

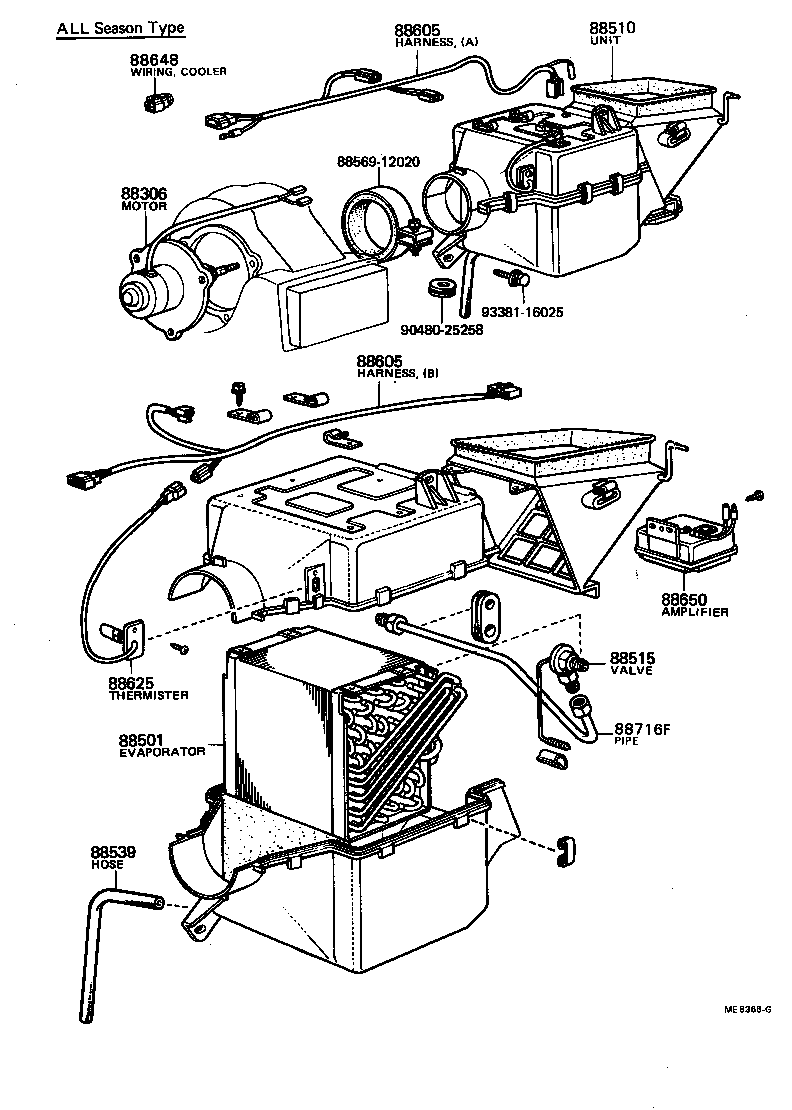

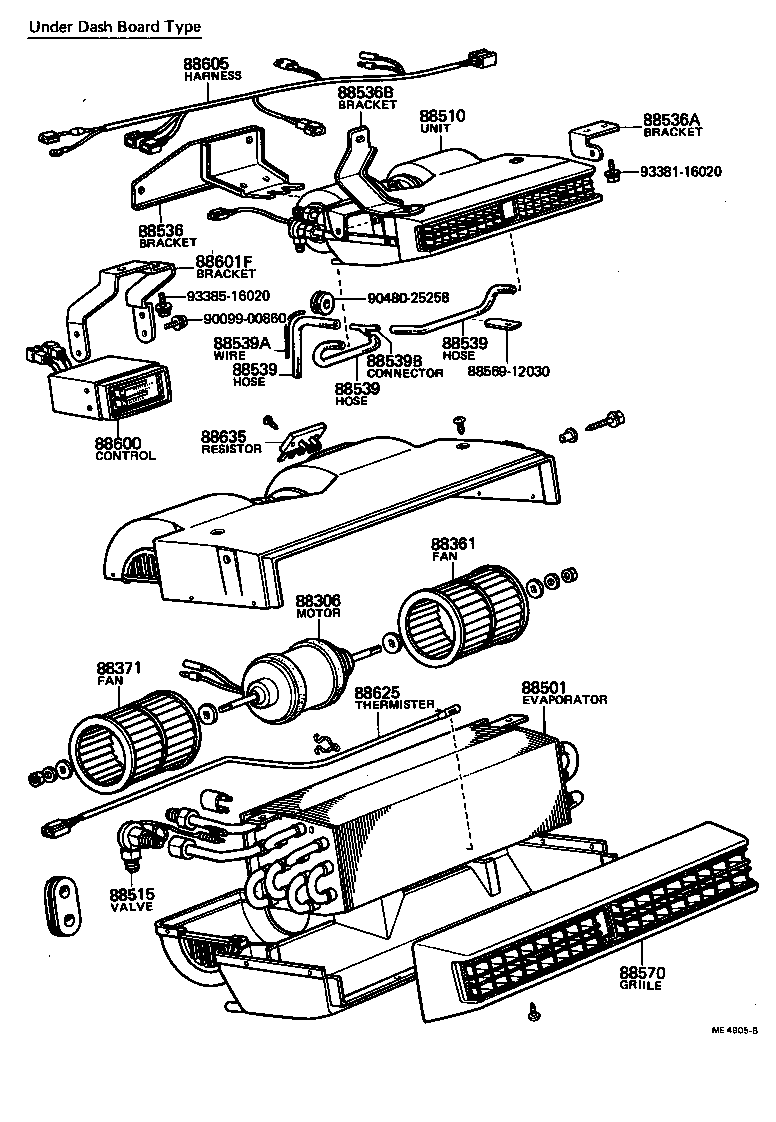

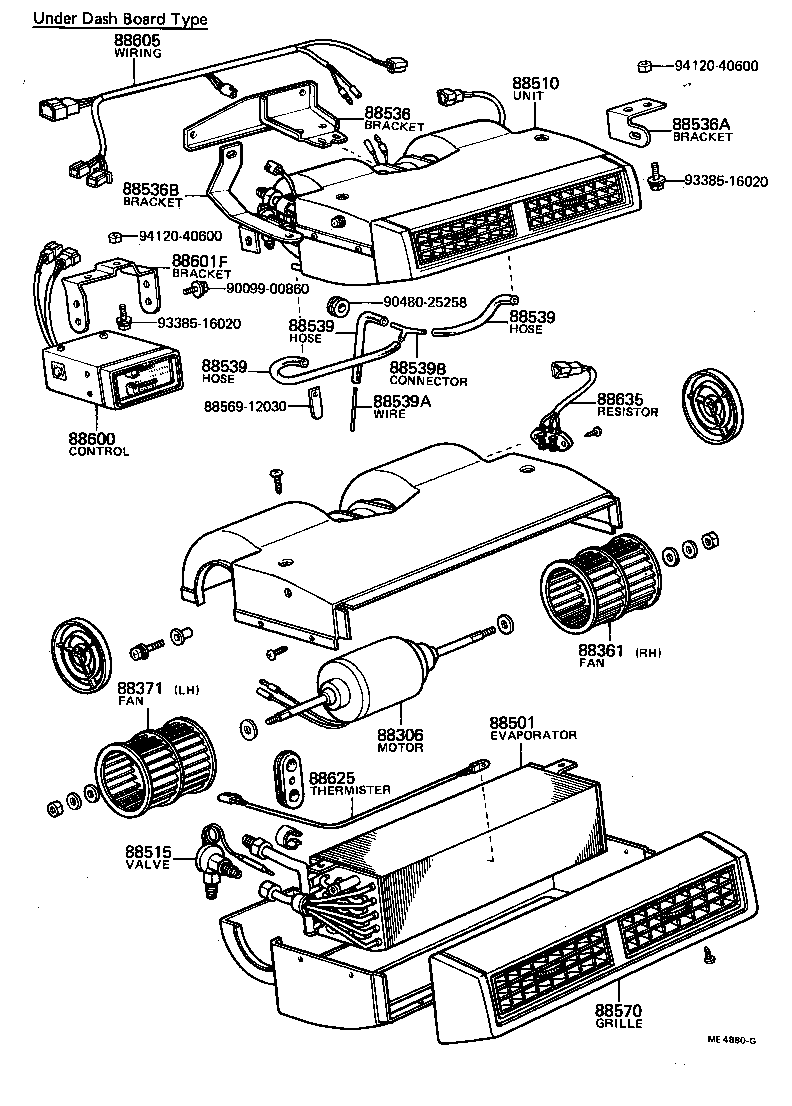

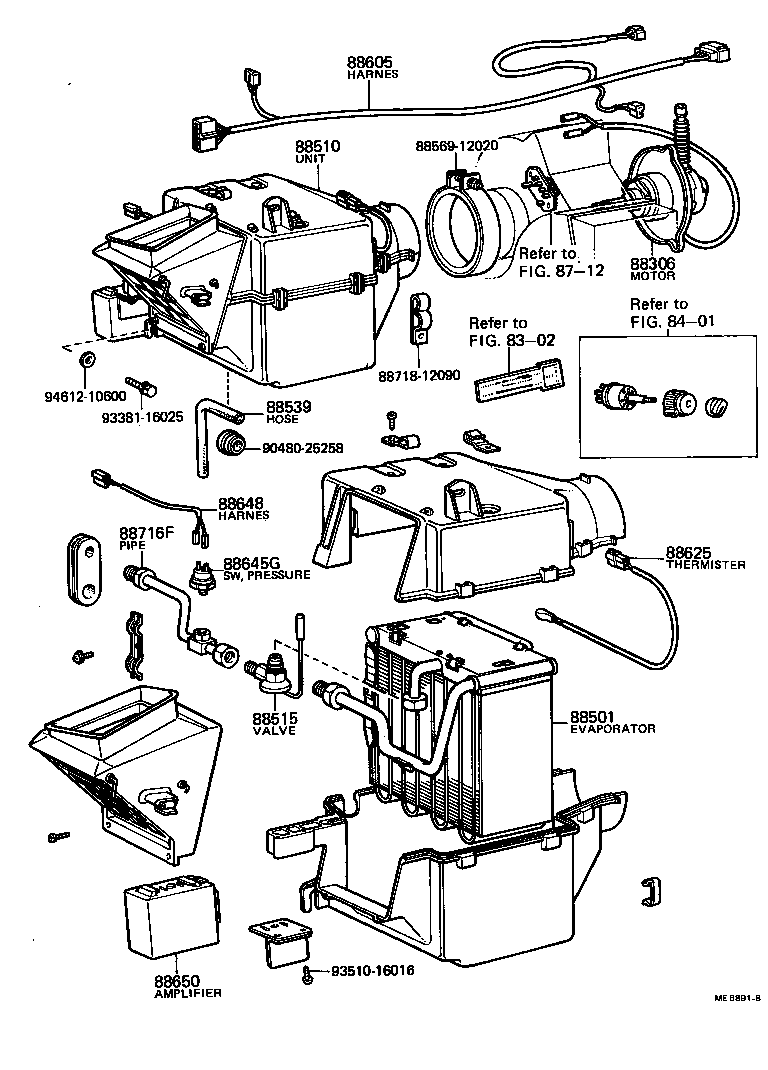

Figure ME6365B ME6365B 1974-08 → 1978-05 Figure ME4880G ME4880G 1974-08 → 1977-01 Figure ME4905B ME4905B 1977-01 → 1977-08 Figure ME6366G ME6366G 1977-01 → 1978-05 Figure ME6891B ME6891B 1978-05 → —

Part groups

PNCDescription
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88371 Fan, Cooler Blower, NO.2
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88521 Case, Cooler Unit
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88539 Hose, Cooler Unit Drain, NO.1
88539A Wire, Drain Hose(FOR COOLER)
88539B Connector, Cooler Drain Hose
88570 Grille Sub-assy, Cooler Air Outlet
88600 Control Assy, Air Conditioner
88601F Bracket, Cooler Control Switch
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88635 Resistor, Cooler Unit Blower
88645G Switch, Pressure
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88716F Pipe, Cooler Refrigerant Liquid, F
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
