Toyota Corolla/Trueno
1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe
Discontinued model
Data version 1981-12

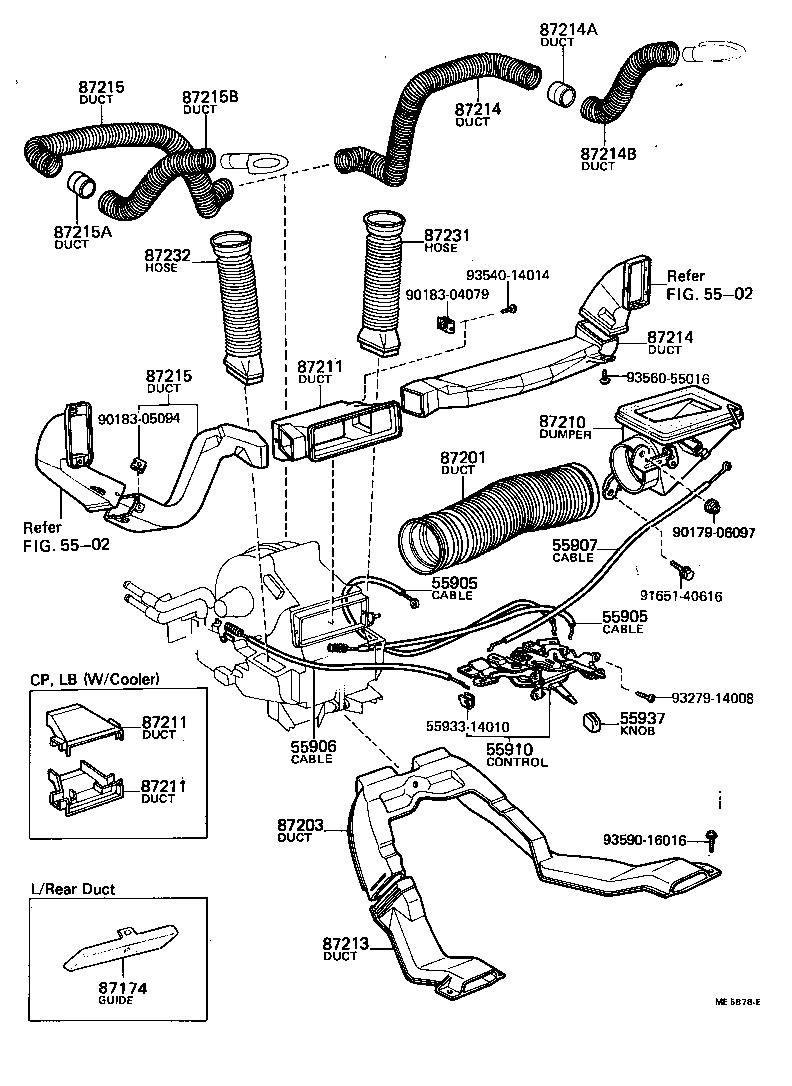

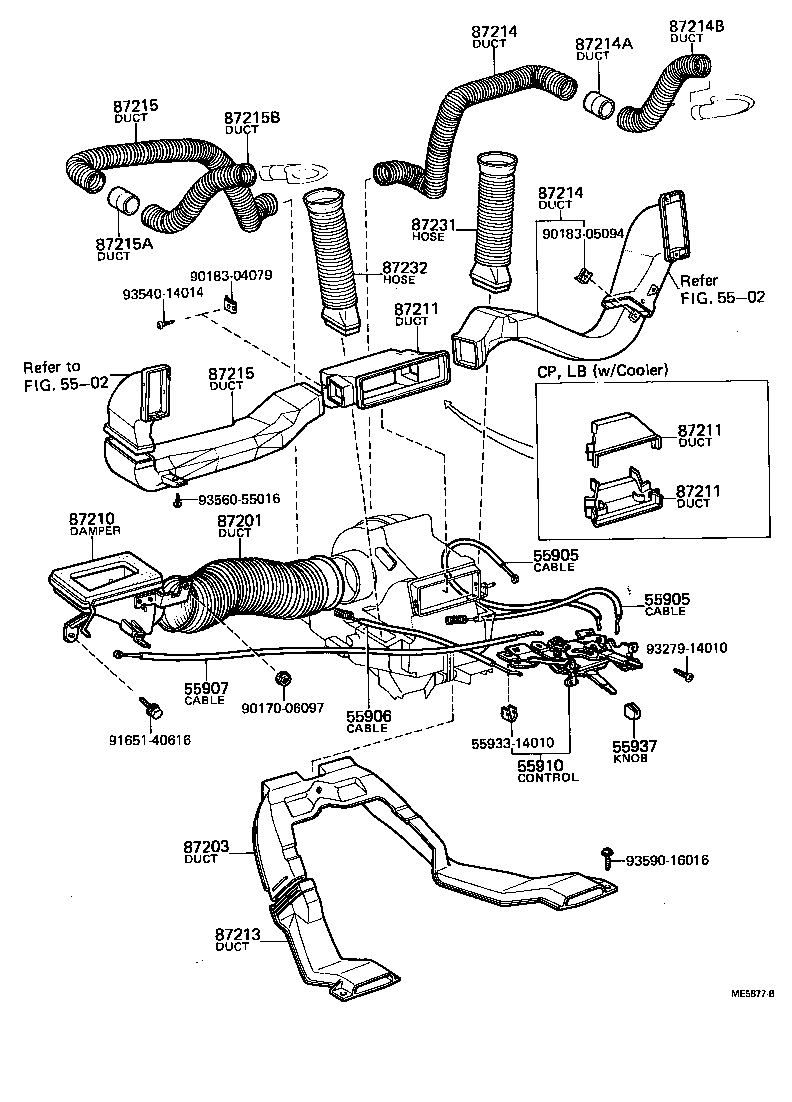

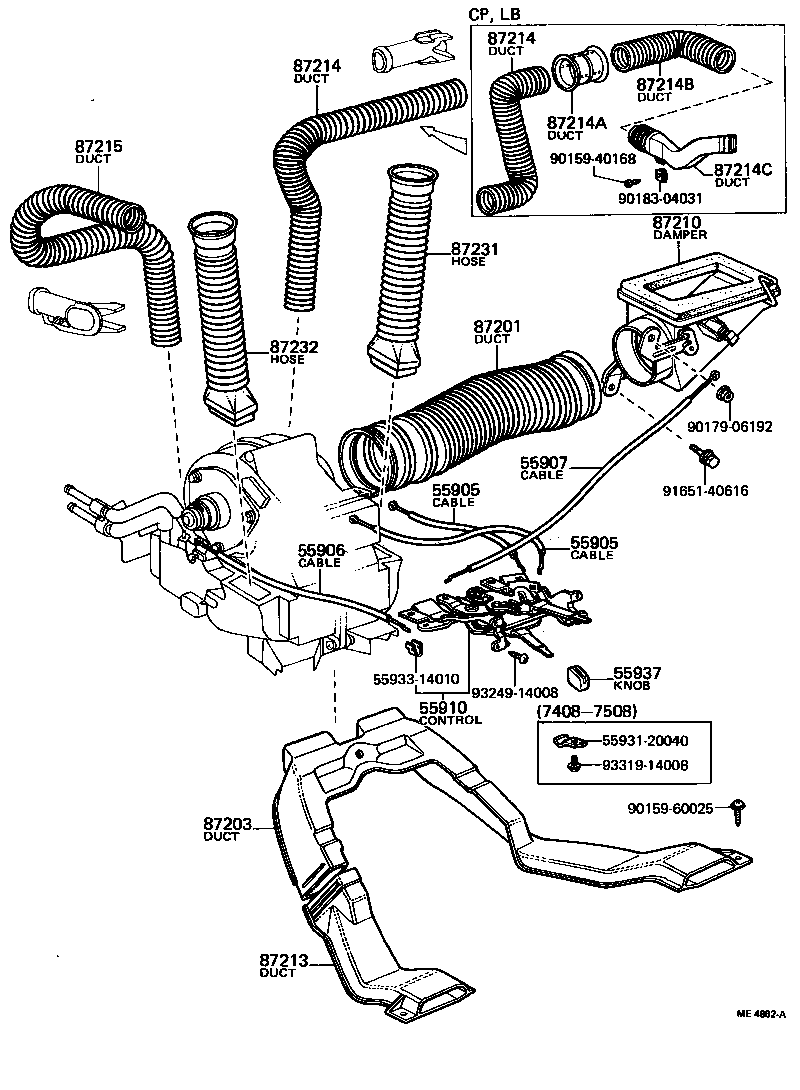

Heating & Air Conditioning - Control & Air Duct
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55905 | Cable Sub-assy, Defrost Control |
| 55906 | Cable Sub-assy, Heater Control |
| 55907 | Cable Sub-assy, Heater Air Inlet Butterfly |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55937 | Knob, Heater Control Lever |
| 87174 | Guide, Air Duct |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87203 | Duct, Heater Air, Rear NO.1 |
| 87210 | Damper Assy, Air |
| 87211 | Duct, Air, NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87214 | Duct, Air, Side NO.1 RH |
| 87214A | Duct, Air, Side NO.2 RH |
| 87214B | Duct, Air, Side NO.3 RH |
| 87214C | Duct, Air, Side NO.4 RH |
| 87215 | Duct, Air, Side NO.1 LH |
| 87215A | Duct, Air, Side NO.2 LH |
| 87215B | Duct, Air, Side NO.3 LH |
| 87231 | Hose, Heater Defroster, RH |
| 87232 | Hose, Heater Defroster, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
