Toyota Corolla/Trueno
1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe
Discontinued model
Data version 1981-12

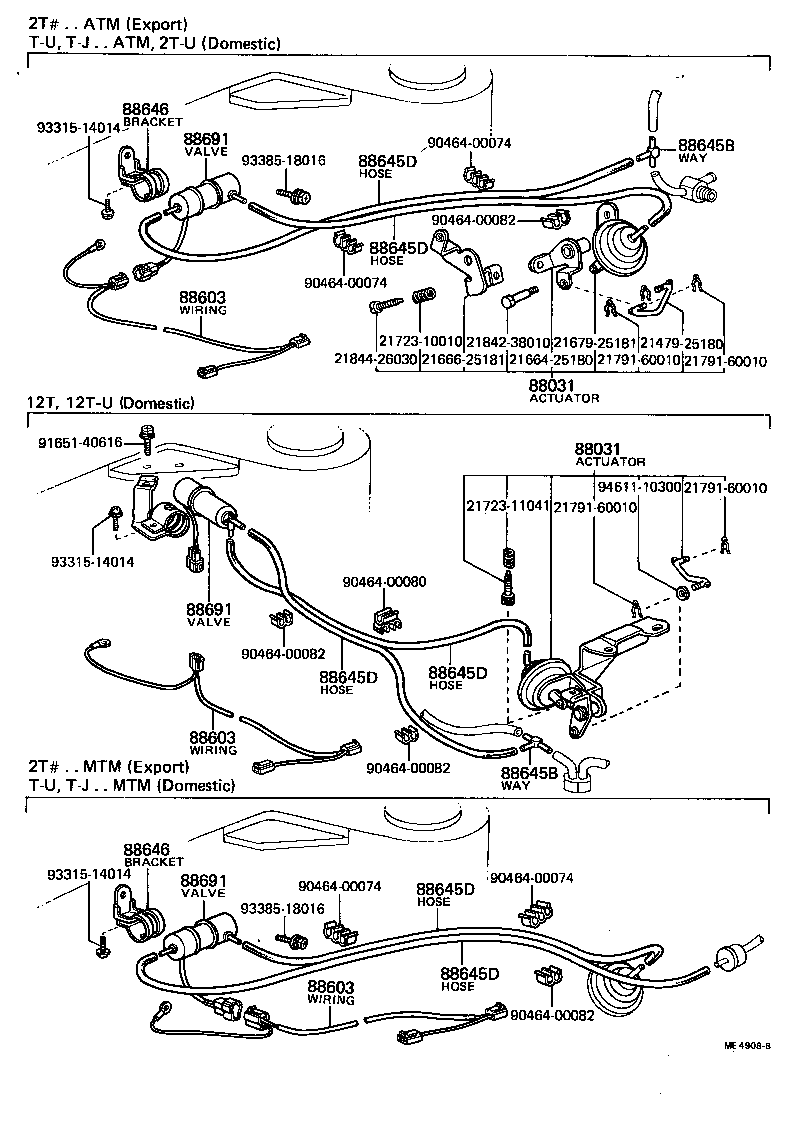

Heating & Air Conditioning - Vacuum Piping
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88031 | Actuator Set, Idle-up |
| 88603 | Wire, Idle UP Device |
| 88645B | Joint, NO.1 (FOR IDLE UP DIVICE) |
| 88645D | Hose (FOR IDLE UP DEVICE) |
| 88646 | Bracket, Idle UP Device, NO.1 |
| 88691 | Valve, Magnet (FOR IDLE UP DEVICE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
