Toyota Corolla Coupe

1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

16 part groups · 2 illustrations

Illustrations

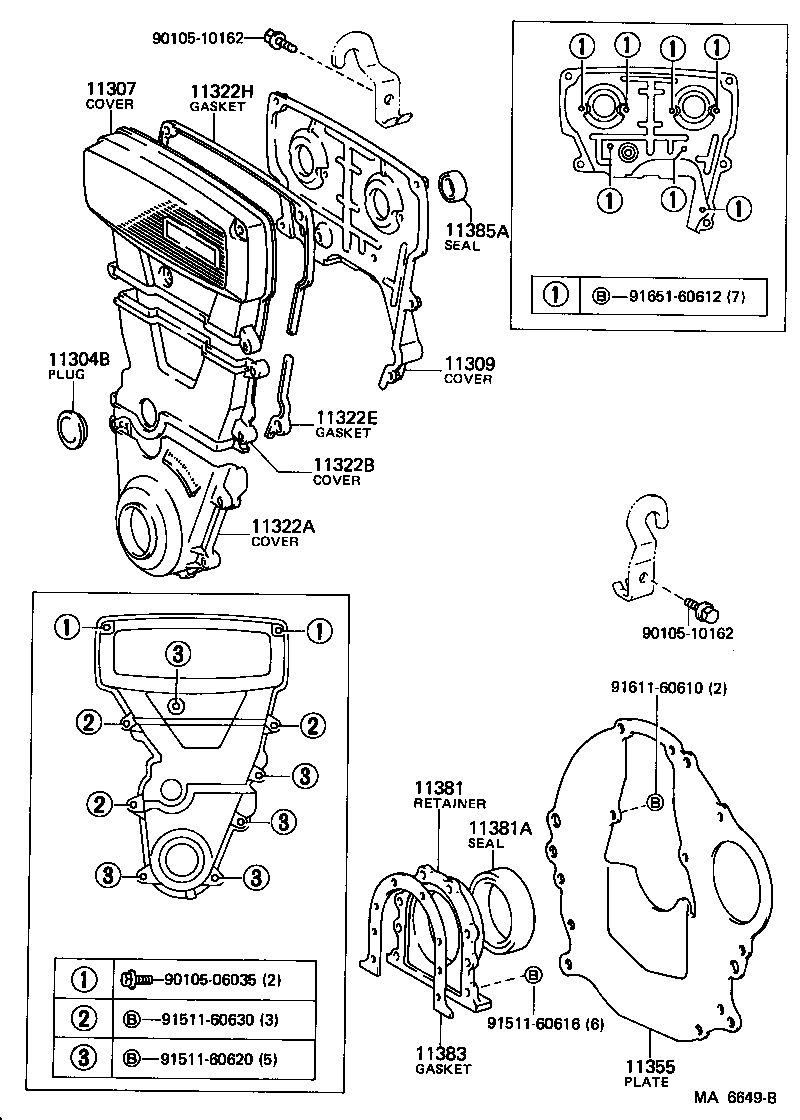

Figure MA6009C MA6009C 1983-05 → — Figure MA6649B MA6649B 1983-08 → —

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11303 Cover Sub-assy, Crankshaft Gear OR Pulley
11304B Plug, Semi Circular(FOR CHAIN COVER NO.2)
11307 Cover, Sub-assy, Timing Belt, NO.3
11309 Cover Sub-assy, Timing Belt, NO.4
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322E Gasket, Timing Belt Cover, NO.2
11322H Gasket, Timing Belt Cover, NO.3
11328 Gasket, Timing Gear OR Chain Cover
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11385A Seal, Oil(FOR CAMSHAFT)
