Toyota Corolla Coupe

1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

26 part groups · 3 illustrations

Illustrations

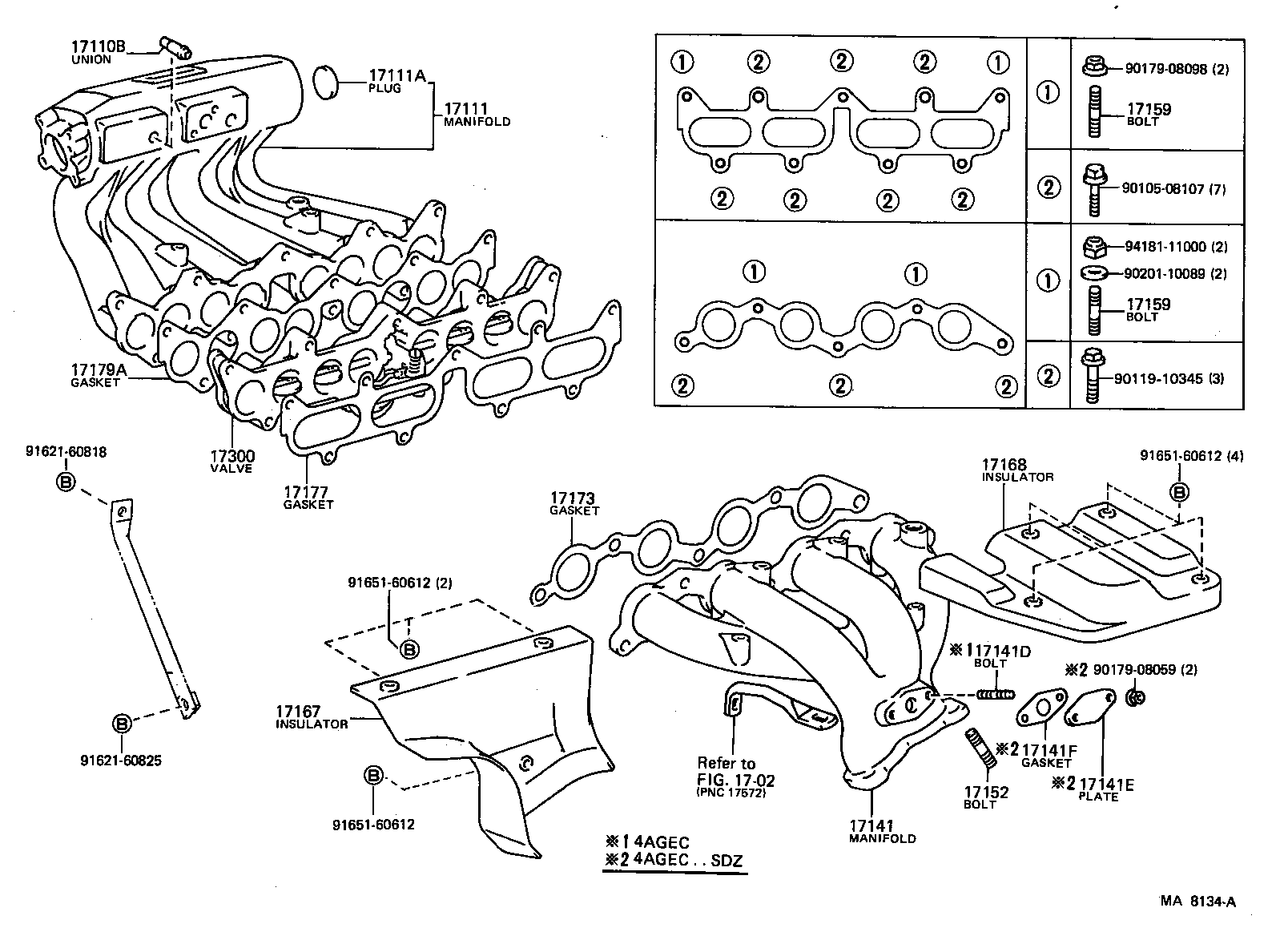

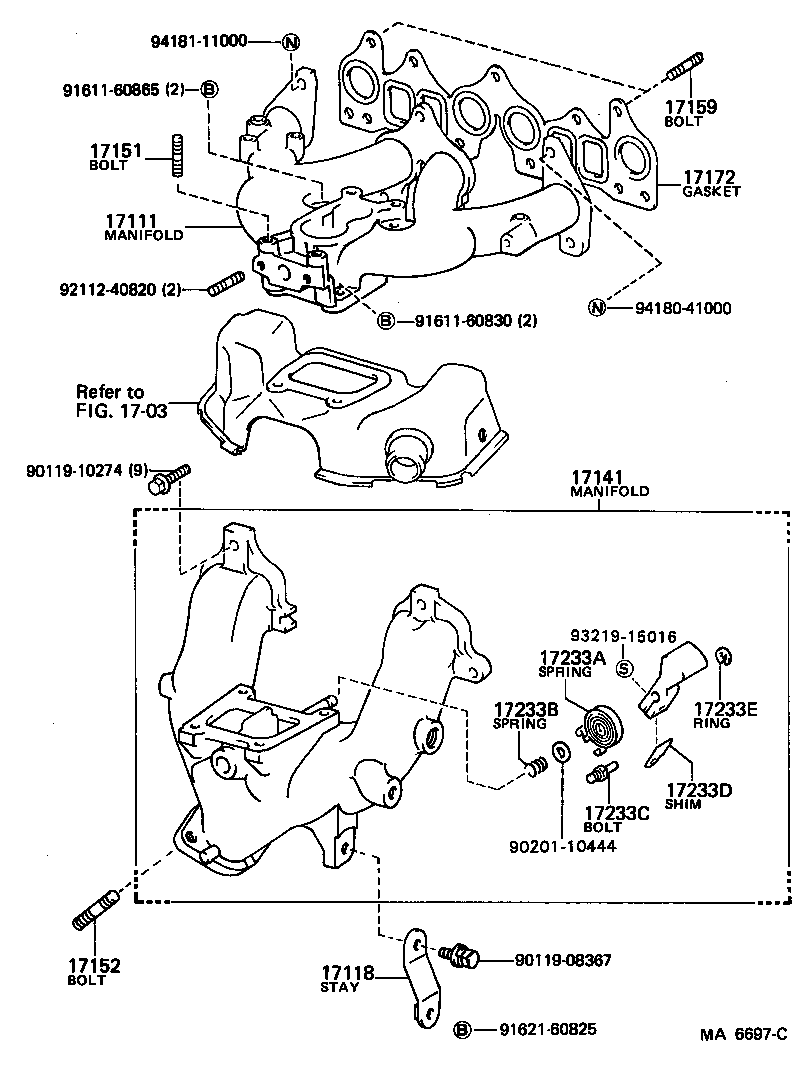

Figure MA6696C MA6696C 1983-05 → — Figure MA6697C MA6697C 1983-05 → 1985-05 Figure MA8134A MA8134A 1983-08 → —

Part groups

PNCDescription
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17118 Stay, Manifold
17141 Manifold, Exhaust
17141C Plug, W/Head Straight Screw
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141E Plate, Exhaust Manifold
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17148B Gasket, Egr Inlet
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17233A Spring, Spiral, NO.1(FOR COUNTER WEIGHT)
17233B Spring, Spiral, NO.2(FOR COUNTER WEIGHT)
17233C Bolt(FOR COUNTER WEIGHT)
17233D Shim(FOR COUNTER WEIGHT)
17233E Ring, E(FOR COUNTER WEIGHT)
17300 Valve Assy, Intake Air Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
