Toyota Corolla Coupe
1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe
Discontinued model
Data version 1987-11
Starter

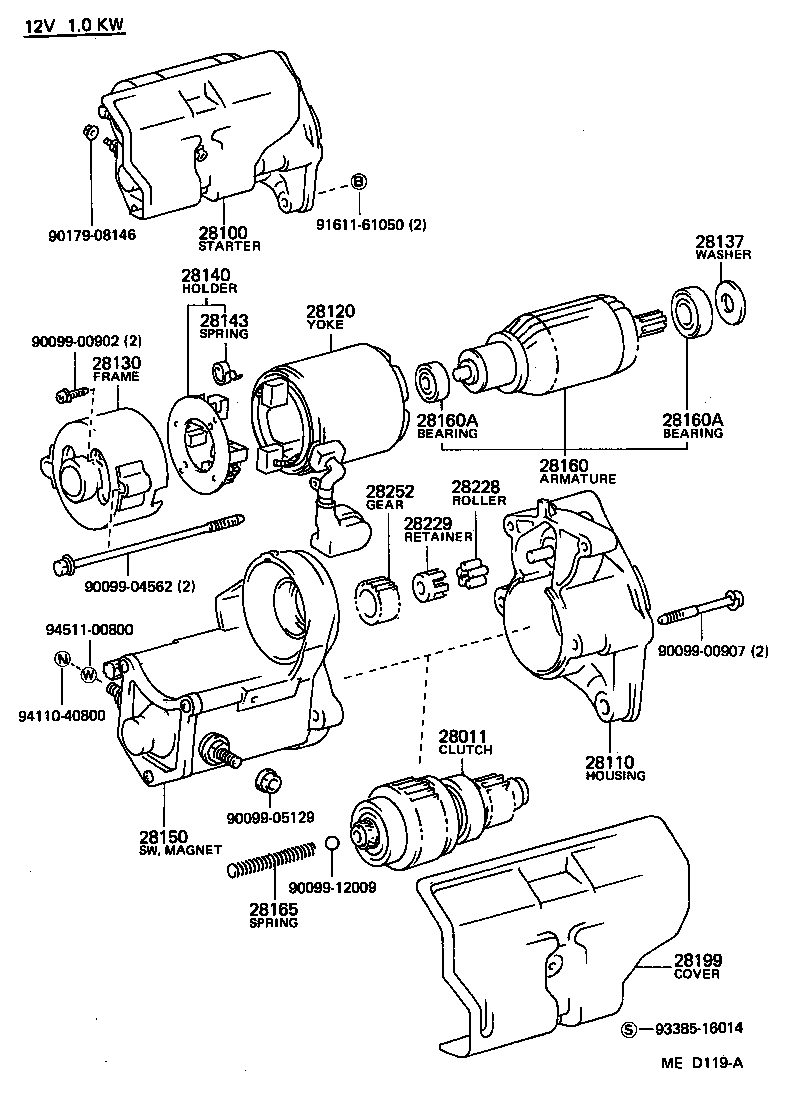

27 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28111 | Bush(FOR STARTER HOUSING) |
| 28113 | Lever, Starter Pinion Drive |
| 28119 | Cover, Starter End Frame |
| 28120 | Yoke Assy, Starter |
| 28130 | Frame Assy, Starter Commutator End |
| 28131 | Bush, Commutator End Frame |
| 28133 | Cover, Bearing(FOR END FRAME) |
| 28136 | Plate, Starter Lock |
| 28137 | Washer, Felt, Starter |
| 28138 | Rubber(FOR STARTER BEARING COVER) |
| 28140 | Holder Assy, Starter Brush |
| 28143 | Spring, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28153 | Cover, Magnet Switch |
| 28160 | Armature Assy, Starter |
| 28160A | Bearing, Starter Armature |
| 28162 | Spring, Starter Brake |
| 28163 | Nut OR Collar, Pinion Stop, Starter |
| 28163A | Ring, Snap(FOR STARTER PINION STOP NUT) |
| 28165 | Spring, Starter Magnet Switch Return |
| 28199 | Cover, Starter |
| 28228 | Roller, Starter Idle Gear Clutch |
| 28229 | Retainer, Starter Idle Gear |
| 28252 | Gear, Starter Idle |
