Toyota Corolla Coupe
1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe
Discontinued model
Data version 1987-11

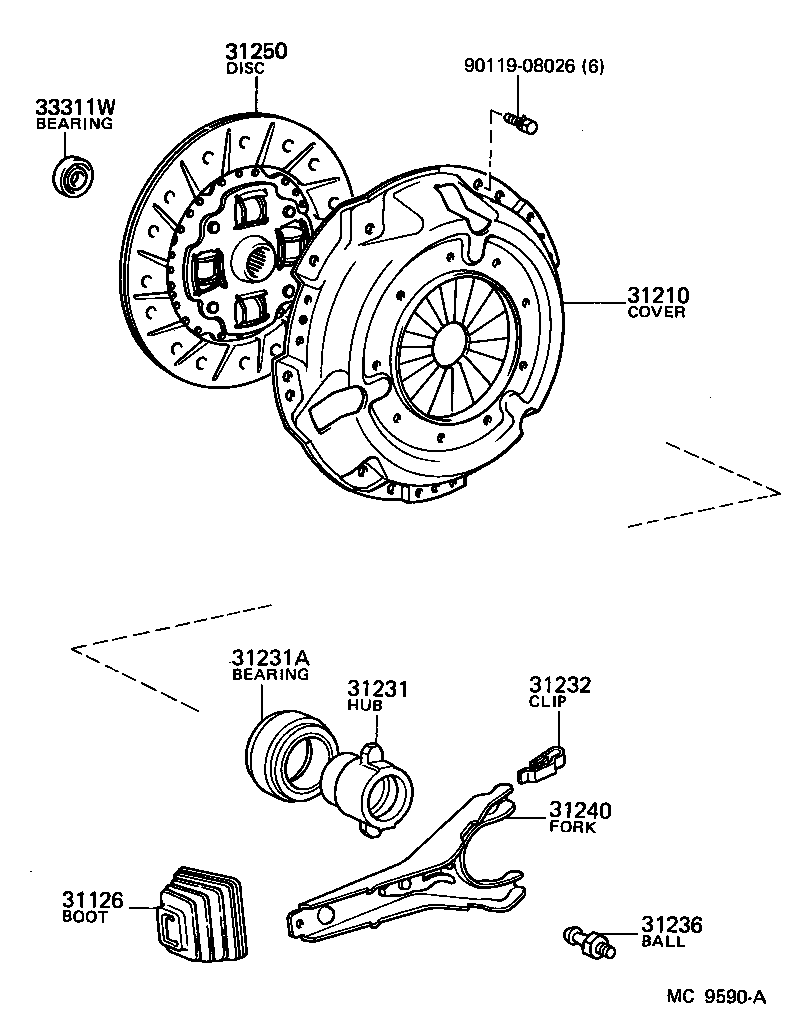

Clutch & Release Fork
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31126 | Boot, Clutch Release Fork |
| 31210 | Cover Assy, Clutch |
| 31231 | Hub, Clutch Release Bearing |
| 31231A | Bearing, Ball(FOR CLUTCH RELEASE HUB) |
| 31232 | Clip OR Spring, Release Bearing Hub |
| 31236 | Ball, Release Fork |
| 31240 | Fork Assy, Clutch Release |
| 31250 | Disc Assy, Clutch |
| 33311W | Bearing (FOR INPUT SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
