Toyota Corolla Coupe
1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe
Discontinued model
Data version 1987-11
Front Steering Gear & Link
75 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

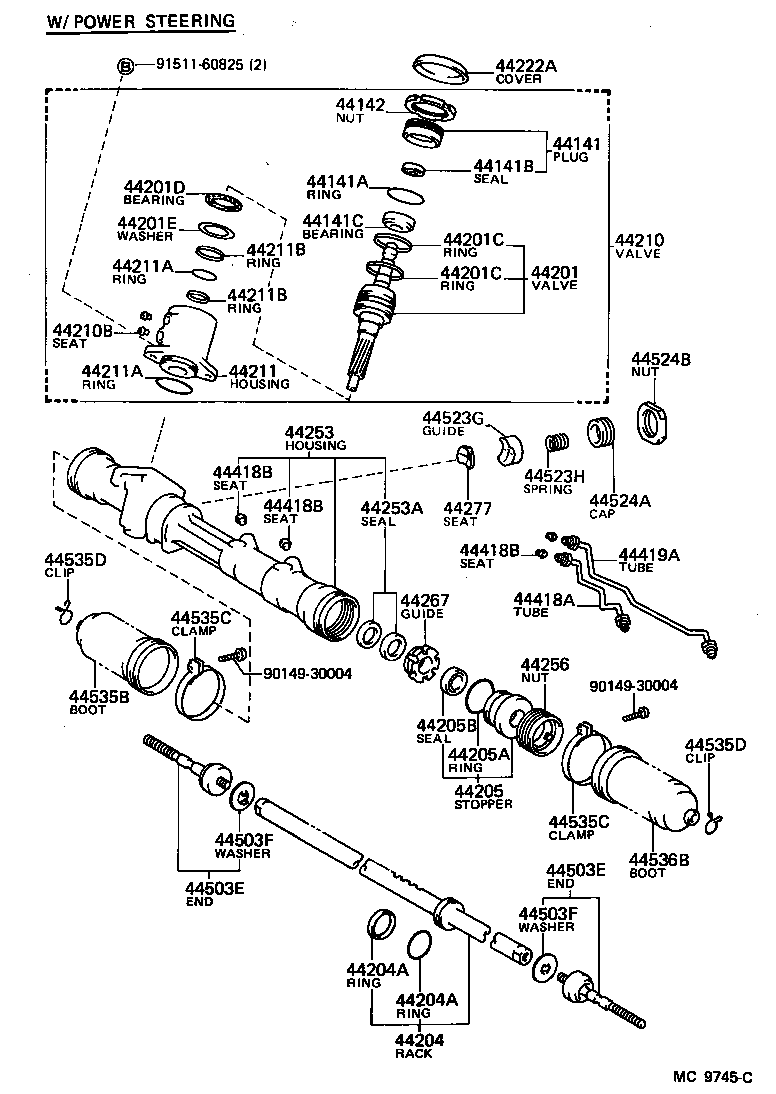

| 04445 | Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL) |
| 04455 | Gasket Kit, Power Steering Control Valve Overhole |
| 44141 | Plug, Adjuster |
| 44141A | Ring, O(FOR ADJUSTER PLUG) |
| 44141B | Seal, Oil(FOR ADJUSTER PLUG) |
| 44141C | Bearing(FOR ADJUSTER PLUG) |
| 44142 | Nut, Lock |
| 44201 | Valve Sub-assy, Power Steering Control |
| 44201C | Ring(FOR POWER STEERING CONTROL VALVE) |
| 44201D | Bearing, Thrust Needle Roller(FOR CONTROL VALVE) |
| 44201E | Washer, Plate(FOR POWER STEERING CONTROL VALVE) |
| 44204 | Rack Sub-assy, Power Steering |
| 44204A | Ring(FOR RACK STEERING PISTON) |
| 44205 | Stopper Sub-assy, Cylinder End |
| 44205A | Ring, O(FOR CYLINDER END STOPPER) |
| 44205B | Seal, Oil(FOR CYLINDER END STOPPER) |
| 44210 | Valve Assy, Power Steering Control |
| 44210B | Seat, Union(FOR POWER STEERING CONTROL VALVE) |
| 44211 | Housing, Control Valve |
| 44211A | Ring, O(FOR CONTROL VALVE HOUSING) |
| 44211B | Ring(FOR CONTROL VALVE HOUSING) |
| 44222A | Cover, Dust(FOR POWER STEERING GEAR) |
| 44250 | Gear Assy, Power Steering(FOR RACK & PINION) |
| 44253 | Housing, Power Steering Rack |
| 44253A | Seal, Oil(FOR POWER STEERING RACK HOUSING) |
| 44256 | Nut, Cylinder End Stopper |
| 44267 | Guide, Rack End |
| 44277 | Seat, Rack Guide |
| 44418A | Tube, Steering Right Turn Pressure |
| 44418B | Seat, Union(FOR STEERING TURN PRESSURE TUBE) |
| 44419A | Tube, Steering Left Turn Pressure |
| 44503E | End Sub-assy, Steering Rack(FOR POWER STEERING) |
| 44503F | Washer, Claw(FOR POWER STEERING RACK END) |
| 44523G | Guide, Rack(FOR POWER STEERING) |
| 44523H | Spring(FOR POWER STEERING RACK GUIDE) |
| 44524A | Cap, Rack Guide Spring(FOR POWER STEERING) |
| 44524B | Nut(FOR POWER STEERING RACK GUIDE CAP) |
| 44535B | Boot, Steering Rack NO.1(FOR POWER STEERING) |
| 44535C | Clamp(FOR POWER STEERING RACK BOOT) |
| 44535D | Clip(FOR POWER STEERING RACK BOOT) |
| 44536B | Boot, Steering Rack NO.2(FOR POWER STEERING) |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45222 | Cover, Steering Gear Dust |
| 45460 | Rod Assy, Tie, RH |
| 45466 | Clamp, Tie Rod End |
| 45470 | Rod Assy, Tie, LH |
| 45501 | Housing Sub-assy, Steering Rack |
| 45501A | Seal, Type T Oil(FOR STEERING RACK HOUSING) |
| 45503 | End Sub-assy, Steering Rack |

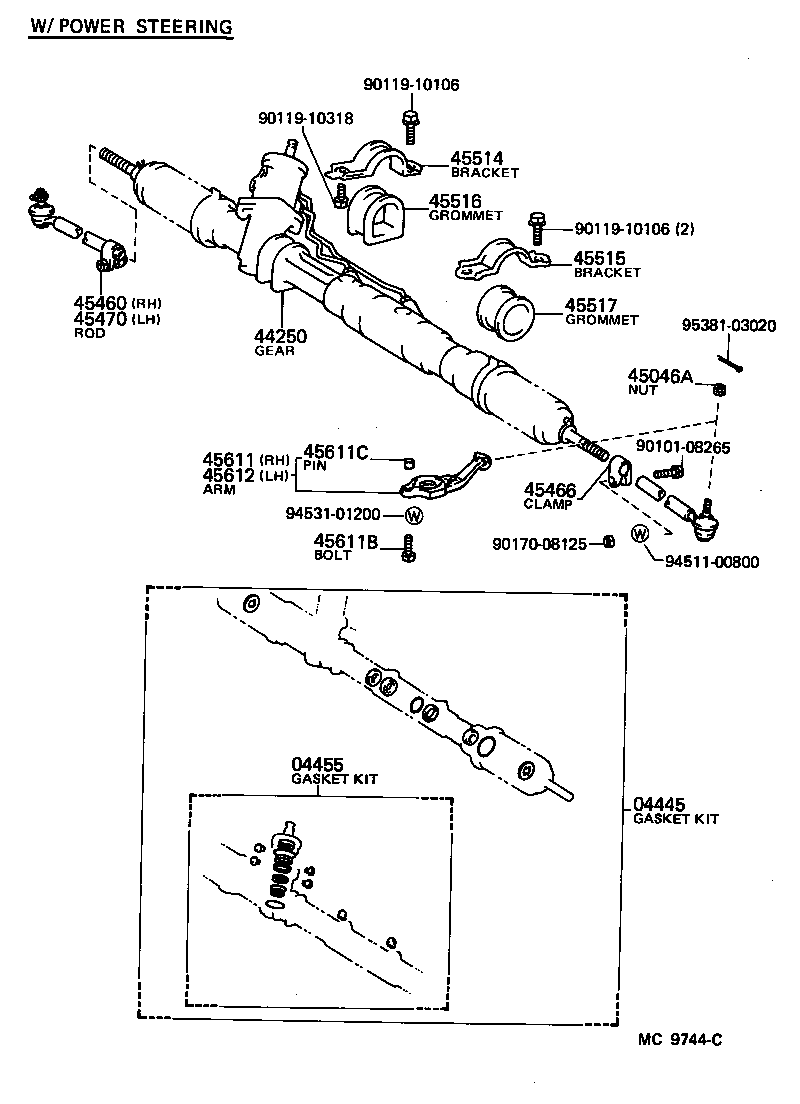

| 45510 | Gear Assy, Steering |
| 45514 | Bracket, Steering Rack Housing, NO.1 |
| 45515 | Bracket, Steering Rack Housing, NO.2 |
| 45516 | Grommet, Steering Rack Housing, NO.1 |
| 45517 | Grommet, Steering Rack Housing, NO.2 |
| 45518 | Bracket, Steering Rack Housing, NO.3 |
| 45521 | Rack, Steering |
| 45522 | Bush, Steering Rack |
| 45523 | Guide, Rack(FOR STEERING GEAR) |
| 45523A | Spring(FOR STEERING GEAR RACK GUIDE) |
| 45524 | Cap, Steering Rack Guide Spring |
| 45524A | Nut(FOR STEERING RACK GUIDE SPRING CAP) |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535A | Clamp(FOR STEERING RACK BOOT) |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45536 | Boot, Steering Rack, NO.2 |
| 45537A | Washer, Claw(FOR STEERING RACK END LOCK) |
| 45541 | Pinion, Steering |
| 45541A | Bearing, Radial Ball(FOR STEERING PINION UPPER) |
| 45541B | Bearing, Radial Ball(FOR STEERING PINION LOWER) |
| 45545 | Screw, Pinion Bearing Adjusting |
| 45545A | Nut(FOR PINION BEARING ADJUSTING SCREW) |
| 45611 | Arm, Steering Knuckle, RH |
| 45611B | Bolt, Hexagon(FOR STEERING KNUCKLE TO SHOCK ABSORBER) |
| 45611C | Pin, Straight(FOR STEERING KNUCKLE TO SHOCK ABSORBER) |
| 45612 | Arm, Steering Knuckle, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
