Toyota Corolla Coupe

1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 3 illustrations

Illustrations

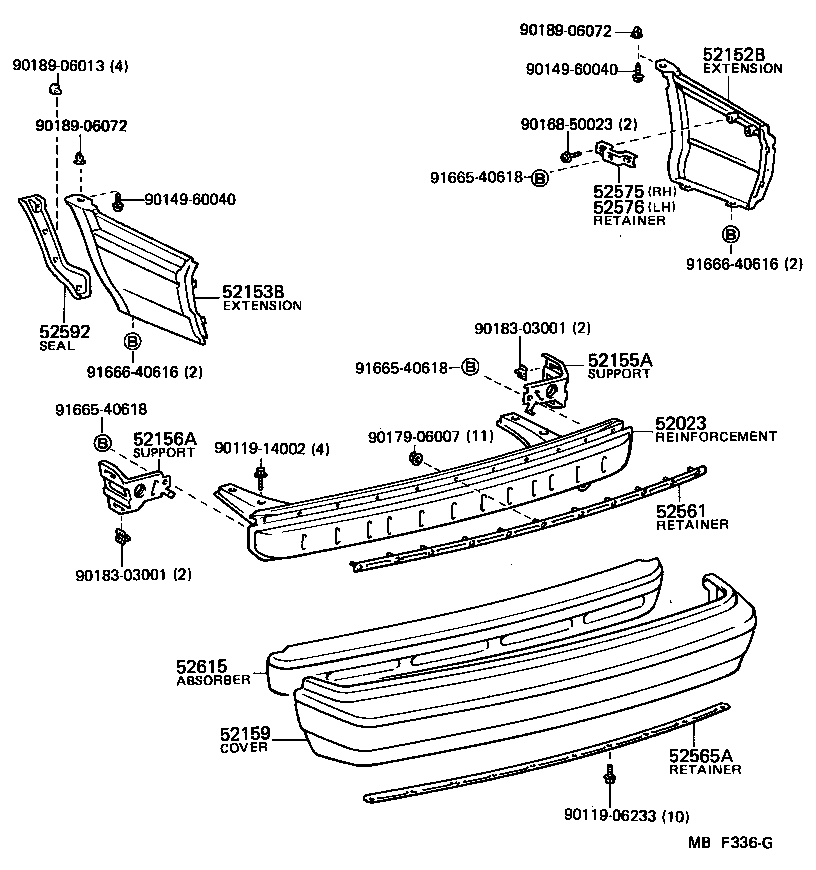

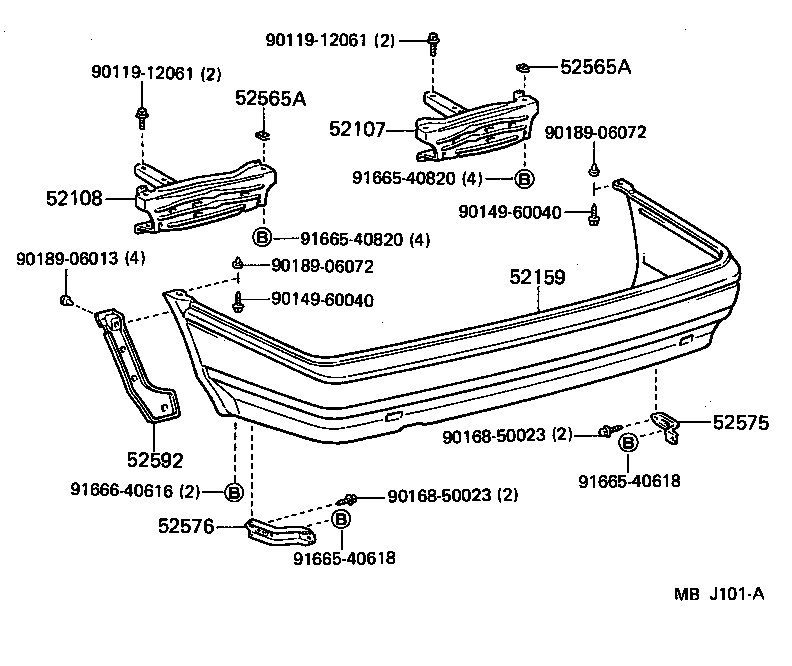

Figure MBF298E MBF298E 1983-05 → 1985-05 Figure MBJ101A MBJ101A 1985-05 → — Figure MBF336G MBF336G 1983-08 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52592 Seal, Rear Bumper Side, LH
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
