Toyota Corolla Coupe

1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

17 part groups · 4 illustrations

Illustrations

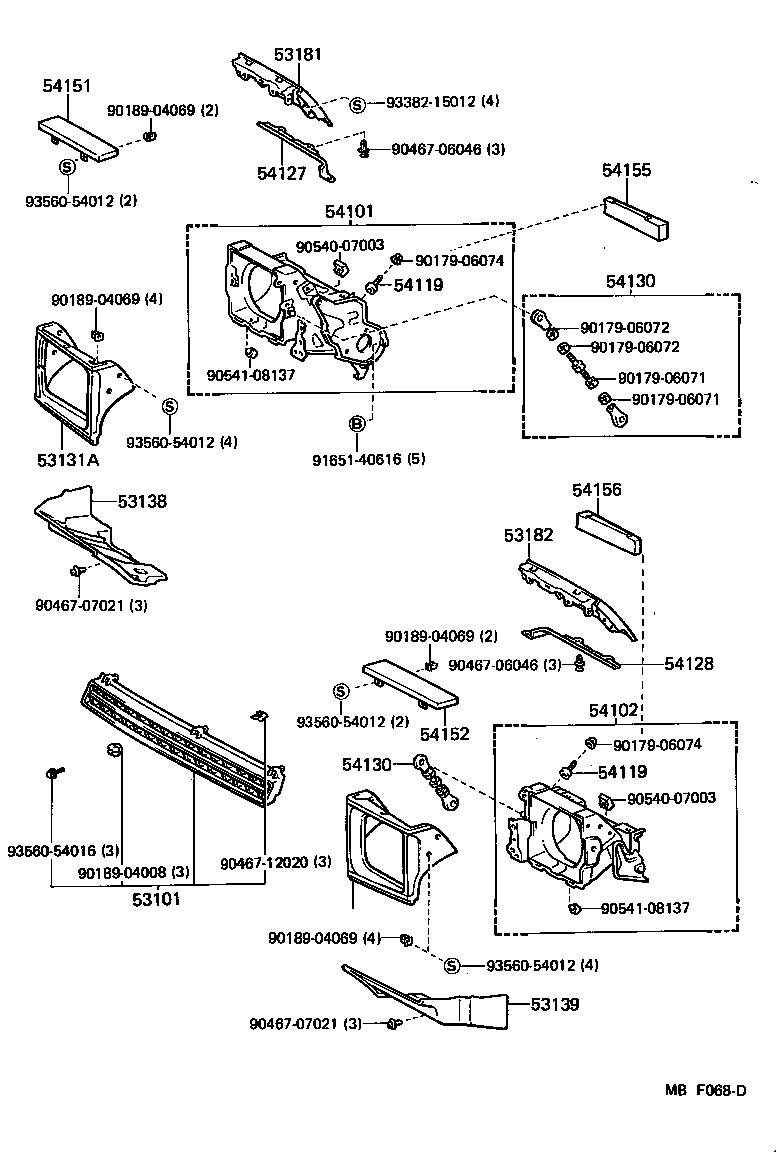

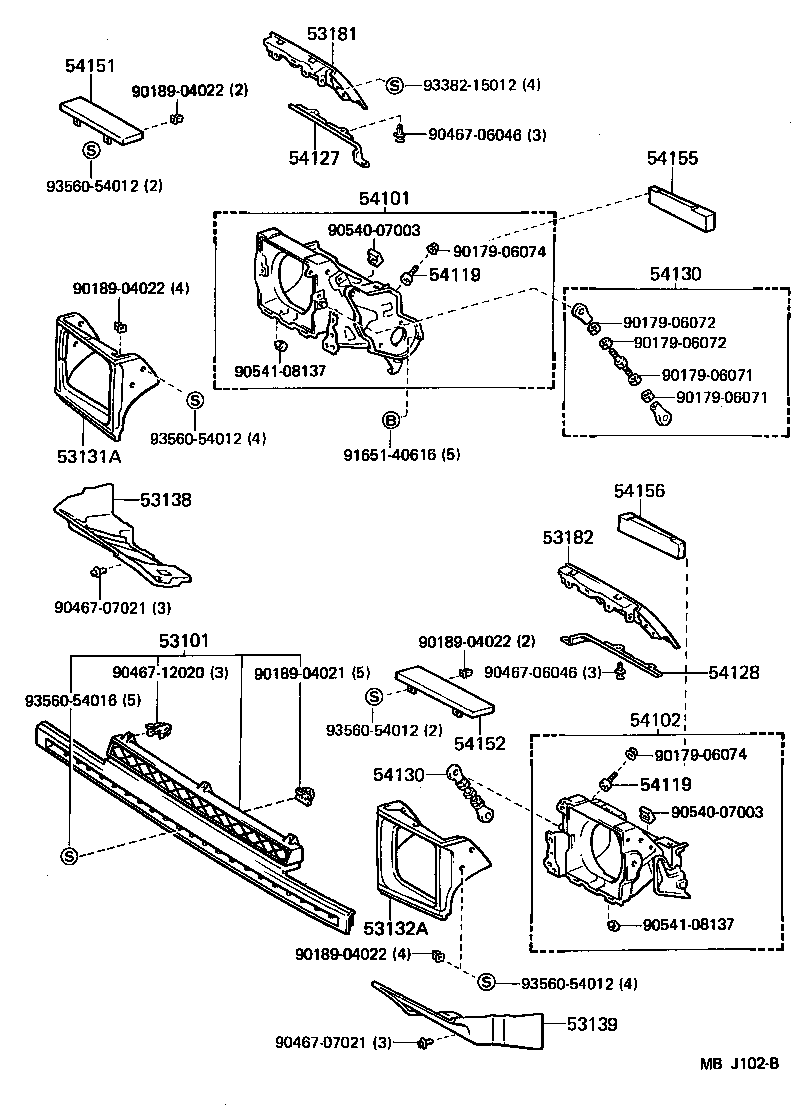

Figure MBF013 MBF013 1983-05 → 1985-05 Figure MBJ083A MBJ083A 1985-05 → — Figure MBF068D MBF068D 1983-08 → 1985-05 Figure MBJ102B MBJ102B 1985-05 → —

Part groups

PNCDescription
53101 Grille Sub-assy, Radiator
53131A Door, Headlamp, RH
53132A Door, Headlamp, LH
53138 Protector, Headlamp Door, RH
53139 Protector, Headlamp Door, LH
53181 Cover, Headlamp, RH
53182 Cover, Headlamp, LH
54101 Bracket Sub-assy, Retractable Headlamp, RH
54102 Bracket Sub-assy, Retractable Headlamp, LH
54119 Stop, Retractable Headlamp Link
54127 Protector, Retractable Headlamp, NO.2 RH
54128 Protector, Retractable Headlamp, NO.2 LH
54130 Rod Assy, Retractable Headlamp
54151 Garnish, Retractable Headlamp Cover, RH
54152 Garnish, Retractable Headlamp Cover, LH
54155 Protector, Retractable Headlamp, NO.3 RH
54156 Protector, Retractable Headlamp, NO.3 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
