Toyota Corolla Coupe

1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

19 part groups · 2 illustrations

Illustrations

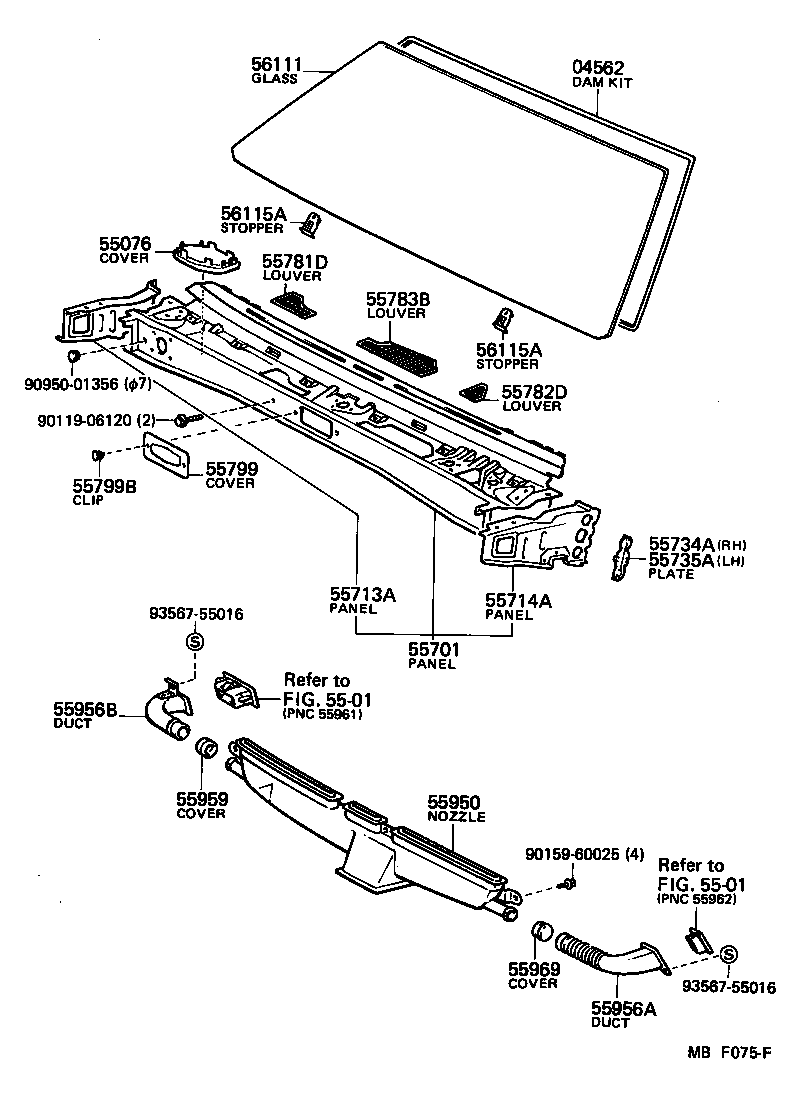

Figure MBF074D MBF074D 1983-05 → — Figure MBF075F MBF075F 1983-05 → —

Part groups

PNCDescription
04562 Dam Kit, Windshield Glass
55076 Cover, Heater Air Duct Hole
55701 Panel Sub-assy, Cowl
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55734A Plate, Water Guard, RH
55735A Plate, Water Guard, LH
55781D Louver, Cowl Top Ventilator, RH
55782D Louver, Cowl Top Ventilator, LH
55783B Louver, Cowl Top Ventilator, Center NO.1
55799 Cover, Wiper Motor
55799B Clip, Wiper Motor Cover, Outer
55950 Nozzle Assy, Defroster
55956A Duct, Side Defroster Nozzle, NO.1
55956B Duct, Side Defroster Nozzle, NO.2
55959 Cover, Defroster Nozzle Opening, NO.1
55969 Cover, Defroster Nozzle Opening, NO.2
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
