Toyota Corolla Coupe
1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe
Discontinued model
Data version 1987-11

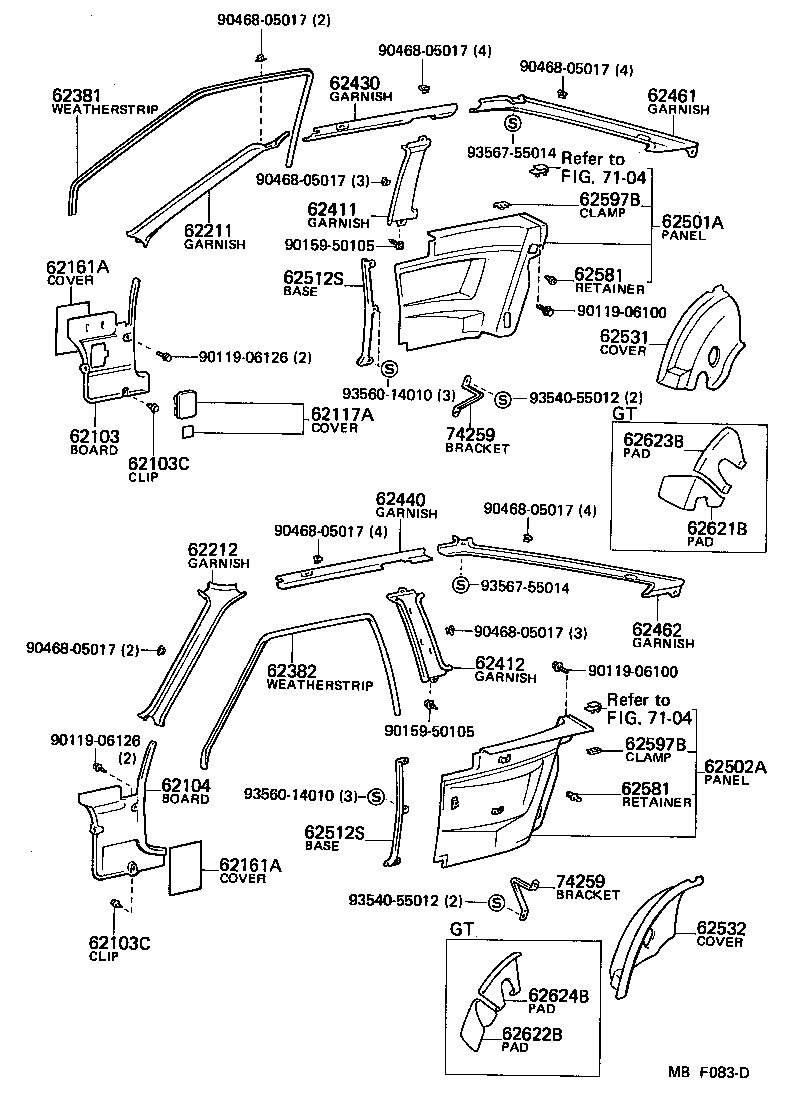

Inside Trim Board & Door Opening Trim Moulding
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62103C | Clip, Cowl Side Trim Board Set |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62161A | Cover, Cowl Side Trim Service Hole |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62381 | Weatherstrip, Roof Side Rail, Front RH |
| 62382 | Weatherstrip, Roof Side Rail, Front LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62461 | Garnish, Roof Side Trim, RH |
| 62462 | Garnish, Roof Side Trim, LH |
| 62501A | Panel Assy, Quarter Trim, RH |
| 62502A | Panel Assy, Quarter Trim, LH |
| 62512S | Base, Quarter Trim, Front |
| 62531 | Cover, Wheel House Trim, RH |
| 62532 | Cover, Wheel House Trim, LH |
| 62533A | Bracket, Quarter Trim Clamp |
| 62581 | Retainer, Quarter Trim |
| 62597B | Clamp, Quarter Trim |
| 62621B | Pad, Quarter Wheel House, Inner Front RH |
| 62622B | Pad, Quarter Wheel House, Inner Front LH |
| 62623B | Pad, Quarter Wheel House, Inner Rear RH |
| 62624B | Pad, Quarter Wheel House, Inner Rear LH |
| 67457 | Bracket, Quarter Rear Guide, Upper |
| 74259 | Bracket, Rear Side Armrest Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
