Toyota Corolla Coupe

1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe

Discontinued model Data version 1987-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

10 part groups · 2 illustrations

Illustrations

Figure MBF094C

MBF094C 1983-05 → 1985-05

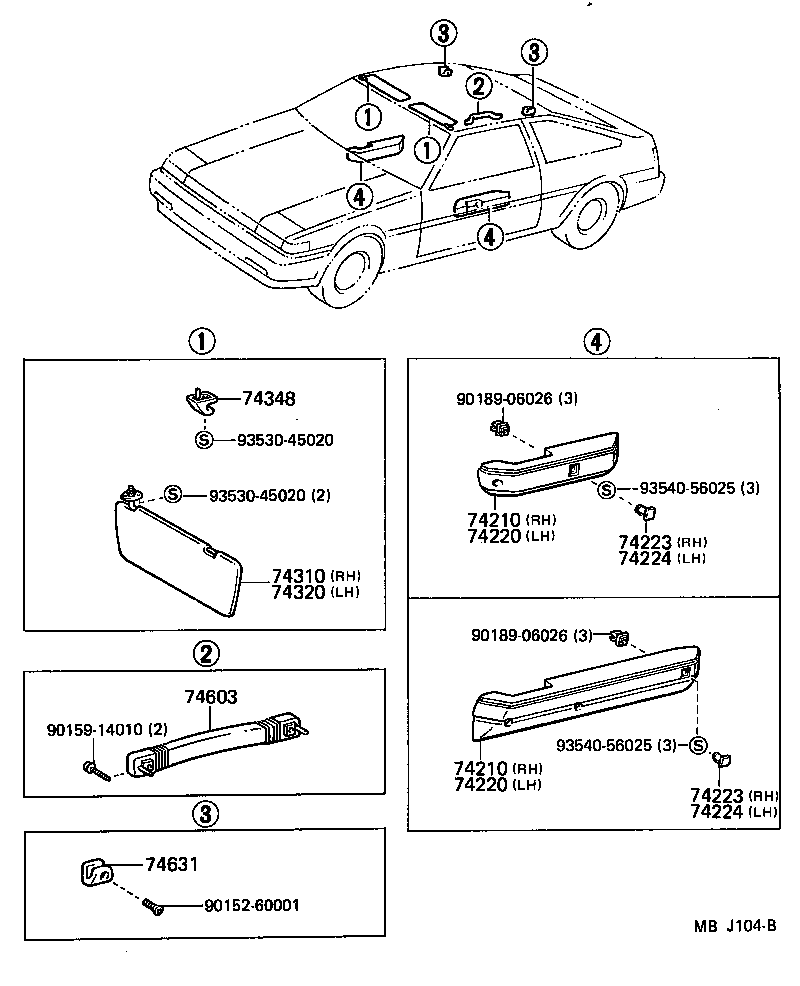

Figure MBJ104B

MBJ104B 1985-05 → —

Part groups

PNC	Description
74210	Armrest Assy, Front, RH
74220	Armrest Assy, Front, LH
74223	Cap, Door Armrest, RH
74224	Cap, Door Armrest, LH
74310	Visor Assy, RH
74320	Visor Assy, LH
74348	Holder, Visor
74603	Grip Sub-assy, Assist, Front
74631	Hook, Coat, A
74810	Pull Assy, Door, Inside

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
