Toyota Corolla Coupe
1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe
Discontinued model
Data version 1987-11

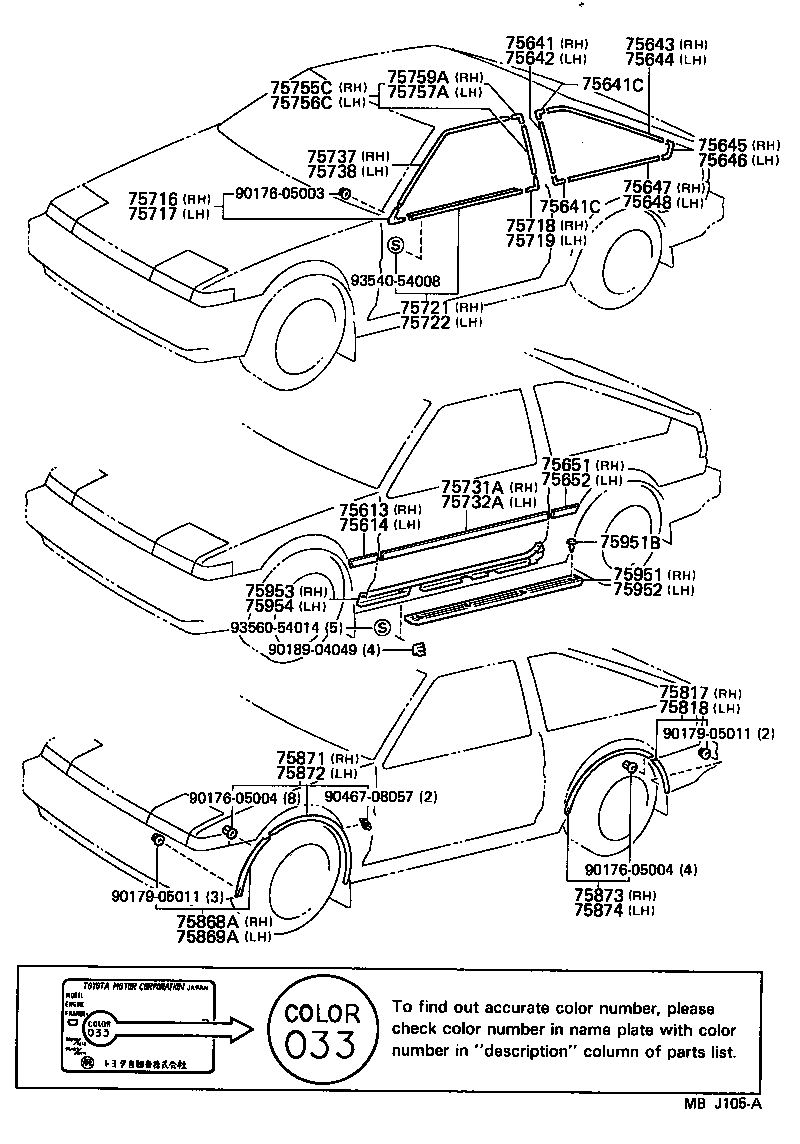

Side Moulding
40 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75613 | Moulding, Front Fender, Outside RH |
| 75614 | Moulding, Front Fender, Outside LH |
| 75641 | Moulding, Quarter Window, Outside Front RH |
| 75641C | Joint, Quarter Window Moulding |
| 75642 | Moulding, Quarter Window, Outside Front LH |
| 75643 | Moulding, Quarter Window, Outside Upper RH |
| 75644 | Moulding, Quarter Window, Outside Upper LH |
| 75645 | Moulding, Quarter Window, Outside Rear RH |
| 75646 | Moulding, Quarter Window, Outside Rear LH |
| 75647 | Moulding, Quarter Window, Outside Lower RH |
| 75648 | Moulding, Quarter Window, Outside Lower LH |
| 75651 | Moulding, Quarter, Outside RH |
| 75652 | Moulding, Quarter, Outside LH |
| 75716 | Cover, Front Door Belt Moulding End, Front RH |
| 75717 | Cover, Front Door Belt Moulding End, Front LH |
| 75718 | Cover, Front Door Belt Moulding End, Rear RH |
| 75719 | Cover, Front Door Belt Moulding End, Rear LH |
| 75721 | Moulding, Front Door Belt, RH |
| 75722 | Moulding, Front Door Belt, LH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75737 | Moulding, Front Door Window Frame, Front RH |
| 75738 | Moulding, Front Door Window Frame, Front LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75757A | Cover, Front Door Window Frame Moulding Joint, Rear LH |
| 75759A | Cover, Front Door Window Frame Moulding Joint, Rear RH |
| 75817 | Moulding, Quarter Wheel Opening, NO.2 RH |
| 75818 | Moulding, Quarter Wheel Opening, NO.2 LH |
| 75868A | Moulding, Front Fender Wheel Opening, NO.2 RH |
| 75869A | Moulding, Front Fender Wheel Opening, NO.2 LH |
| 75871 | Moulding, Front Fender Wheel Opening, RH |
| 75872 | Moulding, Front Fender Wheel Opening, LH |
| 75873 | Moulding, Quarter Panel Wheel Opening, RH |
| 75874 | Moulding, Quarter Panel Wheel Opening, LH |
| 75951 | Plate, Front Door Scuff, Outside RH |
| 75951B | Clip (FOR DOOR SCUFF PLATE) |
| 75952 | Plate, Front Door Scuff, Outside LH |
| 75953 | Plate, Front Door Scuff, Inside RH |
| 75954 | Plate, Front Door Scuff, Inside LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
