Toyota Corolla Coupe

1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

21 part groups · 3 illustrations

Illustrations

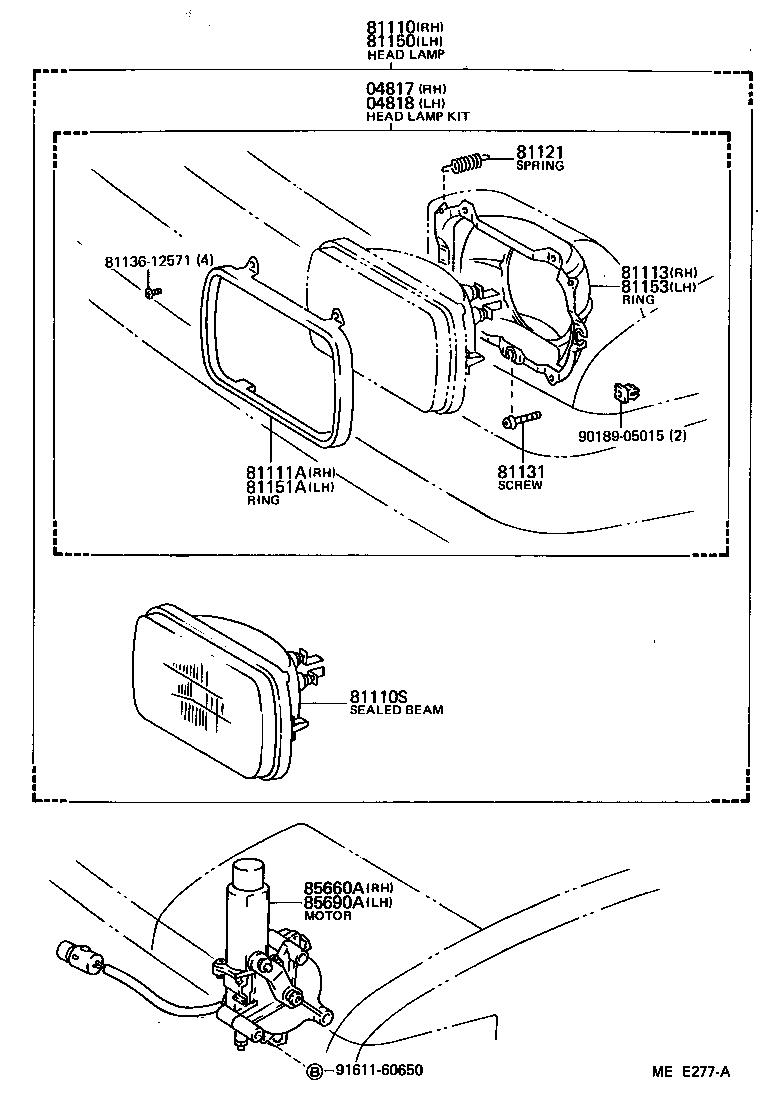

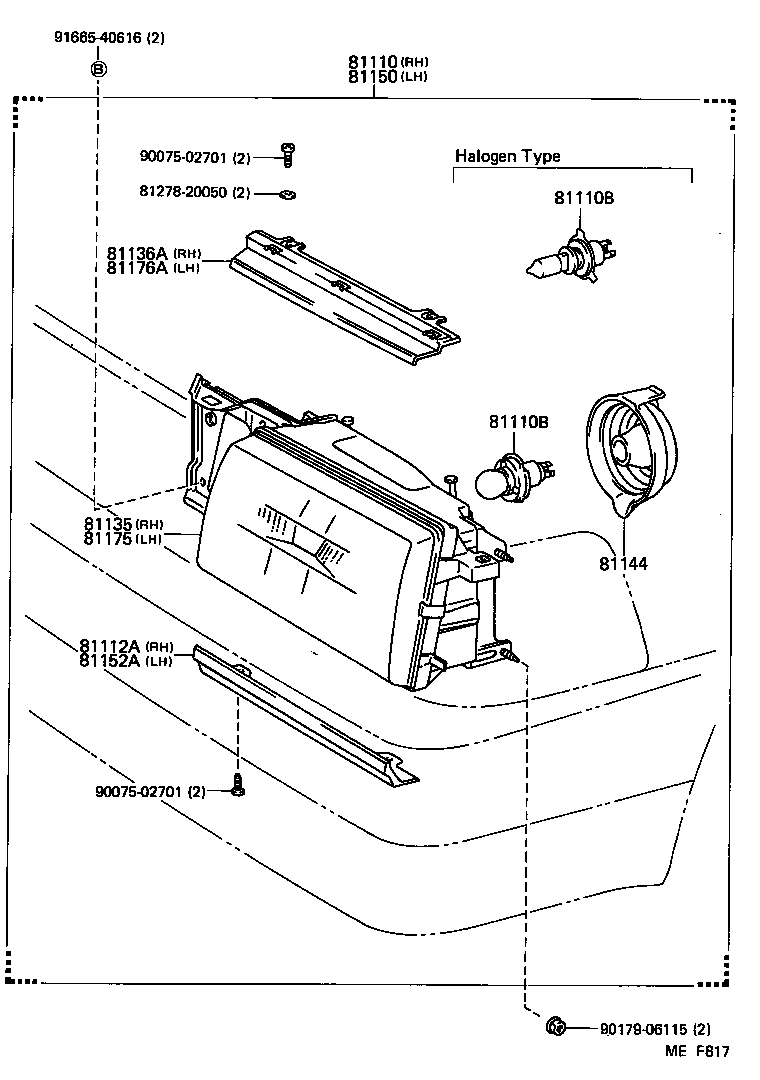

Figure MEE464 MEE464 1983-05 → 1985-05 Figure MEF817 MEF817 1985-05 → — Figure MEE277A MEE277A 1983-08 → —

Part groups

PNCDescription
04817 Headlamp Kit, W/O Sealed Beam, RH
04818 Headlamp Kit, W/O Sealed Beam, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111A Ring, Sealed Beam Retaining, NO.1 RH
81112A Rim, Headlamp, RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81135 Unit Assy, Headlamp, RH
81136A Rim, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81151A Ring, Sealed Beam Retaining, NO.1 LH
81152A Rim, Headlamp, LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81175 Unit Assy, Headlamp, LH
81176A Rim, Headlamp, LH
85660A Motor Assy, Light Retractor, RH
85690A Motor Assy, Light Retractor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
