Toyota Corolla Coupe

1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 5 illustrations

Illustrations

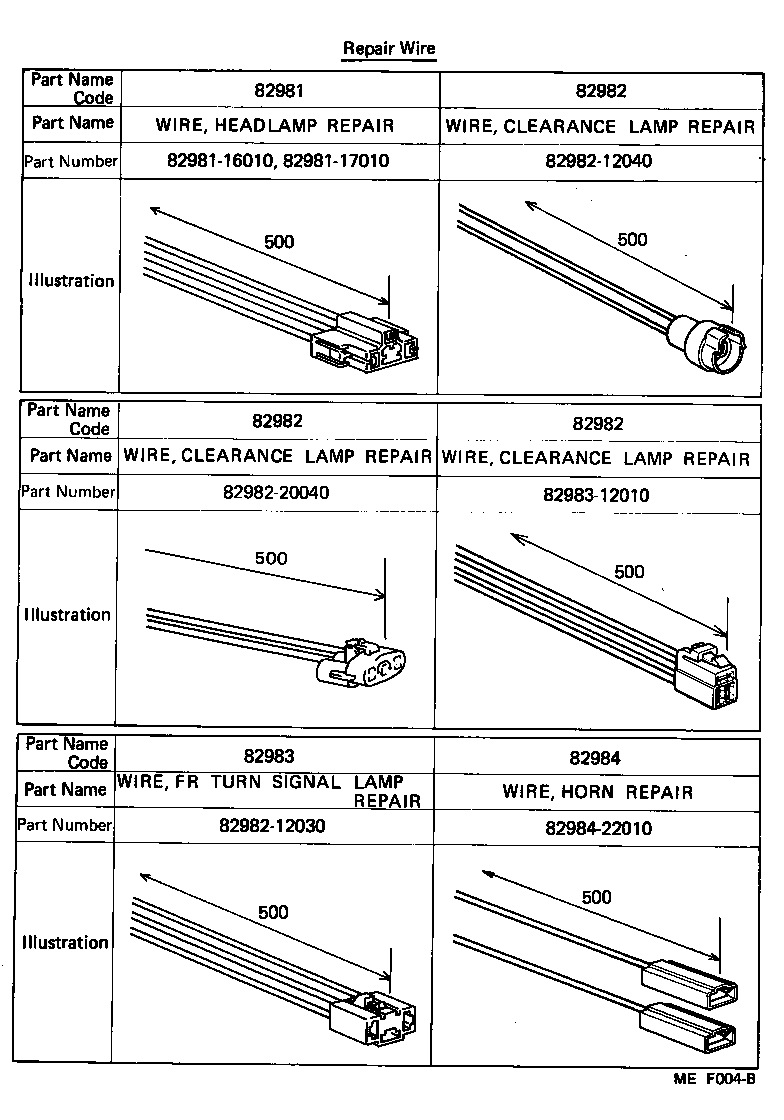

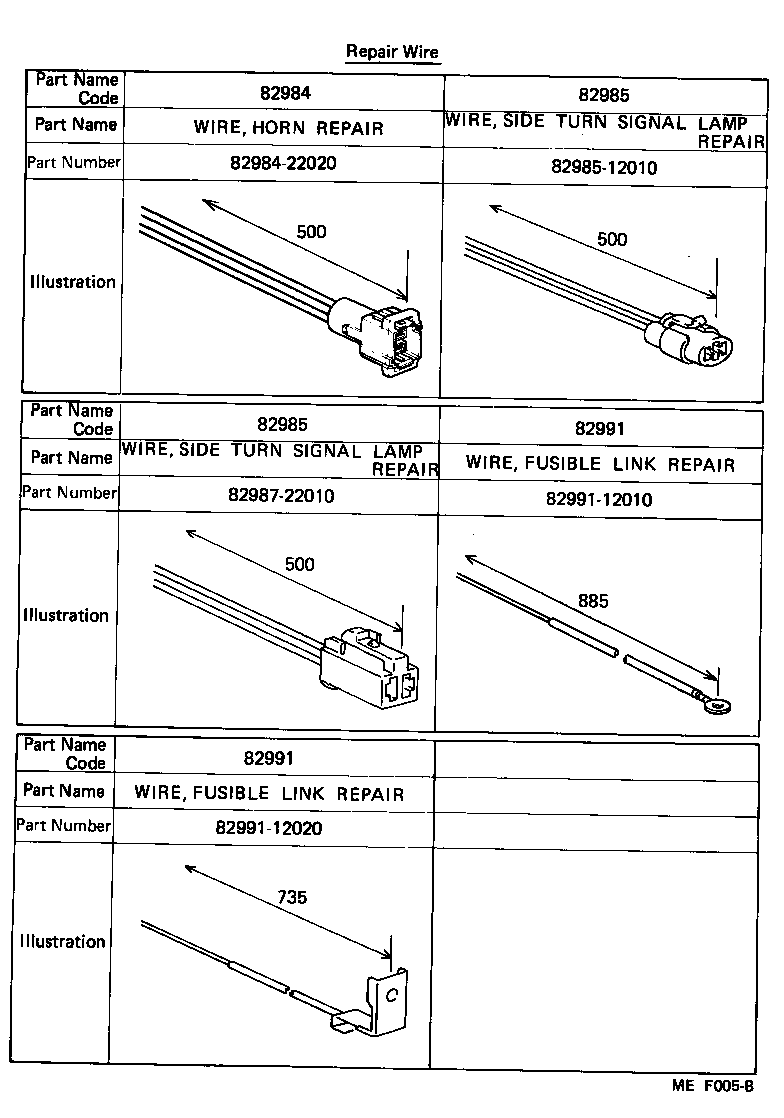

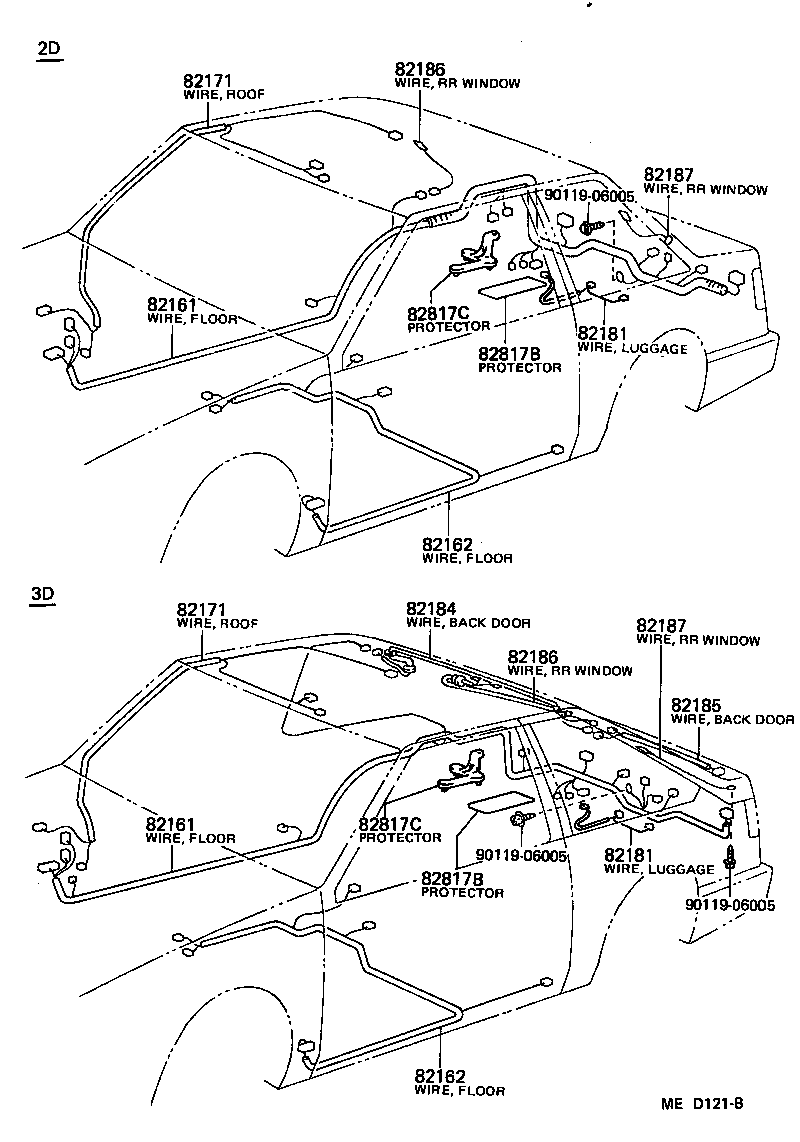

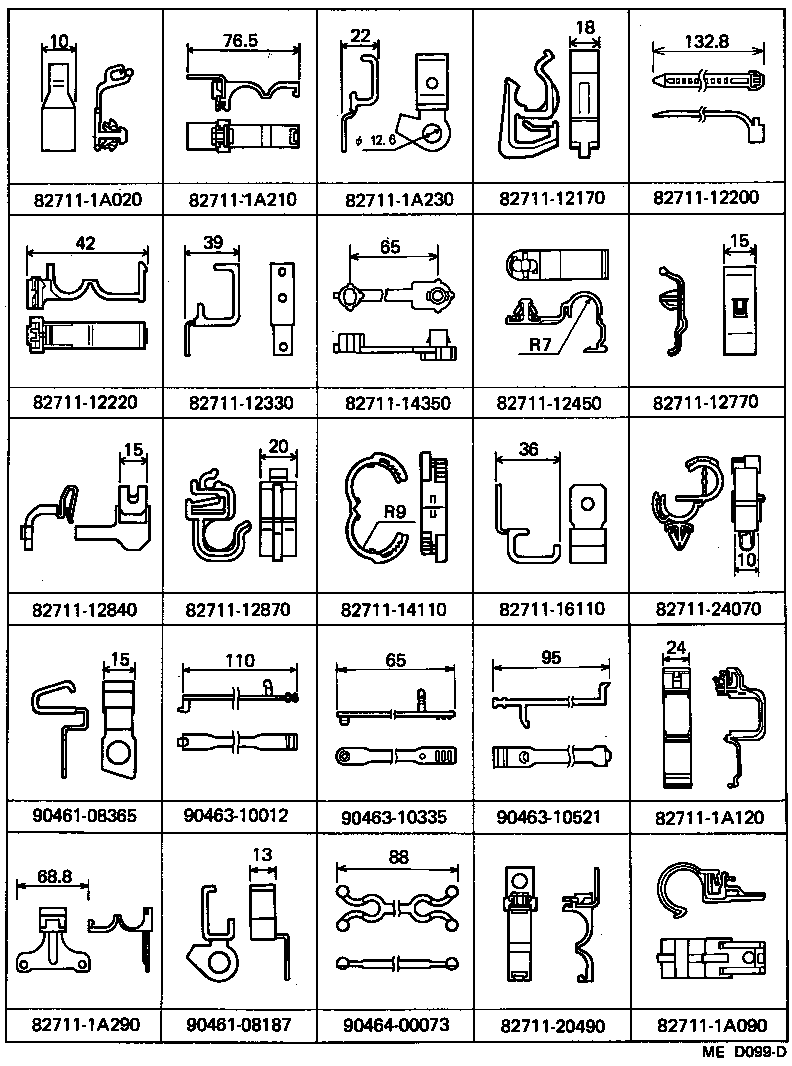

Figure MED120F MED120F 1983-05 → — Figure MED121B MED121B 1983-05 → — Figure MEF004B MEF004B 1983-05 → — Figure MEF005B MEF005B 1983-05 → — Figure MED099D MED099D 1983-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82134 Wire, Cowl, NO.4
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82221 Wire, Oil Pressure Switch
82259 Wire, Distributor
82345 Diode
82817 Protector, Wiring Harness, NO.1
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82821A Cover, Connector
82823 Cap, Terminal, NO.1
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
