Toyota Corolla Coupe
1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe
Discontinued model
Data version 1987-11

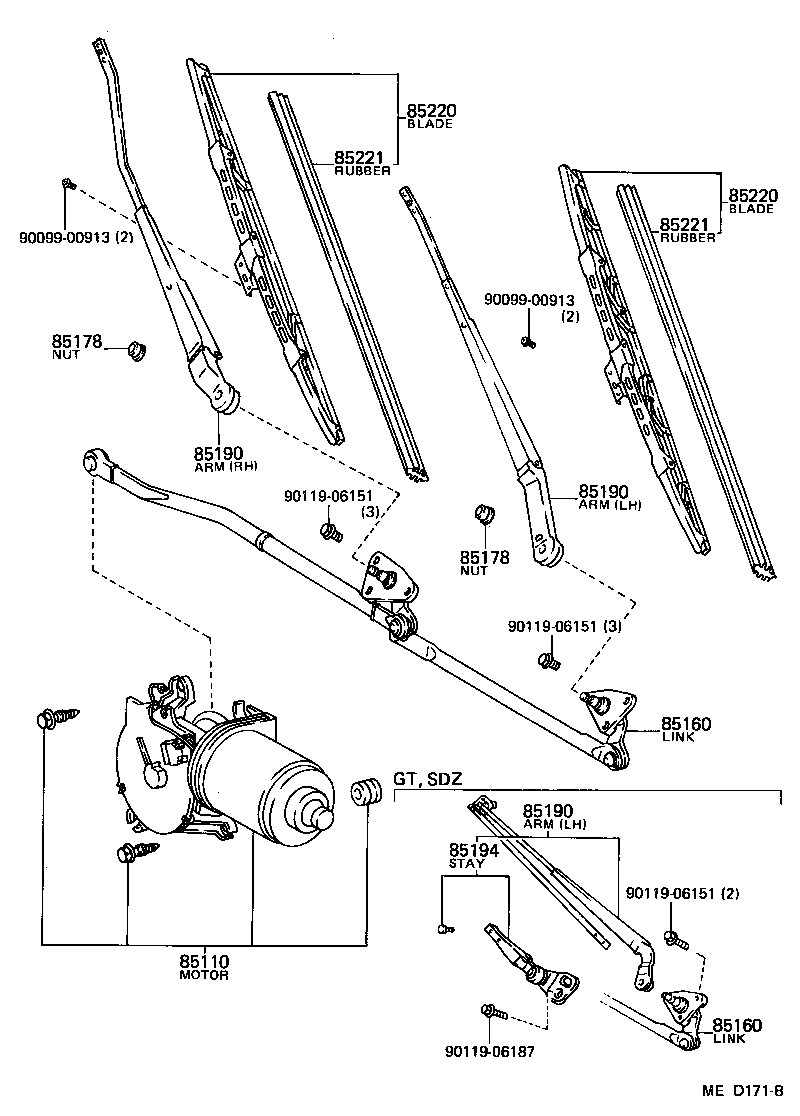

Windshield Wiper
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85110 | Motor Assy, Windshield Wiper |
| 85160 | Link Assy, Windshield Wiper |
| 85178 | Nut (FOR FRONT WIPER ARM SETTING) |
| 85190 | Arm Assy, Windshield Wiper |
| 85194 | Stay, Windshield Wiper Arm |
| 85220 | Blade Assy, Windshield Wiper |
| 85221 | Blade, Windshield Wiper |
| 85225 | Wing, Wiper Blade |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
