Toyota Corolla Coupe

1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

20 part groups · 5 illustrations

Illustrations

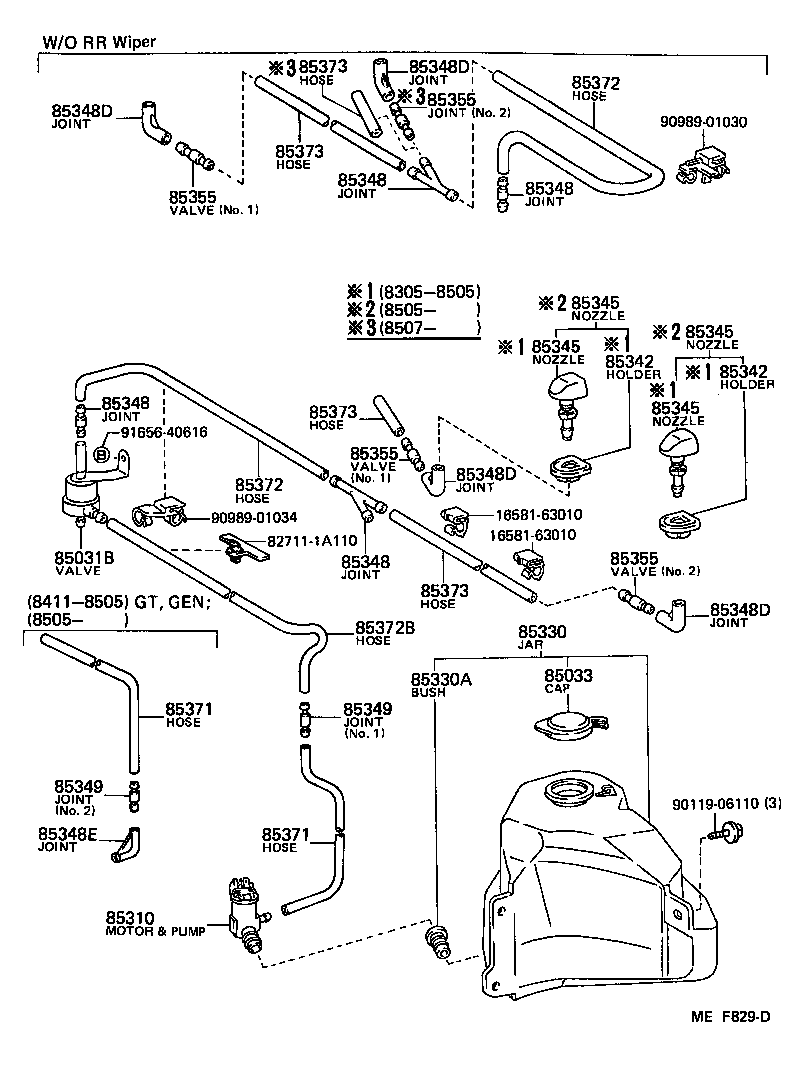

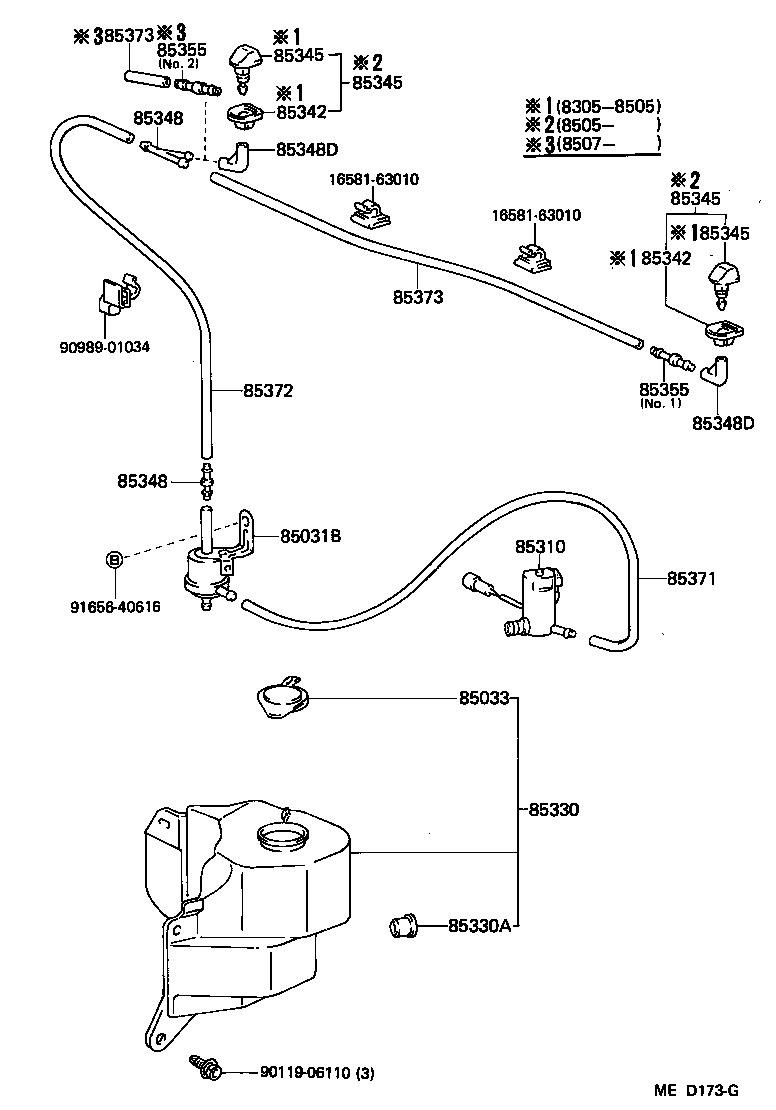

Figure MED157H MED157H 1983-05 → — Figure MEF829D MEF829D 1983-05 → — Figure MEF829D MEF829D 1983-08 → — Figure MED173G MED173G 1983-05 → — Figure MED173G MED173G 1983-08 → —

Part groups

PNCDescription
85031B Valve Sub-assy, Washer
85033 Cap Assy, Windshield Washer
85310 Motor And Pump Assy, Windshield Washer
85312 Packing, Windshield Washer Tank
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85338 Hose, Breather
85339 Cap Sub-assy, Reserve Tank
85339A Hose (FOR RADIATOR RESERVE TANK)
85342 Holder, Washer Nozzle
85345 Nozzle, Windshield Washer
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85348E Joint, Windshield Washer Elbow, NO.2
85349 Joint, Windshield Washer Hose, NO.1
85355 Valve, Windshield Washer Hose
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
