Toyota Corolla Coupe

1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

19 part groups · 3 illustrations

Illustrations

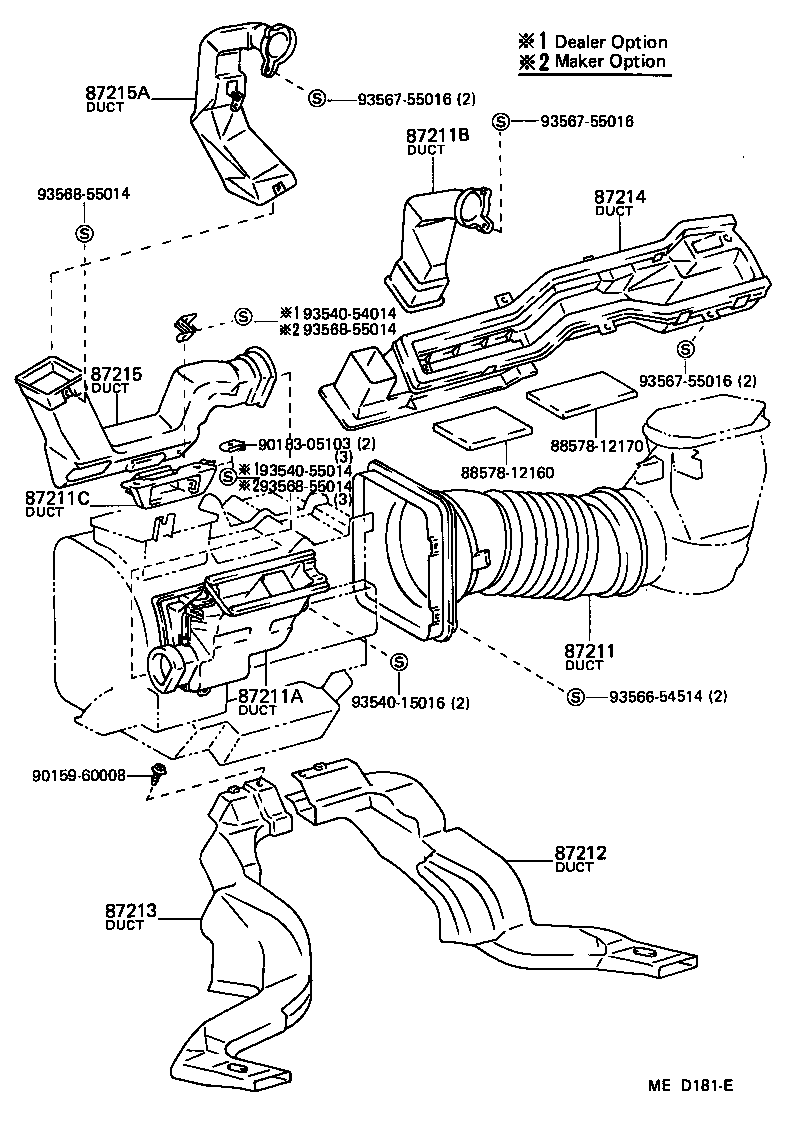

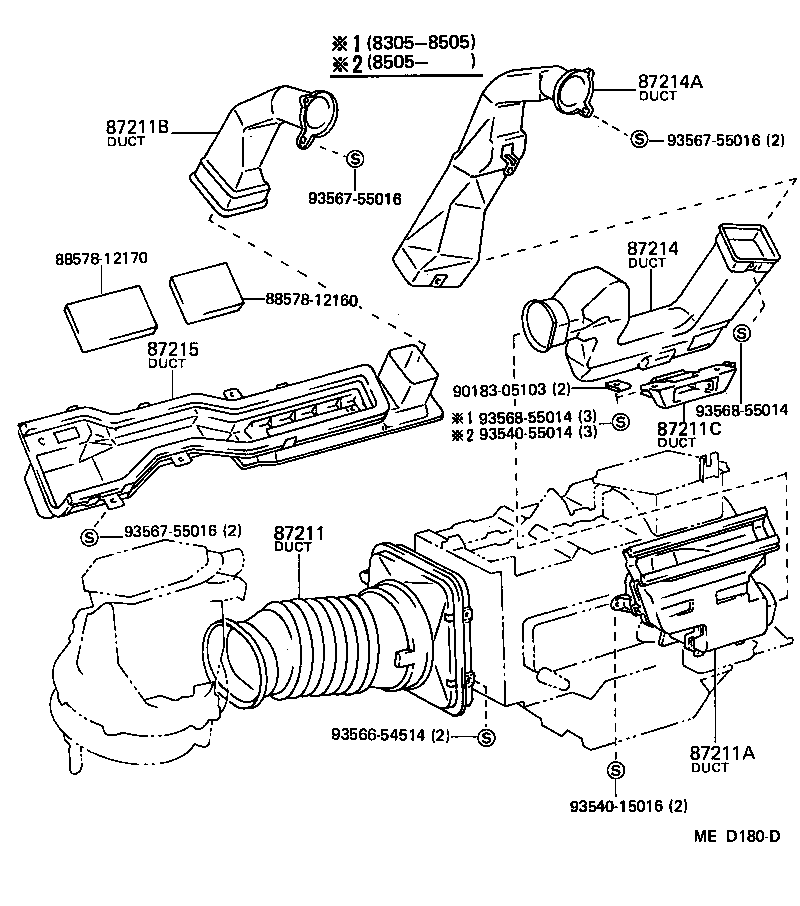

Figure MED167D MED167D 1983-05 → — Figure MED180D MED180D 1983-05 → — Figure MED181E MED181E 1983-05 → —

Part groups

PNCDescription
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55915 Lever, Cooler Control
55931 Clamp, Heater Control Wire
55937 Knob, Heater Control Lever
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87211C Duct, Air, NO.4
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87284 Resistor Sub-assy, Variable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
