Toyota Corolla Coupe

1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · Europe

Discontinued model Data version 1987-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

7 part groups · 3 illustrations

Illustrations

Figure MED182D

MED182D 1983-05 → —

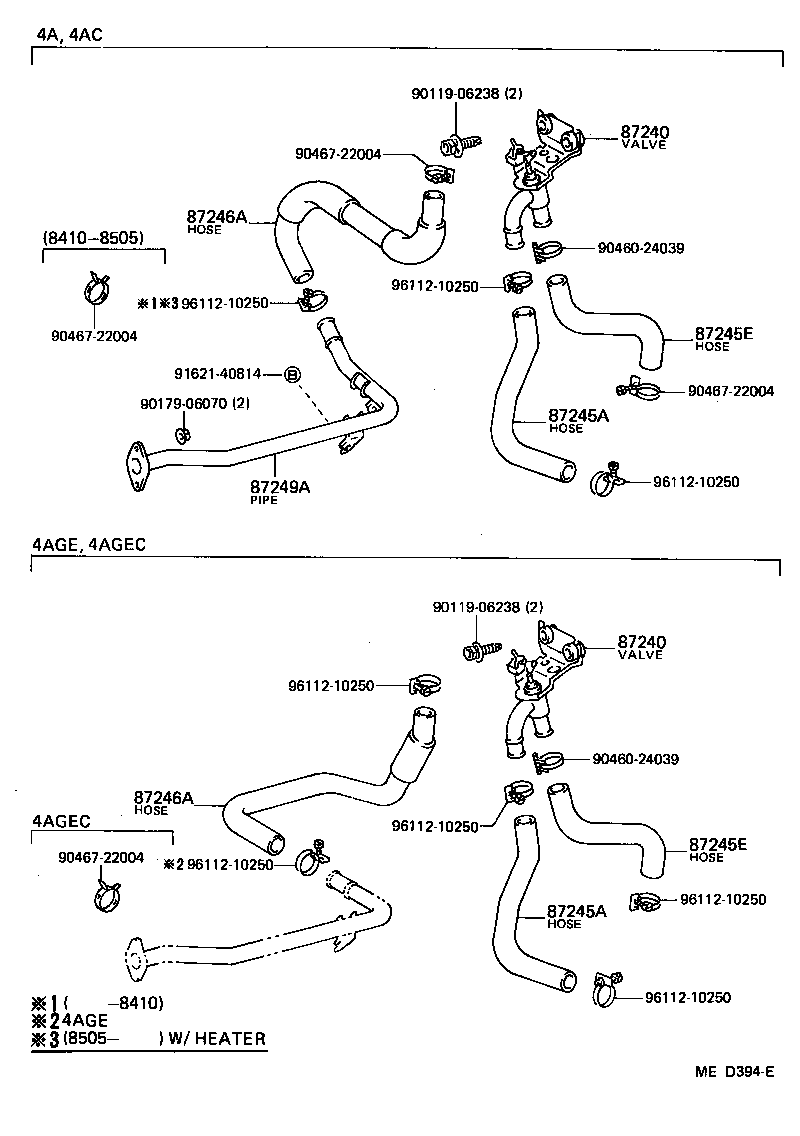

Figure MED394E

MED394E 1983-05 → —

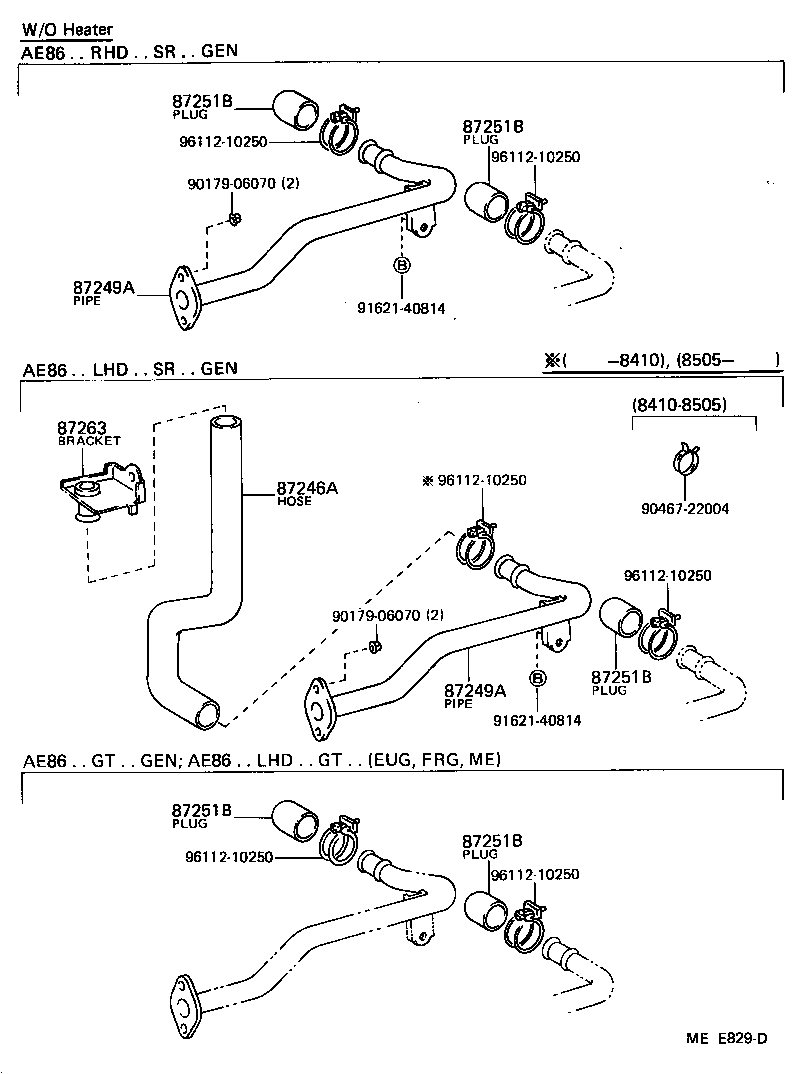

Figure MEE829D

MEE829D 1983-05 → —

Part groups

PNC	Description
87240	Valve Assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87245E	Hose, Heater Water, Inlet E
87246A	Hose, Heater Water, Outlet A
87249A	Pipe, Heater Water Outlet, A
87251B	Plug, Heater Water
87263	Bracket, Heater Water Pipe, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
