Toyota Corolla Sed (JPP)
2006-11 → 2013-04 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 162510 · Europe
Supported model
Data version 2013-10

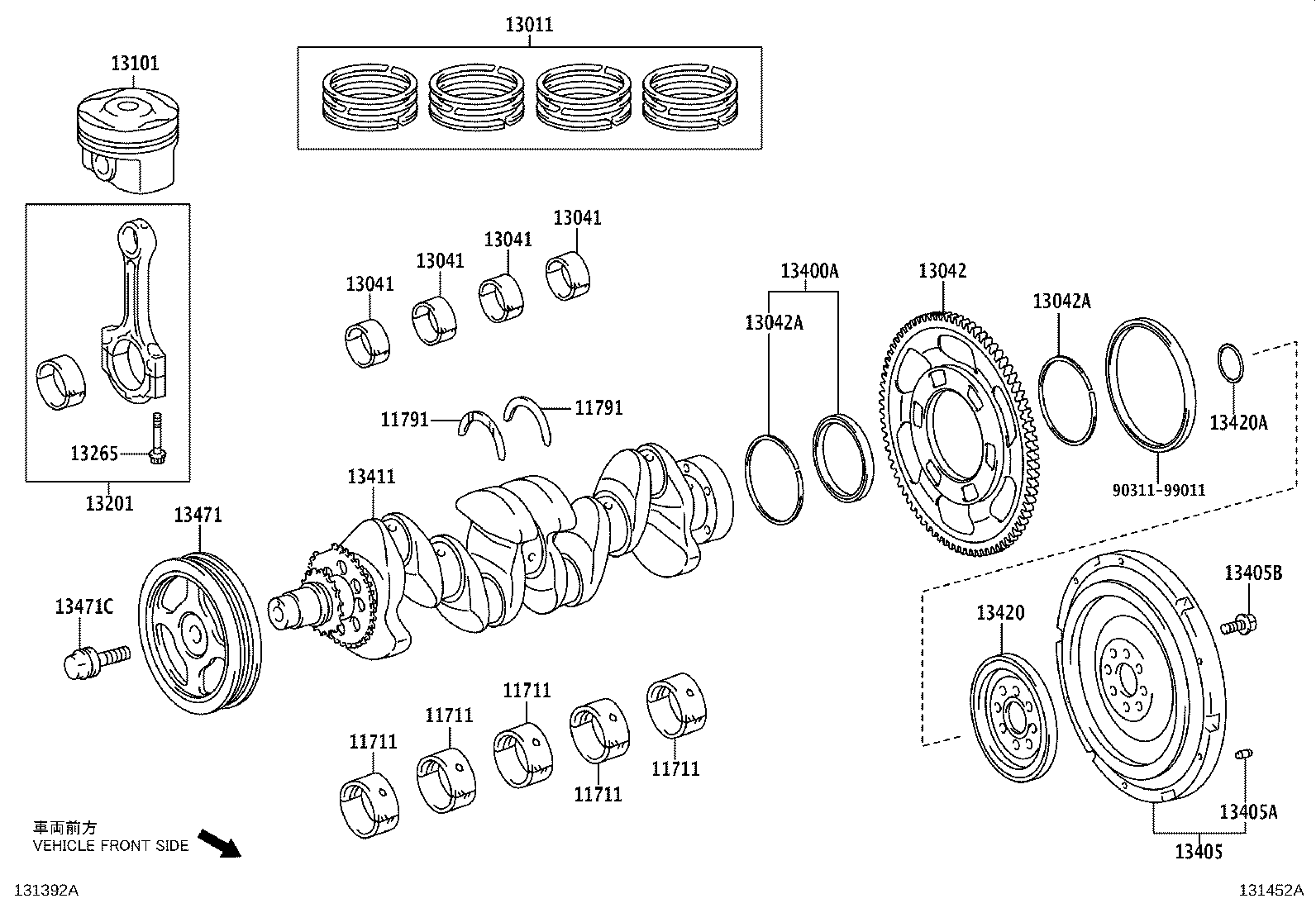

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11711 — Bearing, Crankshaft | ||||
| 11701-0R010-01 note |
Bearing, Crankshaft
2006-11 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 11701-0R010-02 note |
Bearing, Crankshaft
2006-11 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 11701-0R010-03 note |
Bearing, Crankshaft
2006-11 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 11701-0R010-04 note |
Bearing, Crankshaft
2006-11 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 11701-0R010-05 note |
Bearing, Crankshaft
2006-11 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 11701-0R010-A0 note |
Bearing, Crankshaft
2006-11 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 11701-0R020-01 note |
Bearing, Crankshaft
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11701-0R020-02 note |
Bearing, Crankshaft
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11701-0R020-03 note |
Bearing, Crankshaft
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11701-0R020-04 note |
Bearing, Crankshaft
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11701-0R020-05 note |
Bearing, Crankshaft
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11701-0R020-A0 note |
Bearing, Crankshaft
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11701-21020-01 note |
Bearing, Crankshaft
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11701-21020-02 note |
Bearing, Crankshaft
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11701-21020-03 note |
Bearing, Crankshaft
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11701-21020-04 note |
Bearing, Crankshaft
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11701-22011-01 note |
Bearing, Crankshaft
2006-11 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 11701-22011-02 note |
Bearing, Crankshaft
2006-11 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 11701-22011-03 note |
Bearing, Crankshaft
2006-11 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 11701-22011-04 note |
Bearing, Crankshaft
2006-11 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 11701-26010-01 note |
Bearing, Crankshaft
2006-11 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 11701-26010-02 note |
Bearing, Crankshaft
2006-11 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 11701-26010-03 note |
Bearing, Crankshaft
2006-11 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 11701-26010-04 note |
Bearing, Crankshaft
2006-11 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 11701-26010-05 note |
Bearing, Crankshaft
2006-11 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 11701-26010-A0 note |
Bearing, Crankshaft
2006-11 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 11701-26020-01 note |
Bearing, Crankshaft
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11701-26020-02 note |
Bearing, Crankshaft
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11701-26020-03 note |
Bearing, Crankshaft
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11701-26020-04 note |
Bearing, Crankshaft
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11701-26020-05 note |
Bearing, Crankshaft
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11701-26020-A0 note |
Bearing, Crankshaft
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11701-37010-01 note |
Bearing, Crankshaft
2006-11 → 2007-02
ended
|
1ZRFE ZRE151 | — | |
| 11701-37010-02 note |
Bearing, Crankshaft
2006-11 → 2007-02
ended
|
1ZRFE ZRE151 | — | |
| 11701-37010-03 note |
Bearing, Crankshaft
2006-11 → 2007-02
ended
|
1ZRFE ZRE151 | — | |
| 11701-37010-04 note |
Bearing, Crankshaft
2006-11 → 2007-02
ended
|
1ZRFE ZRE151 | — | |
| 11701-37020-01 note |
Bearing, Crankshaft
2007-02 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11701-37020-02 note |
Bearing, Crankshaft
2007-02 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11701-37020-03 note |
Bearing, Crankshaft
2007-02 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11701-37020-04 note |
Bearing, Crankshaft
2007-02 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11701-0R020-01 note |
Bearing, Crankshaft
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 11701-0R020-02 note |
Bearing, Crankshaft
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 11701-0R020-03 note |
Bearing, Crankshaft
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 11701-0R020-04 note |
Bearing, Crankshaft
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 11701-0R020-05 note |
Bearing, Crankshaft
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 11701-0R020-A0 note |
Bearing, Crankshaft
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 11701-21031-01 note |
Bearing, Crankshaft
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 11701-21031-01 note |
Bearing, Crankshaft
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 11701-21031-02 note |
Bearing, Crankshaft
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 11701-21031-02 note |
Bearing, Crankshaft
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 11701-21031-03 note |
Bearing, Crankshaft
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 11701-21031-03 note |
Bearing, Crankshaft
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 11701-21031-04 note |
Bearing, Crankshaft
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 11701-21031-04 note |
Bearing, Crankshaft
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 11701-26020-01 note |
Bearing, Crankshaft
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 11701-26020-02 note |
Bearing, Crankshaft
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 11701-26020-03 note |
Bearing, Crankshaft
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 11701-26020-04 note |
Bearing, Crankshaft
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 11701-26020-05 note |
Bearing, Crankshaft
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 11701-26020-A0 note |
Bearing, Crankshaft
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 11701-37020-01 note |
Bearing, Crankshaft
2008-12 → —
|
1ZRFE ZRE151;1ZRFAE ZRE151 RHD +1 | — | |
| 11701-37020-01 note |
Bearing, Crankshaft
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 11701-37020-02 note |
Bearing, Crankshaft
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 11701-37020-02 note |
Bearing, Crankshaft
2008-12 → —
|
1ZRFE ZRE151;1ZRFAE ZRE151 RHD +1 | — | |
| 11701-37020-03 note |
Bearing, Crankshaft
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 11701-37020-03 note |
Bearing, Crankshaft
2008-12 → —
|
1ZRFE ZRE151;1ZRFAE ZRE151 RHD +1 | — | |
| 11701-37020-04 note |
Bearing, Crankshaft
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 11701-37020-04 note |
Bearing, Crankshaft
2008-12 → —
|
1ZRFE ZRE151;1ZRFAE ZRE151 RHD +1 | — | |
| 11701-47010-02 note |
Bearing, Crankshaft
2008-12 → 2009-12
ended
|
1NRFE NRE150 | — | |
| 11701-47010-03 note |
Bearing, Crankshaft
2008-12 → 2009-12
ended
|
1NRFE NRE150 | — | |
| 11701-47010-04 note |
Bearing, Crankshaft
2008-12 → 2009-12
ended
|
1NRFE NRE150 | — | |
| 11701-47010-05 note |
Bearing, Crankshaft
2008-12 → 2009-12
ended
|
1NRFE NRE150 | — | |
| 11701-47011-02 note |
Bearing, Crankshaft
2009-12 → —
|
1NRFE NRE150 | — | |
| 11701-47011-03 note |
Bearing, Crankshaft
2009-12 → —
|
1NRFE NRE150 | — | |
| 11701-47011-04 note |
Bearing, Crankshaft
2009-12 → —
|
1NRFE NRE150 | — | |
| 11701-47011-05 note |
Bearing, Crankshaft
2009-12 → —
|
1NRFE NRE150 | — | |
| 11701-21031-01 note |
Bearing, Crankshaft
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 11701-21031-02 note |
Bearing, Crankshaft
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 11701-21031-03 note |
Bearing, Crankshaft
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 11701-21031-04 note |
Bearing, Crankshaft
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 11701-37020-01 note |
Bearing, Crankshaft
2010-04 → 2013-04
ended
|
1ZRFE ZRE151 | — | |
| 11701-37020-02 note |
Bearing, Crankshaft
2010-04 → 2013-04
ended
|
1ZRFE ZRE151 | — | |
| 11701-37020-03 note |
Bearing, Crankshaft
2010-04 → 2013-04
ended
|
1ZRFE ZRE151 | — | |
| 11701-37020-04 note |
Bearing, Crankshaft
2010-04 → 2013-04
ended
|
1ZRFE ZRE151 | — | |
| 11701-47011-02 note |
Bearing, Crankshaft
2010-04 → 2012-06
ended
|
1NRFE NRE150 | — | |
| 11701-47011-03 note |
Bearing, Crankshaft
2010-04 → 2012-06
ended
|
1NRFE NRE150 | — | |
| 11701-47011-04 note |
Bearing, Crankshaft
2010-04 → 2012-06
ended
|
1NRFE NRE150 | — | |
| 11701-47011-05 note |
Bearing, Crankshaft
2010-04 → 2012-06
ended
|
1NRFE NRE150 | — | |
| 11701-47012-02 note |
Bearing, Crankshaft
2012-06 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 11701-47012-03 note |
Bearing, Crankshaft
2012-06 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 11701-47012-04 note |
Bearing, Crankshaft
2012-06 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 11701-47012-05 note |
Bearing, Crankshaft
2012-06 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 11791 — Washer, Crankshaft Thrust, Upper | ||||
| 11791-22020 note |
Washer, Crankshaft Thrust, Upper
2006-11 → 2008-12
ended
|
1ZRFE,4ZZFE ZRE151,ZZE150 | — | |
| 11791-26010 note |
Washer, Crankshaft Thrust, Upper
2006-11 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11791-33030 note |
Washer, Crankshaft Thrust, Upper
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11792-33030 note |
Washer, Crankshaft Thrust, Upper
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11793-33030 note |
Washer, Crankshaft Thrust, Upper
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11791-22020 note |
Washer, Crankshaft Thrust, Upper
2008-12 → —
|
1ZRFE ZRE151;1ZRFAE ZRE151 RHD +1 | — | |
| 11791-22020 note |
Washer, Crankshaft Thrust, Upper
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 11791-26010 note |
Washer, Crankshaft Thrust, Upper
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 11791-33030 note |
Washer, Crankshaft Thrust, Upper
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 11791-33030 note |
Washer, Crankshaft Thrust, Upper
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 11791-47010 note |
Washer, Crankshaft Thrust, Upper
2008-12 → —
|
1NRFE NRE150 | — | |
| 11792-33030 note |
Washer, Crankshaft Thrust, Upper
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 11792-33030 note |
Washer, Crankshaft Thrust, Upper
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 11793-33030 note |
Washer, Crankshaft Thrust, Upper
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 11793-33030 note |
Washer, Crankshaft Thrust, Upper
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 11791-22020 note |
Washer, Crankshaft Thrust, Upper
2010-04 → 2013-04
ended
|
1ZRFE ZRE151 | — | |
| 11791-33030 note |
Washer, Crankshaft Thrust, Upper
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 11791-47010 note |
Washer, Crankshaft Thrust, Upper
2010-04 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 11792-33030 note |
Washer, Crankshaft Thrust, Upper
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 11793-33030 note |
Washer, Crankshaft Thrust, Upper
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 13011 — Ring Set, Piston | ||||
| 13011-0R011 note |
Ring Set, Piston
2006-11 → 2007-04
ended
|
1ADFTV ADE150 | — | |
| 13011-0R012 note |
Ring Set, Piston
2007-04 → 2007-10
ended
|
1ADFTV ADE150 | — | |
| 13011-22220 note |
Ring Set, Piston
2006-11 → 2008-02
ended
|
4ZZFE ZZE150 | — | |
| 13011-22221 note |
Ring Set, Piston
2008-02 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 13011-26071 note |
Ring Set, Piston
2006-11 → 2007-01
ended
|
1ADFTV ADE150 | — | |
| 13011-26080 note |
Ring Set, Piston
2007-01 → 2007-10
ended
|
1ADFTV ADE150 | — | |
| 13011-26090 note |
Ring Set, Piston
2007-10 → 2008-05
ended
|
1ADFTV ADE150 | — | |
| 13011-26100 note |
Ring Set, Piston
2008-05 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 13011-33070 note |
Ring Set, Piston
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 13011-37090 note |
Ring Set, Piston
2006-11 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 13011-0R030 note |
Ring Set, Piston
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13011-26100 note |
Ring Set, Piston
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13011-33050 note |
Ring Set, Piston
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 13011-33050 note |
Ring Set, Piston
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 13011-37090 note |
Ring Set, Piston
2008-12 → —
|
1ZRFE ZRE151;1ZRFAE ZRE151 RHD +1 | — | |
| 13011-37090 note |
Ring Set, Piston
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 13011-47030 note |
Ring Set, Piston
2008-12 → —
|
1NRFE NRE150 | — | |
| 13011-33050 note |
Ring Set, Piston
2010-04 → 2010-09
ended
|
1NDTV NDE150 | — | |
| 13011-33051 note |
Ring Set, Piston
2010-09 → 2011-03
ended
|
1NDTV NDE150 | — | |
| 13011-33052 note |
Ring Set, Piston
2011-03 → 2012-05
ended
|
1NDTV NDE150 | — | |
| 13011-33053 note |
Ring Set, Piston
2012-05 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 13011-37090 note |
Ring Set, Piston
2010-04 → 2013-04
ended
|
1ZRFE ZRE151 | — | |
| 13011-47030 note |
Ring Set, Piston
2010-04 → 2011-09
ended
|
1NRFE NRE150 | — | |
| 13011-47031 note |
Ring Set, Piston
2011-09 → 2013-01
ended
|
1NRFE NRE150 | — | |
| 13011-47032 note |
Ring Set, Piston
2013-01 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 13041 — Bearing, Connecting Rod | ||||
| 13041-22024-01 note |
Bearing, Connecting Rod
2006-11 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 13041-22024-02 note |
Bearing, Connecting Rod
2006-11 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 13041-22024-03 note |
Bearing, Connecting Rod
2006-11 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 13041-26010-01 note |
Bearing, Connecting Rod
2006-11 → 2008-08
ended
|
1ADFTV ADE150 | — | |
| 13041-26010-02 note |
Bearing, Connecting Rod
2006-11 → 2008-08
ended
|
1ADFTV ADE150 | — | |
| 13041-26010-03 note |
Bearing, Connecting Rod
2006-11 → 2008-08
ended
|
1ADFTV ADE150 | — | |
| 13041-26010-04 note |
Bearing, Connecting Rod
2006-11 → 2008-08
ended
|
1ADFTV ADE150 | — | |
| 13041-26010-05 note |
Bearing, Connecting Rod
2006-11 → 2008-08
ended
|
1ADFTV ADE150 | — | |
| 13041-26020-01 note |
Bearing, Connecting Rod
2008-08 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 13041-26020-02 note |
Bearing, Connecting Rod
2008-08 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 13041-26020-03 note |
Bearing, Connecting Rod
2008-08 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 13041-26020-04 note |
Bearing, Connecting Rod
2008-08 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 13041-26020-05 note |
Bearing, Connecting Rod
2008-08 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 13041-33041-01 note |
Bearing, Connecting Rod
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 13041-33041-02 note |
Bearing, Connecting Rod
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 13041-33041-03 note |
Bearing, Connecting Rod
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 13041-37010-01 note |
Bearing, Connecting Rod
2006-11 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 13041-37010-02 note |
Bearing, Connecting Rod
2006-11 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 13041-37010-03 note |
Bearing, Connecting Rod
2006-11 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 13041-0R020-01 note |
Bearing, Connecting Rod
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13041-0R020-02 note |
Bearing, Connecting Rod
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13041-0R020-03 note |
Bearing, Connecting Rod
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13041-0R020-04 note |
Bearing, Connecting Rod
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13041-0R020-05 note |
Bearing, Connecting Rod
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13041-26020-01 note |
Bearing, Connecting Rod
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13041-26020-02 note |
Bearing, Connecting Rod
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13041-26020-03 note |
Bearing, Connecting Rod
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13041-26020-04 note |
Bearing, Connecting Rod
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13041-26020-05 note |
Bearing, Connecting Rod
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13041-33041-01 note |
Bearing, Connecting Rod
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 13041-33041-01 note |
Bearing, Connecting Rod
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 13041-33041-02 note |
Bearing, Connecting Rod
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 13041-33041-02 note |
Bearing, Connecting Rod
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 13041-33041-03 note |
Bearing, Connecting Rod
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 13041-33041-03 note |
Bearing, Connecting Rod
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 13041-37010-01 note |
Bearing, Connecting Rod
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 13041-37010-01 note |
Bearing, Connecting Rod
2008-12 → —
|
1ZRFE ZRE151;1ZRFAE ZRE151 RHD +1 | — | |
| 13041-37010-02 note |
Bearing, Connecting Rod
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 13041-37010-02 note |
Bearing, Connecting Rod
2008-12 → —
|
1ZRFE ZRE151;1ZRFAE ZRE151 RHD +1 | — | |
| 13041-37010-03 note |
Bearing, Connecting Rod
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 13041-37010-03 note |
Bearing, Connecting Rod
2008-12 → —
|
1ZRFE ZRE151;1ZRFAE ZRE151 RHD +1 | — | |
| 13041-47010-01 note |
Bearing, Connecting Rod
2008-12 → —
|
1NRFE NRE150 | — | |
| 13041-47010-02 note |
Bearing, Connecting Rod
2008-12 → —
|
1NRFE NRE150 | — | |
| 13041-47010-03 note |
Bearing, Connecting Rod
2008-12 → —
|
1NRFE NRE150 | — | |
| 13041-33041-01 note |
Bearing, Connecting Rod
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 13041-33041-02 note |
Bearing, Connecting Rod
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 13041-33041-03 note |
Bearing, Connecting Rod
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 13041-37010-01 note |
Bearing, Connecting Rod
2010-04 → —
|
1ZRFE ZRE151 | — | |
| 13041-37010-02 note |
Bearing, Connecting Rod
2010-04 → —
|
1ZRFE ZRE151 | — | |
| 13041-37010-03 note |
Bearing, Connecting Rod
2010-04 → —
|
1ZRFE ZRE151 | — | |
| 13041-47010-01 note |
Bearing, Connecting Rod
2010-04 → 2012-08
ended
|
1NRFE NRE150 | — | |
| 13041-47010-02 note |
Bearing, Connecting Rod
2010-04 → 2012-08
ended
|
1NRFE NRE150 | — | |
| 13041-47010-03 note |
Bearing, Connecting Rod
2010-04 → 2012-08
ended
|
1NRFE NRE150 | — | |
| 13041-47011-01 note |
Bearing, Connecting Rod
2012-08 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 13041-47011-02 note |
Bearing, Connecting Rod
2012-08 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 13041-47011-03 note |
Bearing, Connecting Rod
2012-08 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 13042 — Gear Sub-assy, Ers Ring | ||||
| 13042-47010 note |
Gear Sub-assy, Ers Ring
2008-12 → 2010-04
ended
|
1NRFE NRE150 LHD | — | |
| 13042-47010 note |
Gear Sub-assy, Ers Ring
2008-12 → —
|
1NRFE NRE150 RHD | — | |
| 13042A — Ring, Snap(FOR RING GEAR) | ||||
| 90520-95001 note |
Ring, Snap(FOR RING GEAR)
2008-12 → —
|
1NRFE NRE150 RHD | — | |
| 90520-95001 note |
Ring, Snap(FOR RING GEAR)
2008-12 → 2010-04
ended
|
1NRFE NRE150 LHD | — | |
| 13101 — Piston Sub-assy, W/Pin | ||||
| 13101-0N050-01 note |
Piston Sub-assy, W/Pin
2006-11 → 2007-01
ended
|
1NDTV NDE150 | — | |
| 13101-0N050-02 note |
Piston Sub-assy, W/Pin
2006-11 → 2007-01
ended
|
1NDTV NDE150 | — | |
| 13101-0N050-03 note |
Piston Sub-assy, W/Pin
2006-11 → 2007-01
ended
|
1NDTV NDE150 | — | |
| 13101-0N051-01 note |
Piston Sub-assy, W/Pin
2007-01 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 13101-0N051-02 note |
Piston Sub-assy, W/Pin
2007-01 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 13101-0N051-03 note |
Piston Sub-assy, W/Pin
2007-01 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 13101-0R030 note |
Piston Sub-assy, W/Pin
2006-11 → 2008-06
ended
|
1ADFTV ADE150 | — | |
| 13101-0R031 note |
Piston Sub-assy, W/Pin
2008-06 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 13101-22072 note |
Piston Sub-assy, W/Pin
2006-11 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 13101-37081 note |
Piston Sub-assy, W/Pin
2006-11 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 13101-0N060-A0 note |
Piston Sub-assy, W/Pin
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 13101-0N060-A0 note |
Piston Sub-assy, W/Pin
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 13101-0N060-B0 note |
Piston Sub-assy, W/Pin
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 13101-0N060-B0 note |
Piston Sub-assy, W/Pin
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 13101-0N060-C0 note |
Piston Sub-assy, W/Pin
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 13101-0N060-C0 note |
Piston Sub-assy, W/Pin
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 13101-0R070 note |
Piston Sub-assy, W/Pin
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13101-0T080 note |
Piston Sub-assy, W/Pin
2008-12 → —
|
1ZRFAE ZRE151 RHD N | — | |
| 13101-0T080 note |
Piston Sub-assy, W/Pin
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 13101-37081 note |
Piston Sub-assy, W/Pin
2008-12 → 2010-04
ended
|
1ZRFE ZRE151 | — | |
| 13101-47020 note |
Piston Sub-assy, W/Pin
2008-12 → —
|
1NRFE NRE150 | — | |
| 13101-0N060-A0 note |
Piston Sub-assy, W/Pin
2010-04 → 2011-10
ended
|
1NDTV NDE150 | — | |
| 13101-0N060-B0 note |
Piston Sub-assy, W/Pin
2010-04 → 2011-10
ended
|
1NDTV NDE150 | — | |
| 13101-0N060-C0 note |
Piston Sub-assy, W/Pin
2010-04 → 2011-10
ended
|
1NDTV NDE150 | — | |
| 13101-0N070-A0 note |
Piston Sub-assy, W/Pin
2011-10 → 2012-05
ended
|
1NDTV NDE150 | — | |
| 13101-0N070-B0 note |
Piston Sub-assy, W/Pin
2011-10 → 2012-05
ended
|
1NDTV NDE150 | — | |
| 13101-0N070-C0 note |
Piston Sub-assy, W/Pin
2011-10 → 2012-05
ended
|
1NDTV NDE150 | — | |
| 13101-0N071-A0 note |
Piston Sub-assy, W/Pin
2012-05 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 13101-0N071-B0 note |
Piston Sub-assy, W/Pin
2012-05 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 13101-0N071-C0 note |
Piston Sub-assy, W/Pin
2012-05 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 13101-37081 note |
Piston Sub-assy, W/Pin
2010-04 → 2013-04
ended
|
1ZRFE ZRE151 | — | |
| 13101-47020 note |
Piston Sub-assy, W/Pin
2010-04 → 2012-03
ended
|
1NRFE NRE150 | — | |
| 13101-47021 note |
Piston Sub-assy, W/Pin
2012-03 → 2013-01
ended
|
1NRFE NRE150 | — | |
| 13101-47022 note |
Piston Sub-assy, W/Pin
2013-01 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 13201 — Rod Sub-assy, Connecting | ||||
| 13201-09580 |
Rod Sub-assy, Connecting
2006-11 → 2007-12
ended
|
4ZZFE ZZE150 | — | |
| 13201-09581 |
Rod Sub-assy, Connecting
2007-12 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 13201-0R020 note |
Rod Sub-assy, Connecting
2006-11 → 2008-05
ended
|
1ADFTV ADE150 | — | |
| 13201-0R021 note |
Rod Sub-assy, Connecting
2008-05 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 13201-26020 note |
Rod Sub-assy, Connecting
2006-11 → 2008-05
ended
|
1ADFTV ADE150 | — | |
| 13201-26021 note |
Rod Sub-assy, Connecting
2008-05 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 13201-39055 |
Rod Sub-assy, Connecting
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 13201-39185 |
Rod Sub-assy, Connecting
2006-11 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 13201-0R021 note |
Rod Sub-assy, Connecting
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13201-26021 note |
Rod Sub-assy, Connecting
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13201-39055 |
Rod Sub-assy, Connecting
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 13201-39055 |
Rod Sub-assy, Connecting
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 13201-39185 |
Rod Sub-assy, Connecting
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 13201-39185 |
Rod Sub-assy, Connecting
2008-12 → —
|
1ZRFE ZRE151;1ZRFAE ZRE151 RHD +1 | — | |
| 13201-49085 |
Rod Sub-assy, Connecting
2008-12 → —
|
1NRFE NRE150 | — | |
| 13201-09A30 note |
Rod Sub-assy, Connecting
2011-01 → 2013-04
ended
|
1ZRFE ZRE151 | — | |
| 13201-39055 |
Rod Sub-assy, Connecting
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 13201-39185 |
Rod Sub-assy, Connecting
2010-04 → 2013-04
ended
|
1ZRFE ZRE151 | — | |
| 13201-49085 |
Rod Sub-assy, Connecting
2010-04 → 2012-08
ended
|
1NRFE NRE150 | — | |
| 13201-49086 |
Rod Sub-assy, Connecting
2012-08 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 13265 — Bolt, Connecting Rod | ||||
| 13265-21020 |
Bolt, Connecting Rod
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 13265-22020 |
Bolt, Connecting Rod
2006-11 → 2008-12
ended
|
1ZRFE,4ZZFE ZRE151,ZZE150 | — | |
| 13265-22030 |
Bolt, Connecting Rod
2006-11 → 2008-10
ended
|
1ADFTV ADE150 | — | |
| 13265-22031 |
Bolt, Connecting Rod
2008-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 13265-21020 |
Bolt, Connecting Rod
2008-12 → —
|
1N# NDE150,NRE150 DCR,HTWC | — | |
| 13265-21020 |
Bolt, Connecting Rod
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 13265-22020 |
Bolt, Connecting Rod
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 13265-22020 |
Bolt, Connecting Rod
2008-12 → —
|
1ZRFE ZRE151;1ZRFAE ZRE151 RHD +1 | — | |
| 13265-22031 |
Bolt, Connecting Rod
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13265-21020 |
Bolt, Connecting Rod
2010-04 → 2013-04
ended
|
1N# NDE150,NRE150 | — | |
| 13265-22020 |
Bolt, Connecting Rod
2010-04 → 2013-04
ended
|
1ZRFE ZRE151 | — | |
| 13400A — Bearing(FOR CRANKSHAFT) | ||||
| 90369-78001 note |
Bearing(FOR CRANKSHAFT)
2008-12 → 2010-04
ended
|
1NRFE NRE150 LHD | — | |
| 90369-78001 note |
Bearing(FOR CRANKSHAFT)
2008-12 → —
|
1NRFE NRE150 RHD | — | |
| 13405 — Flywheel Sub-assy | ||||
| 13405-22030 note |
Flywheel Sub-assy
2007-03 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 13405-33020 |
Flywheel Sub-assy
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 13405-37050 |
Flywheel Sub-assy
2006-11 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 13450-0R010 |
Flywheel Sub-assy
2006-11 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 13451-22030 note |
Flywheel Sub-assy
2006-11 → 2007-03
ended
|
4ZZFE ZZE150 | — | |
| 13405-33030 |
Flywheel Sub-assy
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 13405-33030 |
Flywheel Sub-assy
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 13405-37050 |
Flywheel Sub-assy
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 13405-37050 |
Flywheel Sub-assy
2008-12 → —
|
1ZRFE ZRE151 6F;1ZRFAE ZRE151 +2 | — | |
| 13405-47020 note |
Flywheel Sub-assy
2008-12 → 2010-04
ended
|
1NRFE NRE150 LHD | — | |
| 13405-47020 note |
Flywheel Sub-assy
2008-12 → —
|
1NRFE NRE150 RHD | — | |
| 13405-47030 |
Flywheel Sub-assy
2008-12 → —
|
1NRFE NRE150 | — | |
| 13450-0R010 |
Flywheel Sub-assy
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13405-33030 |
Flywheel Sub-assy
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 13405-37050 |
Flywheel Sub-assy
2010-04 → 2013-04
ended
|
1ZRFE ZRE151 6F | — | |
| 13405-47030 |
Flywheel Sub-assy
2010-04 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 13405A — Pin, Straight(FOR FLYWHEEL) | ||||
| 90250-08054 note |
Pin, Straight(FOR FLYWHEEL)
2006-11 → 2007-04
ended
|
1ZRFE ZRE151 | — | |
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
2006-11 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
2007-04 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
2008-12 → —
|
1N# NDE150,NRE150 DCR,HTWC | — | |
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
2008-12 → —
|
1ZRFE ZRE151 6F;1ZRFAE ZRE151 +2 | — | |
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
2010-04 → 2013-04
ended
|
1ZRFE ZRE151 6F | — | |
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
2010-04 → 2013-04
ended
|
1N# NDE150,NRE150 | — | |
| 13405B — Bolt, Flywheel Setting | ||||
| 90148-10004 |
Bolt, Flywheel Setting
2006-11 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 90910-02103 |
Bolt, Flywheel Setting
2006-11 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 90913-01024 |
Bolt, Flywheel Setting
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 90913-01027 |
Bolt, Flywheel Setting
2006-11 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 90148-10004 |
Bolt, Flywheel Setting
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 90913-01024 |
Bolt, Flywheel Setting
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 90913-01024 |
Bolt, Flywheel Setting
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 90913-01027 |
Bolt, Flywheel Setting
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 90913-01027 |
Bolt, Flywheel Setting
2008-12 → —
|
1ZRFE ZRE151 6F;1ZRFAE ZRE151 +2 | — | |
| 90913-01029 |
Bolt, Flywheel Setting
2008-12 → —
|
1NRFE NRE150 | — | |
| 90913-01024 |
Bolt, Flywheel Setting
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 90913-01027 |
Bolt, Flywheel Setting
2010-04 → 2013-04
ended
|
1ZRFE ZRE151 6F | — | |
| 90913-01029 |
Bolt, Flywheel Setting
2010-04 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 13411 — Crankshaft | ||||
| 13401-0R010 |
Crankshaft
2006-11 → 2008-02
ended
|
1ADFTV ADE150 | — | |
| 13401-0R011 |
Crankshaft
2008-02 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 13401-22040 |
Crankshaft
2006-11 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 13401-33011 |
Crankshaft
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 13401-37010 |
Crankshaft
2006-11 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 13401-0R011 |
Crankshaft
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13401-33020 |
Crankshaft
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 13401-33020 |
Crankshaft
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 13401-37010 |
Crankshaft
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 13401-37010 |
Crankshaft
2008-12 → —
|
1ZRFE ZRE151;1ZRFAE ZRE151 RHD +1 | — | |
| 13401-47010 |
Crankshaft
2008-12 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 13401-47011 |
Crankshaft
2010-01 → —
|
1NRFE NRE150 | — | |
| 13401-33020 |
Crankshaft
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 13401-37010 |
Crankshaft
2010-04 → 2013-04
ended
|
1ZRFE ZRE151 | — | |
| 13401-47011 |
Crankshaft
2010-04 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 13420 — Cluch Assy, Ers 1Way | ||||
| 13420-47010 note |
Cluch Assy, Ers 1Way
2008-12 → 2010-04
ended
|
1NRFE NRE150 LHD | — | |
| 13420-47010 note |
Cluch Assy, Ers 1Way
2008-12 → —
|
1NRFE NRE150 RHD | — | |
| 13420A — Ring, O(FOR 1WEY CLUTCH) | ||||
| 90301-36013 note |
Ring, O(FOR 1WEY CLUTCH)
2008-12 → 2010-04
ended
|
1NRFE NRE150 LHD | — | |
| 90301-36013 note |
Ring, O(FOR 1WEY CLUTCH)
2008-12 → —
|
1NRFE NRE150 RHD | — | |
| 13471 — Pulley, Crankshaft | ||||
| 13408-0R011 |
Pulley, Crankshaft
2006-11 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 13408-0R030 |
Pulley, Crankshaft
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 13470-22041 |
Pulley, Crankshaft
2006-11 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 13470-37020 |
Pulley, Crankshaft
2006-11 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 13408-0R030 |
Pulley, Crankshaft
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 13470-37020 |
Pulley, Crankshaft
2008-12 → —
|
1ZRFE ZRE151;1ZRFAE ZRE151 RHD +1 | — | |
| 13470-37020 |
Pulley, Crankshaft
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 13470-47050 |
Pulley, Crankshaft
2008-12 → 2010-04
ended
|
1NRFE NRE150 LHD | — | |
| 13470-47050 |
Pulley, Crankshaft
2008-12 → —
|
1NRFE NRE150 RHD | — | |
| 13470-37020 note |
Pulley, Crankshaft
2010-04 → 2012-03
ended
|
1ZRFE ZRE151 | — | |
| 13470-37050 note |
Pulley, Crankshaft
2011-10 → 2013-04
ended
|
1ZRFE ZRE151 | — | |
| 13470-47050 |
Pulley, Crankshaft
2010-04 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 13471C — Bolt(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-12127 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2006-11 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 90119-14106 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 90119-14106 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2006-11 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 90119-18003 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2006-11 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 90119-12345 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2008-12 → —
|
1NRFE NRE150 | — | |
| 90119-14106 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2008-12 → 2010-02
ended
|
1ZRFAE ZRE151 D;1ZRFAE ZRE151 +2 | — | |
| 90119-14106 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2008-12 → —
|
1ZRFE ZRE151;1ZRFAE ZRE151 RHD +1 | — | |
| 90119-16004 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 90119-16004 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 90119-18003 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 90119-12345 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2010-04 → 2013-04
ended
|
1NRFE NRE150 | — | |
| 90119-14106 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2010-04 → 2013-04
ended
|
1ZRFE ZRE151 | — | |
| 90119-16004 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
