Toyota Corolla Sed (JPP)
2006-11 → 2013-04 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 162510 · Europe
Supported model
Data version 2013-10

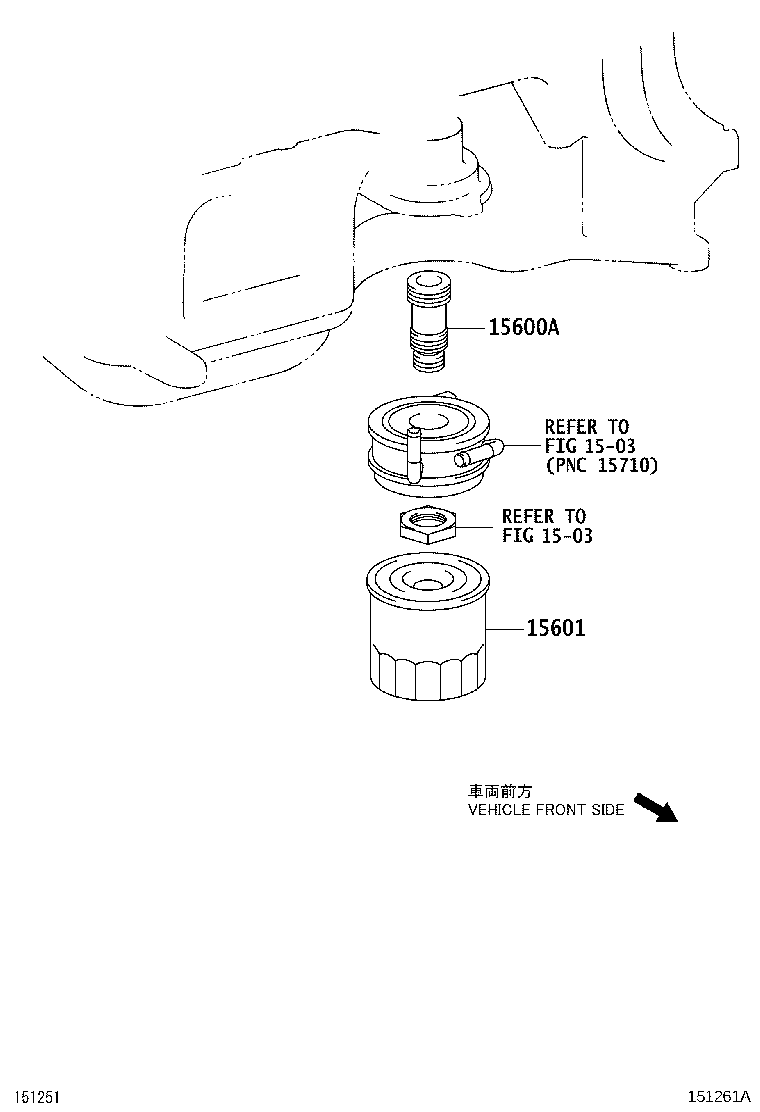

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15600A — Union(FOR OIL FILTER) | ||||
| 90904-04002 |
Union(FOR OIL FILTER)
2006-11 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 90904-04006 |
Union(FOR OIL FILTER)
2006-11 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 90904-04008 |
Union(FOR OIL FILTER)
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 15601 — Filter Sub-assy, Oil | ||||
| 90915-10003 |
Filter Sub-assy, Oil
2006-11 → 2008-12
ended
|
1ZRFE,4ZZFE ZRE151,ZZE150 | — | |
| 90915-20003 |
Filter Sub-assy, Oil
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
