Toyota Corolla Sed (JPP)
2006-11 → 2013-04 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 162510 · Europe
Supported model
Data version 2013-10

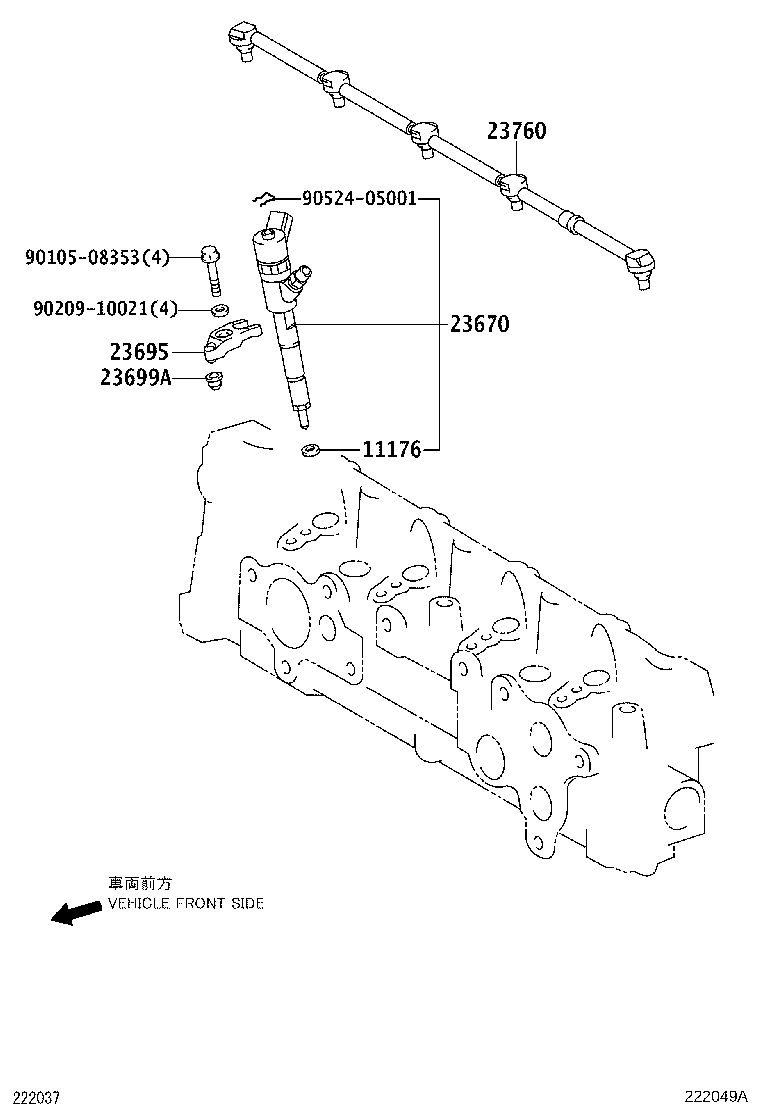

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11176 — Seat, Injection Nozzle | ||||
| 11176-26010 |
Seat, Injection Nozzle
2006-11 → 2008-11
ended
|
1ADFTV ADE150 | — | |
| 11176-26030 |
Seat, Injection Nozzle
2008-11 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11176-33010 |
Seat, Injection Nozzle
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11176-26020 |
Seat, Injection Nozzle
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 11176-33010 |
Seat, Injection Nozzle
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 11176-33010 |
Seat, Injection Nozzle
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 11176-33010 |
Seat, Injection Nozzle
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 23670 — Injector Assy | ||||
| 23670-09180 |
Injector Assy
2006-11 → 2007-12
ended
|
1ADFTV ADE150 DCR | — | |
| 23670-09190 |
Injector Assy
2006-11 → 2007-12
ended
|
1ADFTV ADE150 DCRL | — | |
| 23670-09270 |
Injector Assy
2007-12 → 2009-01
ended
|
1ADFTV ADE150 DCRL | — | |
| 23670-09280 |
Injector Assy
2007-12 → 2009-01
ended
|
1ADFTV ADE150 DCR | — | |
| 23670-39105 |
Injector Assy
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 23670-29115 |
Injector Assy
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 23670-39325 |
Injector Assy
2008-12 → 2009-11
ended
|
1NDTV NDE150 | — | |
| 23670-39415 |
Injector Assy
2009-11 → 2010-04
ended
|
1NDTV NDE150 | — | |
| 23670-09370 note |
Injector Assy
2011-03 → 2011-10
ended
|
1NDTV NDE150 | — | |
| 23670-09390 note |
Injector Assy
2011-10 → 2011-12
ended
|
1NDTV NDE150 | — | |
| 23670-09390 |
Injector Assy
2011-12 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 23670-39405 note |
Injector Assy
2011-10 → 2011-12
ended
|
1NDTV NDE150 | — | |
| 23670-39415 note |
Injector Assy
2010-04 → 2011-10
ended
|
1NDTV NDE150 | — | |
| 23695 — Clamp, Nozzle Holder, NO.1 | ||||
| 23695-0R010 |
Clamp, Nozzle Holder, NO.1
2006-11 → 2007-05
ended
|
1ADFTV ADE150 | — | |
| 23695-0R011 |
Clamp, Nozzle Holder, NO.1
2007-05 → 2007-07
ended
|
1ADFTV ADE150 | — | |
| 23695-0R012 |
Clamp, Nozzle Holder, NO.1
2007-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 23695-33010 |
Clamp, Nozzle Holder, NO.1
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 23695-0R021 note |
Clamp, Nozzle Holder, NO.1
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 23695-26020 note |
Clamp, Nozzle Holder, NO.1
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 23695-33020 |
Clamp, Nozzle Holder, NO.1
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 23695-33020 |
Clamp, Nozzle Holder, NO.1
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 23695-33020 |
Clamp, Nozzle Holder, NO.1
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 23699A — Seat, Nozzle Holder Clamp | ||||
| 23699-26010 |
Seat, Nozzle Holder Clamp
2006-11 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 23699-33010 |
Seat, Nozzle Holder Clamp
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 23699-26021 note |
Seat, Nozzle Holder Clamp
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 23699-26030 note |
Seat, Nozzle Holder Clamp
2009-01 → 2010-02
ended
|
1ADFTV ADE150 | — | |
| 23699-33020 |
Seat, Nozzle Holder Clamp
2008-12 → 2010-02
ended
|
1NDTV NDE150 DCRL | — | |
| 23699-33020 |
Seat, Nozzle Holder Clamp
2008-12 → —
|
1NDTV NDE150 DCR | — | |
| 23699-33020 |
Seat, Nozzle Holder Clamp
2010-04 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 23760 — Pipe Assy, Nozzle Leakage | ||||
| 23760-33020 |
Pipe Assy, Nozzle Leakage
2006-11 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 23760-33030 |
Pipe Assy, Nozzle Leakage
2008-12 → 2010-04
ended
|
1NDTV NDE150 | — | |
| 23760-0W010 note |
Pipe Assy, Nozzle Leakage
2011-03 → 2011-12
ended
|
1NDTV NDE150 | — | |
| 23760-0W010 |
Pipe Assy, Nozzle Leakage
2011-12 → 2013-04
ended
|
1NDTV NDE150 | — | |
| 23760-33030 note |
Pipe Assy, Nozzle Leakage
2010-04 → 2011-12
ended
|
1NDTV NDE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
