Toyota Corolla Sed (JPP)

2006-11 → 2013-04 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 162510 · Europe

Supported model Data version 2013-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

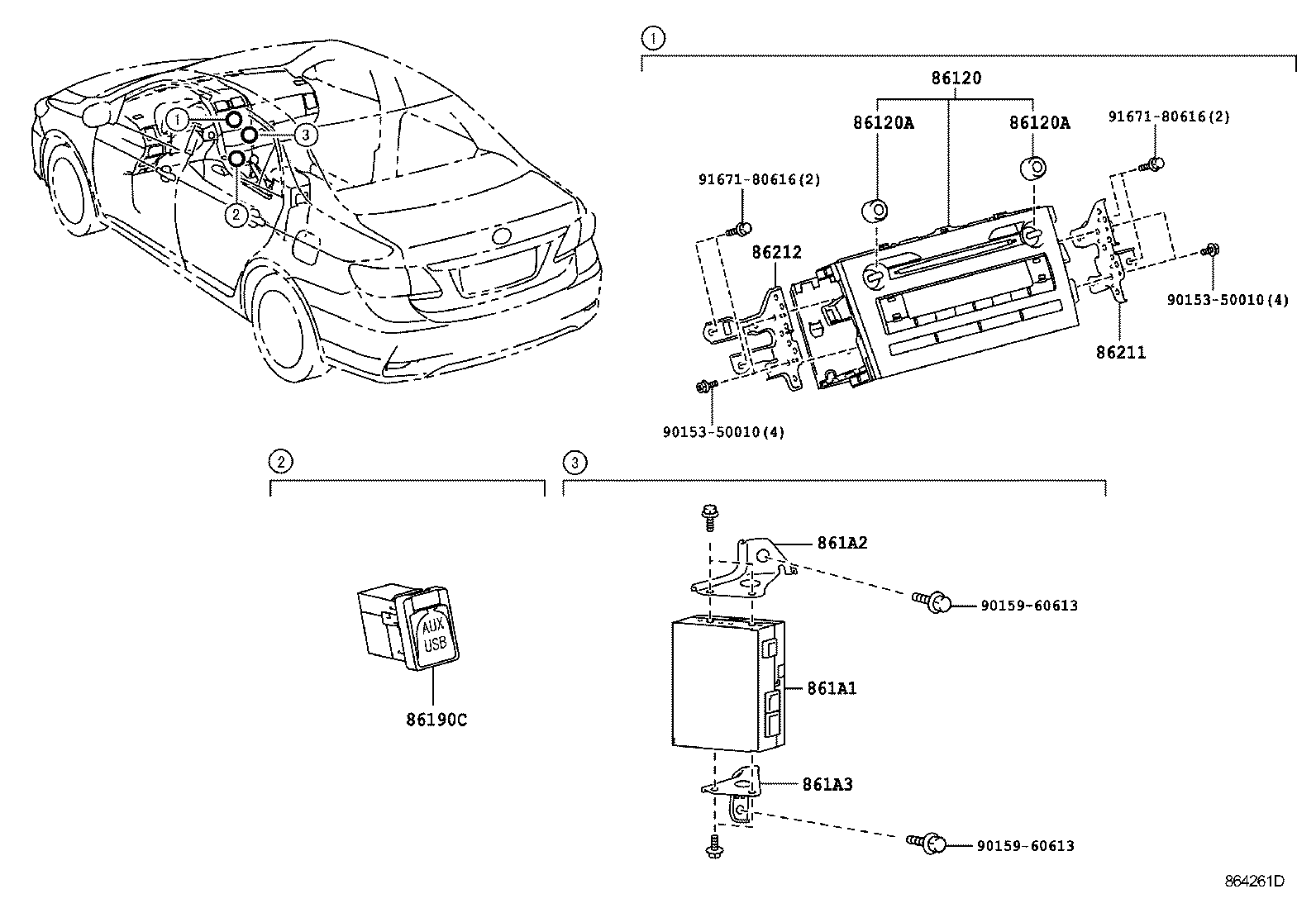

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

60 parts on this figure

Part number	Description	Fitment	Price
86120 — Receiver Assy, Radio
86120-12A30 note	Receiver Assy, Radio 2006-11 → 2008-12 ended	NDE150,ZRE151,ZZE150 D	—
86120-12A30 note	Receiver Assy, Radio 2006-11 → 2008-12 ended	NDE150,ZRE151,ZZE150 D	—
86120-12B00 note	Receiver Assy, Radio 2006-11 → 2008-12 ended	NDE150,ZRE151,ZZE150 N	—
86120-12B00 note	Receiver Assy, Radio 2006-11 → 2008-12 ended	NDE150,ZRE151,ZZE150 N	—
86120-12B00 note	Receiver Assy, Radio 2006-11 → 2009-01 ended	ADE150	—
86120-12B00 note	Receiver Assy, Radio 2006-11 → 2009-01 ended	ADE150 LHD	—
86120-12B00 note	Receiver Assy, Radio 2006-11 → 2009-01 ended	ADE150 RHD	—
86120-12B10 note	Receiver Assy, Radio 2006-11 → 2009-01 ended	ADE150	—
86120-12B10 note	Receiver Assy, Radio 2006-11 → 2008-12 ended	NDE150,ZRE151,ZZE150 N	—
86120-12A30 note	Receiver Assy, Radio 2008-12 → 2010-02 ended	NDE150,NRE150,ZRE151 D	—
86120-12A30 note	Receiver Assy, Radio 2008-12 → 2010-02 ended	NDE150,NRE150,ZRE151 D	—
86120-12A30 note	Receiver Assy, Radio 2010-02 → —	NDE150,NRE150,ZRE151 D (DCR,HTWC)	—
86120-12B00 note	Receiver Assy, Radio 2008-12 → 2010-02 ended	ZRE151 LHD N HTWVM;ADE150,NDE150 +2	—
86120-12B00 note	Receiver Assy, Radio 2008-12 → 2010-02 ended	ZRE151 LHD N HTWVM;ADE150,NDE150 +2	—
86120-12B00 note	Receiver Assy, Radio 2008-12 → —	ZRE151 RHD N;NDE150,NRE150,ZRE151 N +1	—
86120-12B00 note	Receiver Assy, Radio 2008-12 → —	ZRE151 RHD N;NDE150,NRE150,ZRE151 N +1	—
86120-12B10 note	Receiver Assy, Radio 2008-12 → —	ZRE151 RHD N;NDE150,NRE150,ZRE151 N +1	—
86120-12B10 note	Receiver Assy, Radio 2008-12 → 2010-02 ended	ZRE151 LHD N HTWVM;ADE150,NDE150 +2	—
86120-12D40 note	Receiver Assy, Radio 2010-04 → 2013-04 ended	NDE150,NRE150,ZRE151 D	—
86120-12D40 note	Receiver Assy, Radio 2010-04 → 2013-04 ended	NRE150,ZRE151 D	—
86120-12D50 note	Receiver Assy, Radio 2010-04 → 2011-06 ended	NDE150 6FS	—
86120-12D50 note	Receiver Assy, Radio 2010-04 → 2011-06 ended	NDE150 6FS	—
86120-12D50 note	Receiver Assy, Radio 2010-04 → 2013-04 ended	NDE150 6F N DCR;NDE150,NRE150,ZRE151 +2	—
86120-12D50 note	Receiver Assy, Radio 2010-04 → 2013-04 ended	NDE150 6F N DCR;NDE150,NRE150,ZRE151 +2	—
86120-12D50 note	Receiver Assy, Radio 2010-04 → 2013-04 ended	NRE150,ZRE151 N	—
86120-12D80 note	Receiver Assy, Radio 2010-04 → 2011-06 ended	NDE150 6FS	—
86120-12D80 note	Receiver Assy, Radio 2011-06 → 2011-10 ended	NDE150 6FS	—
86120-12D80 note	Receiver Assy, Radio 2011-06 → 2011-10 ended	NDE150 6FS	—
86120-12D80 note	Receiver Assy, Radio 2010-04 → 2013-04 ended	NDE150 6F N DCR;NDE150,NRE150,ZRE151 +2	—
86120A — Knob, Radio Receiver Switch
90010-24123 note	Knob, Radio Receiver Switch 2006-11 → 2008-12 ended	NDE150,ZRE151,ZZE150 N	—
90010-24123 note	Knob, Radio Receiver Switch 2006-11 → 2009-01 ended	ADE150 RHD	—
90010-24123 note	Knob, Radio Receiver Switch 2006-11 → 2009-01 ended	ADE150 LHD	—
90010-24123	Knob, Radio Receiver Switch 2006-11 → 2009-01 ended	ADE150	—
90010-24123	Knob, Radio Receiver Switch 2006-11 → 2008-12 ended	NDE150,ZRE151,ZZE150 N	—
90010-24124 note	Knob, Radio Receiver Switch 2006-11 → 2008-12 ended	NDE150,ZRE151,ZZE150 D	—
90010-24124 note	Knob, Radio Receiver Switch 2006-11 → 2008-12 ended	NDE150,ZRE151,ZZE150 D	—
90010-24123	Knob, Radio Receiver Switch 2008-12 → 2010-02 ended	ZRE151 LHD N HTWVM;ADE150,NDE150 +2	—
90010-24123 note	Knob, Radio Receiver Switch 2008-12 → 2010-02 ended	ZRE151 LHD N HTWVM;ADE150,NDE150 +2	—
90010-24123	Knob, Radio Receiver Switch 2008-12 → —	ZRE151 RHD N;NDE150,NRE150,ZRE151 N +1	—
90010-24123 note	Knob, Radio Receiver Switch 2008-12 → —	ZRE151 RHD N;NDE150,NRE150,ZRE151 N +1	—
90010-24124 note	Knob, Radio Receiver Switch 2008-12 → 2010-02 ended	NDE150,NRE150,ZRE151 D	—
90010-24124 note	Knob, Radio Receiver Switch 2008-12 → 2010-02 ended	NDE150,NRE150,ZRE151 D	—
90010-24124	Knob, Radio Receiver Switch 2010-02 → —	NDE150,NRE150,ZRE151 D (DCR,HTWC)	—
90010-24123	Knob, Radio Receiver Switch 2010-04 → 2013-04 ended	NDE150,NRE150,ZRE151 N	—
90010-24123 note	Knob, Radio Receiver Switch 2010-04 → 2013-04 ended	NDE150,NRE150,ZRE151 N	—
90010-24123 note	Knob, Radio Receiver Switch 2010-04 → 2013-04 ended	NRE150,ZRE151 N	—
90010-24124	Knob, Radio Receiver Switch 2010-04 → 2013-04 ended	NDE150,NRE150,ZRE151 D	—
90010-24124 note	Knob, Radio Receiver Switch 2010-04 → 2013-04 ended	NRE150,ZRE151 D	—
86190C — Adapter Assy, Stereo Jack, NO.1
86190-24020	Adapter Assy, Stereo Jack, NO.1 2010-04 → 2013-04 ended	NDE150,NRE150,ZRE151	—
861A1 — Computer, Multi-media Interface
861A0-48030	Computer, Multi-media Interface 2010-04 → 2013-04 ended	NDE150,NRE150,ZRE151	—
861A2 — Bracket, Multi-media Interface, NO.1
861A2-12020	Bracket, Multi-media Interface, NO.1 2010-04 → 2013-04 ended	NDE150,NRE150,ZRE151	—
861A3 — Bracket, Multi-media Interface, NO.2
861A3-12010	Bracket, Multi-media Interface, NO.2 2010-04 → 2013-04 ended	NDE150,NRE150,ZRE151	—
86211 — Bracket, Radio, NO.1
86211-12400	Bracket, Radio, NO.1 2006-11 → 2009-01 ended	ADE150,ZZE150;NDE150,ZRE151 5F,5FS	—
86211-12400	Bracket, Radio, NO.1 2008-12 → 2010-04 ended	NDE150;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM	—
86211-12400	Bracket, Radio, NO.1 2010-04 → 2012-05 ended	NDE150,NRE150,ZRE151	—
86211-12450	Bracket, Radio, NO.1 2012-06 → 2013-04 ended	NDE150,NRE150,ZRE151	—
86212 — Bracket, Radio, NO.2
86212-12380	Bracket, Radio, NO.2 2006-11 → 2009-01 ended	ADE150,ZZE150;NDE150,ZRE151 5F,5FS	—
86212-12380	Bracket, Radio, NO.2 2008-12 → 2010-04 ended	NDE150;ADE150,NRE150,ZRE151 DCRL,HTWC,HTWVM	—
86212-12380	Bracket, Radio, NO.2 2010-04 → 2012-05 ended	NDE150,NRE150,ZRE151	—
86212-12440	Bracket, Radio, NO.2 2012-06 → 2013-04 ended	NDE150,NRE150,ZRE151	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
