Toyota Corolla Sed (JPP)

2006-11 → 2013-04 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 162510 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

49 part groups · 13 illustrations

Illustrations

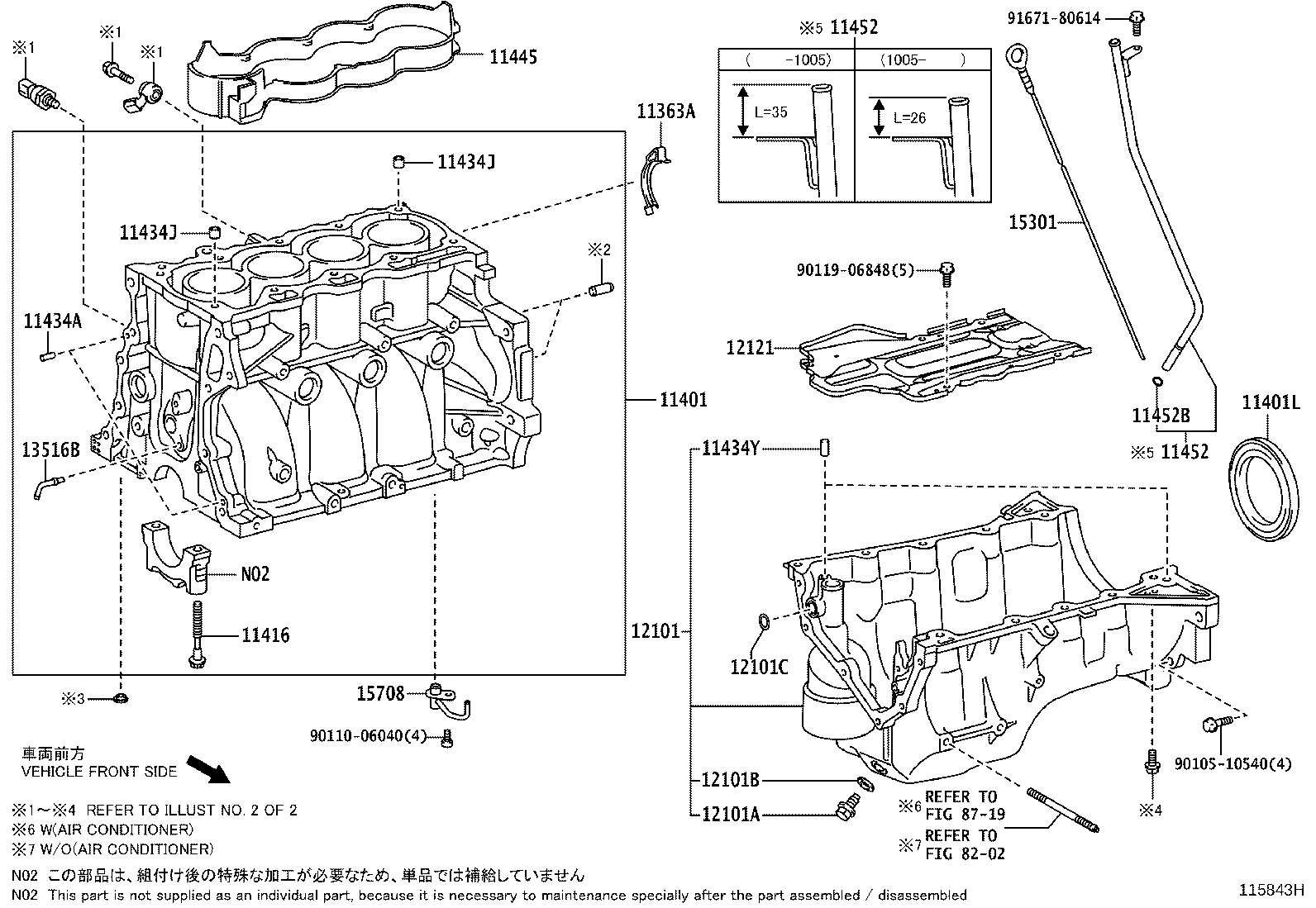

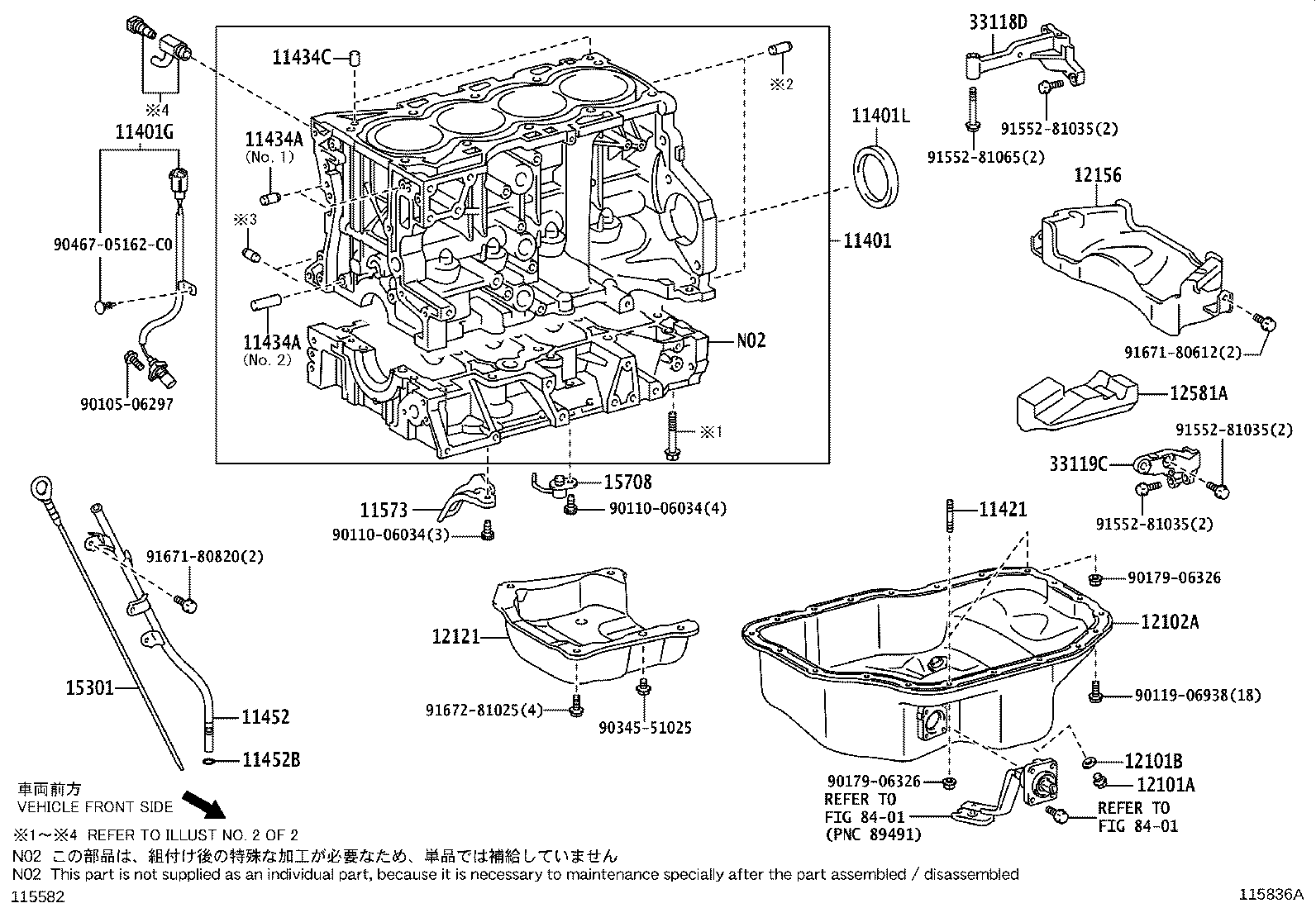

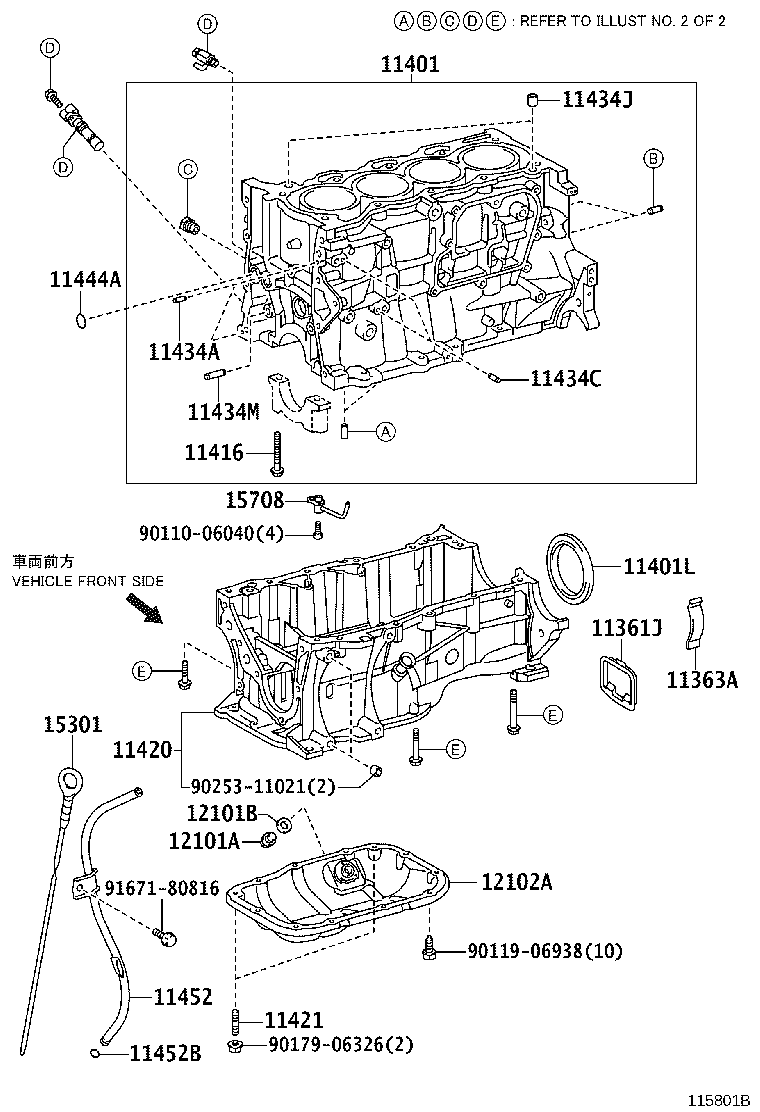

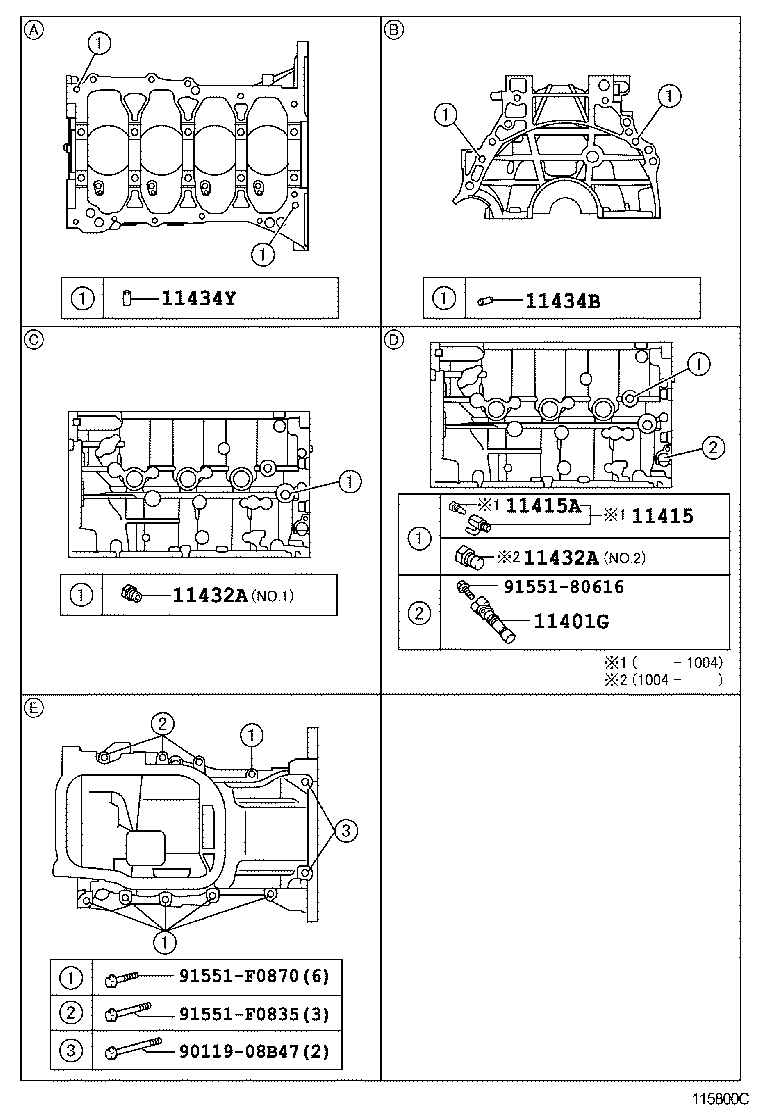

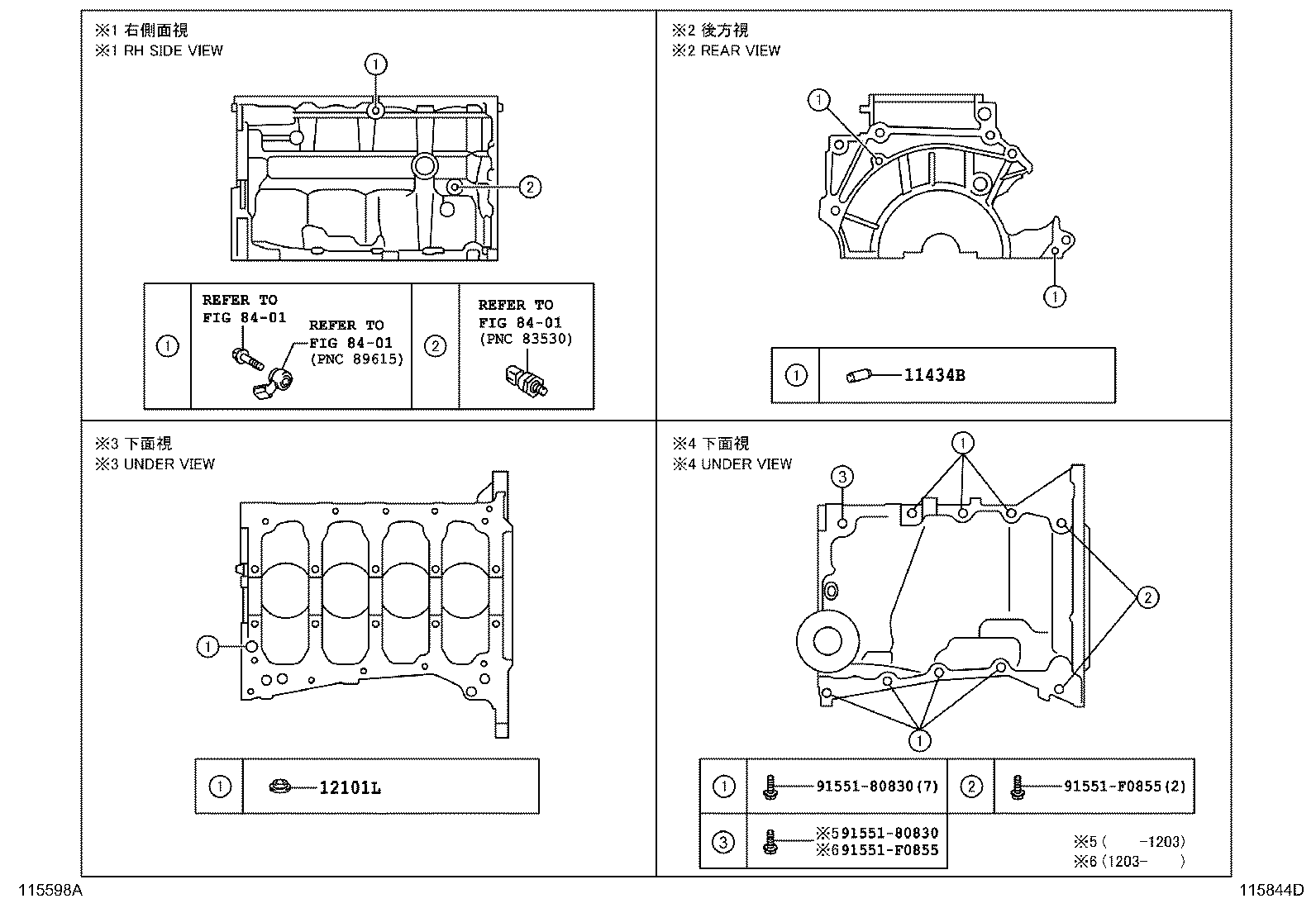

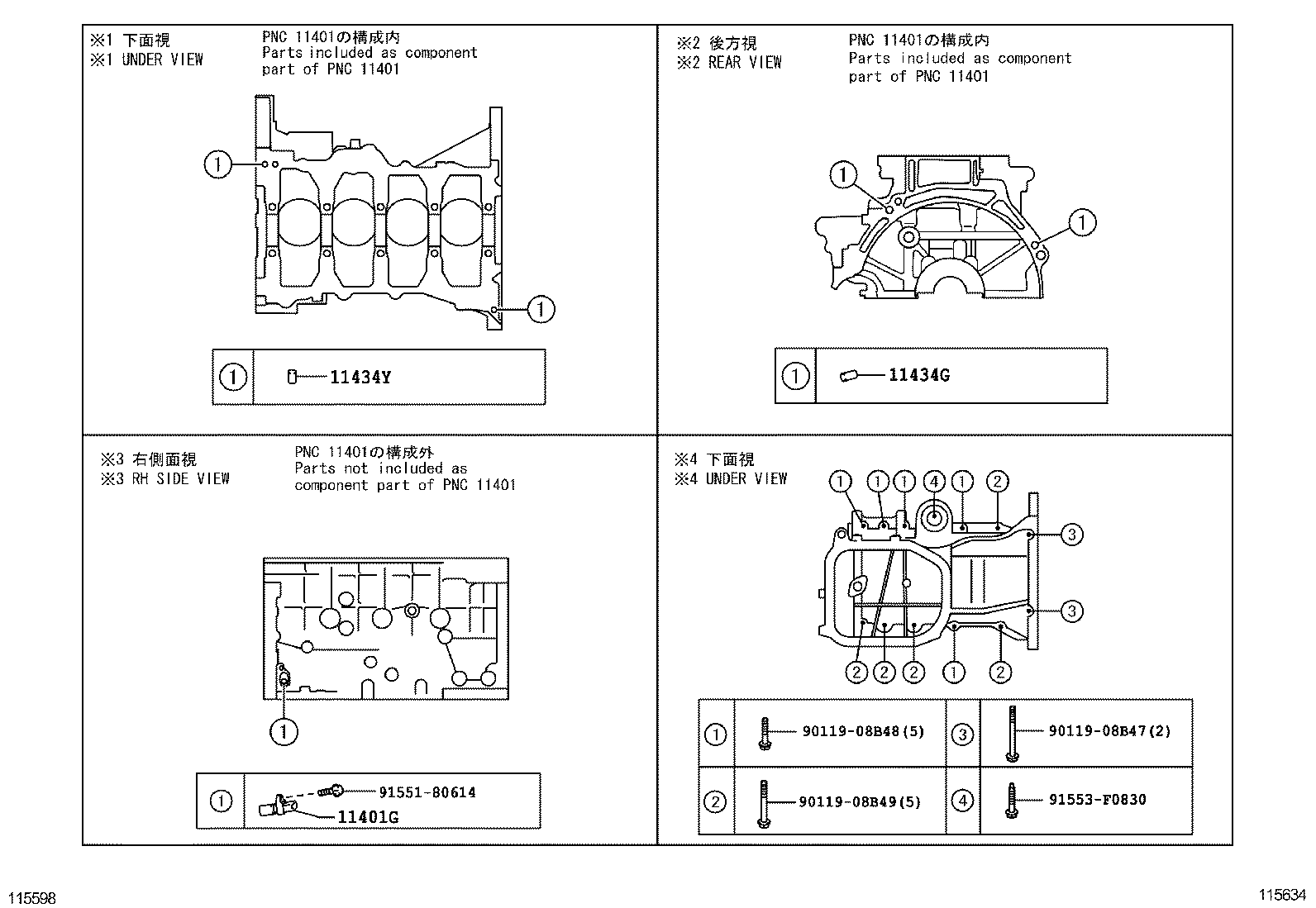

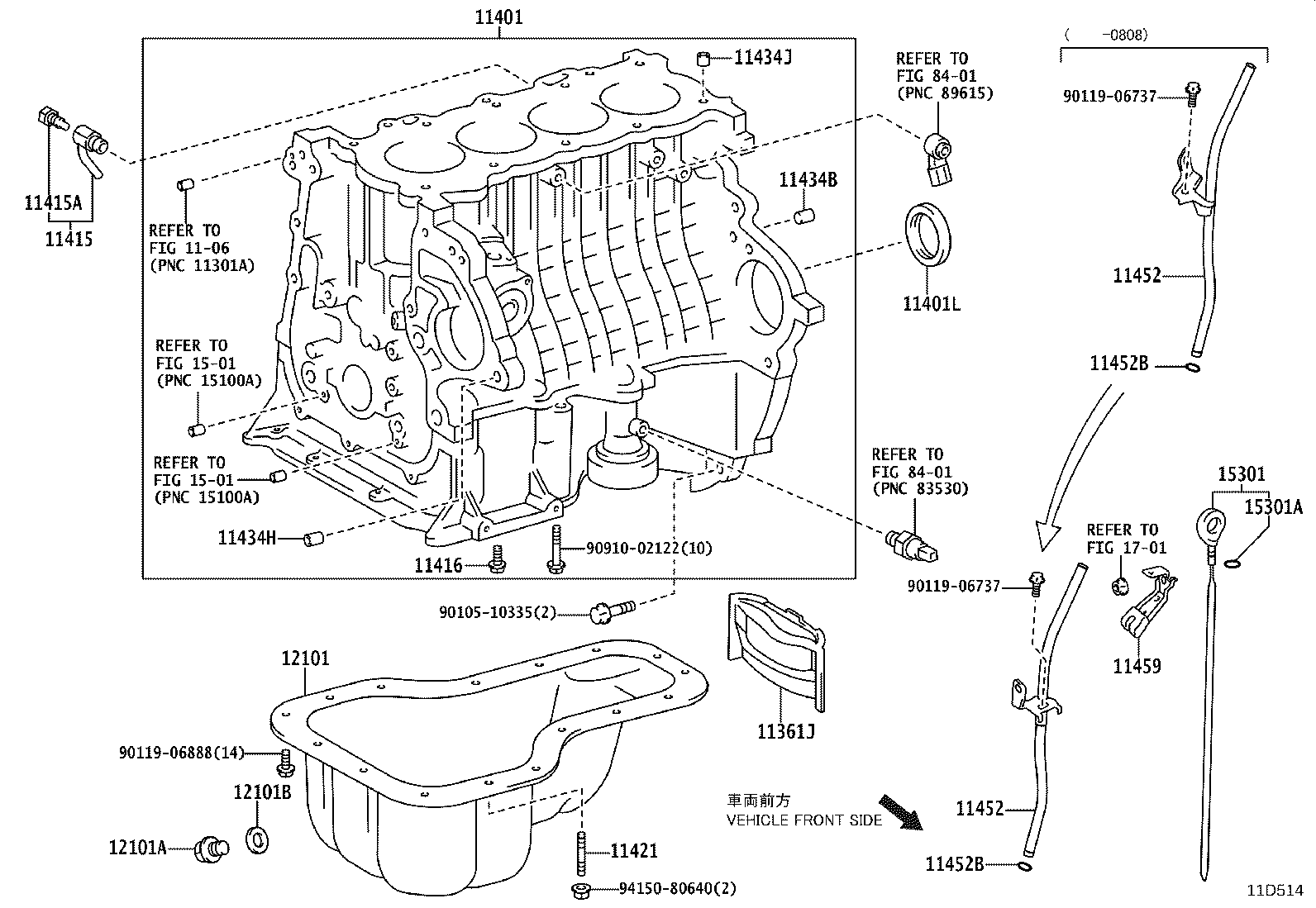

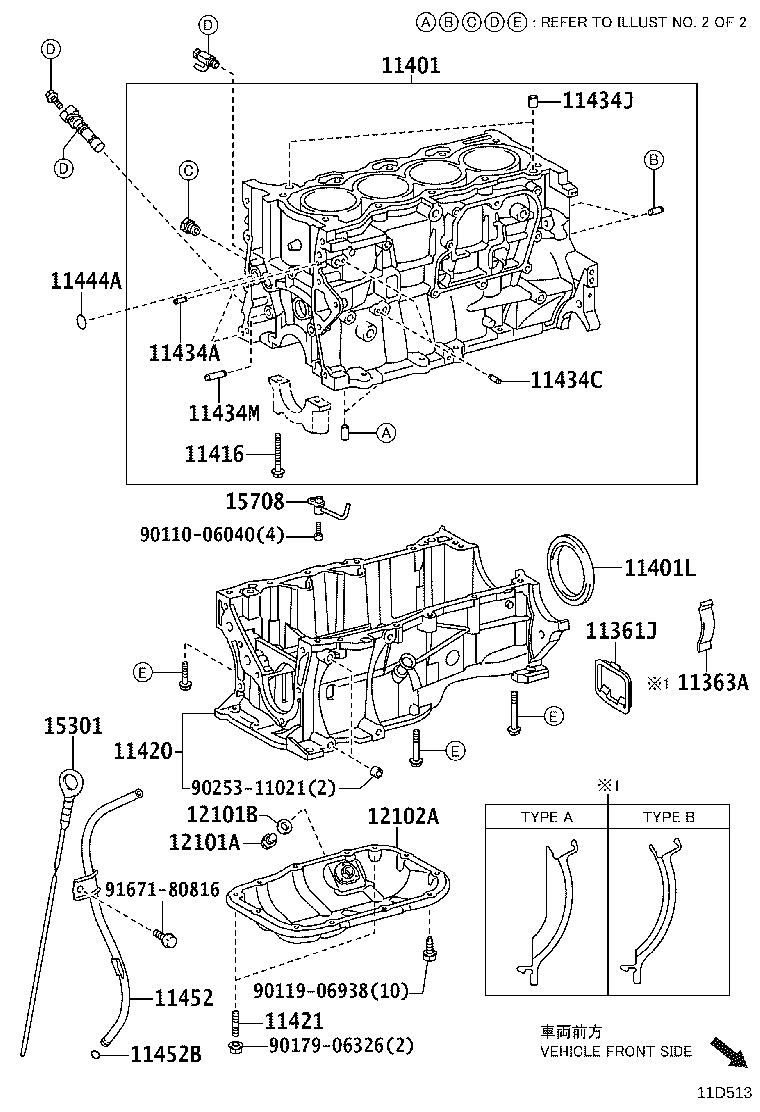

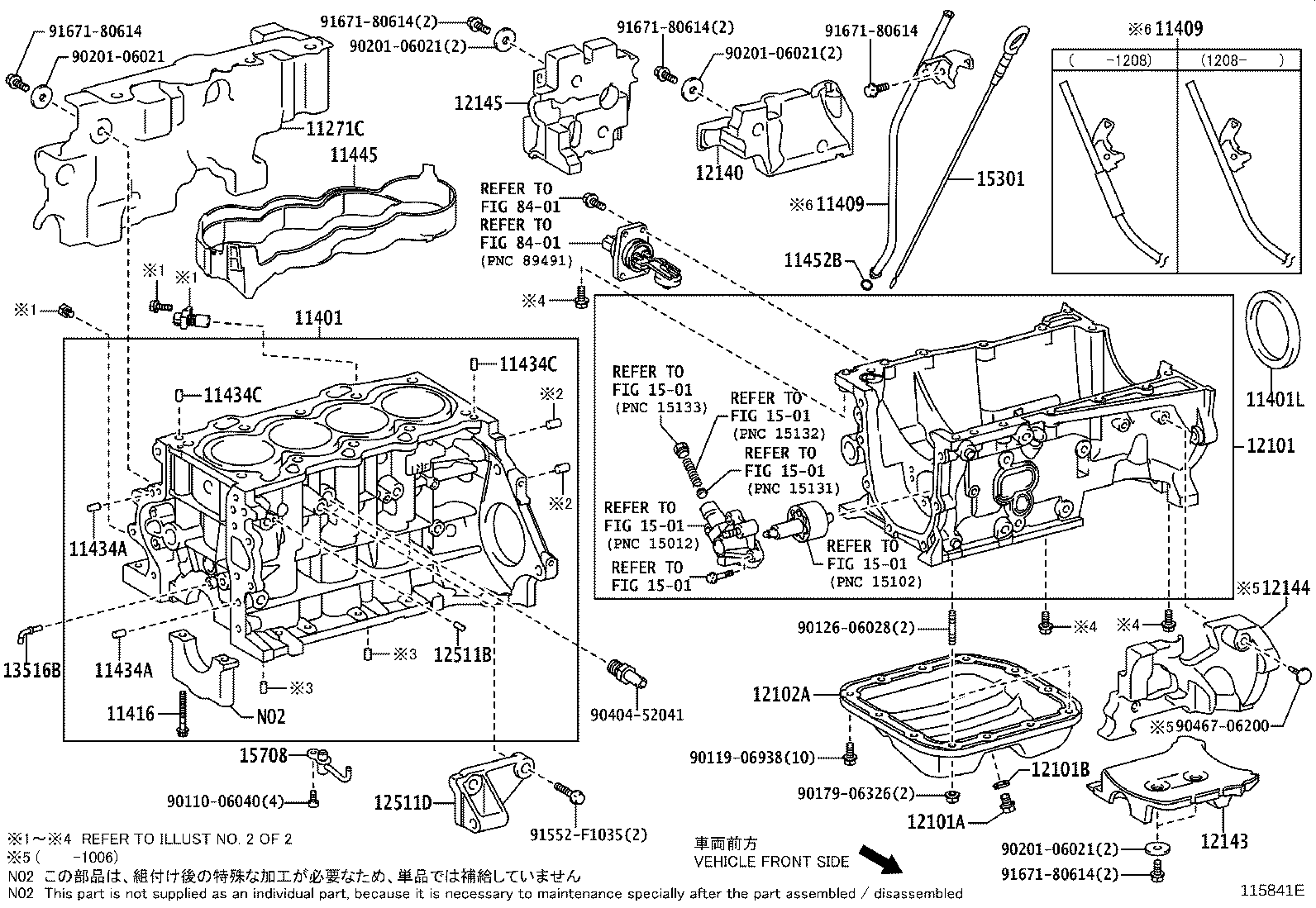

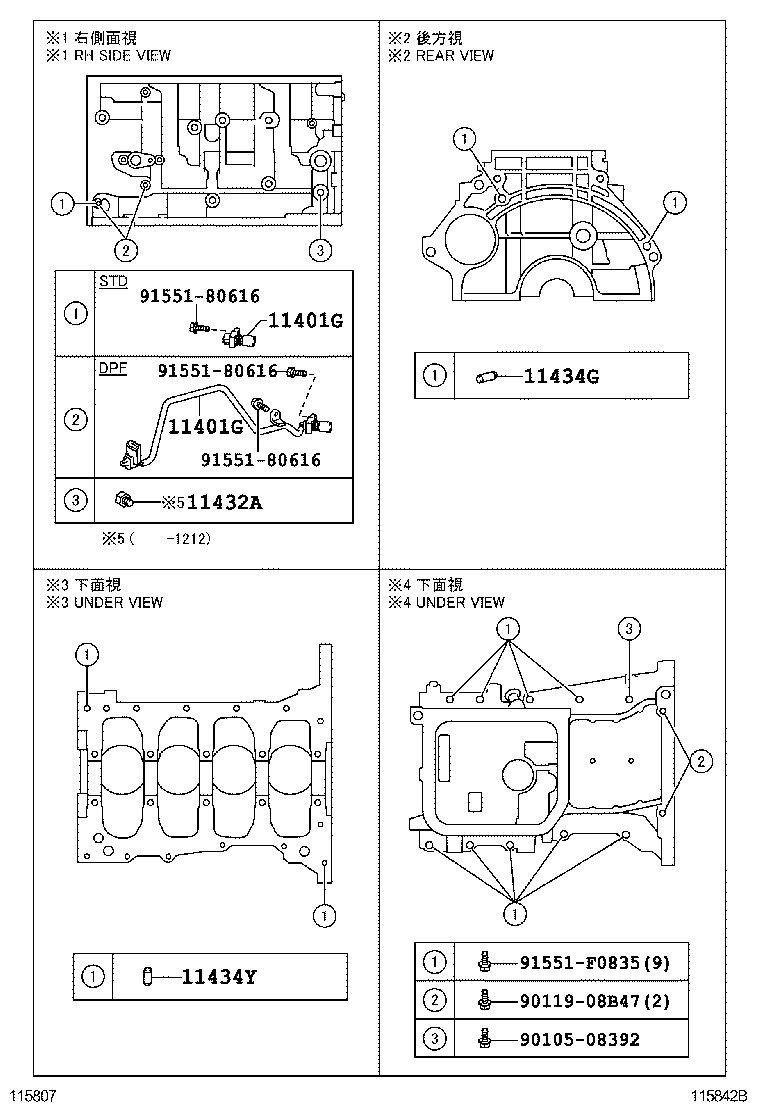

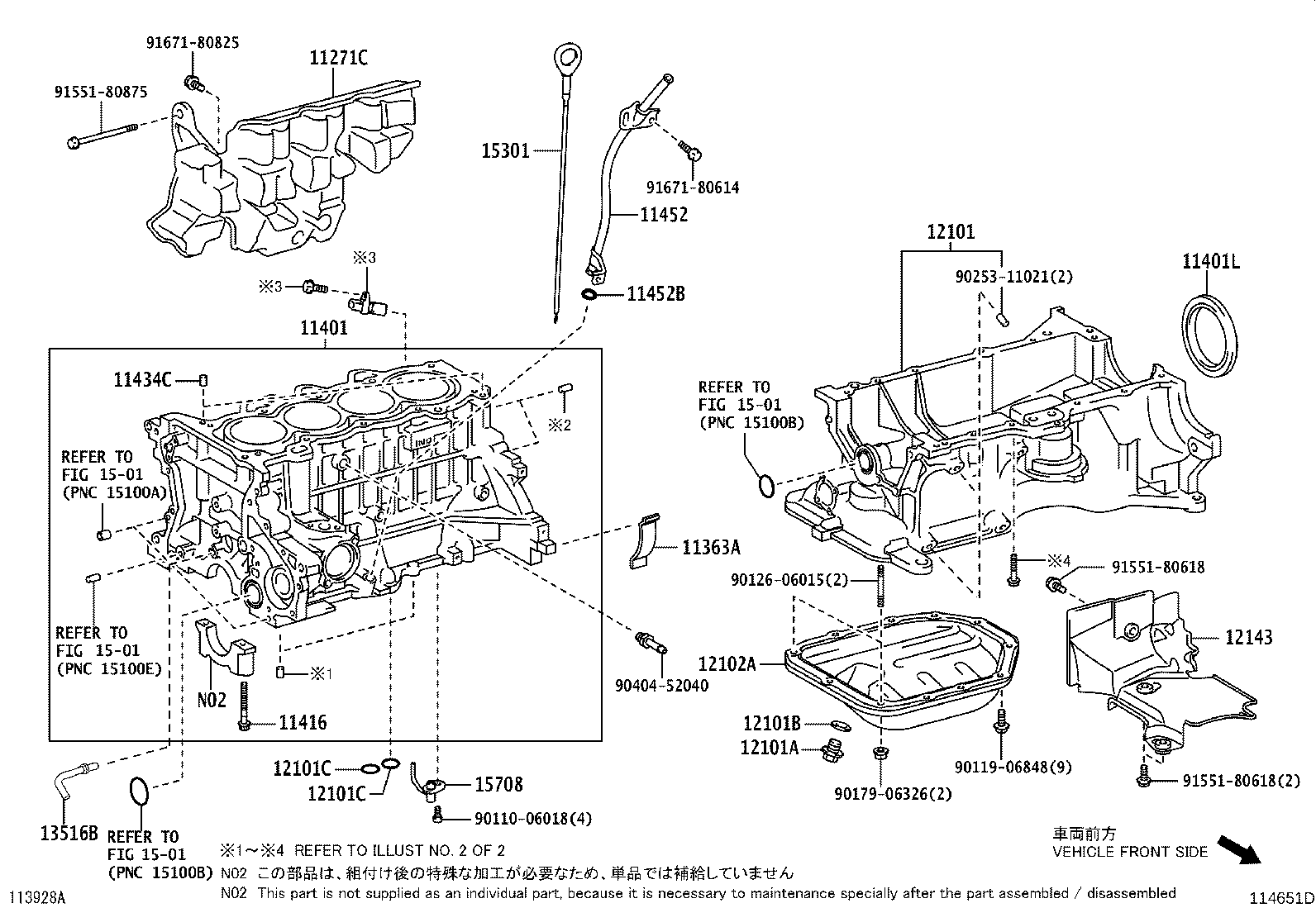

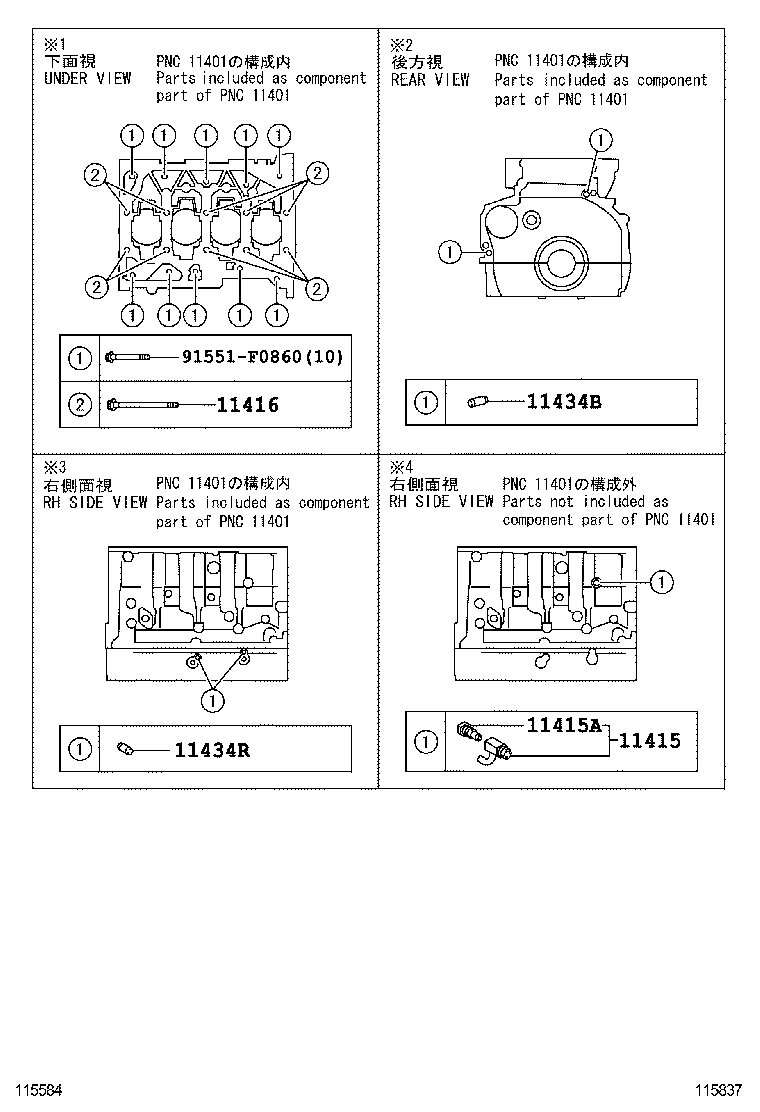

Figure 114658C 114658C 2006-11 → 2009-01 Figure 115836A 115836A 2009-01 → — Figure 115837 115837 2009-01 → — Figure 114651D 114651D 2006-11 → 2008-12 Figure 115634 115634 2006-11 → 2008-12 Figure 115841E 115841E 2008-12 → — Figure 115842B 115842B 2008-12 → — Figure 115843H 115843H 2008-12 → — Figure 115844D 115844D 2008-12 → — Figure 115801B 115801B 2006-11 → 2012-04 Figure 11D513 11D513 2012-04 → — Figure 115800C 115800C 2006-11 → — Figure 11D514 11D514 2006-11 → —

Part groups

PNCDescription
11271C Cover, Cylivder Block Side
11361J Cover, Flywheel Housing Under
11363A Cover, Flywheel Housing Side
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11401L Seal, Engine Rear Oil
11409 Guide Sub-assy, Oil Level Gage
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11420 Crankcase Assy, Stiffening
11421 Bolt, Stud(FOR OIL PAN)
11432A Plug, W/Head Taper Screw, NO.1
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434G Pin, Straight(FOR END PLATE)
11434H Pin, Ring (FOR TIMING BELT COVER SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434M Pin, Straight(FOR CHAIN TENSIONER)
11434R Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET)
11434Y Pin, Straight(FOR OIL PAN)
11444A Ring, O
11445 Spacer, Cylinder Block Water Jacket
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11459 Support, Oil Level Gage Guide
11573 Plate, Oil Reflector
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12101C Ring, O(FOR OIL PAN)
12101L Gasket NO.1(FOR OIL PAN)
12102A Pan Sub-assy, Oil, NO.2
12121 Plate, Oil Pan Baffle, NO.1
12140 Cover, Oil Pan
12143 Cover, Oil Pan
12144 Silencer, Oil Pan Cover
12145 Silencer, Oil Pan Cover, NO.2
12156 Insulator, Oil Pan
12511B Pin, Ring(FOR ALTERNATOR BRACKET)
12511D Bracket, Alternator
12581A Insulator, Cylinder Block, NO.1
13516B Jet, Oil
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15708 Nozzle Sub-assy, Oil, NO.1
33118D Plate, Stiffener, RH
33119C Plate, Stiffener, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
