Engine Oil Cooler

8 part groups · 6 illustrations

Illustrations

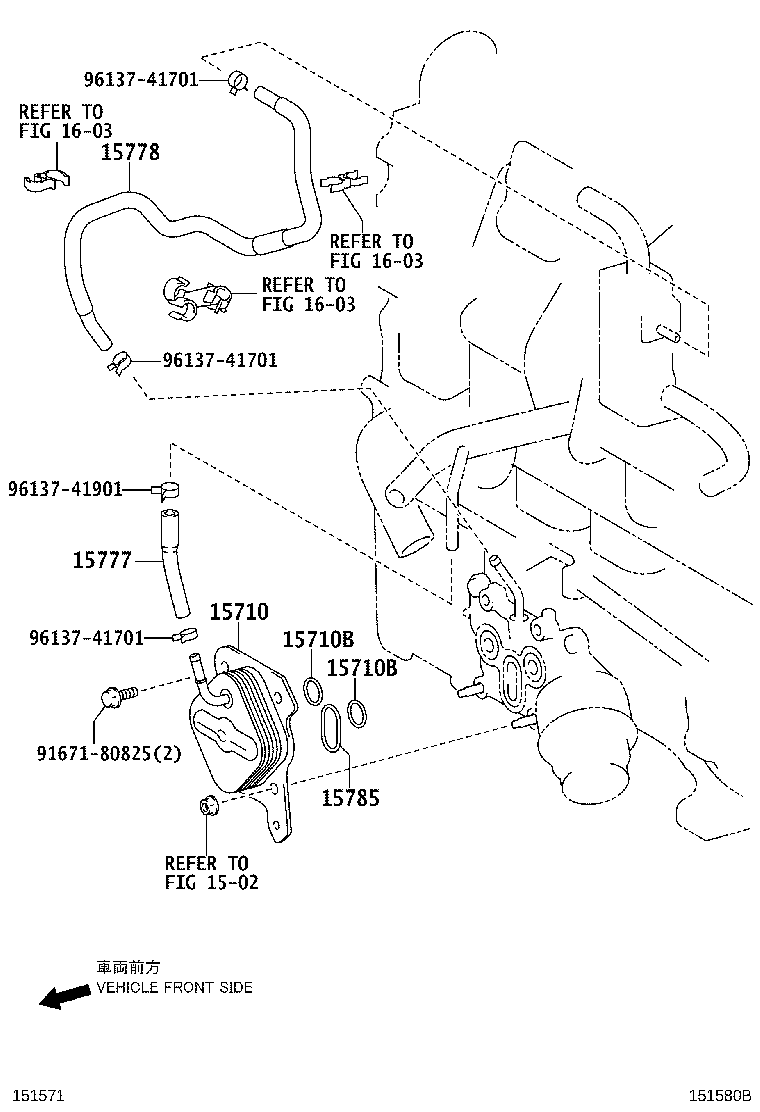

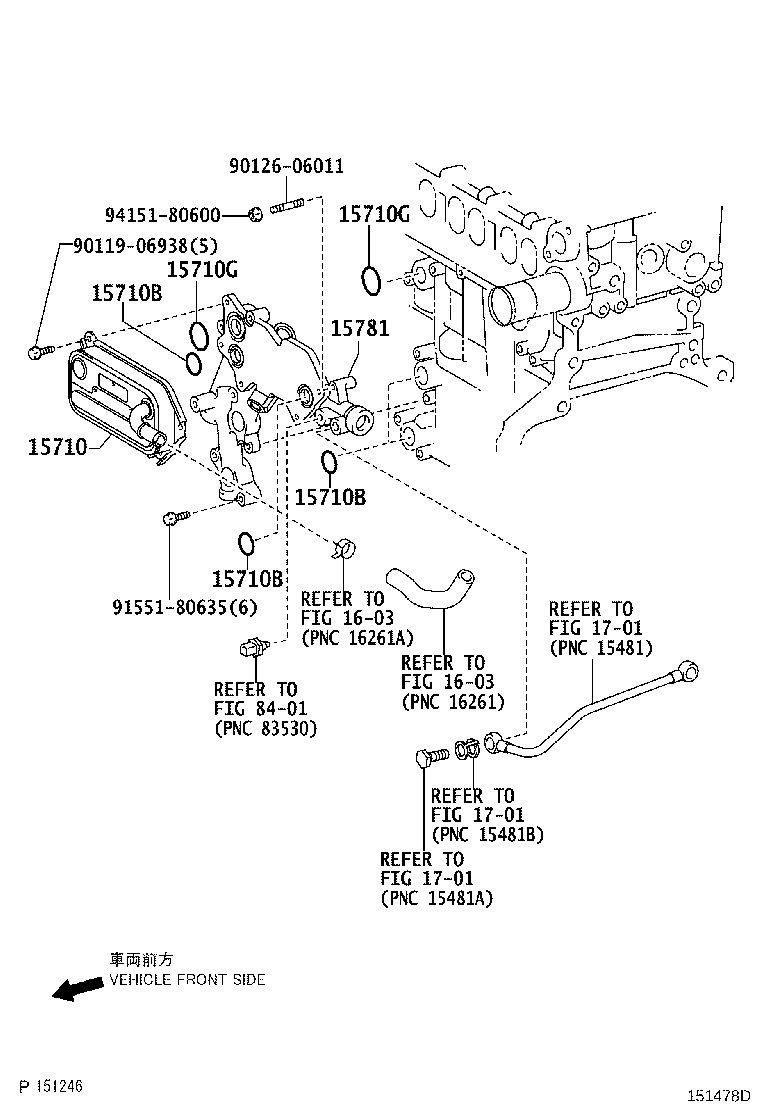

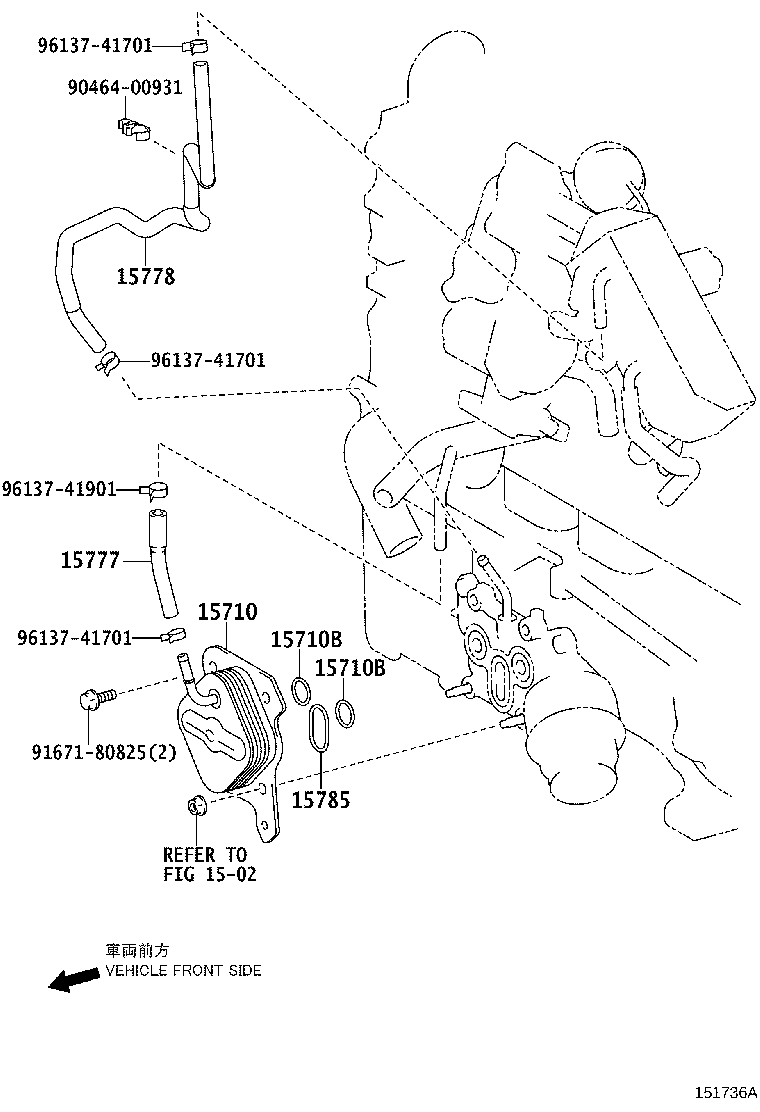

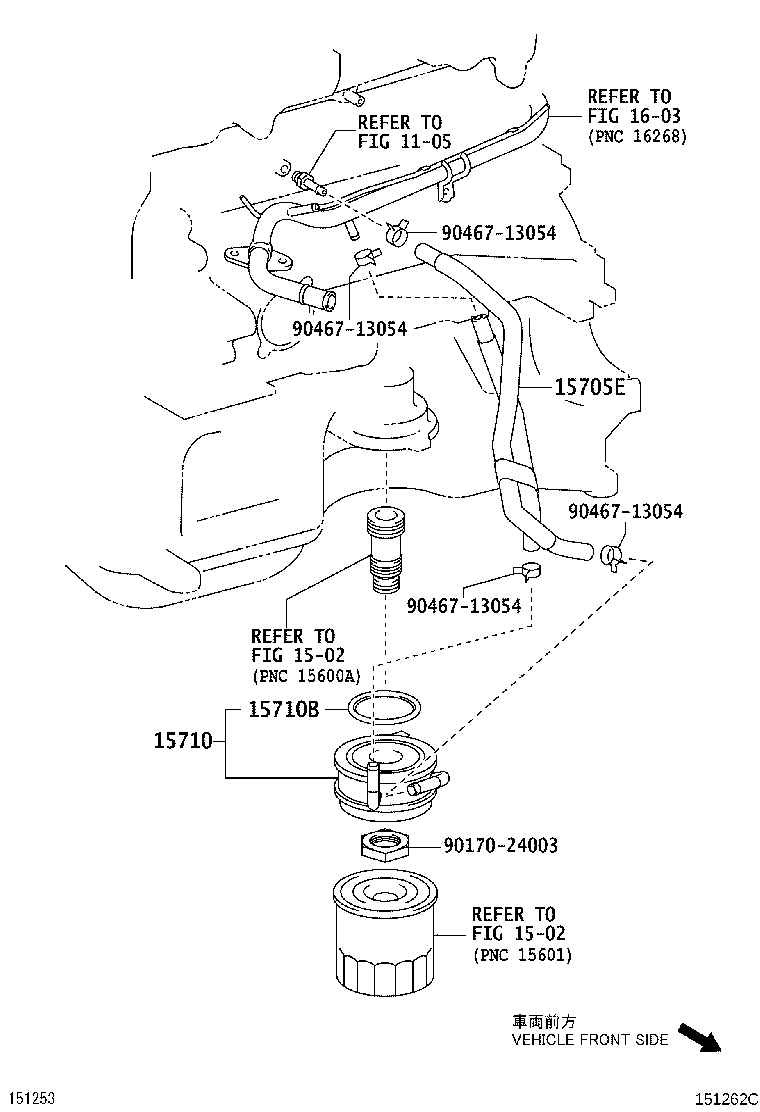

Figure 151257E 151257E 2006-11 → 2008-11 Figure 151478D 151478D 2008-11 → — Figure 151262C 151262C 2006-11 → 2008-12 Figure 151580B 151580B 2008-12 → 2010-02 Figure 151580B 151580B 2008-12 → — Figure 151736A 151736A 2011-10 → —

Part groups

PNCDescription
15705E Hose Sub-assy, Oil Cooler
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710G Ring, O, NO.2
15777 Hose, Oil Cooler
15778 Hose, Oil Cooler, NO.2
15781 Bracket, Oil Cooler, NO.1
15785 Gasket, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
