Toyota Corolla Sed (JPP)

2006-11 → 2013-04 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 162510 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

9 part groups · 6 illustrations

Illustrations

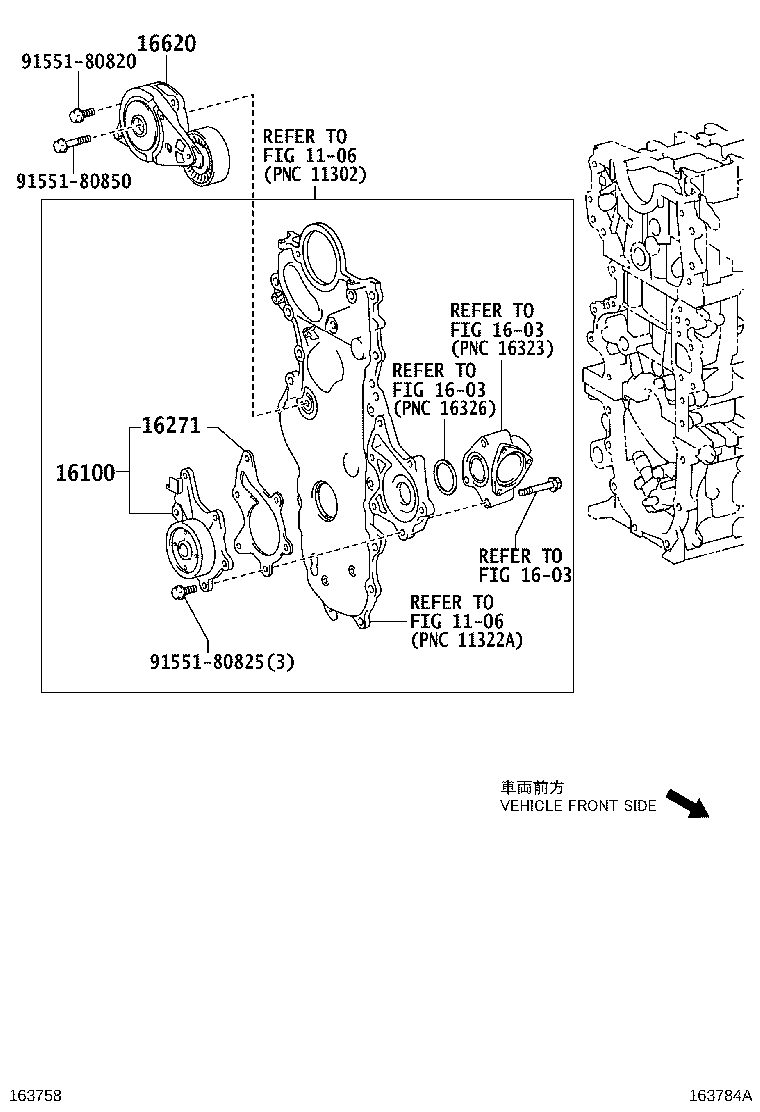

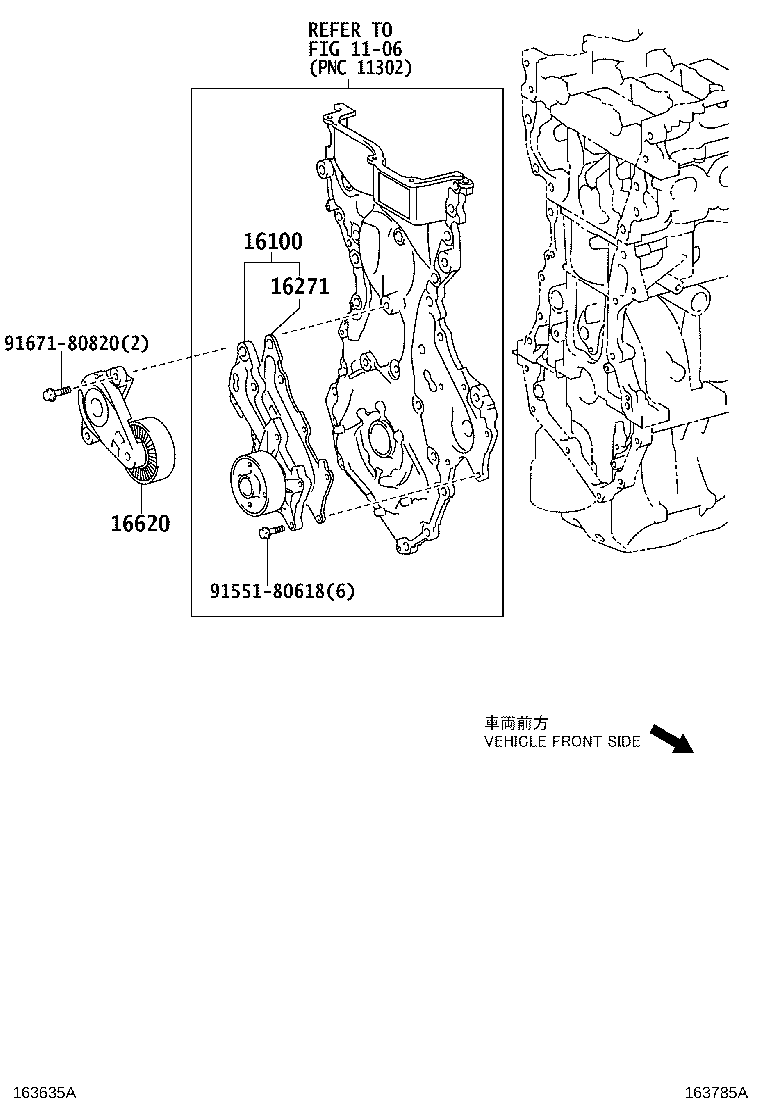

Figure 162964B 162964B 2006-11 → — Figure 162983A 162983A 2006-11 → 2008-12 Figure 163784A 163784A 2008-12 → — Figure 163785A 163785A 2008-12 → — Figure 167013 167013 2006-11 → — Figure 167014 167014 2006-11 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100H Ring, O(FOR WATER PUMP)
16173 Pulley, Water Pump
16271 Gasket, Water Pump
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
