Toyota Corolla Sed (JPP)

2006-11 → 2013-04 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 162510 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Pump & Actuator, Sequential OR Multi-mode Manual Transaxle

6 part groups · 2 illustrations

Illustrations

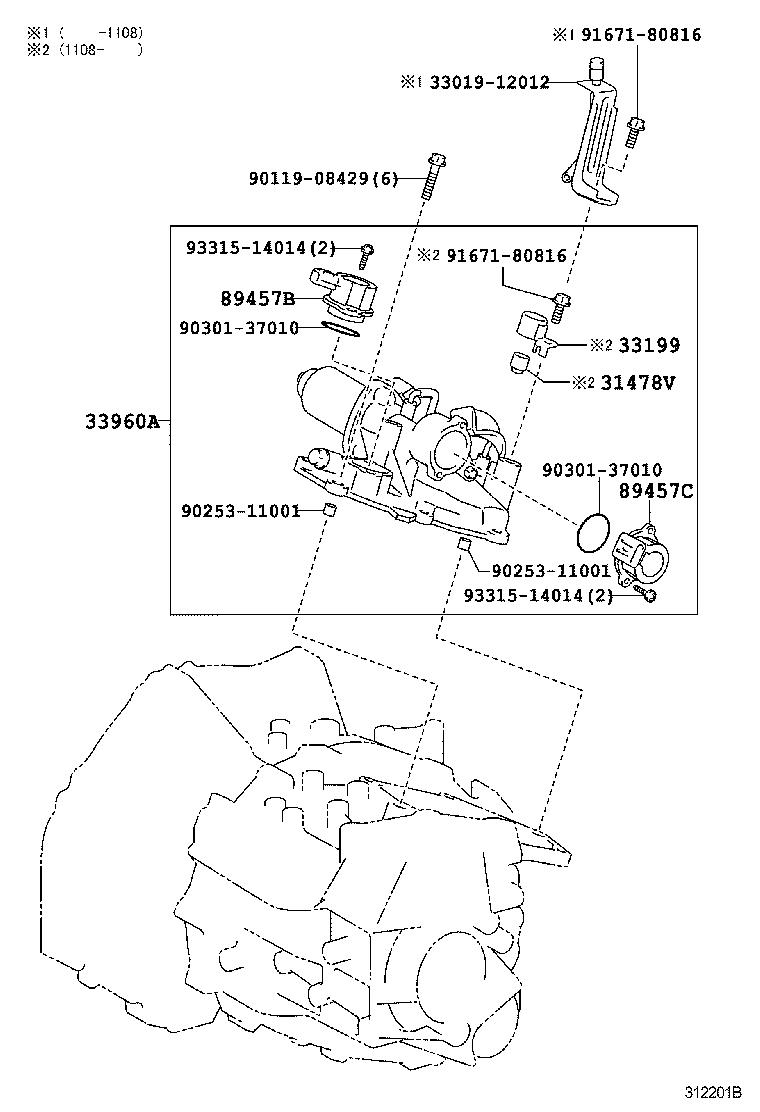

Figure 311791A 311791A 2006-11 → 2008-12 Figure 312201B 312201B 2008-12 → —

Part groups

PNCDescription
31478V Cap, Breather Plug
33199 Protector, Breather
33960A Actuator Assy, Shift & Select
33960B Breather Plug, Shift & Select Actuator
89457B Stroke Sensor, Shift
89457C Stroke Sensor, Select
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
