Toyota Corolla Sed (JPP)

2006-11 → 2013-04 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 162510 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 5 illustrations

Illustrations

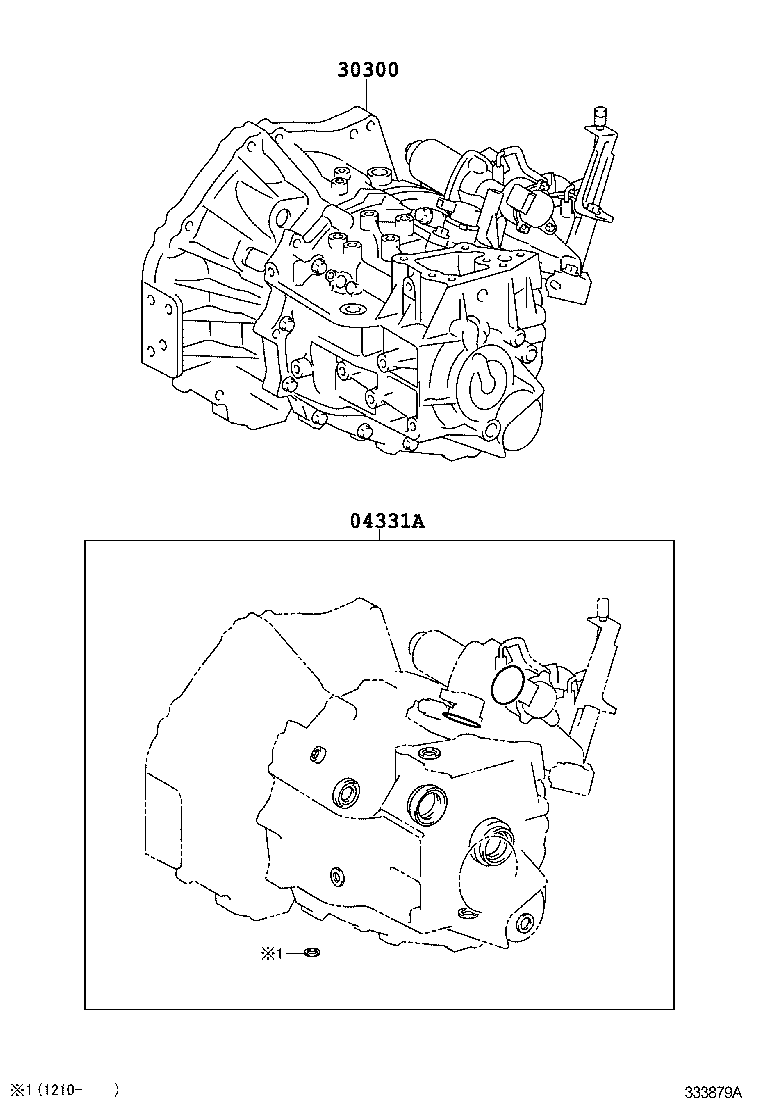

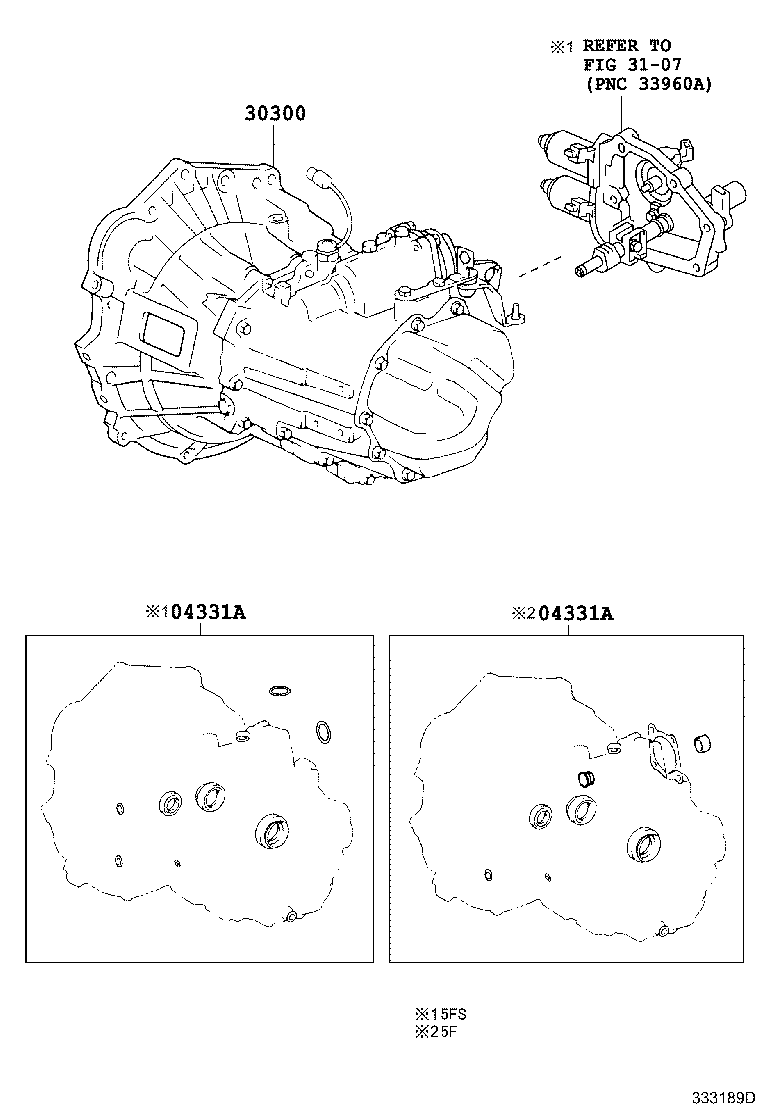

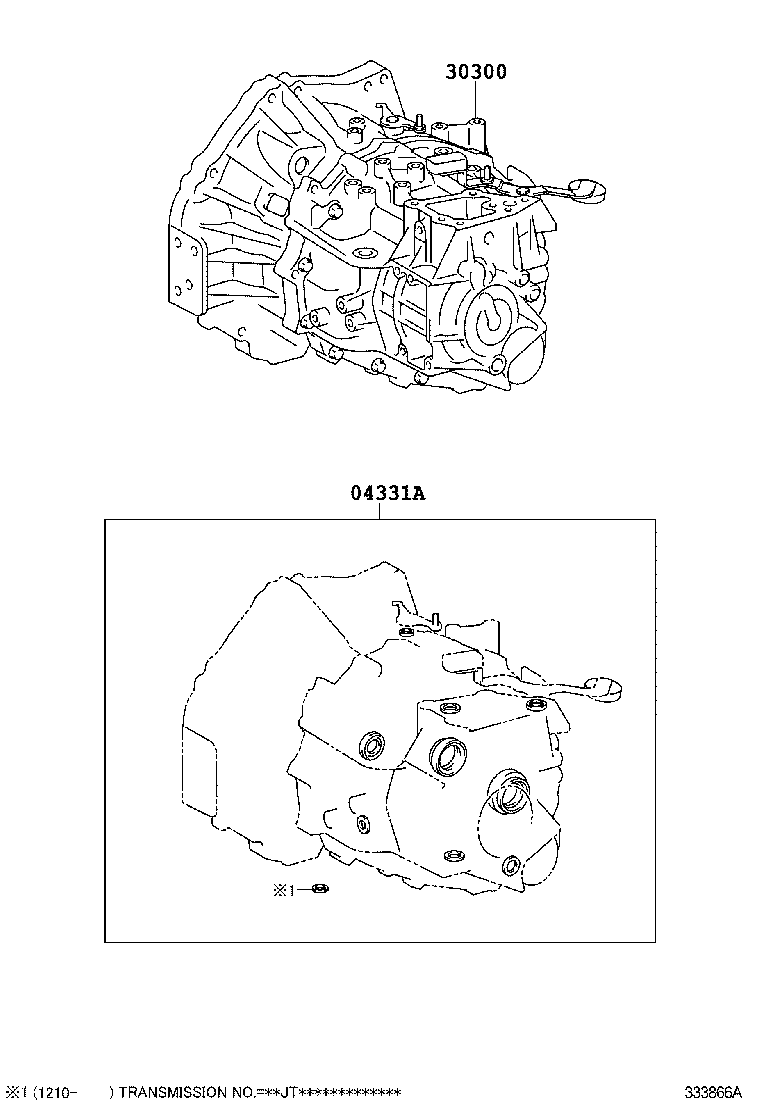

Figure 333868 333868 2006-11 → — Figure 333189D 333189D 2006-11 → 2008-12 Figure 333866A 333866A 2008-12 → — Figure 333867 333867 2008-12 → — Figure 333879A 333879A 2008-12 → —

Part groups

PNCDescription
04331A Gasket Kit, Transaxle Overhaul(MTM)
30300 Transaxle Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
