Toyota Corolla Sed (JPP)
2006-11 → 2013-04 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 162510 · Europe
Supported model
Data version 2013-10

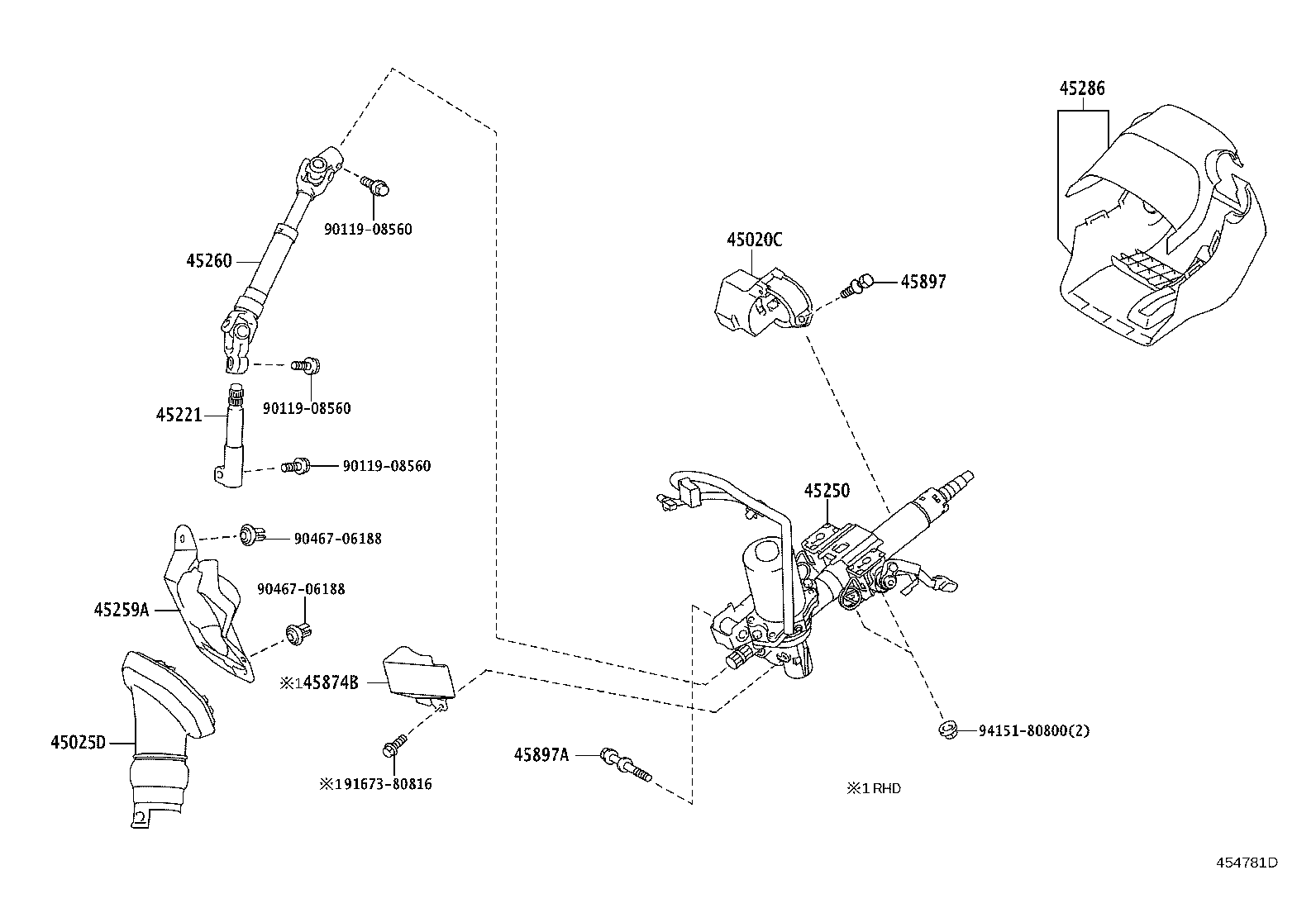

Steering Column & Shaft
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45020C | Actuator Assy, Steering Lock(W/ECU) |
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 45221 | Shaft, Steering Intermediate |
| 45250 | Column Assy, Steering |
| 45259A | Sheet, Column Hole Cover Silencer |
| 45260 | Shaft Assy, Steering Intermediate, NO.2 |
| 45280A | Bracket Assy, Steering Column, Upper |
| 45286 | Cover, Steering Column |
| 45874B | Protector, Steering Column, NO.1 |
| 45897 | Bolt, Steering Lock Set |
| 45897A | Bolt, Tilt Steering Pawl Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
