Toyota Corolla Sed (JPP)

2006-11 → 2013-04 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 162510 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

16 part groups · 3 illustrations

Illustrations

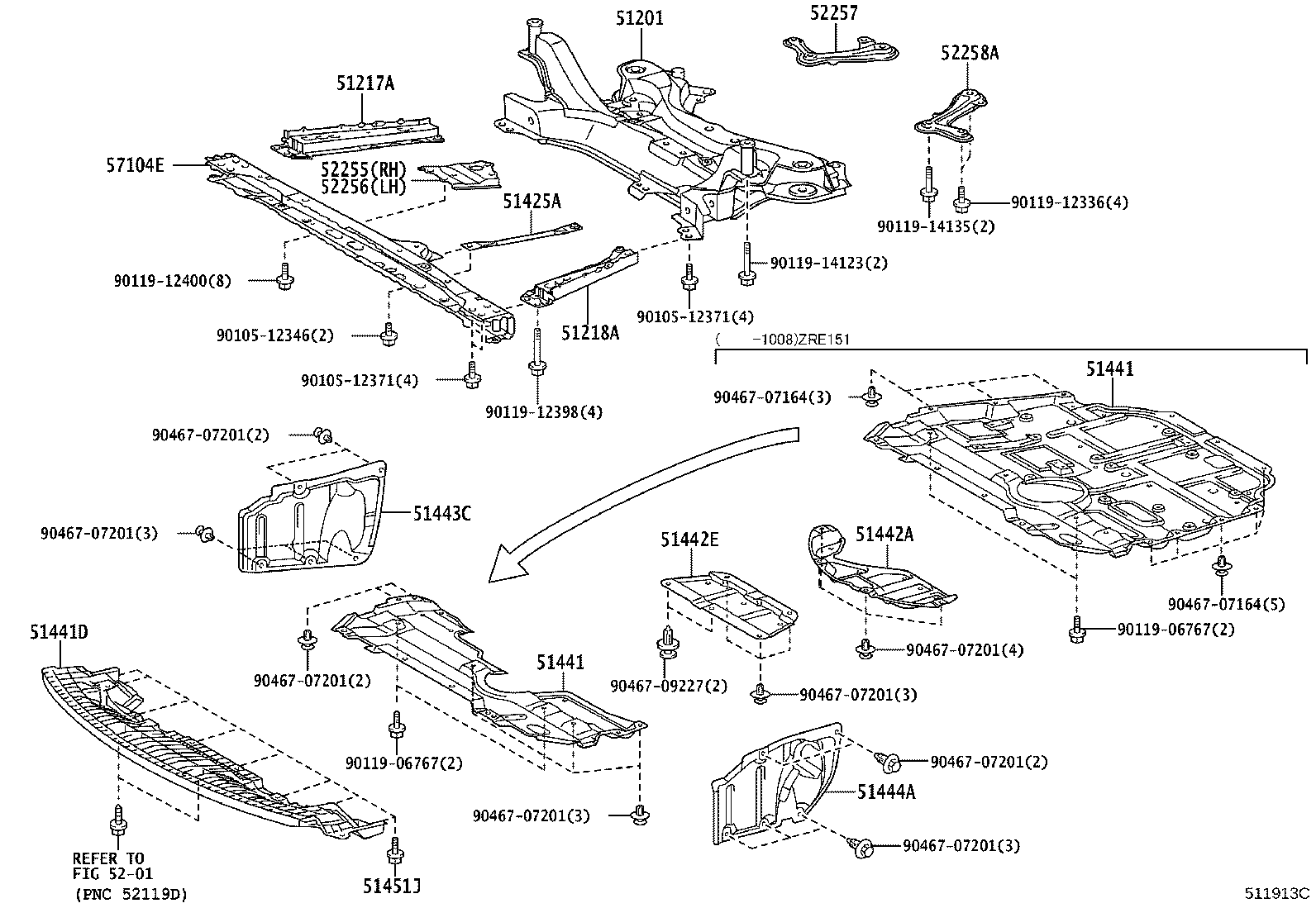

Figure 511630I 511630I 2006-11 → 2008-12 Figure 511630I 511630I 2006-11 → — Figure 511913C 511913C 2008-12 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51217A Reinforcement, Front Suspension Member, RH
51218A Reinforcement, Front Suspension Member, LH
51425A Reinforcement, Engine Front Mounting Bracket, Lower
51441 Cover, Engine Under, NO.1
51441D Cover, Engine Under
51442A Cover, Engine Under, Front NO.3
51442E Cover, Engine Under, NO.2
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51451J Bolt, NO.1
52255 Brace, Front Suspension Member, Front RH
52256 Brace, Front Suspension Member, Front LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
57104E Member Sub-assy, Front Cross
