Toyota Corolla Sed (JPP)
2006-11 → 2013-04 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 162510 · Europe
Supported model
Data version 2013-10
Instrument Panel & Glove Compartment

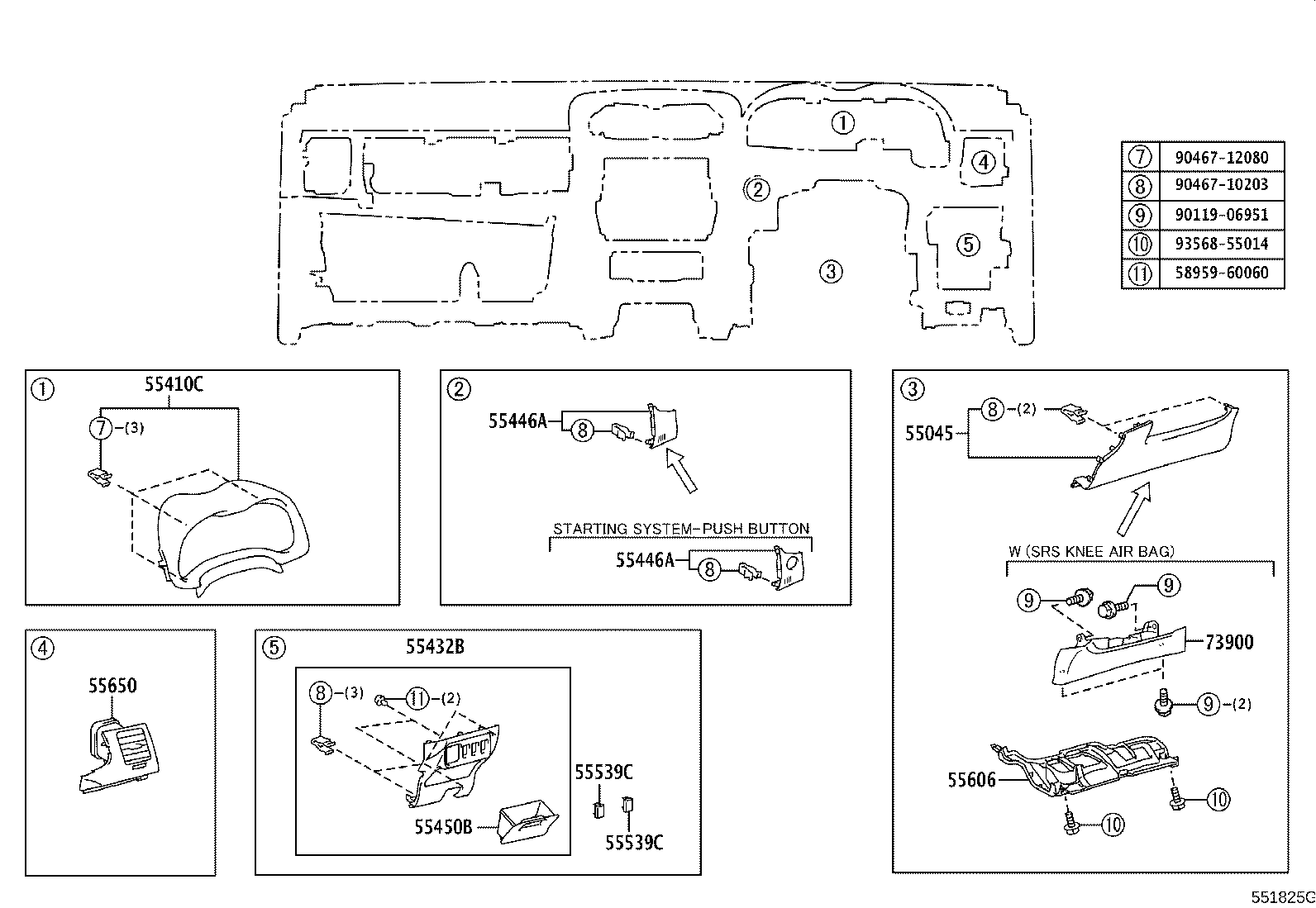

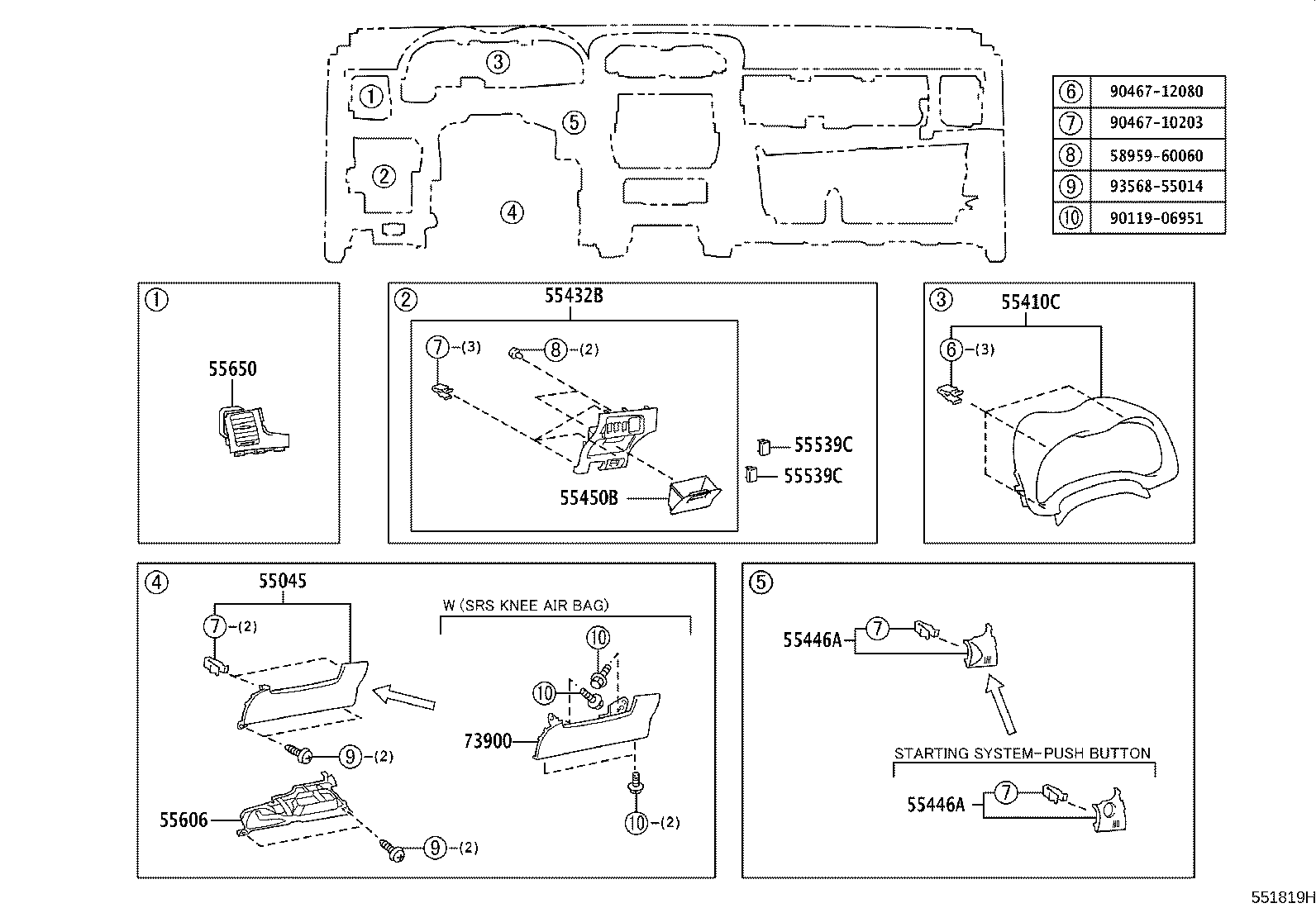

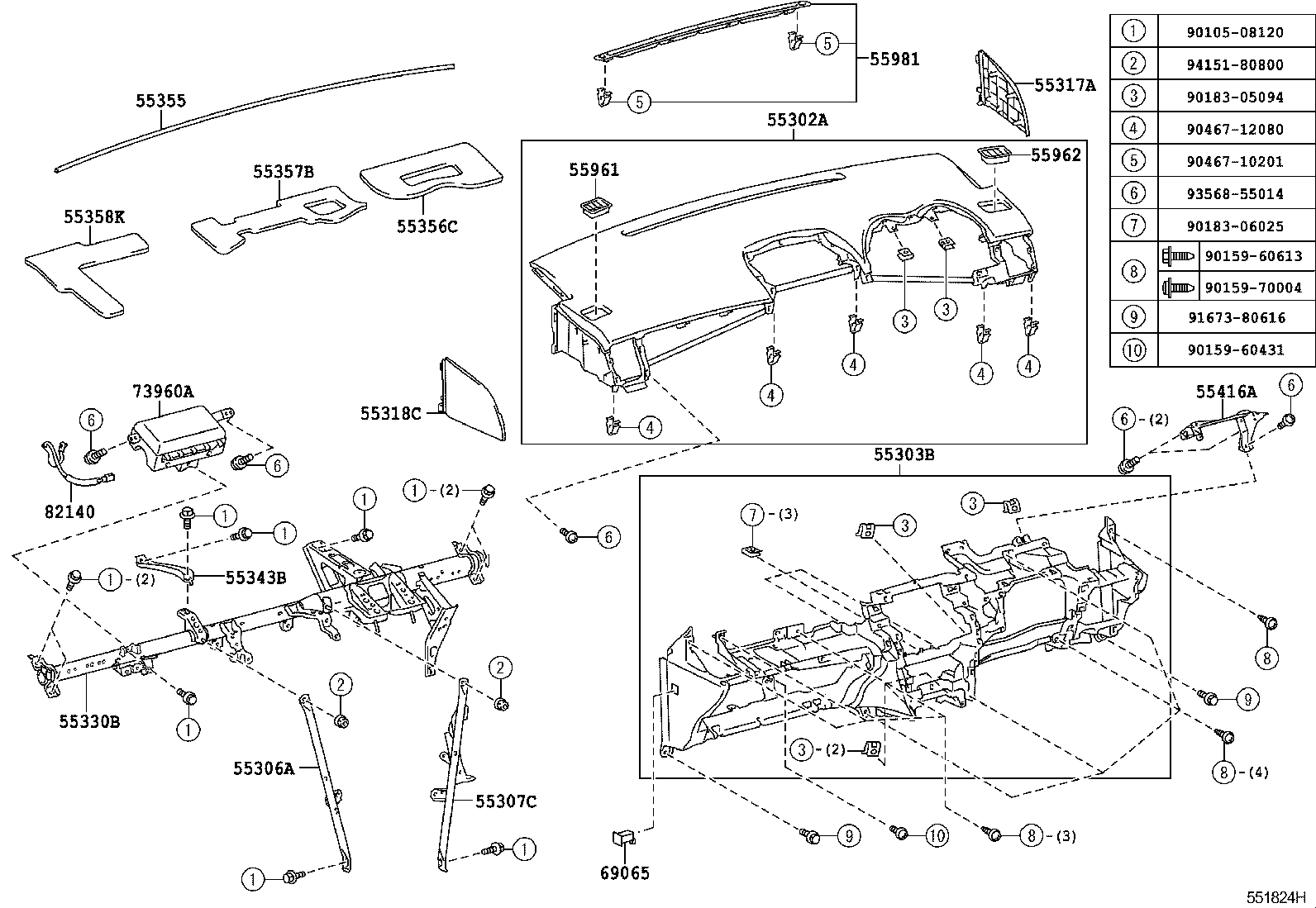

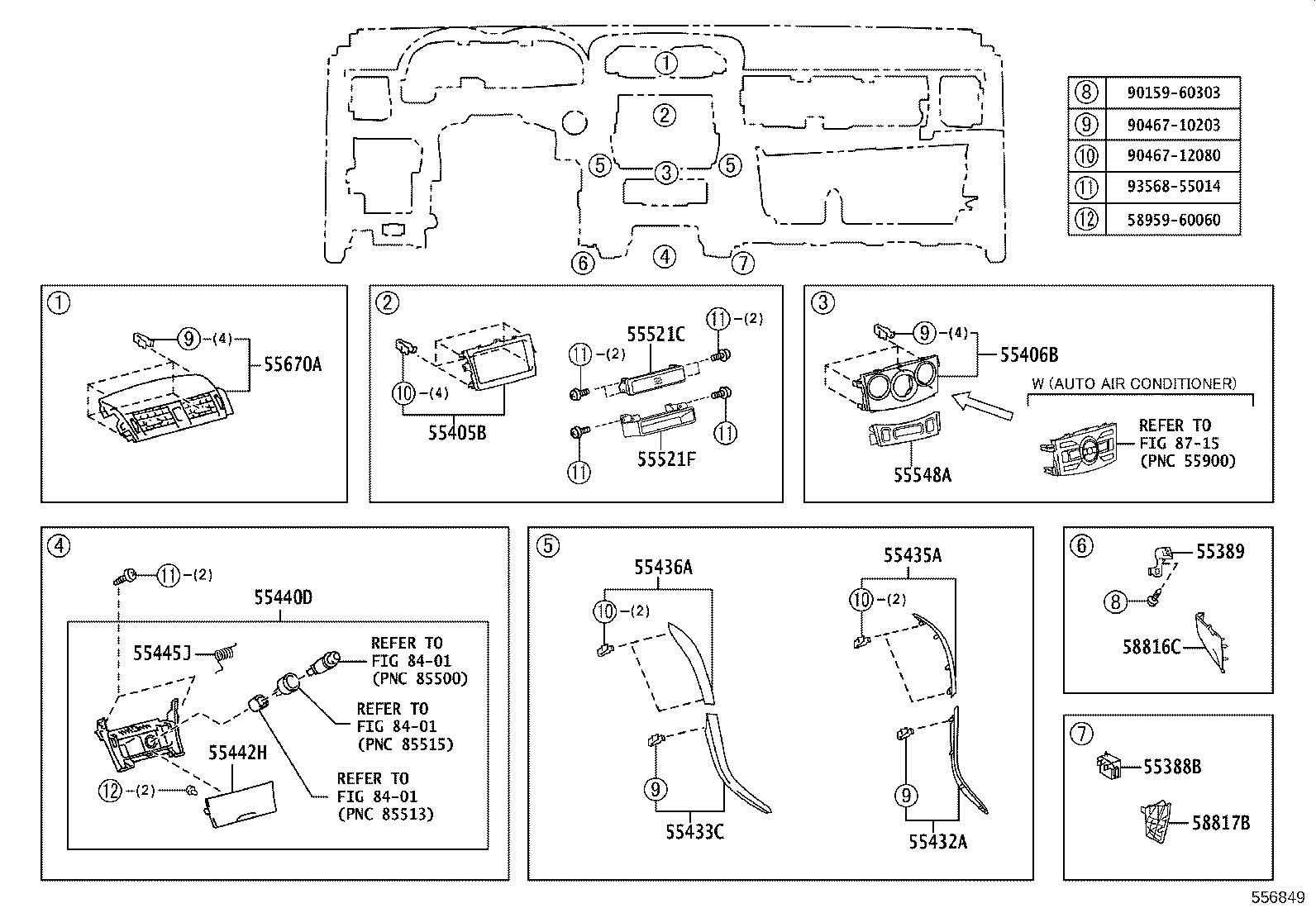

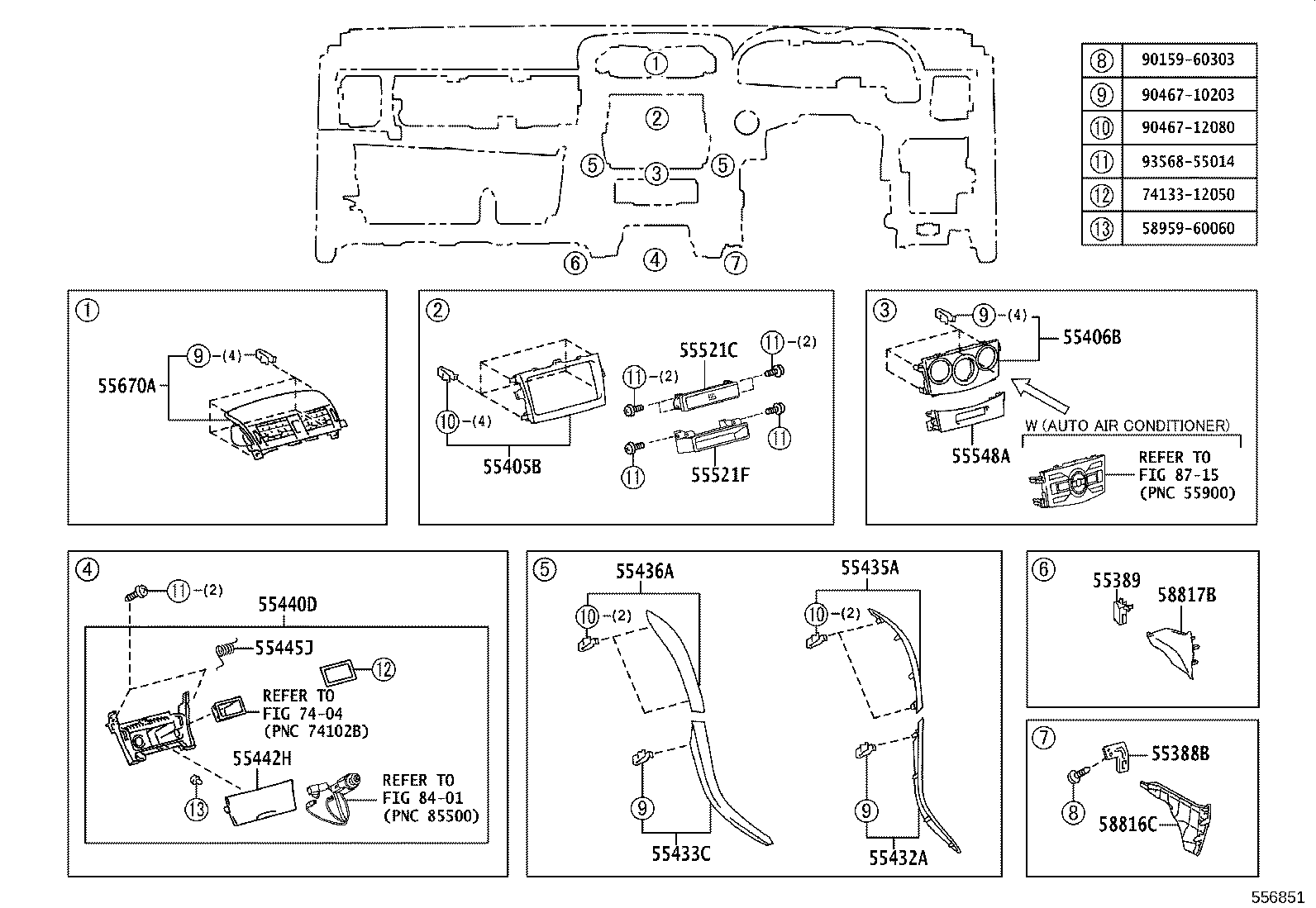

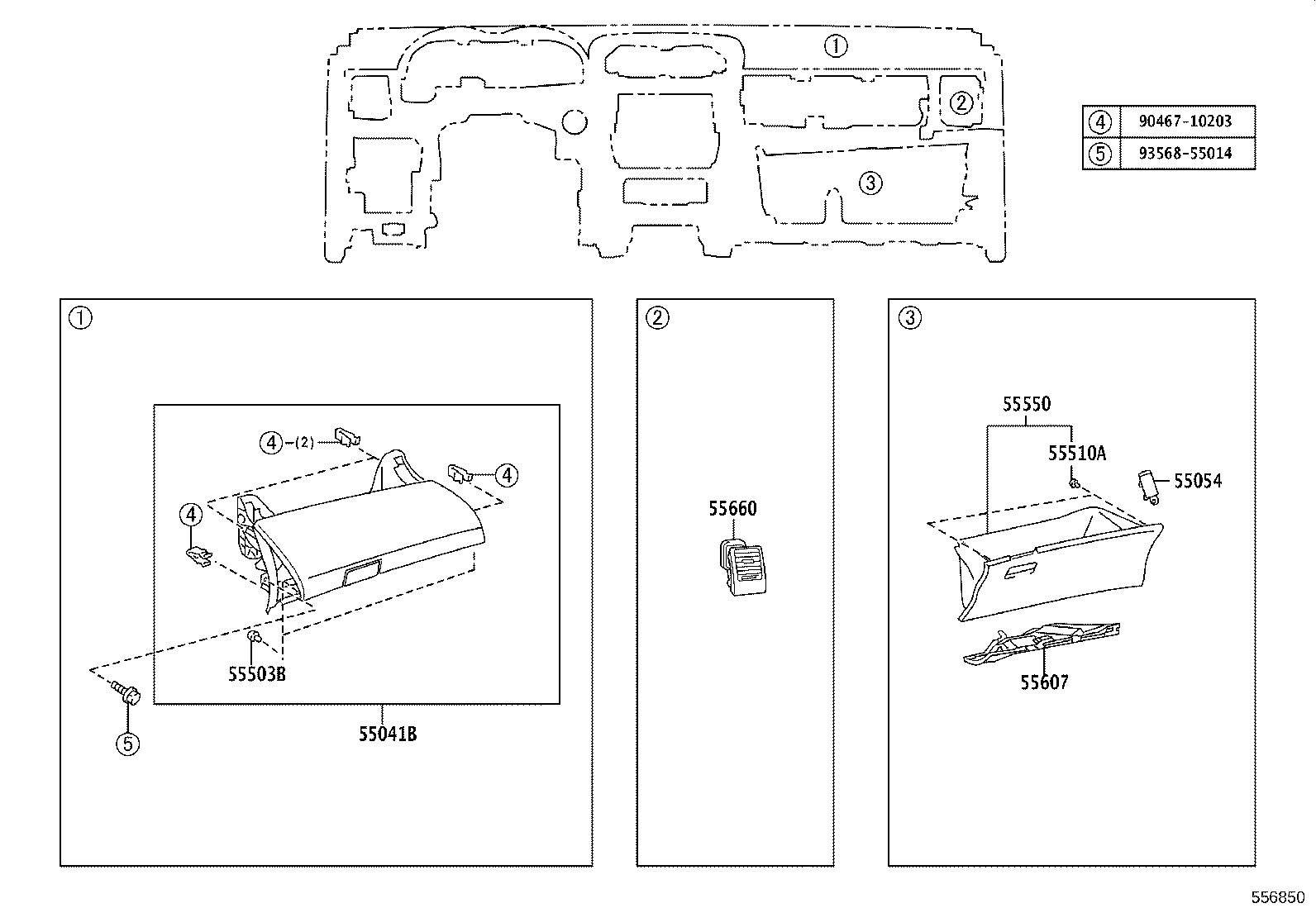

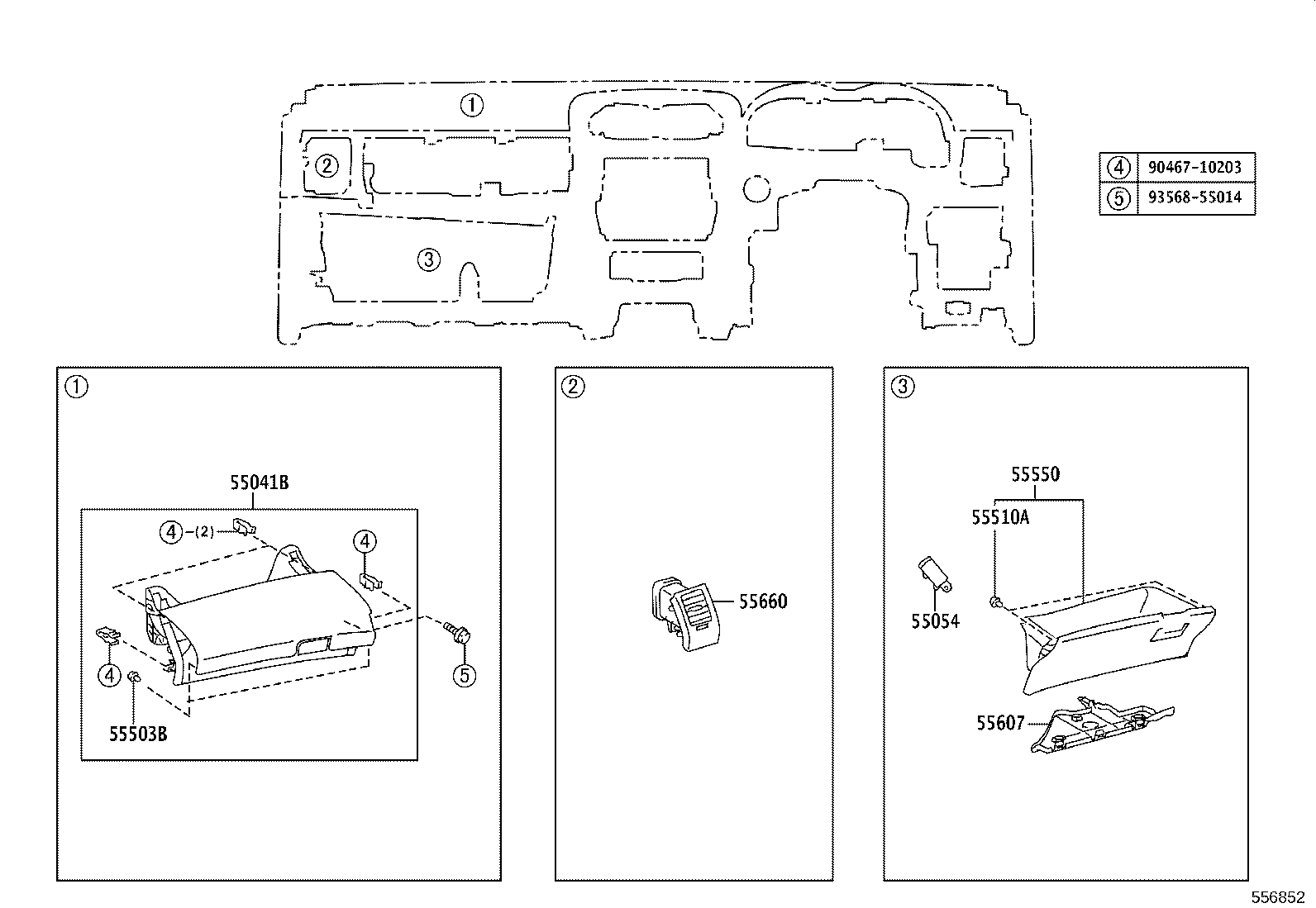

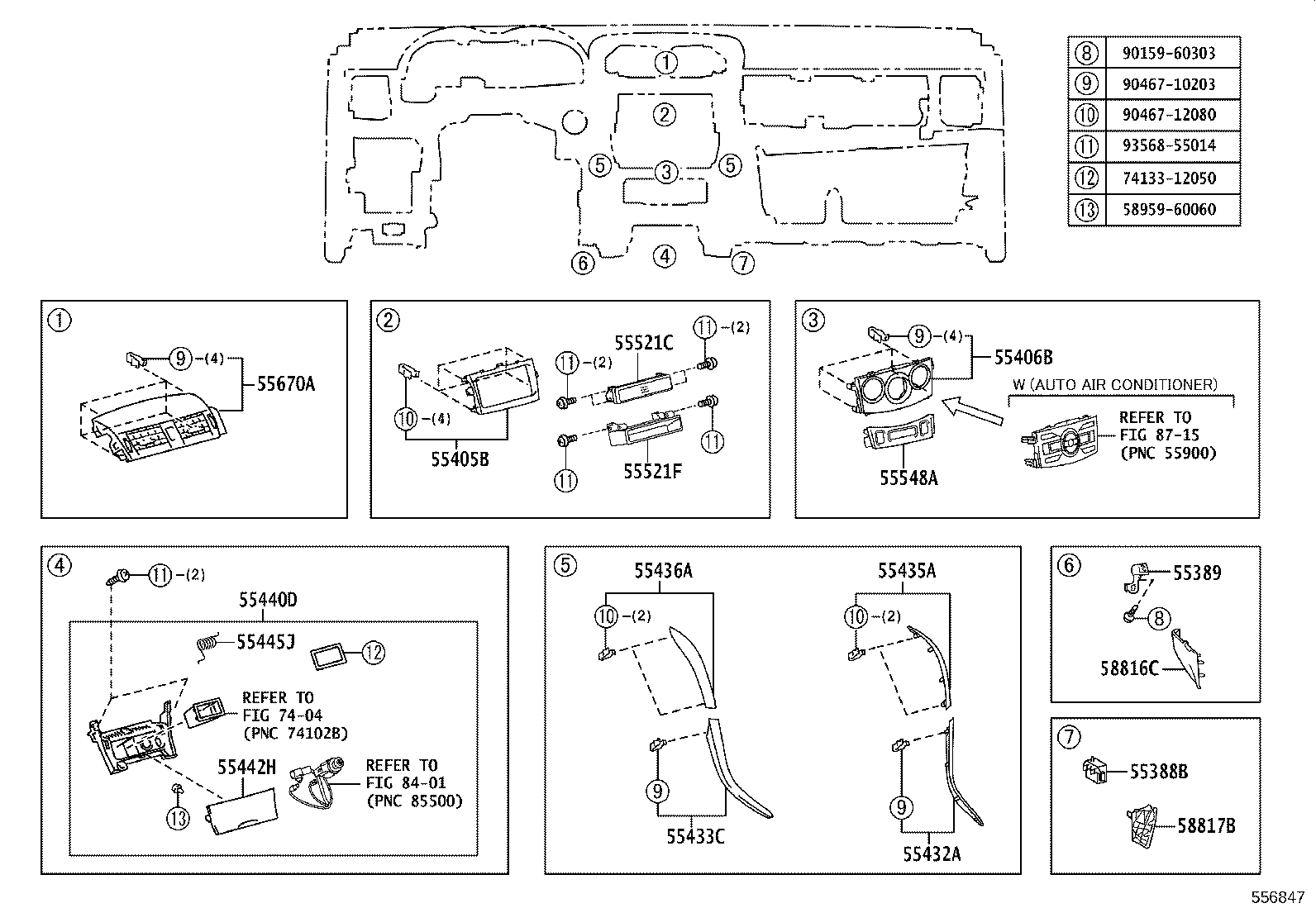

52 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 55041B | Door Sub-assy, Instrument Panel Box, NO.1 |
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55343B | Brace, Instrument Panel TO Cowl, Center |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55388B | Bracket, Console Mounting, RH |
| 55389 | Bracket, Console Mounting, LH |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55416A | Retainer, Meter Hood, NO.1 |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433C | Panel, Instrument Panel Finish, Lower LH |
| 55435A | Panel, Instrument Panel Finish, End RH |
| 55436A | Panel, Instrument Panel Finish, End LH |
| 55440D | Box Assy, Instrument Panel |
| 55442H | Door, Instrument Panel |
| 55445J | Spring, Instrument Panel Box |
| 55446A | Base, Switch Hole, NO.1 |
| 55450B | Box Assy, Coin |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55521C | Cover, Stereo Opening |
| 55521F | Cover, Stereo Opening, NO.2 |
| 55539C | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55550 | Door Assy, Glove Compartment |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 58816C | Insert, Console Box, Front NO.1 |
| 58817B | Insert, Console Box, Front NO.2 |
| 69065 | Cylinder Sub-assy, Airbag Cut Off SW |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 82140 | Wire Assy, Instrument Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
