Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

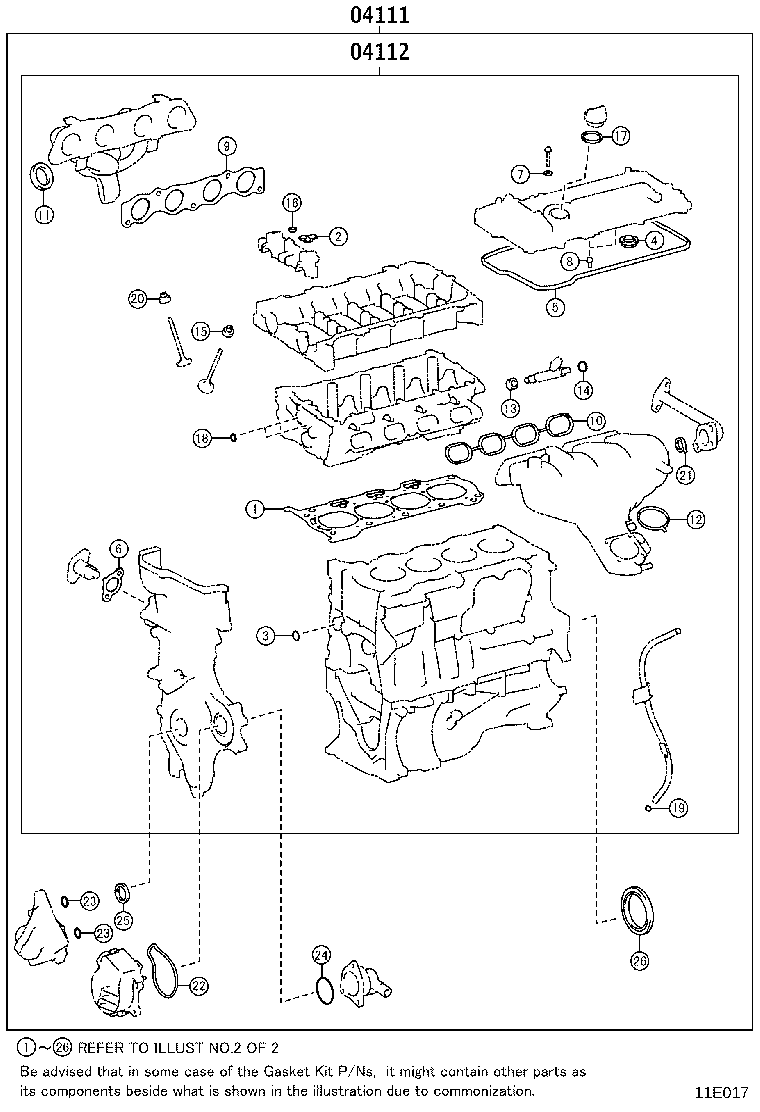

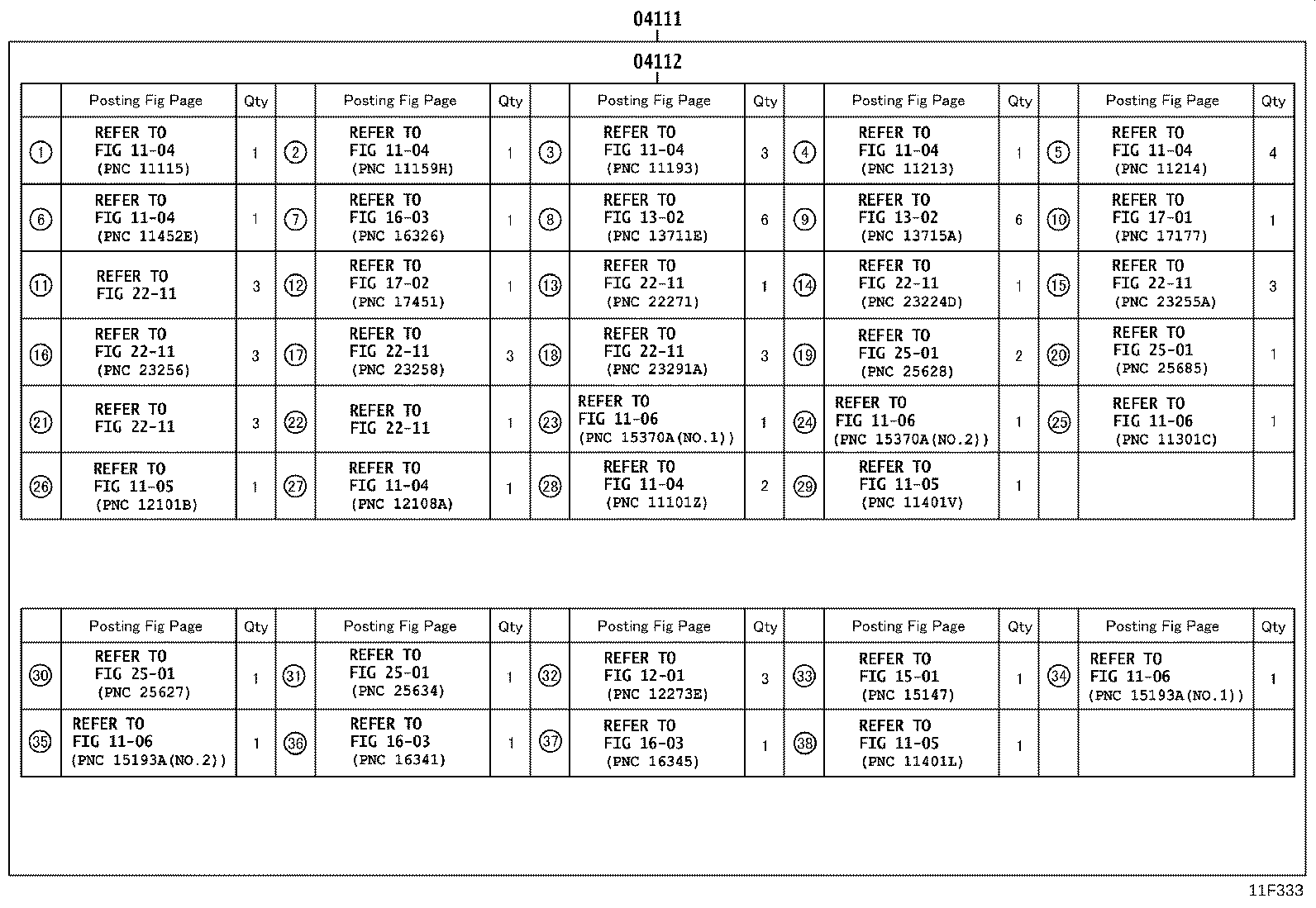

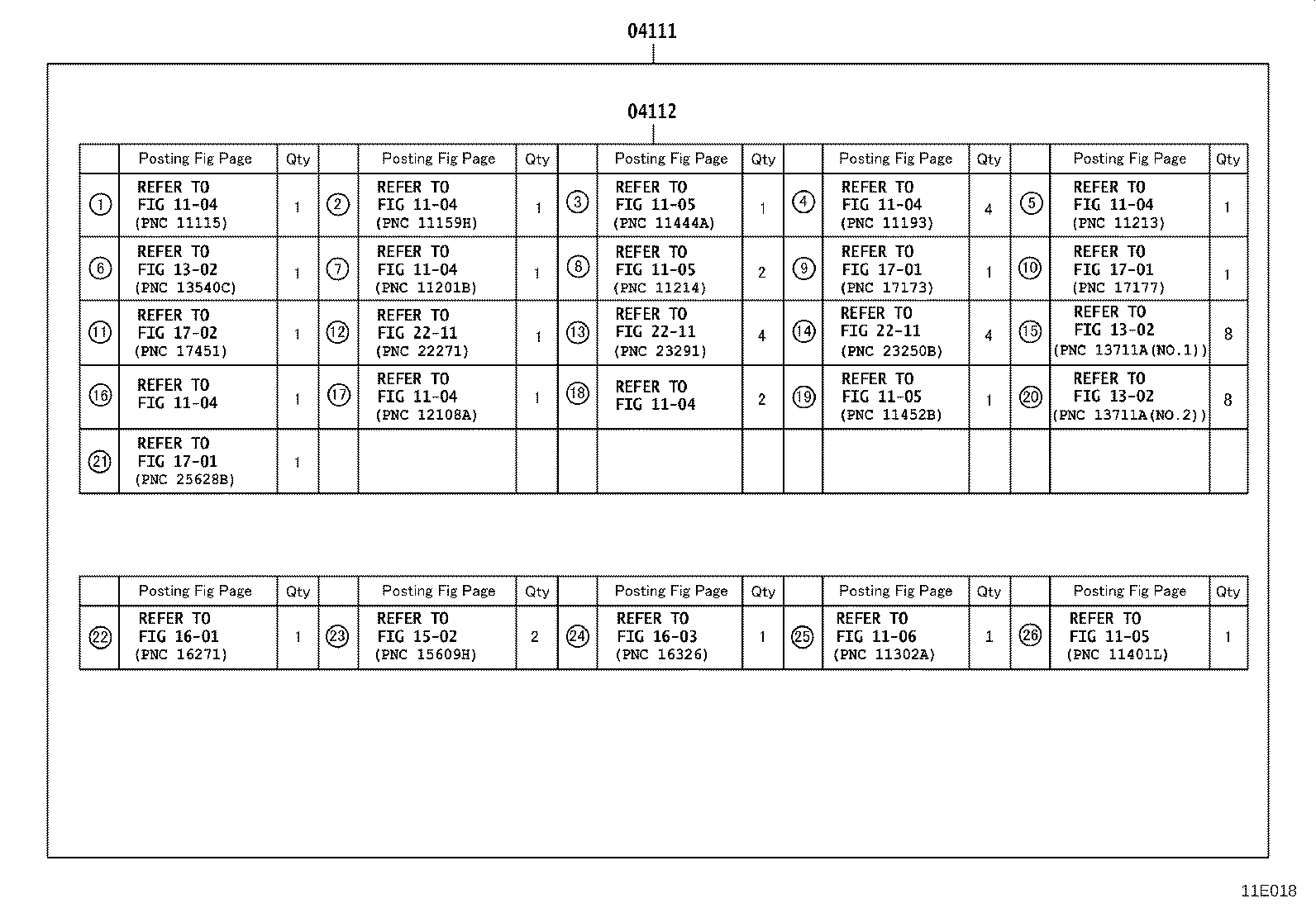

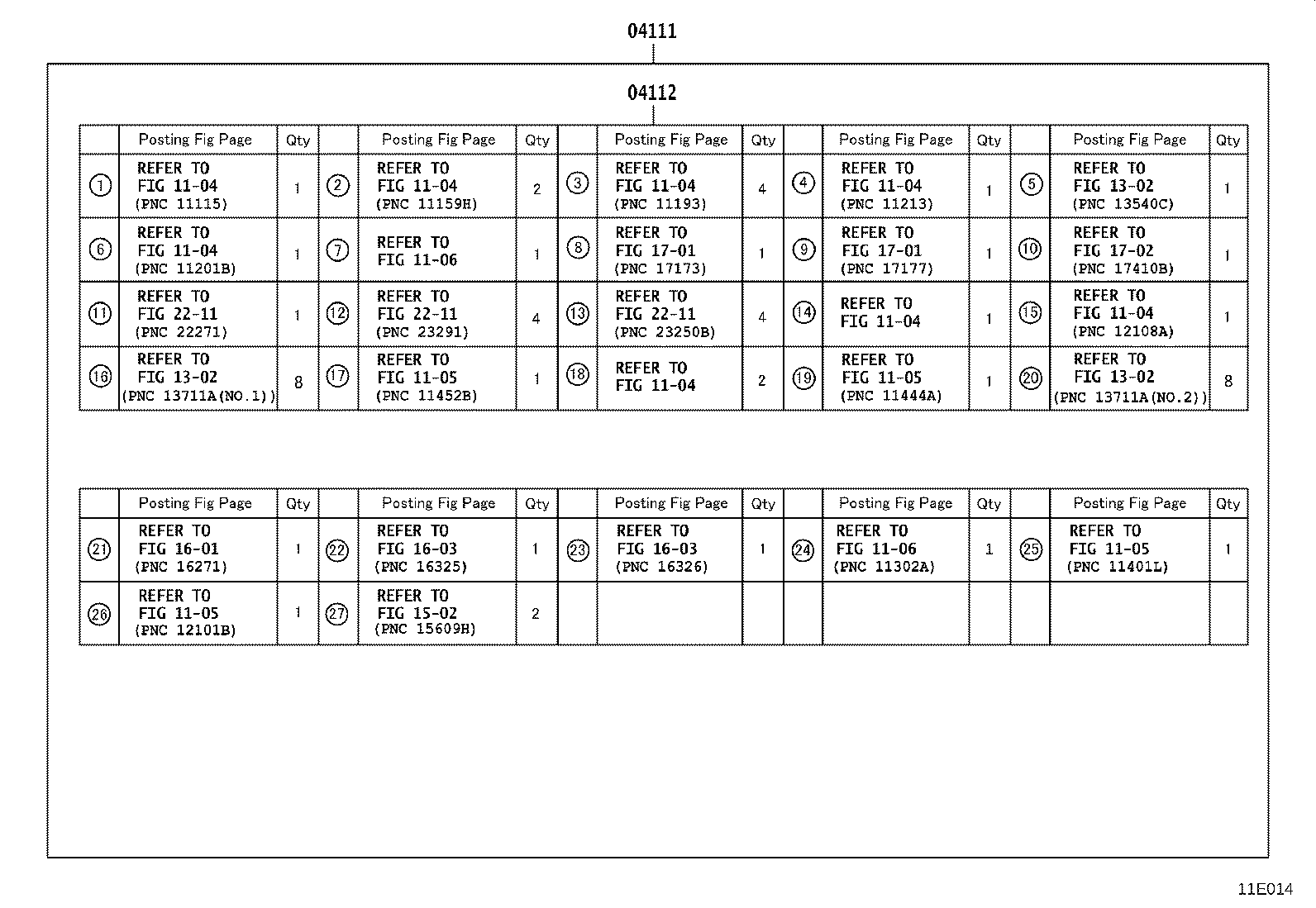

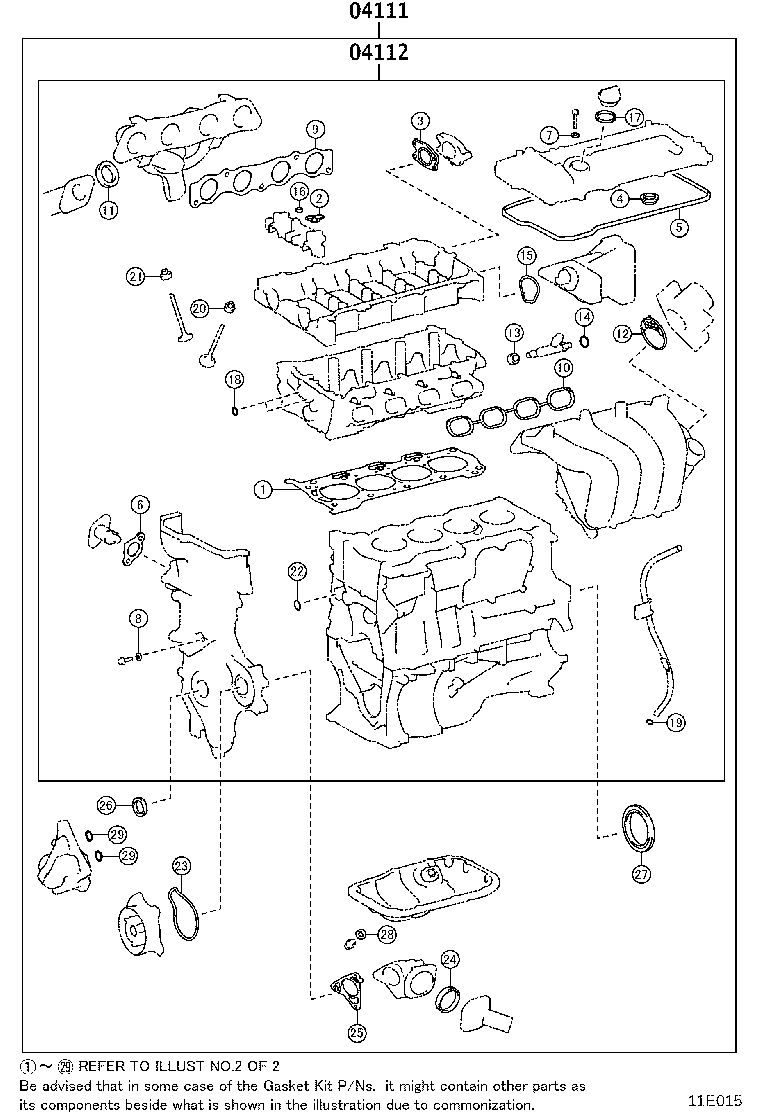

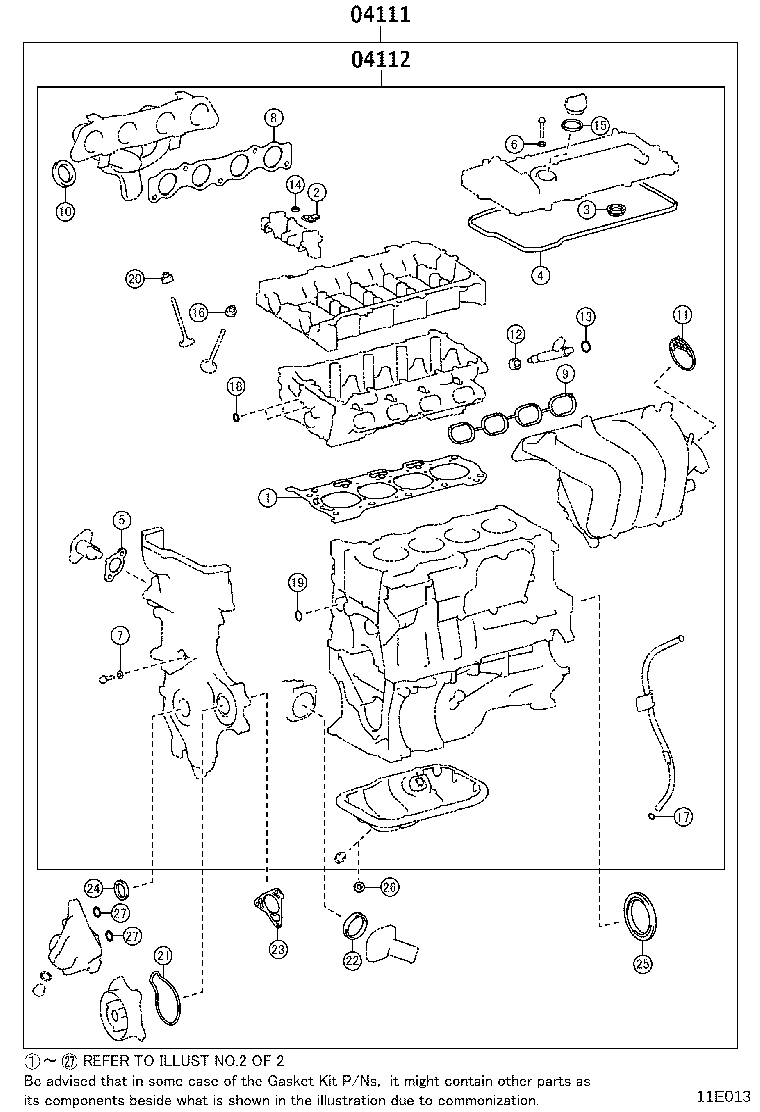

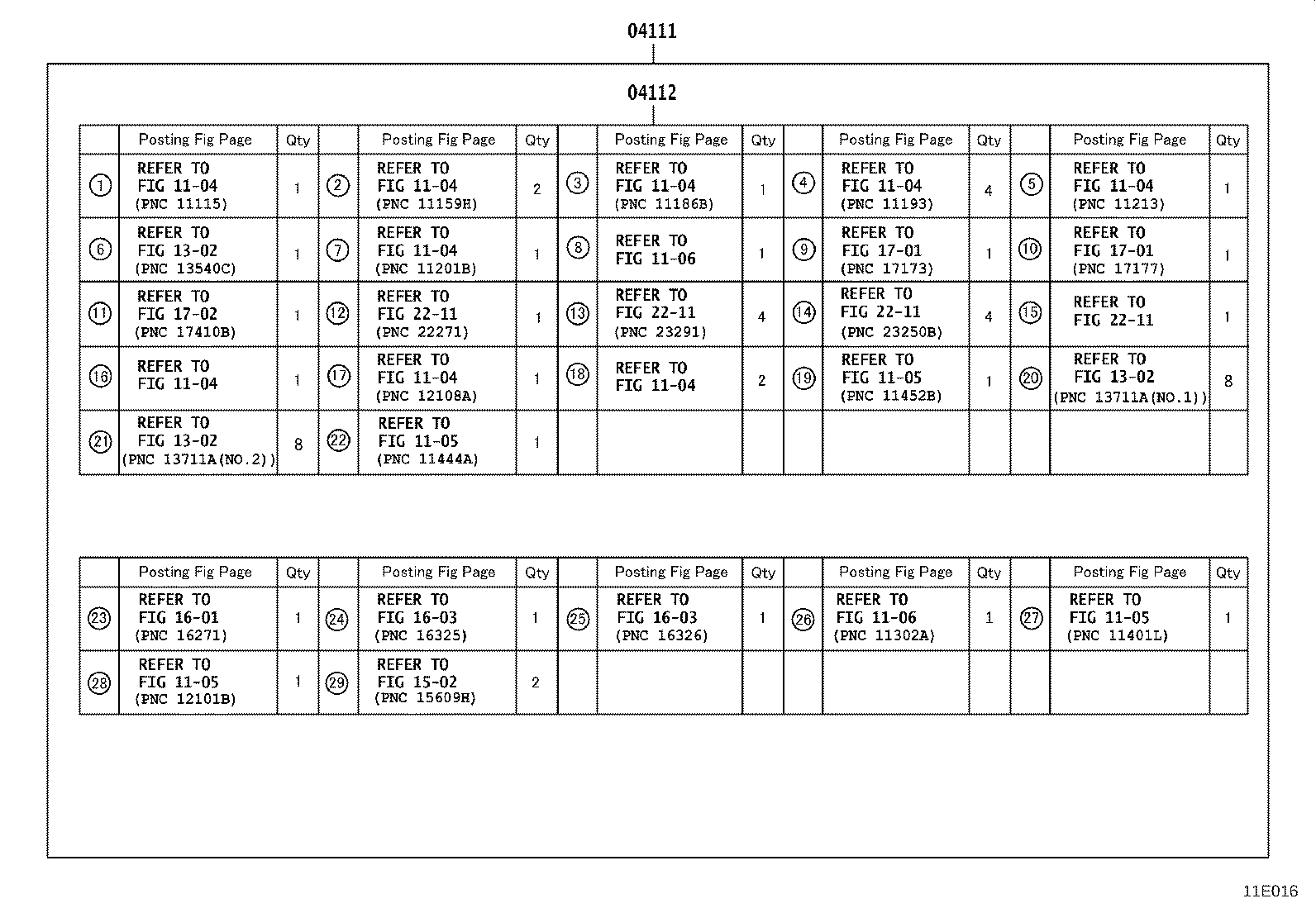

Figure 11F332 11F332 2020-11 → — Figure 11F333 11F333 2020-11 → — Figure 11E013 11E013 2019-01 → — Figure 11E014 11E014 2019-01 → — Figure 11E015 11E015 2019-01 → — Figure 11E016 11E016 2019-01 → — Figure 11E017 11E017 2019-01 → — Figure 11E018 11E018 2019-01 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
