Toyota Corolla (TUP)
2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe
Supported model
Data version 2022-12

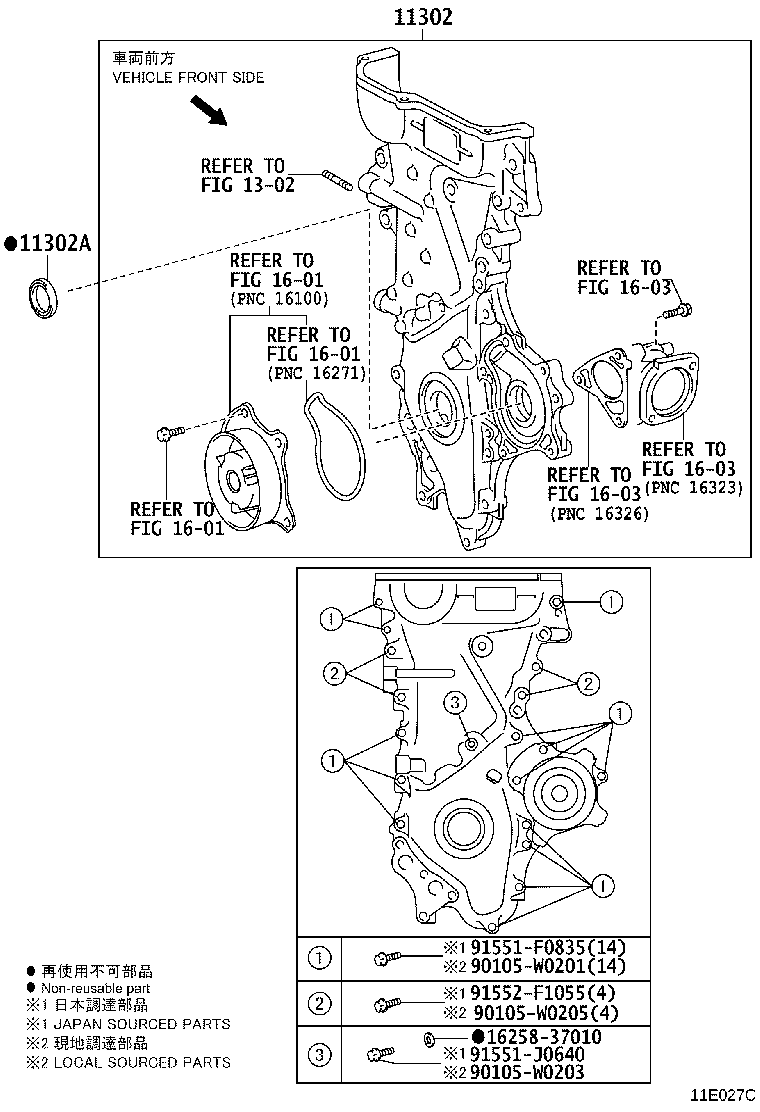

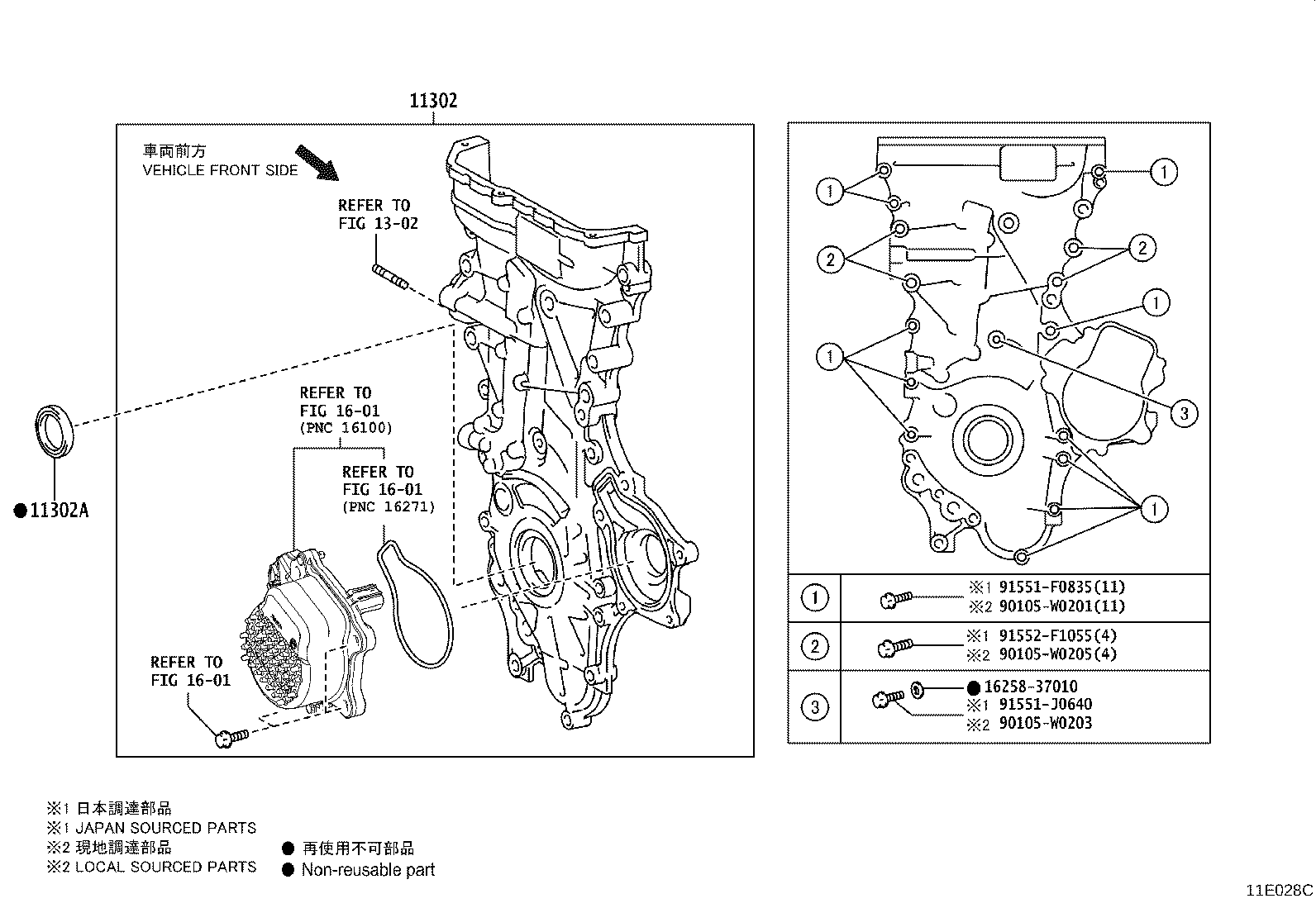

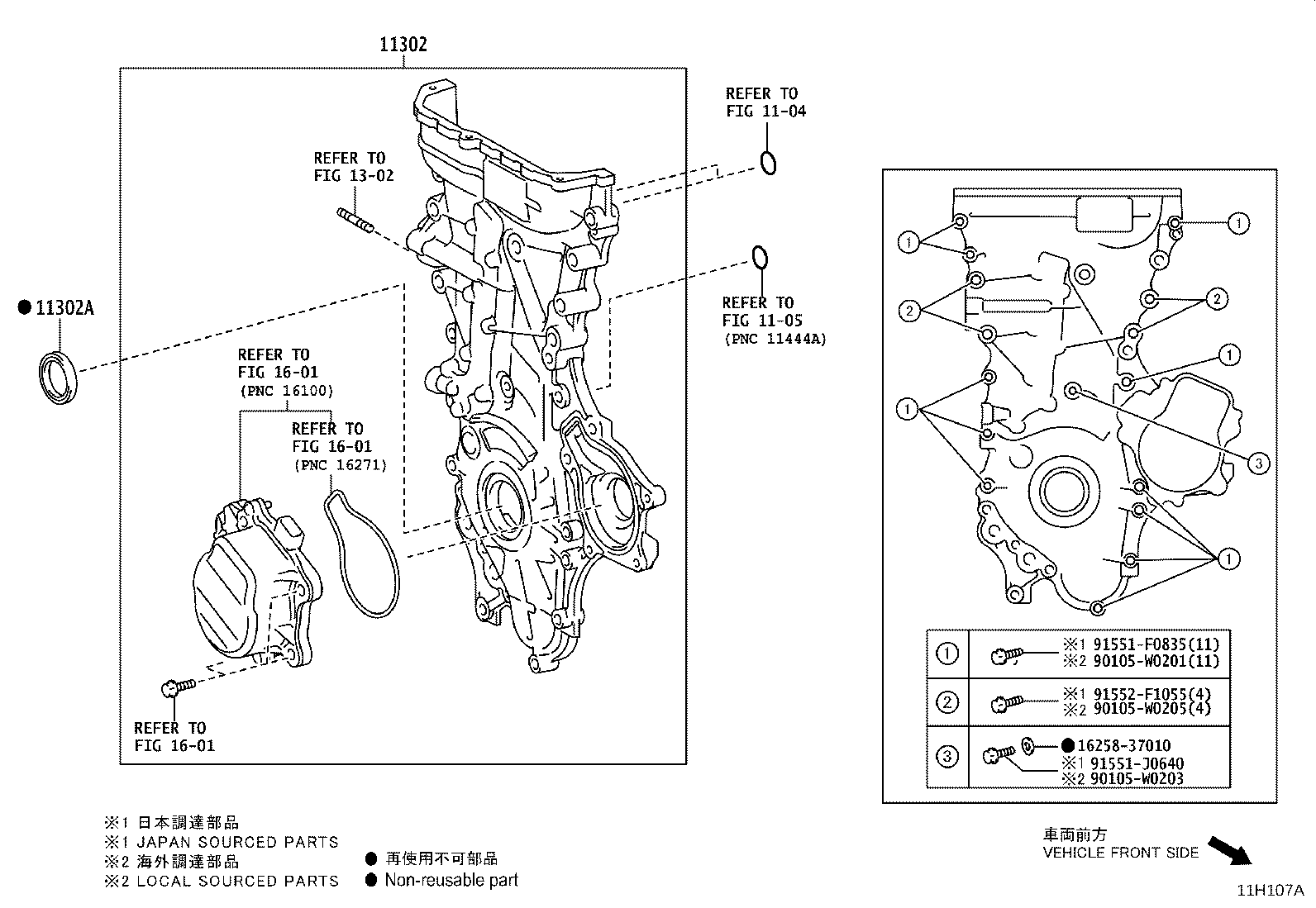

Timing Gear Cover & Rear End Plate
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302A | Seal, Oil(FOR TIMING CHAIN OR BELT COVER) |
| 11302J | Pin, Straight(FOR TIMING CHAIN COVER) |
| 11310 | Cover Assy, Timing Chain |
| 11320B | Cover Assy, Timing Chain, NO.2 |
| 15193A | Gasket, Oil Pump |
| 15370 | Solenoid Assy, Cam Timing Oil Control |
| 15370A | Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID) |
| 16620D | Tensioner Assy, V-ribbed Belt |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
