Toyota Corolla (TUP)

2019-01 → present · chassis MZEA11,ZRE21#, ZWE21# · catalogue 164230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

9 part groups · 4 illustrations

Illustrations

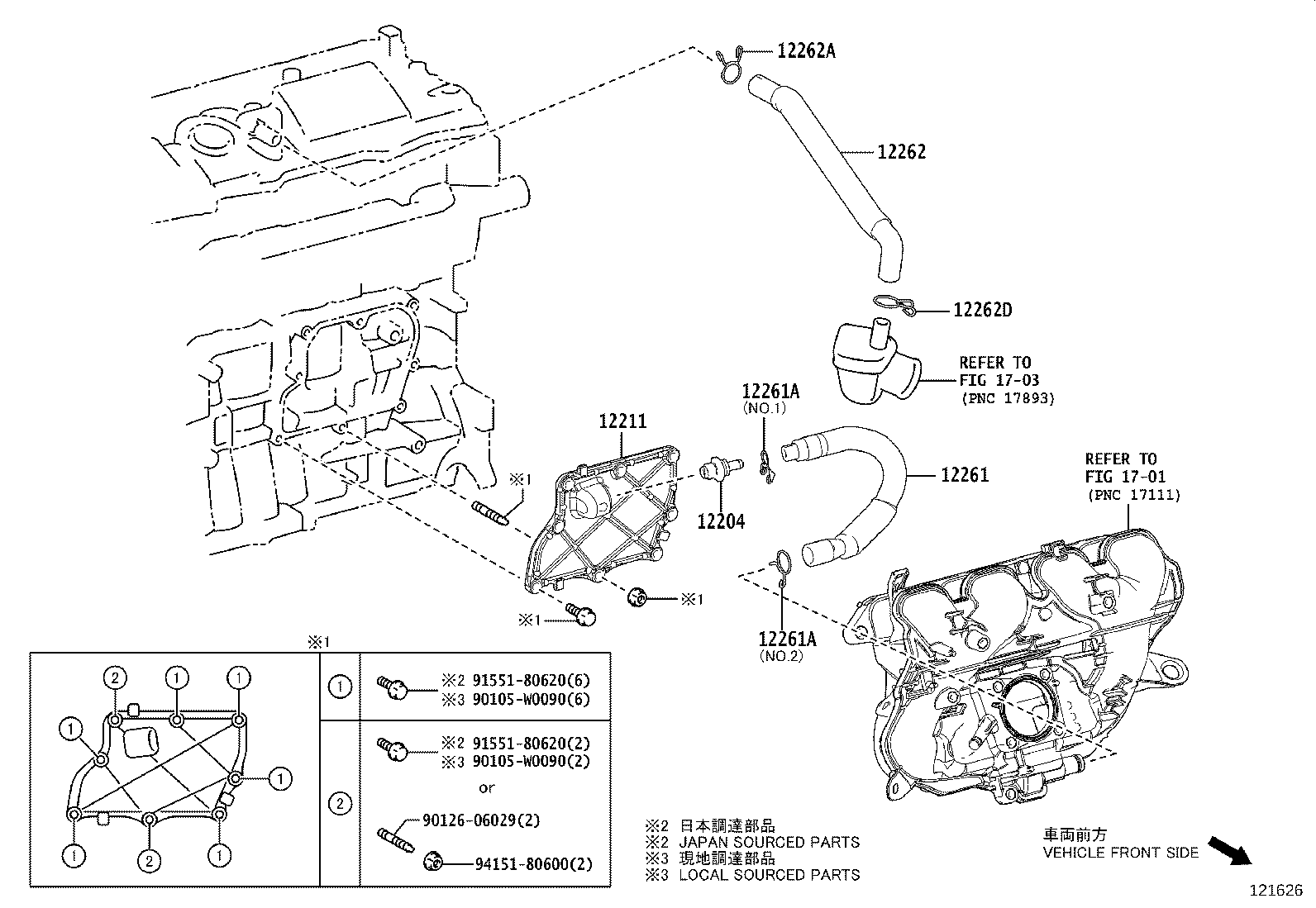

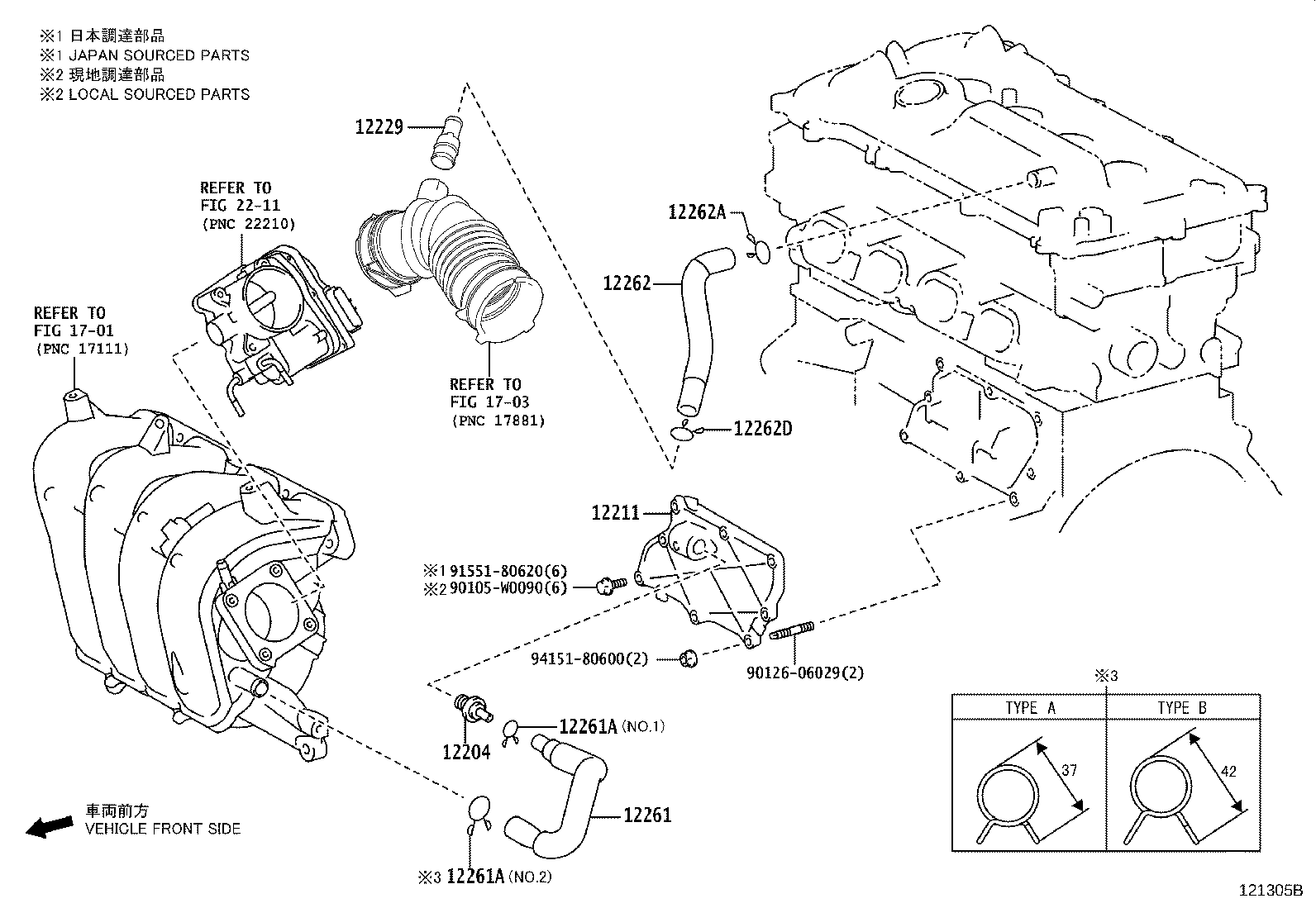

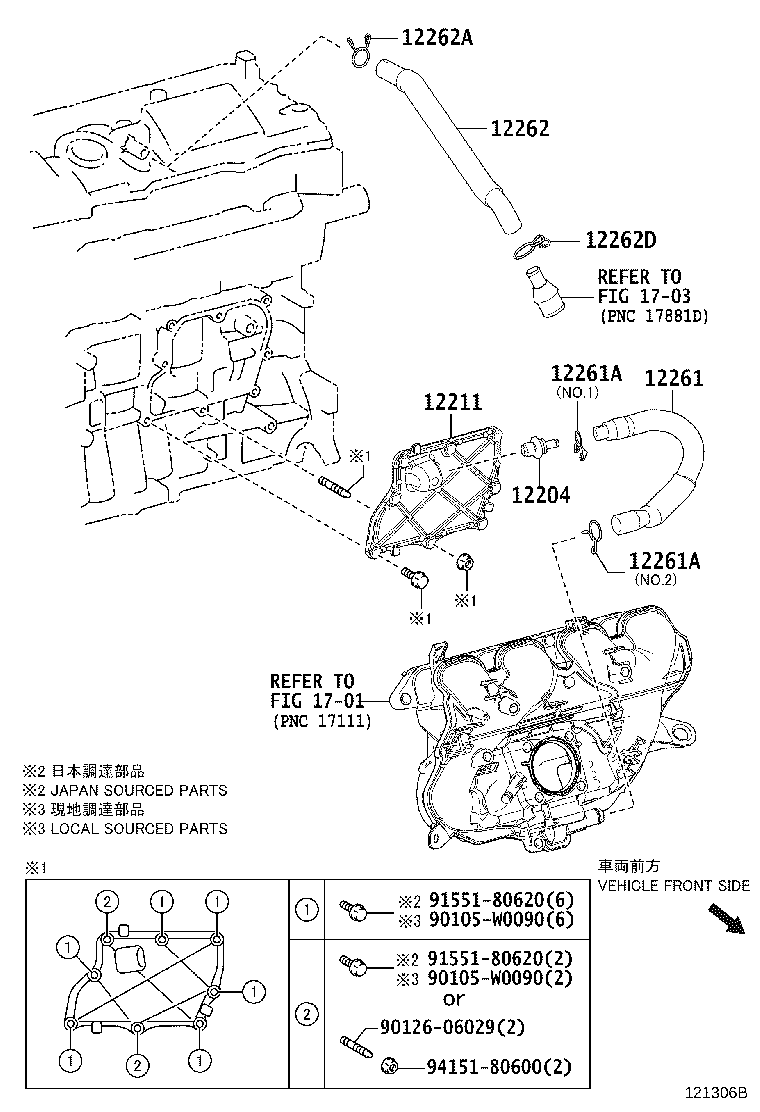

Figure 121447A 121447A 2020-11 → — Figure 121305B 121305B 2019-01 → — Figure 121306B 121306B 2019-01 → — Figure 121626 121626 2023-01 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12211 Case, Ventilation, NO.1
12229 Pipe, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262D Clip(FOR VENTILATION HOSE NO.2)
12273E Gasket(FOR VENTILATION CASE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
